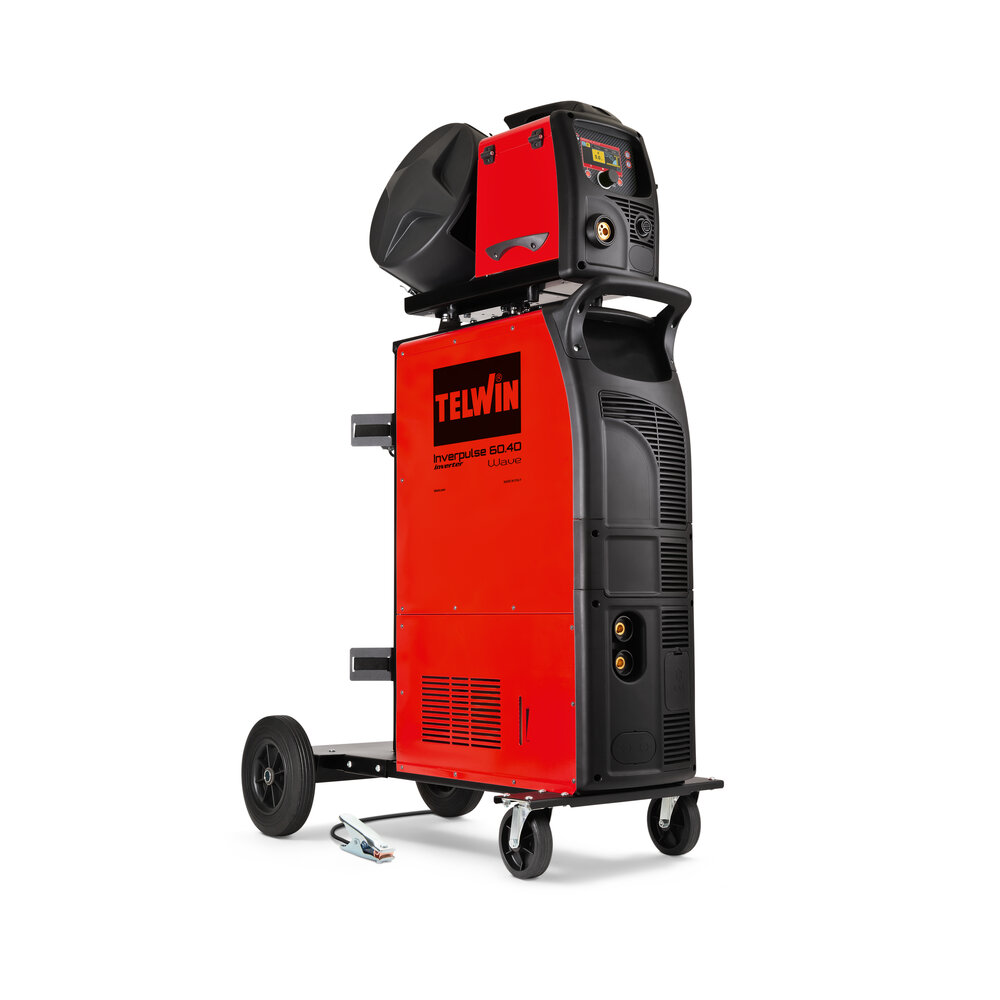

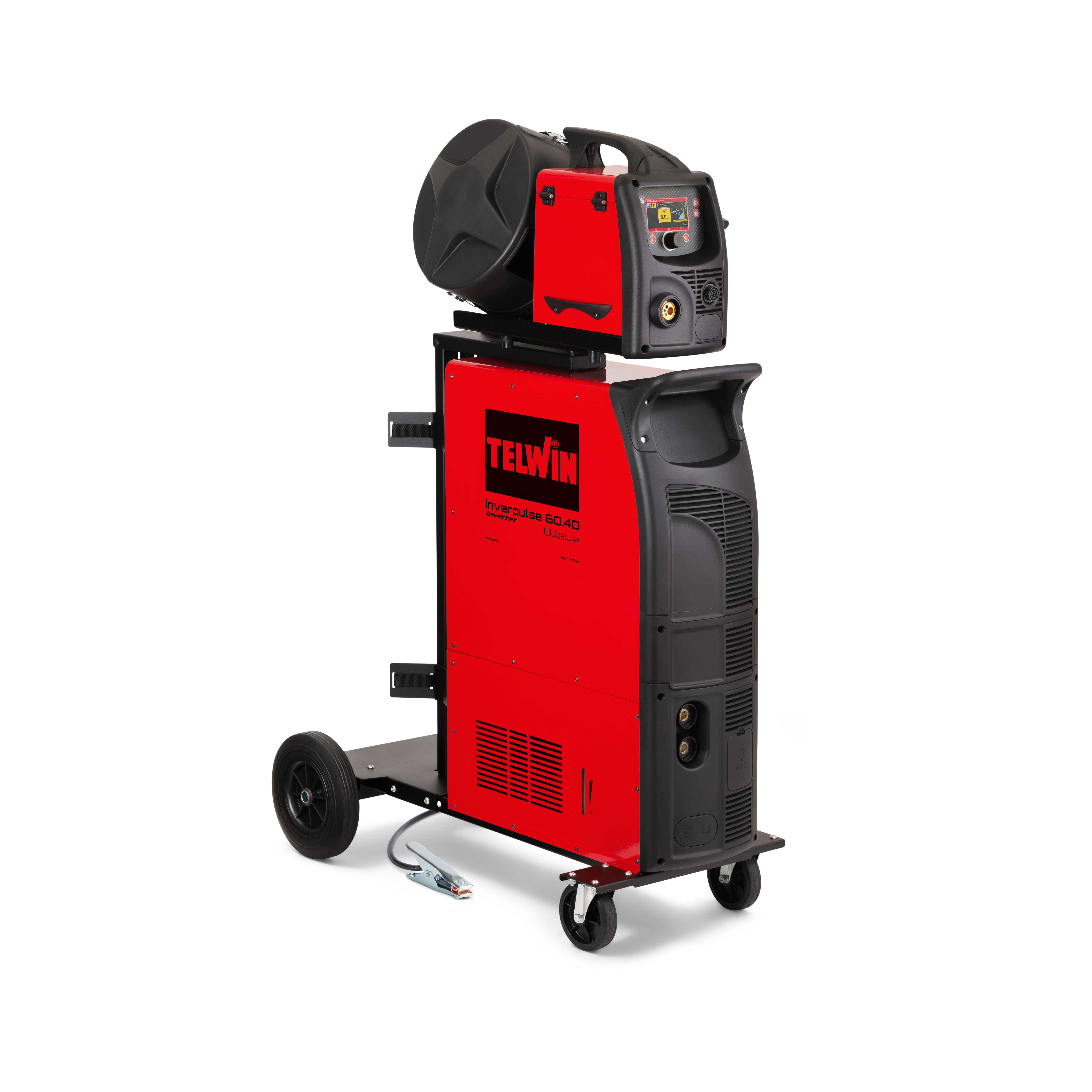

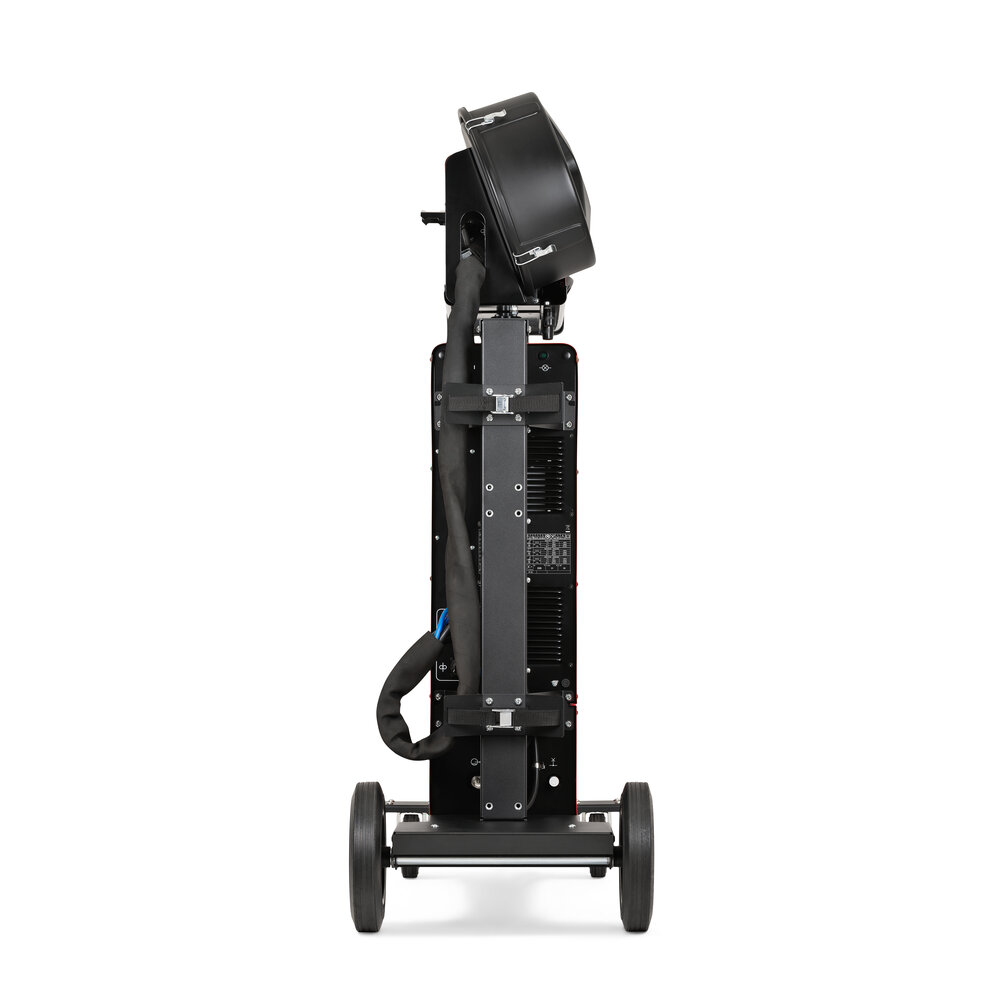

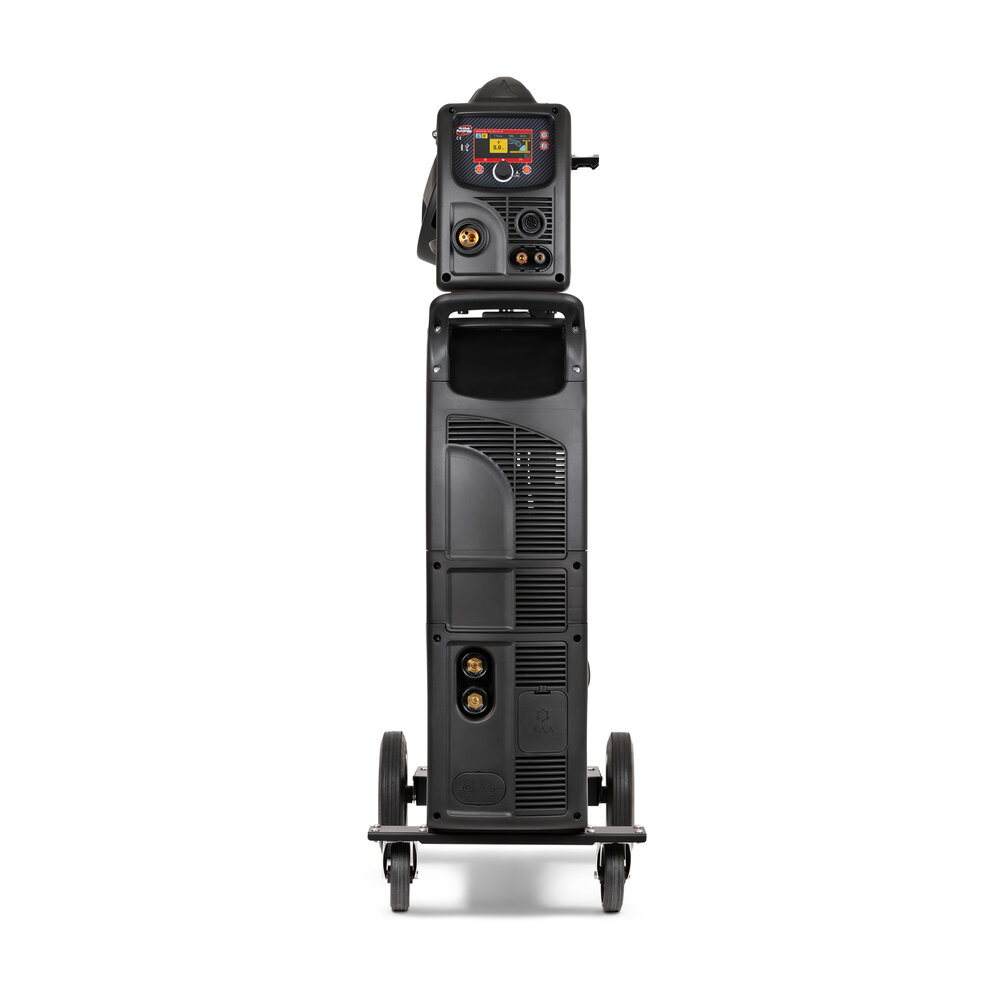

INVERPULSE 60.40 WAVE BASE

INVERPULSE 60.40 WAVE BASE

  • Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 500A. 3ph 230/400V power supply.
  • Wave OS operating system. EASY and EXPERT mode (customisable work environment).
  • Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
  • Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
  • User-friendly interface with TFT colour screen for simplified interaction with the product.
  • Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
  • High performance with reduced consumption.
  • Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 500A. 3ph 230/400V power supply.
  • Wave OS operating system. EASY and EXPERT mode (customisable work environment).
  • Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
  • Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
  • User-friendly interface with TFT colour screen for simplified interaction with the product.
  • Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
  • High performance with reduced consumption.
MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine with 4 rolls wire feeder.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to SYNERGIC adjustment of parameters.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) in pulse and double pulse (PULSE and POP) and with advanced welding arcs (ROOT-MIG, ATC, DEEP MIG).
Complete with VRD device.
Supplied with various stored welding programs, it is also possible to store, trace and export more customized programs.

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 400 / 20 - 500 A

DC CURRENT

330 / 400 A

MAX NO LOAD VOLTAGE

110 / 85 V

MAX ABSORBED CURRENT

42 / 35 A

ABSORBED CURRENT AT 60%

32 / 23 A

MAX ABSORBED POWER

17 / 23 kW

ABSORBED POWER AT 60%

11 / 15 kW

EFFICIENCY

90 %

POWER FACTOR

0,8

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 2,4 mm

INOX WELDING WIRE DIAMETER

0,8 - 2,4 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 2,4 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

103 x 51 x 145 cm

WEIGHT

82 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Software/App

Download File

MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine with 4 rolls wire feeder.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to SYNERGIC adjustment of parameters.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) in pulse and double pulse (PULSE and POP) and with advanced welding arcs (ROOT-MIG, ATC, DEEP MIG).
Complete with VRD device.
Supplied with various stored welding programs, it is also possible to store, trace and export more customized programs.

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 400 / 20 - 500 A

DC CURRENT AT 60%

330 / 400 A

MAX NO LOAD VOLTAGE IN DC

110 / 85 V

MAX ABSORBED CURRENT

42 / 35 A

ABSORBED CURRENT AT 60%

32 / 23 A

MAX ABSORBED POWER

17 / 23 kW

ABSORBED POWER AT 60%

11 / 15 kW

EFFICIENCY

90 %

POWER FACTOR(cosphi) (cosphi)

0,8

D.USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMET.

0,6 - 2,4 mm

INOX WELDI.WIRE DIAMETER

0,8 - 2,4 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDI.WIRE DIA.

1 - 2,4 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

103 x 51 x 145 cm

WEIGHT

82 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Software/App

Download File

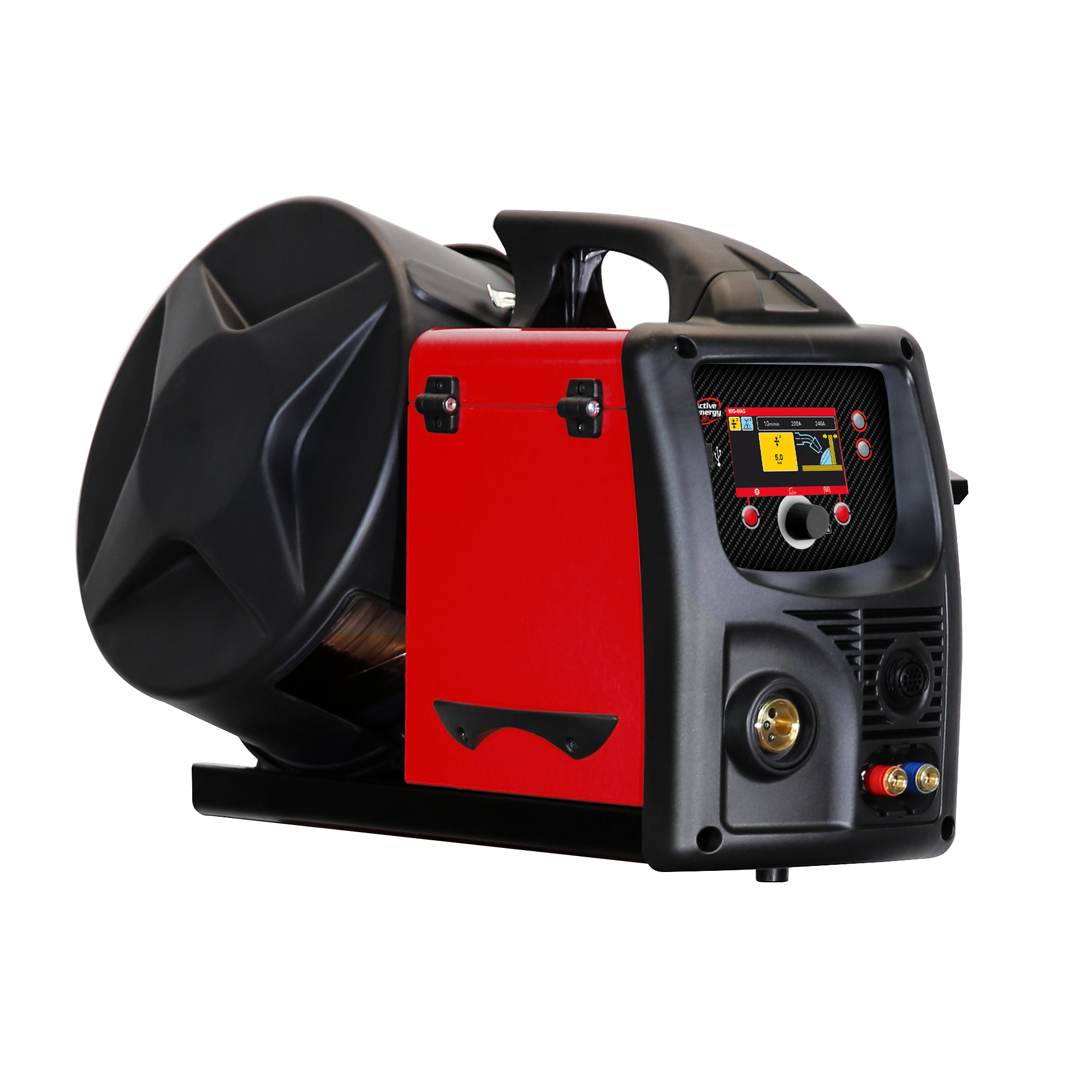

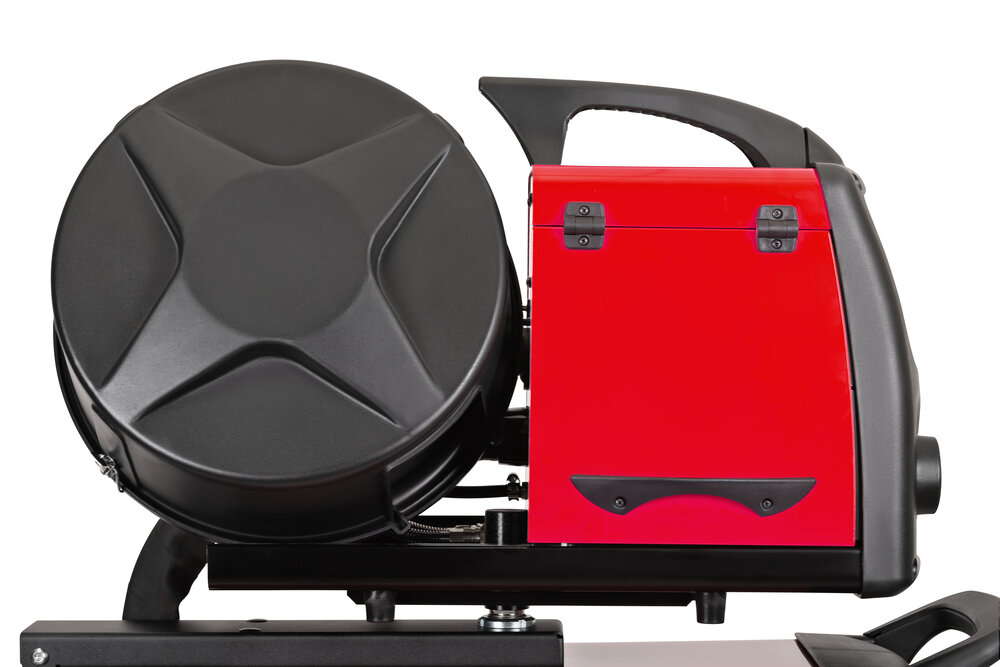

TI 60.40 WIREFEEDER

806276

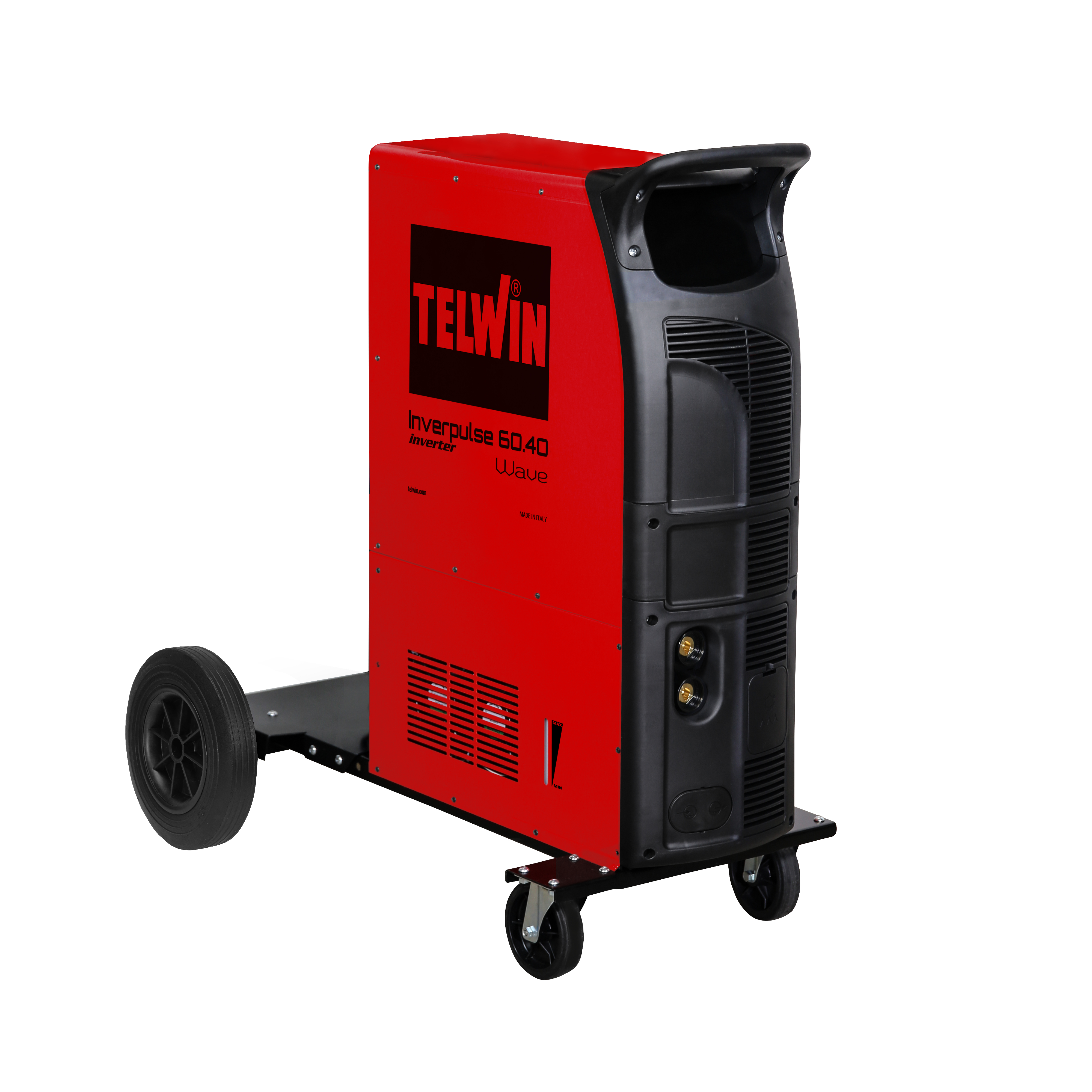

INVERPULSE 60.40 WAVE p.source

816276

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 70MMQ 4M AX70

804126
REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336
OTHER ACCESSORIES

TWO GASBOTTLE HOLDER KIT

803067
GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208
MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802409

FLUX CORED WIRE WELDING KIT D. 1-2,4 MM

802276
MIG TORCHES

MT40S MIG TORCH 5M

742822
MIG - AQUA TORCHES

MT240 MIG TORCH 4M AQUA

742996

MT500 MIG TORCH 4M AQUA

742821

MT500 MIG TORCH 5M AQUA

722683

MT555 DC MIG TORCH 4M AQUA

742881
WIRE FEEDERS AND ACCESSORIES

WIRE FEEDER WHEELS KIT

804224

COIL ADAPTOR B-300

802486
MIG CONNECTION CABLES

CONNECTING CABLE 70MMQ 4M 14 POLES

802348

CONNECTING CABLE 70MMQ 10M 14 POLES

802349

CONNECTING CABLE 70MMQ 4M AQUA

802398

CONNECTING CABLE 70MMQ 10M AQUA

802399

CONNECTING CABLE 95MMQ 30M AQUA

802470
OTHER MIG ACCESSORIES

MULTIPURPOSE BRACKET KIT FOR GENERATOR

804403
TIG TORCHES

ST26V TIG TORCH AX50 4M

742058
WATER COOLING UNITS

GRA 5505 EXTRA POWER WATER COOLING UNIT

804258
