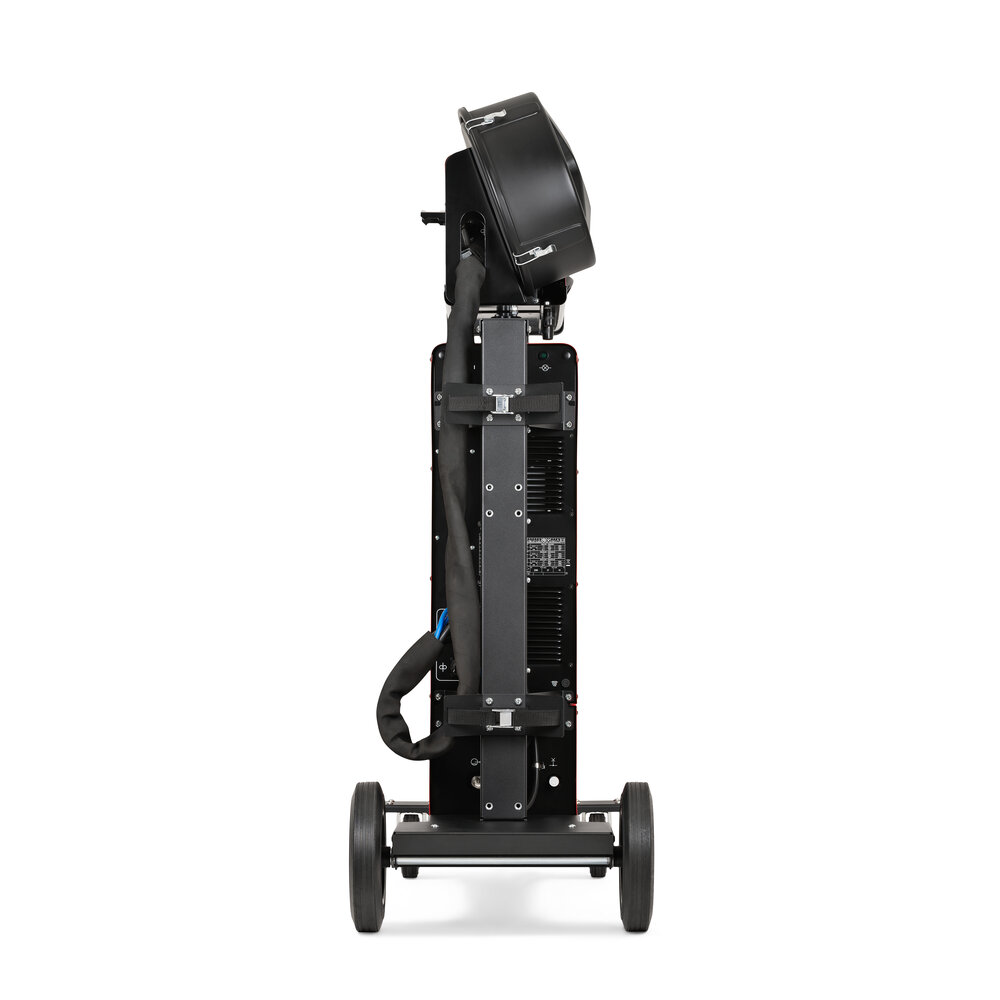

INVERPULSE 60.30 WAVE BASE

Home special INVERPULSE 60.30 WAVE BASE

INVERPULSE 60.30 WAVE BASE

INVERPULSE 60.30 WAVE BASE

Download PDF Request Info

Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 400A. 3ph 230/400V power supply.
Wave OS operating system. EASY and EXPERT mode (customisable work environment).
Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
User-friendly interface with TFT colour screen for simplified interaction with the product.
Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
High performance with reduced consumption.

Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 400A. 3ph 230/400V power supply.
Wave OS operating system. EASY and EXPERT mode (customisable work environment).
Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
User-friendly interface with TFT colour screen for simplified interaction with the product.
Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
High performance with reduced consumption.

MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine with 4 rolls wire feeder.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to SYNERGIC adjustment of parameters.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) in pulse and double pulse and with advanced welding arcs (ROOT-MIG, ATC, DEEP MIG (PULSE and POP), AB PULSE, AB POP).
Complete with VRD device.
Supplied with various stored welding programs, it is also possible to store, trace and export more customized programs.
