INVERPULSE 60.30 WAVE

INVERPULSE 60.30 WAVE

Download PDF Request Info

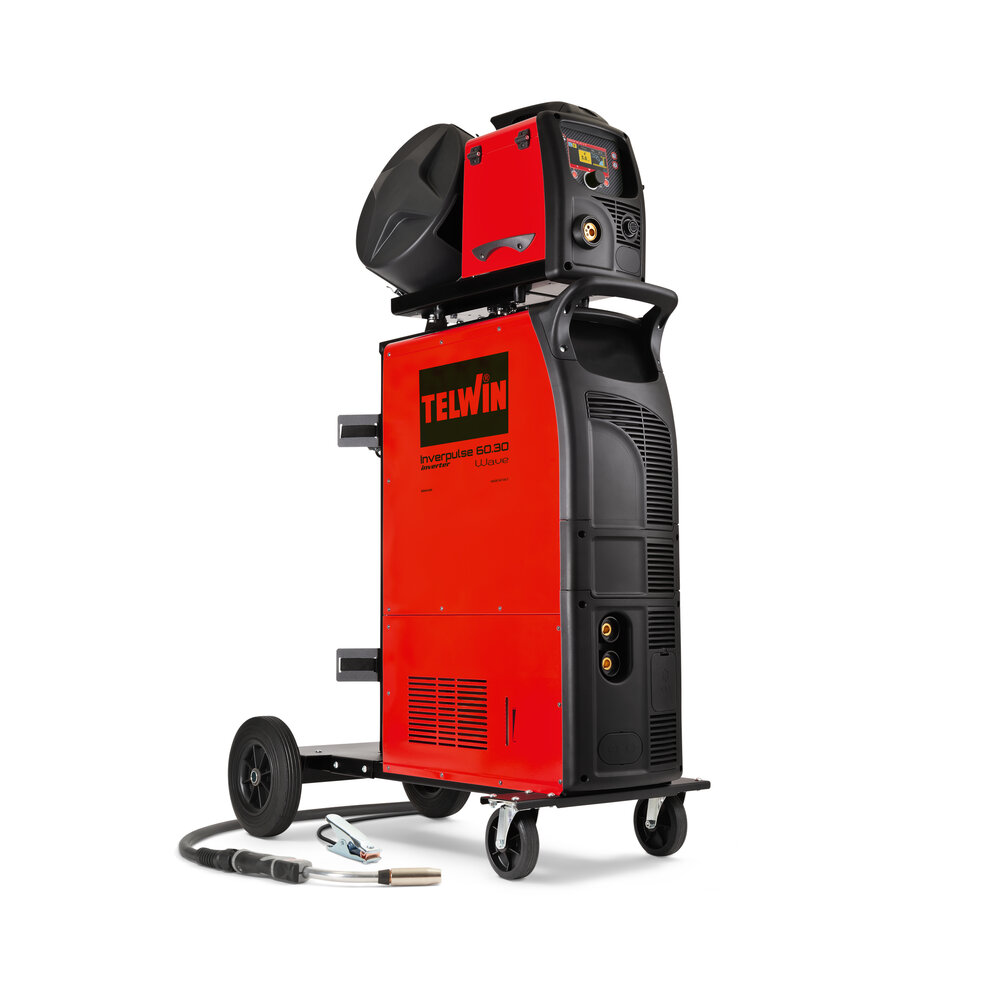

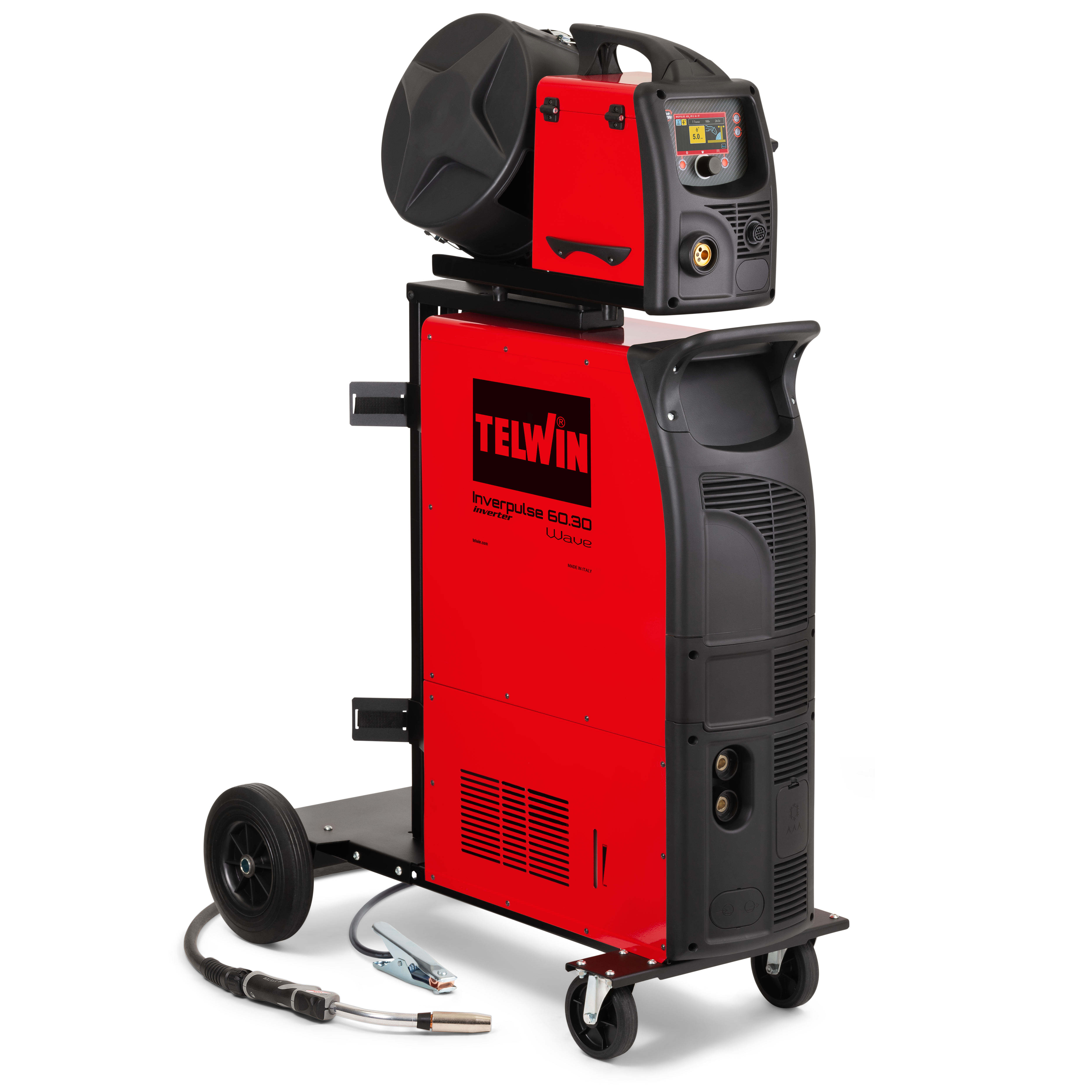

Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 400A. 3ph 230/400V power supply.
Wave OS operating system. EASY and EXPERT mode (customisable work environment).
Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
User-friendly interface with TFT colour screen for simplified interaction with the product.
Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
High performance with reduced consumption.

Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 400A. 3ph 230/400V power supply.
Wave OS operating system. EASY and EXPERT mode (customisable work environment).
Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
User-friendly interface with TFT colour screen for simplified interaction with the product.
Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
High performance with reduced consumption.

Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder.
The WAVE OS system makes welding operations: customisable according to user requirements; traceable and analysable, through data storage via USB; simplified, thanks to the SYNERGIC adjustment of parameters.
It is possible to operate on different materials (steel, stainless steel, aluminium, galvanised and zinc-plated sheet metal) in pulse and double pulse (PULSE and POP).
Presence of advanced welding arcs for dedicated applications (ROOT-MIG, ATC, DEEP MIG).
Supplied with various stored welding programs, it is also possible to store, trace and export more customized programs.
The professional 4-rolls wire feeder is designed to ensure precise and constant wire feeding, even in continuous industrial applications with high duty cycles. Robust and ergonomic, with reel support up to 300 mm, internal lighting, IP protection and compatibility with air/liquid torches, it ensures reliability, versatility and resistance in harsh environments. It allows remote adjustment of all welding parameters.
Interchangeable cable harness.

Features:

robust, impact and dust resistant;
compact and ergonomic structure;
high energy efficiency and low consumption;
TFT Wave graphic display.

MIG-MAG

Wave OS operating system. EASY and EXPERT mode (customisable work environment);
130 pre-set synergic curves;
advanced welding arcs: ROOT-MIG, ATC, DEEP MIG;
display showing wire speed, voltage and welding current;
selection of 2/4-stroke operation, Bi-Level, spot, material thicknesses in inches and millimetres;
up to 18 advanced welding parameters can be adjusted, including: start/end currents and arc corrections; up and down slope; Pre and Post Gas.

MMA

MMA adjustments: hot start, arc force;
anti-stick protection;
VRD device.

TIG

LIFT DC ignition and display of welding voltage and current.

Thermostatic protection, overvoltage (+15%), undervoltage (-25%), overcurrent, motor generator.
Complete with MIG-MAG torch, cable and earth clamp, wire feeder and connection cables.

CODE

816175

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX CURRENT DC EN60974-1

270 @ 60% A

CURRENT CONTROL RANGE DC

20 - 400 A

CURRENT 60% DC

270 A

CURRENT 100% DC

210 A

MAX ABSORBED CURRENT

31 A

MAX DC NO LOAD VOLTAGE

73 V

RANGE V OUT MIG

9 - 34 V

MAX ABSORBED POWER

16,5 kW

FUSE

16 A

EFFICIENCY

89 %

DIAMETER

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 2 mm

INOX WELDING WIRE DIAMETER

0,8 - 2 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

WIRE SPEED RANGE

1,5 - 20 m/min

SUPPLY CABLE LENGTH

3 m

NORM

EN 60974-1 /-5 /-10

PROTECTION DEGREE

IP23

DIMENSIONS

103 x 51 x 145 cm

WEIGHT

75 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

Software/App

Download File

MT40S MIG TORCH 4 M

802743

CONNECTING CABLE 70MMQ 1.5M

804292

TI 60.30 WIREFEEDER

806275

INVERPULSE 60.30 WAVE P.SOURCE

816275

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 35MMQ 4M AX50

804124

REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336

OTHER ACCESSORIES

TWO GASBOTTLE HOLDER KIT

803067

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802409

FLUX CORED WIRE WELDING KIT D. 1-2,4 MM

802276

WIRE FEEDERS AND ACCESSORIES

WIRE FEEDER WHEELS KIT

804224

COIL ADAPTOR B-300

802486

MIG CONNECTION CABLES

CONNECTING CABLE 70MMQ 4M 14 POLES

802348

CONNECTING CABLE 70MMQ 10M 14 POLES

802349

CONNECTING CABLE 95MMQ 30M AQUA

802470

OTHER MIG ACCESSORIES

PUSH PULL BOARD KIT

982219

MULTIPURPOSE BRACKET KIT FOR GENERATOR

804403

TIG TORCHES

ST26V 4M AX50 TIG TORCH

742058
