INVERPULSE 60.40 WAVE + ACC.

INVERPULSE 60.40 WAVE + ACC.

Download PDF Request Info

Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 500A. 3ph 230/400V power supply.
Wave OS operating system. EASY and EXPERT mode (customisable work environment).
Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
User-friendly interface with TFT colour screen for simplified interaction with the product.
Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
High performance with reduced consumption.

Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), with external 4-roller wire feeder, 500A. 3ph 230/400V power supply.
Wave OS operating system. EASY and EXPERT mode (customisable work environment).
Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
User-friendly interface with TFT colour screen for simplified interaction with the product.
Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)
High performance with reduced consumption.

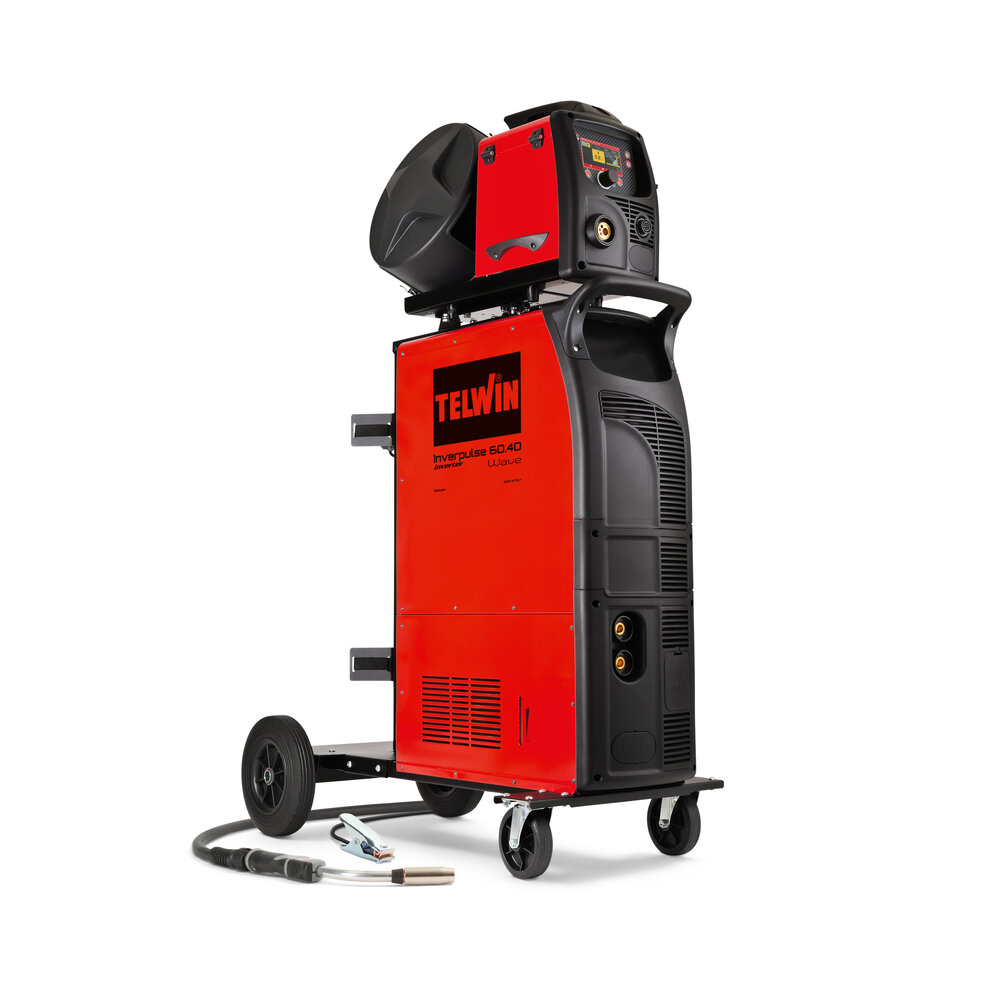

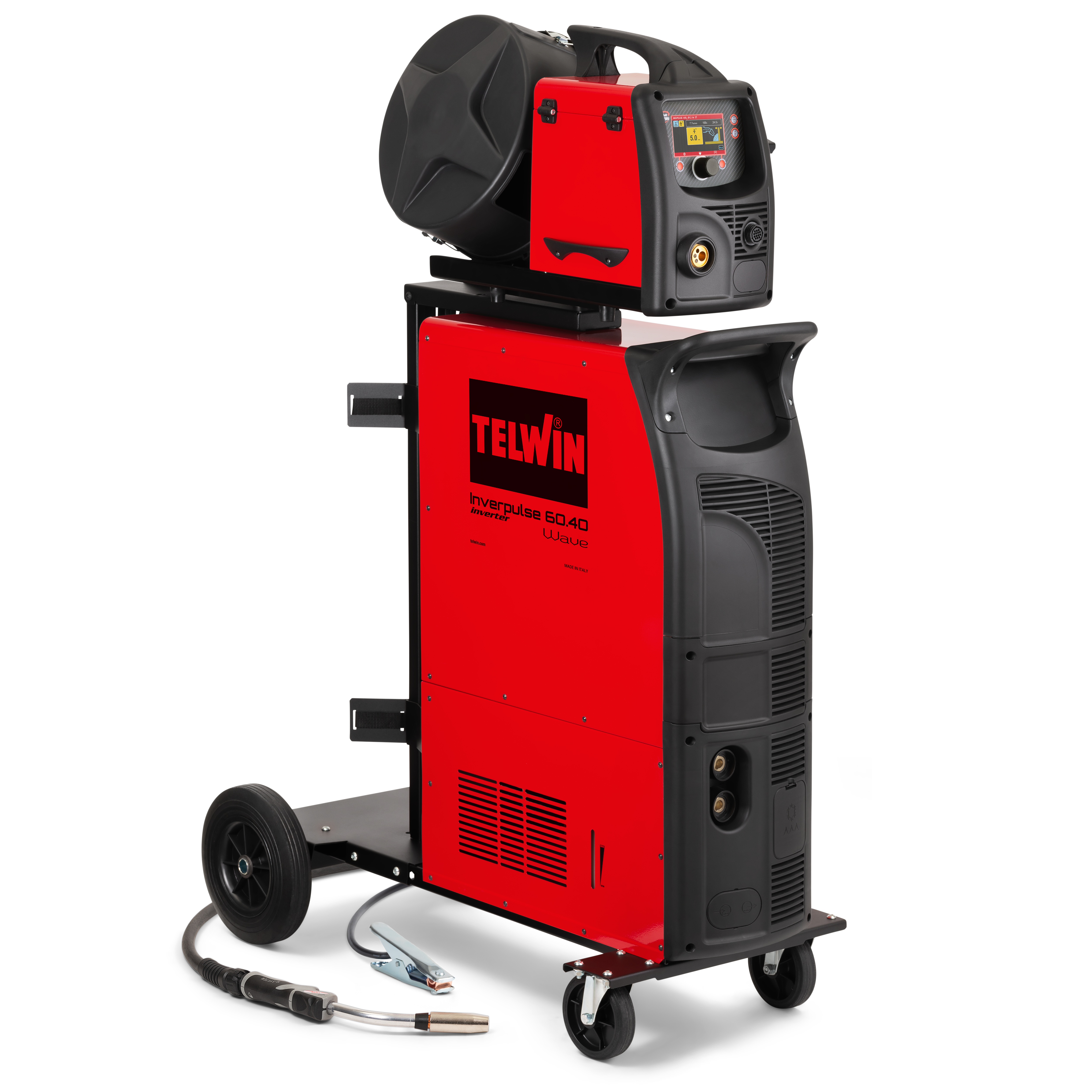

MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine with 4 rolls wire feeder.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanks to SYNERGIC adjustment of parameters.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) in pulse and double pulse (PULSE and POP) and with advanced welding arcs (ROOT-MIG, ATC, DEEP MIG).
Complete with VRD device.
Supplied with various stored welding programs, it is also possible to store, trace and export more customized programs.
Complete with MIG-MAG torch, cable and earth clamp.

CODE

816178

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 400 / 20 - 500 A

DC CURRENT

330 / 400 A

MAX NO LOAD VOLTAGE

110 / 85 V

MAX ABSORBED CURRENT

42 / 35 A

ABSORBED CURRENT AT 60%

32 / 23 A

MAX ABSORBED POWER

17 / 23 kW

ABSORBED POWER AT 60%

11 / 15 kW

EFFICIENCY

90 %

POWER FACTOR

0,8

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 2,4 mm

INOX WELDING WIRE DIAMETER

0,8 - 2,4 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 2,4 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

103 x 51 x 145 cm

WEIGHT

88 kg

Catalog Image

Download IMG

Software/App

Download File

MT40S MIG TORCH 4 M

802743

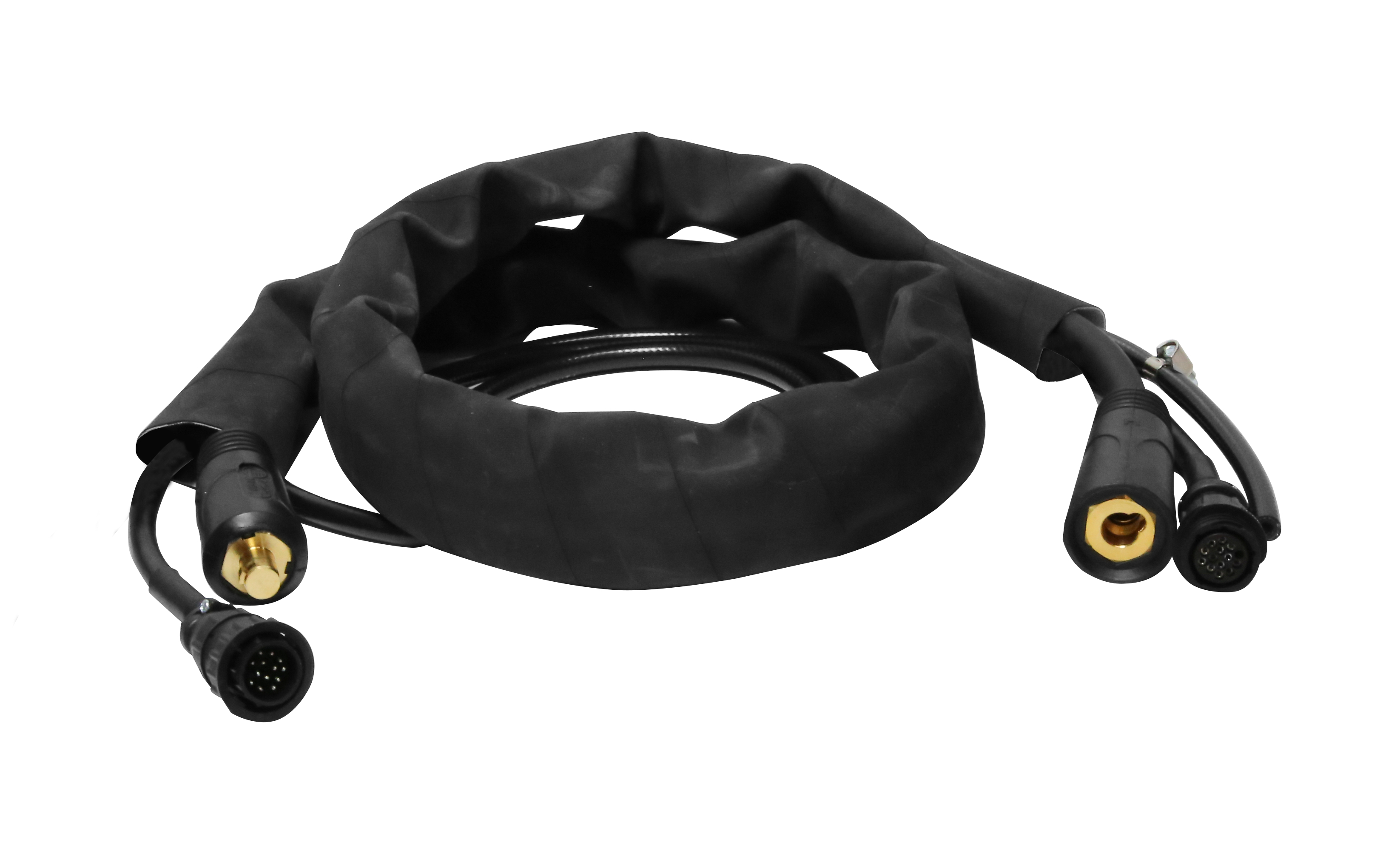

CONNECTING CABLE 70MMQ 1.5M

804292

TI 60.40 WIREFEEDER

806276

INVERPULSE 60.40 WAVE p.source

816276

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 70MMQ 4M AX70

804126

REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336

OTHER ACCESSORIES

TWO GASBOTTLE HOLDER KIT

803067

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802409

FLUX CORED WIRE WELDING KIT D. 1-2,4 MM

802276

MIG TORCHES

MT40S MIG TORCH 5M

742822

WIRE FEEDERS AND ACCESSORIES

WIRE FEEDER WHEELS KIT

804224

COIL ADAPTOR B-300

802486

MIG CONNECTION CABLES

CONNECTING CABLE 70MMQ 4M 14 POLES

802348

CONNECTING CABLE 70MMQ 10M 14 POLES

802349

OTHER MIG ACCESSORIES

PUSH PULL BOARD KIT

982219

MULTIPURPOSE BRACKET KIT FOR GENERATOR

804403

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

CODE

816178

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 400 / 20 - 500 A

DC CURRENT AT 60%

330 / 400 A

MAX NO LOAD VOLTAGE IN DC

110 / 85 V

MAX ABSORBED CURRENT

42 / 35 A

ABSORBED CURRENT AT 60%

32 / 23 A

MAX ABSORBED POWER

17 / 23 kW

ABSORBED POWER AT 60%

11 / 15 kW

EFFICIENCY

90 %

POWER FACTOR(cosphi) (cosphi)

0,8

D.USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMET.

0,6 - 2,4 mm

INOX WELDI.WIRE DIAMETER

0,8 - 2,4 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDI.WIRE DIA.

1 - 2,4 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

103 x 51 x 145 cm

WEIGHT

88 kg

Catalog Image

Download IMG

Software/App

Download File

MT40S MIG TORCH 4 M

802743

CONNECTING CABLE 70MMQ 1.5M

804292

TI 60.40 WIREFEEDER

806276

INVERPULSE 60.40 WAVE p.source

816276

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 70MMQ 4M AX70

804126

REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336

OTHER ACCESSORIES

TWO GASBOTTLE HOLDER KIT

803067

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802409

FLUX CORED WIRE WELDING KIT D. 1-2,4 MM

802276

MIG TORCHES

MT40S MIG TORCH 5M

742822

WIRE FEEDERS AND ACCESSORIES

WIRE FEEDER WHEELS KIT

804224

COIL ADAPTOR B-300

802486

MIG CONNECTION CABLES

CONNECTING CABLE 70MMQ 4M 14 POLES

802348

CONNECTING CABLE 70MMQ 10M 14 POLES

802349

OTHER MIG ACCESSORIES

PUSH PULL BOARD KIT

982219

MULTIPURPOSE BRACKET KIT FOR GENERATOR

804403

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

WELDING ADVANCED VISUAL ENVIRONMENT

The advanced intelligence of the Wave OS operating system assists the user in his work and allows complete control and monitoring of the work process and the related costs.

DISCOVER MORE

PULSE

Welding in all positions

The reduced heat input of pulsed welding guarantees minimum distortion and makes welding easier, especially with vertical up/down and overhead welding.
