TECHNOMIG DUAL SYNERGIC RANGE

SYNERGIC MULTIPROCESS WELDING MACHINE

Flux-cored, gas-shielded, electrode and TIG welding with a single product. Don't compromise, with Technomig you can have it all. Switching from one process to another is quick and easy. Guaranteed quality workmanship. Discover synergic multi-process welding machines with high standards of safety and reliability. Made in Italy, Made in Telwin.

DISCOVER THE RANGE

ONE PRODUCT, ENDLESS POSSIBILITIES

In addition to guaranteeing excellent results in MIG-MAG/FLUX wire welding, every Technomig is designed to operate with MMA and TIG electrodes, with optional welding accessories, maintaining the highest quality results.

Intuitivity

Immediate welding with One Touch

Preset synergic welding curves allow you to work on different materials and with different wires and gases. Intelligent and automatic arc control, moment by moment, guarantees high welding performance in all working conditions. You can also manually adjust the arc length to change the shape of the weld bead according to your welding style.

Versatility

Unlimited materials and applications

Its flexibility of use and the different materials that can be welded (steel, stainless steel, aluminium) or brazed (galvanised sheet metal) confirm Technomig Dual Synergic as an excellent solution in a wide variety of fields of application, from maintenance to installation to bodywork repairs.

Precision

Excellence even on thin thicknesses

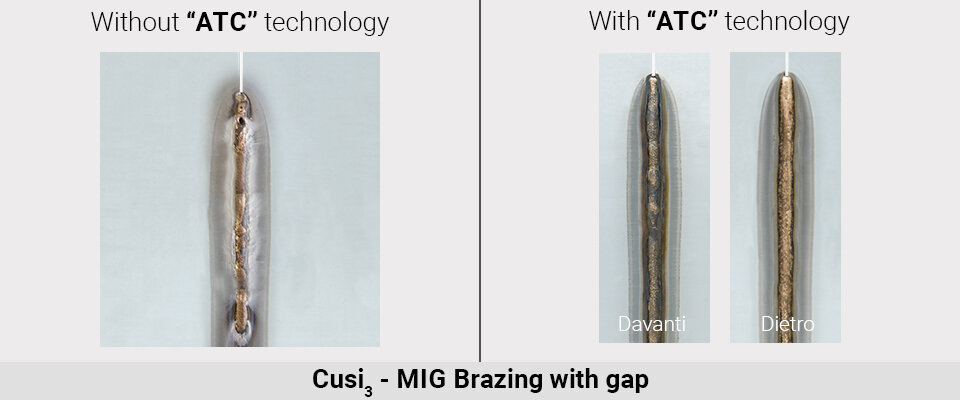

ATC (ADVANCED THERMAL CONTROL) technology, made by Telwin, is used in sectors where materials (with thicknesses between 0.5-0.8 mm) are extremely sensitive to deformation caused by welding temperatures. The advanced arc control of the ATC makes it very easy to achieve excellent welds on thin thicknesses.

* Starting from model 215.

Mobility

Transportability tailored to actual needs

Your workstation is not fixed, and neither does your Technomig have to be. Combine your welding machine with a compatible trolley, or choose the model on wheels, so you can move around your space with ease.

SEE PRODUCT

TECHNOMIG 180 DUAL SYNERGIC

SEE PRODUCT

SEE PRODUCT

TECHNOMIG 210 DUAL SYNERGIC

SEE PRODUCT

SEE PRODUCT

TECHNOMIG 215 DUAL SYNERGIC

SEE PRODUCT

SEE PRODUCT

TECHNOMIG 225 DUAL SYNERGIC

SEE PRODUCT

SEE PRODUCT

TECHNOMIG 260 DUAL SYNERGIC

SEE PRODUCT

	TECHNOMIG 180 DUAL SYNERGIC	TECHNOMIG 210 DUAL SYNERGIC	TECHNOMIG 215 DUAL SYNERGIC	TECHNOMIG 225 DUAL SYNERGIC	TECHNOMIG 260 DUAL SYNERGIC	TECHNOMIG 265 DUAL SYNERGIC
CURRENT RANGE	20 - 170 A	20 - 200 A	20 - 220 A	20 - 220 A	20 - 250 A	20 - 250 A
MAX CURRENT DC EN60974-1	140A @ 20%	180A @ 20%	180A @ 20%	180A @ 20%	220A @ 20%	220A @ 20%
Ø WELDING WIRE	ST 0,6 - 0,8 mm SS 0,8 mm AL 0,8 - 1 mm FX 0,8 - 1,2 mm	ST 0,6 - 1 mm SS 0,8 - 1 mm AL 0,8 - 1 mm FX 0,8 - 1,2 mm	ST 0,6 - 1 mm SS 0,8 - 1 mm AL 0,8 - 1 mm FX 0,8 - 1,2 mm	ST 0,6 - 1 mm SS 0,8 - 1 mm AL 0,8 - 1 mm FX 0,8 - 1,2 mm	ST 0,6 - 1,2 mm SS 0,8 - 1 mm AL 0,8 - 1 mm FX 0,8 - 1,2 mm	ST 0,6 - 1,2 mm SS 0,8 - 1 mm AL 0,8 - 1 mm FX 0,8 - 1,2 mm
ATC	No	No	Yes	Yes	Yes	Yes
Mobility	Optional Cart	Optional Cart	Optional Cart	Wheeled	Optional Cart	Wheeled
	Product Sheet	Product Sheet	Product Sheet	Product Sheet	Product Sheet	Product Sheet
