Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift and GOUGING) with external 4-roller wire feeder and trolley, 400A. 3ph 230/400V power supply. XD = high duty cycle for continuous machining and particularly heavy applications.
OneTouch synergic adjustment. 40 preset synergic curves.
LCD display of the wire speed, welding voltage and current. 2/4 times, spot operating selection.
MMA: direct and pulse current (MMA PULSE) operation. VRD device.
Gouging process. TIG-DC Lift.
Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
Strong, resistant to impact and dust; reduced weight and size. High energy savings.

Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift and GOUGING) with external 4-roller wire feeder and trolley, 400A. 3ph 230/400V power supply. XD = high duty cycle for continuous machining and particularly heavy applications.
OneTouch synergic adjustment. 40 preset synergic curves.
LCD display of the wire speed, welding voltage and current. 2/4 times, spot operating selection.
MMA: direct and pulse current (MMA PULSE) operation. VRD device.
Gouging process. TIG-DC Lift.
Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
Strong, resistant to impact and dust; reduced weight and size. High energy savings.

MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift multiprocess inverter welding machine with external wire feeder with 4 rolls.
Flexible use with different materials (steel, stainless steel, high strength steel, aluminium, etc.) and wide variety of application fields (industry, metal structures, construction, etc.).
The XD model is characterised by a high duty cycle for continuous machining and particularly heavy applications.
Particularly resistant to dirt and dust thanks to the particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components, guaranteeing longer duration over time.
Made in Telwin ATC technology allows you to easily achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
The 4-roll feeder with 4m cable bundle (direct connection) is robust and transportable, making remote control of the generator possible.
Electrode welding is both direct current and pulse current. Pulse mode (MMA Pulse) is recommended with basic electrodes in position welding and ensures less spray and reworking and higher welding seam quality.
Gouging function is available using carbon electrodes.
Low weight and compactness also ensure easy transportability in all intervention locations, both indoors and outdoors.
Features:

robust, resistant to impact and dust;
reduced weight and size;
high energy savings;
backlit LCD display.

MIG-MAG

operating mode; manual and synergic;
40 pre-set synergic curves;
wire speed and welding voltage and current shown on an LCD screen;
operation selection 2/4 times, spot;
adjustments: wire up slope, electronic reactance, wire burnback time, post gas;
ATC;
wire feed unit adjustments: manual wire feed, weld seam adjustment, wire feed speed (MAN mode) and welding power (SYN mode);
possibility of connecting a semi-automatic type wire feeder unit (CV).

MMA

direct and pulse current (MMA PULSE) operation;
adjustments in MMA: hot start, arc force;
anti-stick protection;
VRD device;
welding voltage and current shown on an LCD screen.

TIG

LIFT DC strike and welding voltage and current shown on LCD screen.

GOUGING

Gouging function with gouging voltage and current shown on LCD screen.

Thermostatic protection, protection against overvoltage (+15%), undervoltage (-25%), overcurrent, motor generator.

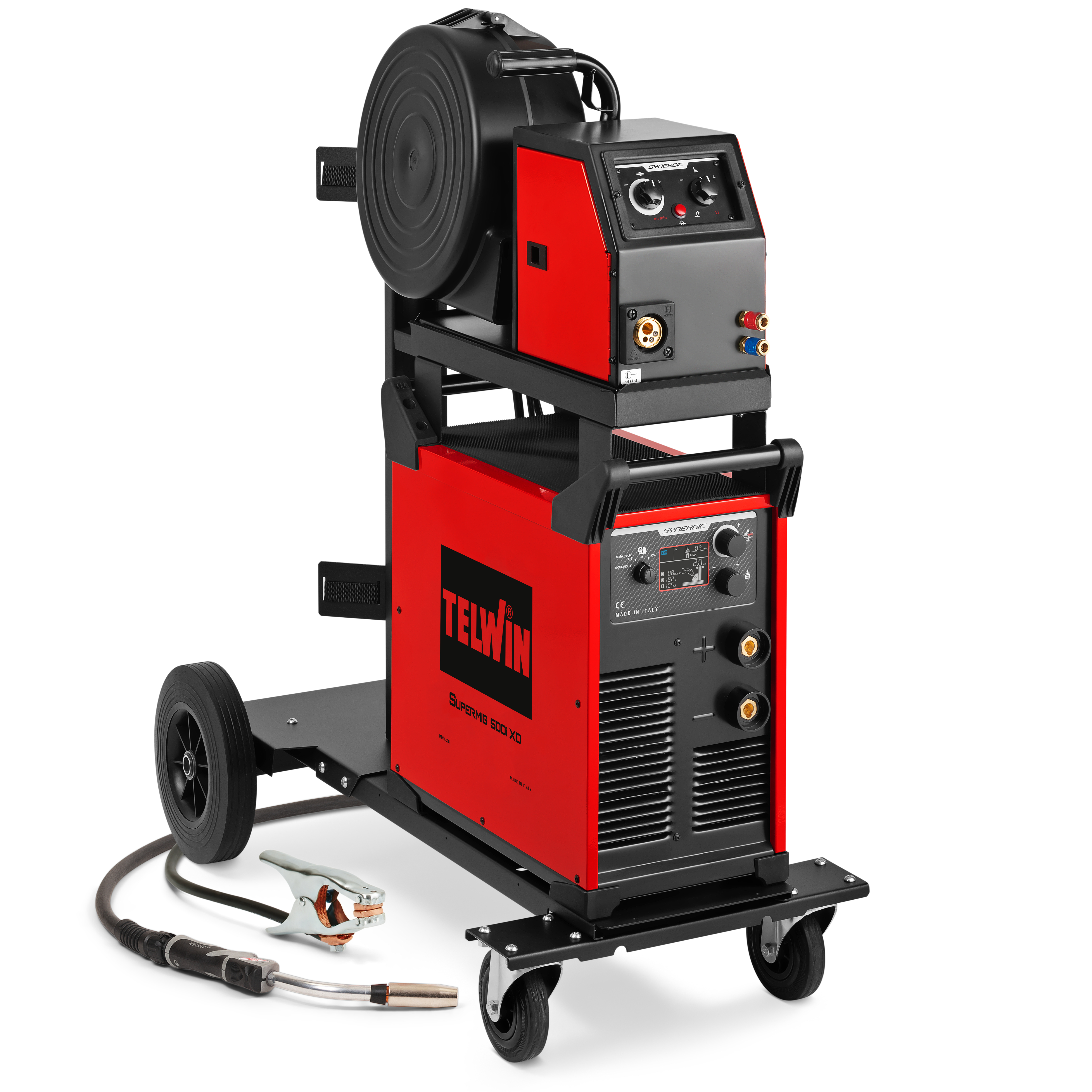

Supplied with MIG-MAG torch, cable and earth clamp, wire feed unit with connection cables and Federal trolley.

CODE

816912

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 320 / 20 - 400 A

MAX CURRENT

300 @ 40% / 400 @ 40% A

DC CURRENT

240 / 300 A

MAX NO LOAD VOLTAGE

106 / 73 V

MAX ABSORBED CURRENT

38 / 31 A

ABSORBED CURRENT AT 60%

27 / 21 A

MAX ABSORBED POWER

11 / 16 kW

ABSORBED POWER AT 60%

7,9 / 10,8 kW

EFFICIENCY

89 %

POWER FACTOR

0,74

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1,6 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,6 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

0,9 - 1,6 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

100 x 50 x 110 cm

WEIGHT

75,74 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

TROLLEY - FEDERAL

803091

MT40S MIG TORCH 3 M

804986

TS 550 WIREFEEDER + CABLE 70MMQ 4M

806172

SUPERMIG 500i XD

816201

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 70MMQ 4M AX70

804126

GOUGING ACCESSORIES

GOUGING KIT

802666

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208

MIG TORCHES

MT40S MIG TORCH 4M

742820

MT40S MIG TORCH 5M

742822

WIRE FEEDERS AND ACCESSORIES

COIL ADAPTOR B-300

802486

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

robust, resistant to impact and dust;
reduced weight and size;
high energy savings;
backlit LCD display.

MIG-MAG

operating mode; manual and synergic;
40 pre-set synergic curves;
wire speed and welding voltage and current shown on an LCD screen;
operation selection 2/4 times, spot;
adjustments: wire up slope, electronic reactance, wire burnback time, post gas;
ATC;
wire feed unit adjustments: manual wire feed, weld seam adjustment, wire feed speed (MAN mode) and welding power (SYN mode);
possibility of connecting a semi-automatic type wire feeder unit (CV).

MMA

direct and pulse current (MMA PULSE) operation;
adjustments in MMA: hot start, arc force;
anti-stick protection;
VRD device;
welding voltage and current shown on an LCD screen.

TIG

LIFT DC strike and welding voltage and current shown on LCD screen.

GOUGING

Gouging function with gouging voltage and current shown on LCD screen.

CODE

816912

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 320 / 20 - 400 A

MAX CURRENT DC EN60974-1

300 @ 40% / 400 @ 40% A

DC CURRENT AT 60%

240 / 300 A

MAX NO LOAD VOLTAGE IN DC

106 / 73 V

MAX ABSORBED CURRENT

38 / 31 A

ABSORBED CURRENT AT 60%

27 / 21 A

MAX ABSORBED POWER

11 / 16 kW

ABSORBED POWER AT 60%

7,9 / 10,8 kW

EFFICIENCY

89 %

POWER FACTOR(cosphi) (cosphi)

0,74

D.USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1,6 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1,6 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDI.WIRE DIA.

0,9 - 1,6 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

100 x 50 x 110 cm

WEIGHT

75,74 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

TROLLEY - FEDERAL

803091

MT40S MIG TORCH 3 M

804986

TS 550 WIREFEEDER + CABLE 70MMQ 4M

806172

SUPERMIG 500i XD

816201

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 70MMQ 4M AX70

804126

GOUGING ACCESSORIES

GOUGING KIT

802666

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208

MIG TORCHES

MT40S MIG TORCH 4M

742820

MT40S MIG TORCH 5M

742822

WIRE FEEDERS AND ACCESSORIES

COIL ADAPTOR B-300

802486

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

5 PROCESSES, 1 PRODUCT

Supermig i is the range of MIG-MAG / FLUX / BRAZING / MMA / TIG DC-LIFT / GOUGING multiprocess inverter welding machines that combines maximum versatility of use with the certainty of quality results.

Adjustment is simple and intuitive to leave room for operation.
It adapts to the most different work environments, from heavy carpentry to shipbuilding, thanks to the sturdy and compact structure that makes it easily transportable.

Dirt and dust-proof, it also maintains the best performances despite mains undervoltage (up to -25%) and overvoltage (+15%).

MULTIPROCESS

MIG-MAG/ FLUX/ MMA/ TIG DC-LIFT/ GOUGING

When you ask for a Supermig, you’ll get a 5 process inverter welding machine to do whatever you want.
Switching from wire welding to gouging is quick and easy: select the process from the panel, connect the dedicated accessory and start working.

MIG-MAG/ FLUX MIG-MAG mode with synergic (material thickness selection) or manual operation. Operating mode with wire feeder unit or in CV mode.
MMA – PULSED MMA Direct current and pulsed welding. The adjustment of Hot Start and Arc Force allows to increase the quality and fluidity of the weld. Pulsed mode ensures excellent results with basic electrodes and in position welding.
Less spray and reworking, higher quality welding seam.
TIG TIG DC-lift welding. The precise strike in contact with the workpiece guarantees quality welding in steel, stainless steel, copper, etc.
