SUPERMIG 500i XD

SUPERMIG 500i XD

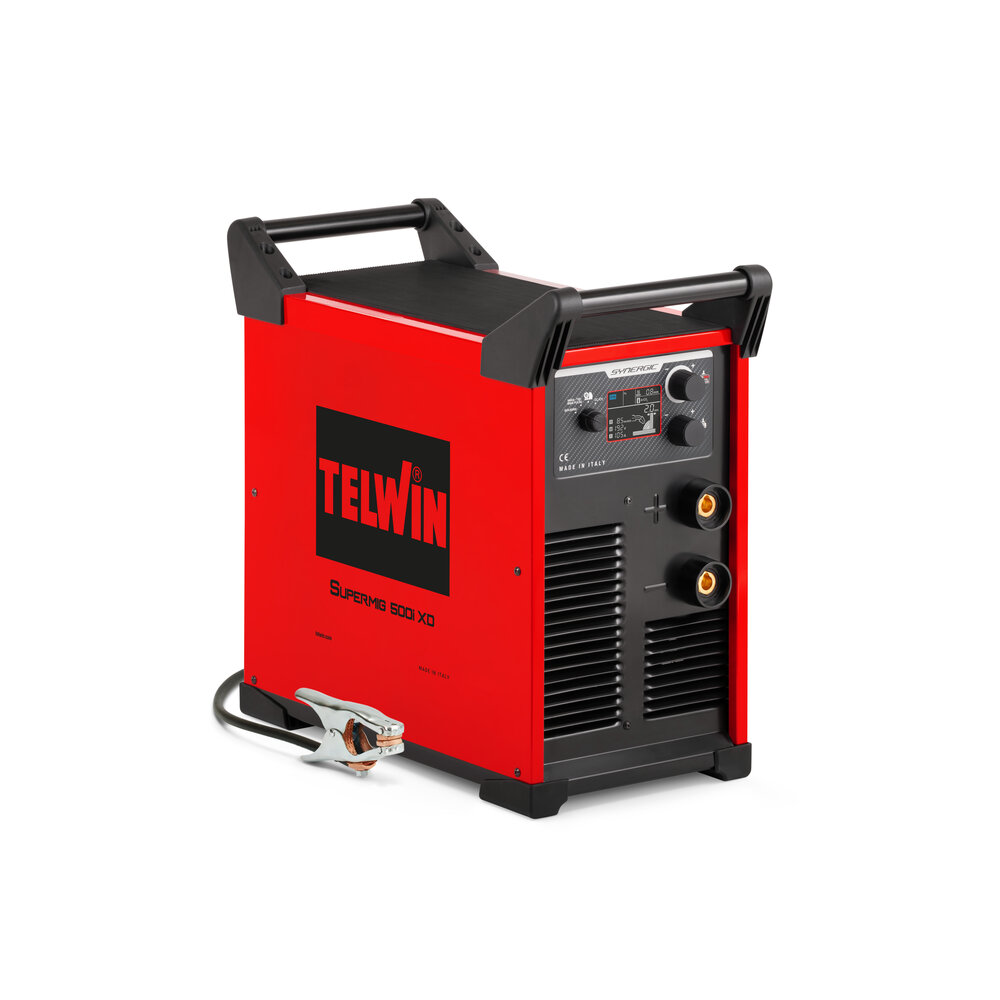

MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift multiprocess inverter welding machine with external wire feeder with 4 rolls.
Flexible use with different materials (steel, stainless steel, high strength steel, aluminium, etc.) and wide variety of application fields (industry, metal structures, construction, etc.).
The XD model is characterised by a high duty cycle for continuous machining and particularly heavy applications.
Particularly resistant to dirt and dust thanks to the particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components, guaranteeing longer duration over time.
Made in Telwin ATC technology allows you to easily achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
The 4-roll feeder with 4m cable bundle (direct connection) is robust and transportable, making remote control of the generator possible.
Electrode welding is both direct current and pulse current. Pulse mode (MMA Pulse) is recommended with basic electrodes in position welding and ensures less spray and reworking and higher welding seam quality.
Gouging function is available using carbon electrodes.
Low weight and compactness also ensure easy transportability in all intervention locations, both indoors and outdoors.
Features:
  • robust, resistant to impact and dust;
  • reduced weight and size;
  • high energy savings;
  • backlit LCD display.
MIG-MAG
  • operating mode; manual and synergic;
  • 35 pre-set synergic curves;
  • wire speed and welding voltage and current shown on an LCD screen;
  • operation selection 2/4 times, spot;
  • adjustments: wire up slope, electronic reactance, wire burnback time, post gas;
  • ATC
  • wire feed unit adjustments: manual wire feed, weld seam adjustment, wire feed speed (MAN mode) and welding power (SYN mode);
  • possibility of connecting a semi-automatic type wire feeder unit (CV).
MMA
  • direct and pulse current (MMA PULSE) operation;
  • adjustments in MMA: hot start, arc force;
  • anti-stick protection;
  • VRD device;
  • welding voltage and current shown on an LCD screen.
TIG
  • LIFT DC strike and welding voltage and current shown on LCD screen.
GOUGING
  • Gouging function with gouging voltage and current shown on LCD screen.

Thermostatic protection, protection against overvoltage (+15%), undervoltage (-25%), overcurrent, motor generator.

CODE

816201

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 320 / 20 - 400 A

MAX CURRENT

300 @ 60% / 400 @ 60% A

DC CURRENT

300/400 A

MAX NO LOAD VOLTAGE

93 / 67 V

MAX ABSORBED CURRENT

37 / 30 A

ABSORBED CURRENT AT 60%

37 / 30 A

MAX ABSORBED POWER

11,8 / 16,6 kW

ABSORBED POWER AT 60%

11,8 /16,6 kW

EFFICIENCY

86 %

POWER FACTOR

0,8

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1,6 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,6 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

0,9 - 1,6 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

54,6 x 27,4 x 50 cm

WEIGHT

32 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

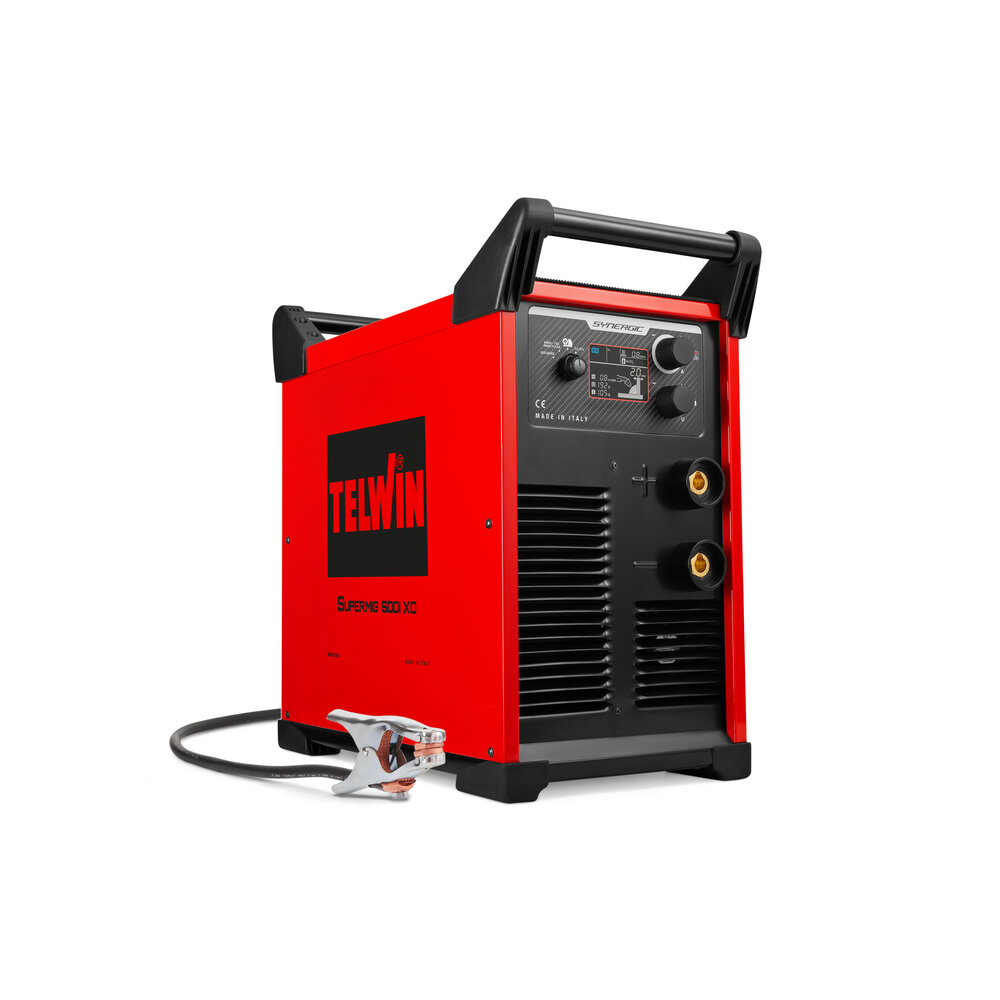

MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift multiprocess inverter welding machine with external wire feeder with 4 rolls.
Flexible use with different materials (steel, stainless steel, high strength steel, aluminium, etc.) and wide variety of application fields (industry, metal structures, construction, etc.).
The XD model is characterised by a high duty cycle for continuous machining and particularly heavy applications.
Particularly resistant to dirt and dust thanks to the particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components, guaranteeing longer duration over time.
Made in Telwin ATC technology allows you to easily achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
The 4-roll feeder with 4m cable bundle (direct connection) is robust and transportable, making remote control of the generator possible.
Electrode welding is both direct current and pulse current. Pulse mode (MMA Pulse) is recommended with basic electrodes in position welding and ensures less spray and reworking and higher welding seam quality.
Gouging function is available using carbon electrodes.
Low weight and compactness also ensure easy transportability in all intervention locations, both indoors and outdoors.
Features:
  • robust, resistant to impact and dust;
  • reduced weight and size;
  • high energy savings;
  • backlit LCD display.
MIG-MAG
  • operating mode; manual and synergic;
  • 35 pre-set synergic curves;
  • wire speed and welding voltage and current shown on an LCD screen;
  • operation selection 2/4 times, spot;
  • adjustments: wire up slope, electronic reactance, wire burnback time, post gas;
  • ATC
  • wire feed unit adjustments: manual wire feed, weld seam adjustment, wire feed speed (MAN mode) and welding power (SYN mode);
  • possibility of connecting a semi-automatic type wire feeder unit (CV).
MMA
  • direct and pulse current (MMA PULSE) operation;
  • adjustments in MMA: hot start, arc force;
  • anti-stick protection;
  • VRD device;
  • welding voltage and current shown on an LCD screen.
TIG
  • LIFT DC strike and welding voltage and current shown on LCD screen.
GOUGING
  • Gouging function with gouging voltage and current shown on LCD screen.

Thermostatic protection, protection against overvoltage (+15%), undervoltage (-25%), overcurrent, motor generator.

CODE

816201

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 320 / 20 - 400 A

MAX CURRENT DC EN60974-1

300 @ 60% / 400 @ 60% A

DC CURRENT AT 60%

300/400 A

MAX NO LOAD VOLTAGE IN DC

93 / 67 V

MAX ABSORBED CURRENT

37 / 30 A

ABSORBED CURRENT AT 60%

37 / 30 A

MAX ABSORBED POWER

11,8 / 16,6 kW

ABSORBED POWER AT 60%

11,8 /16,6 kW

EFFICIENCY

86 %

POWER FACTOR(cosphi) (cosphi)

0,8

D.USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1,6 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1,6 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDI.WIRE DIA.

0,9 - 1,6 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

54,6 x 27,4 x 50 cm

WEIGHT

32 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF
