Doctor Charge 155 Connect

home Doctor Charge 155 Connect

The battery manager for comprehensive battery management

Doctor Charge 155 Connect combines the following in a single solution: advanced charging, diagnostic support, battery testing with digital reports, stabilised power supply and advanced functions for applications in logistics and electromobility.

DISCOVER THE PRODUCT

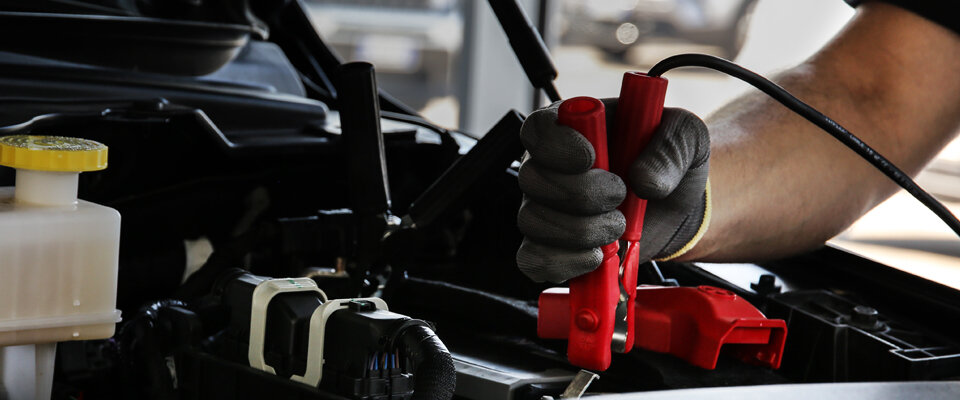

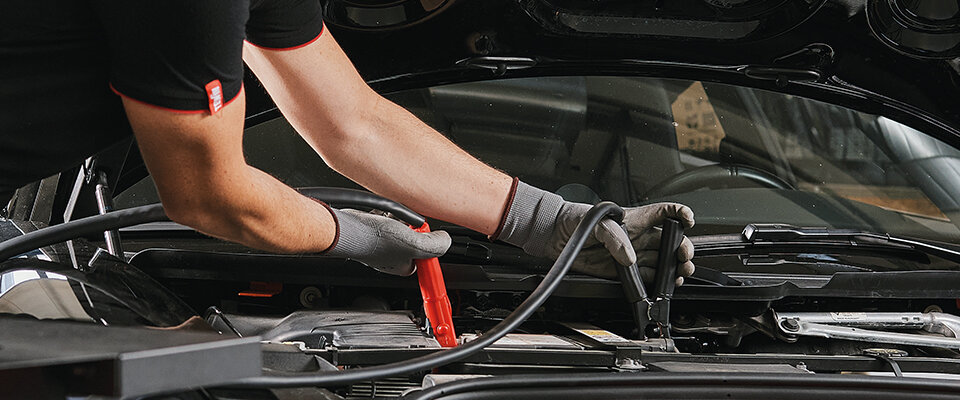

CHARGING AND MAINTENANCE

8-stage Pulse Tronic charging and maintenance for various battery technologies. Intelligent monitoring and dedicated curves define the voltage and current trends during the charging cycle, optimising performance and extending battery life.

Lithium battery charging

Precise and configurable charge management for lithium batteries. You can set the number of cells, battery chemistry and charge current to tailor the process to each application. Doctor Charge 155 Connect supports batteries from 6.4 V to 29.6 V to ensure maximum flexibility and control.

Balance mode

In commercial and industrial vehicles with 24 V systems, charging imbalances between batteries can reduce system efficiency.

discover more

Charging for electric mobility and logistics

Doctor Charge 155 extends its use to the charging of electric vehicles for logistics and professional applications, where reliability and operational continuity are essential.

The battery manager for every application

The 7 modes automatically configure the available functions, ensuring simplicity, safety and maximum convenience.

Go to the product

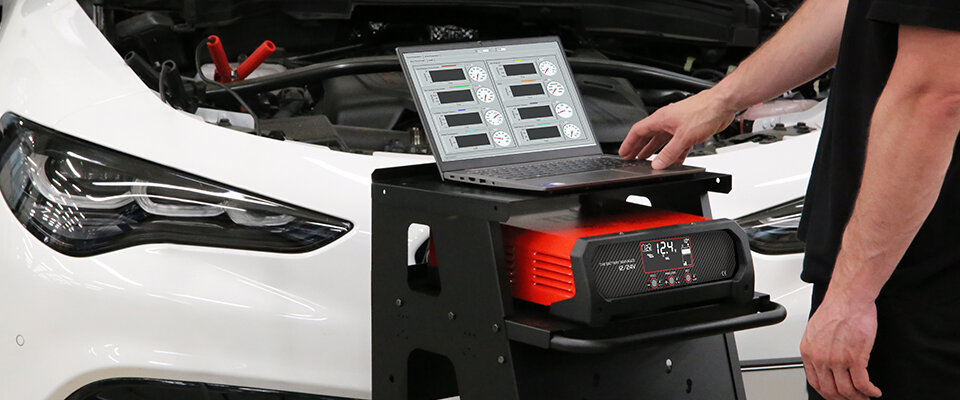

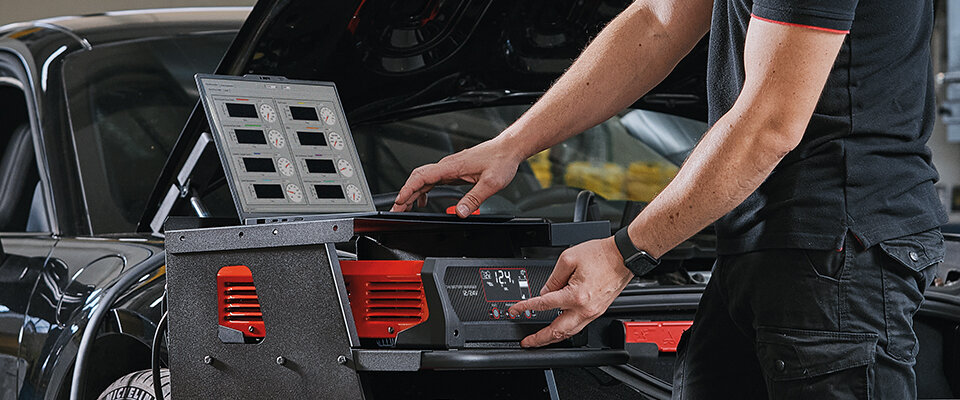

DIAGNOSTICS

Support for all diagnostic tasks with extremely precise voltage adjustment in accordance with manufacturers’ recommendations.

Current output up to 150A.
Voltage adjustable from 12V to 15V (in 0.1V steps), 16V and 24V.
Current is supplied immediately.
Fully protected against reverse polarity and short circuits.

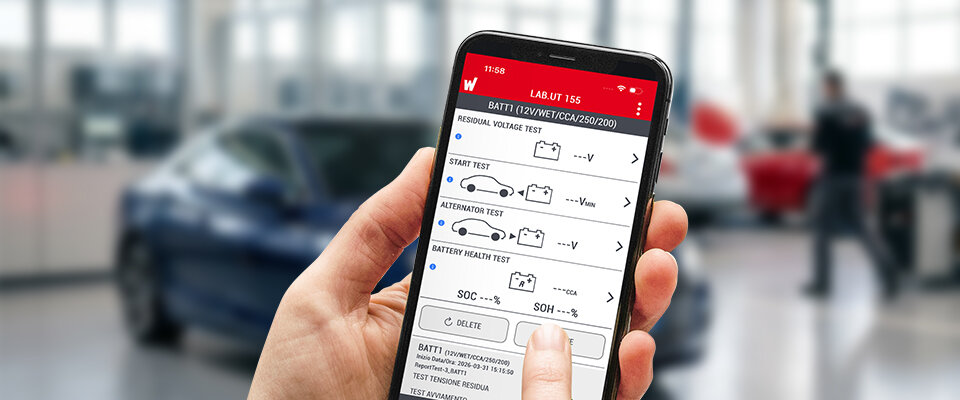

TEST

Tester to check the battery’s cranking capacity, state of charge and the correct operation of the vehicle’s alternator circuit.

Results displayed in real time, saved and shared in digital format.

download the brochure

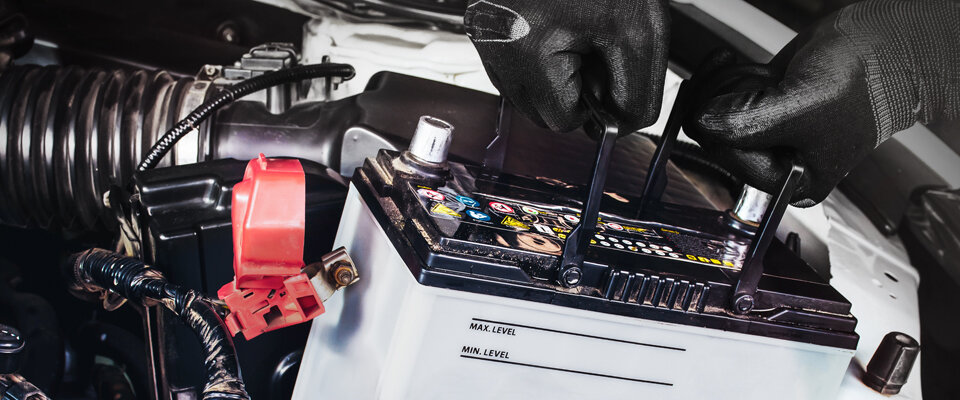

SUPPLY AND SUPPLY+

In Supply mode, the Doctor Charge 155 Connect functions as a stabilised power supply with adjustable voltage and current, allowing the power supply parameters to be adapted to suit the application (ideal for electrical tests, controlled power supplies and vehicle system testing).
During battery replacement, Supply+ mode continuously supplies stabilised voltage and current, keeping all vehicle systems powered.

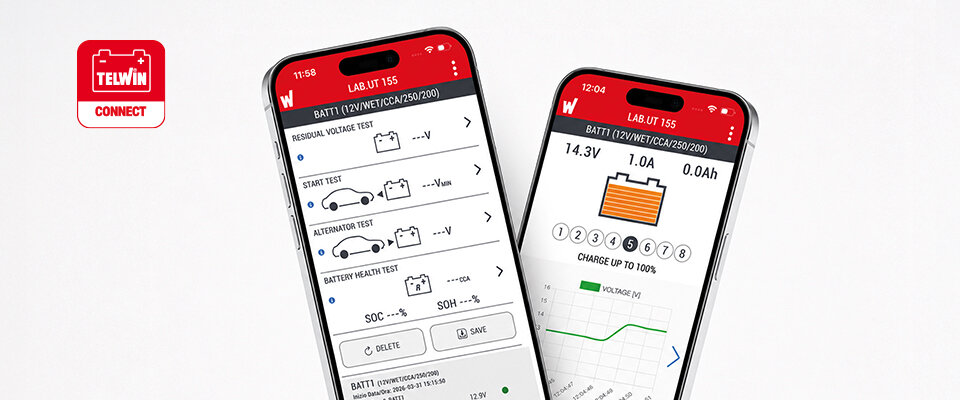

BATTERY CONNECT APP

Thanks to Bluetooth technology, the Doctor Charge 155 Connect offers advanced battery management directly from smartphones and tablets via the BatteryConnect app.

	TECHNICAL SPECIFICATIONS
SINGLE-PHASE MAINS VOLTAGE	115/230 V
POWER CONSUMPTION DURING CHARGING	2200 W
CHARGING VOLTAGE	12 / 16 / 24 V
EFFECTIVE CHARGING CURRENT	170(12)/ 90(24) A
NOMINAL CAPACITY (MIN-MAX)	15 - 1800A
