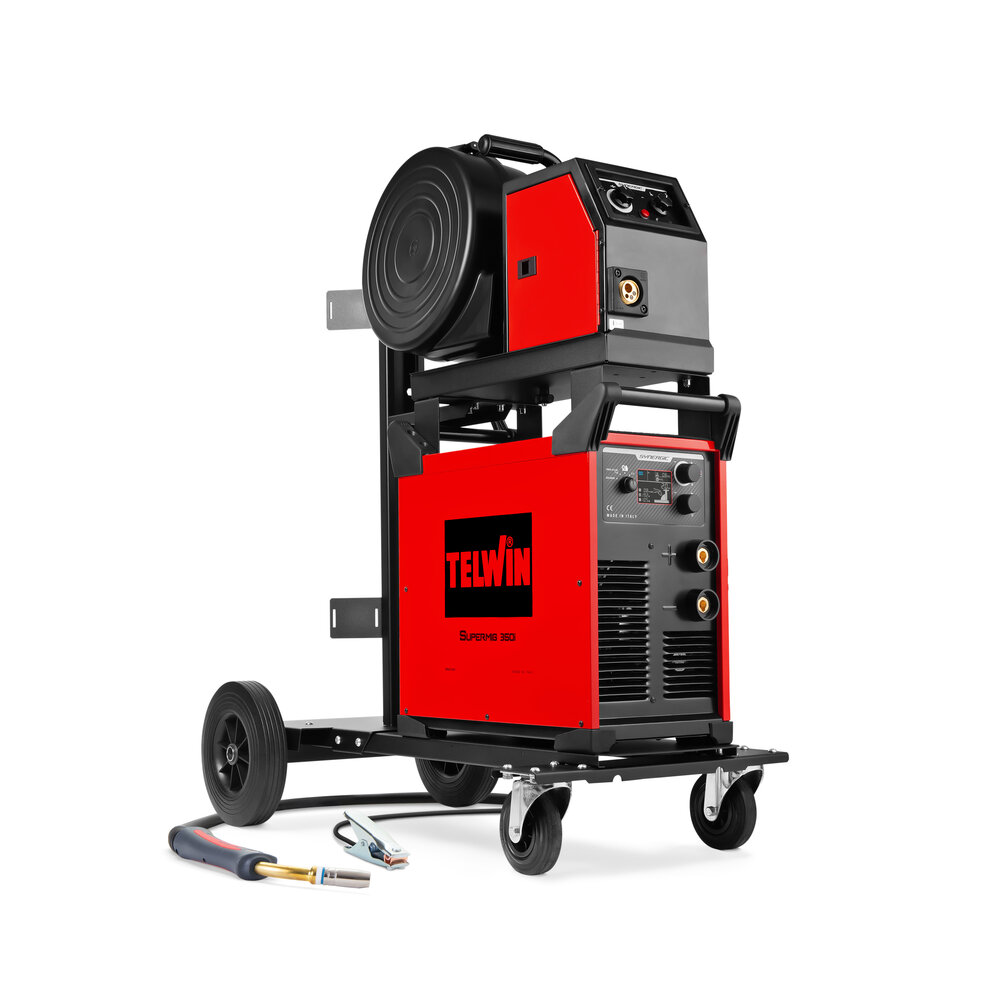

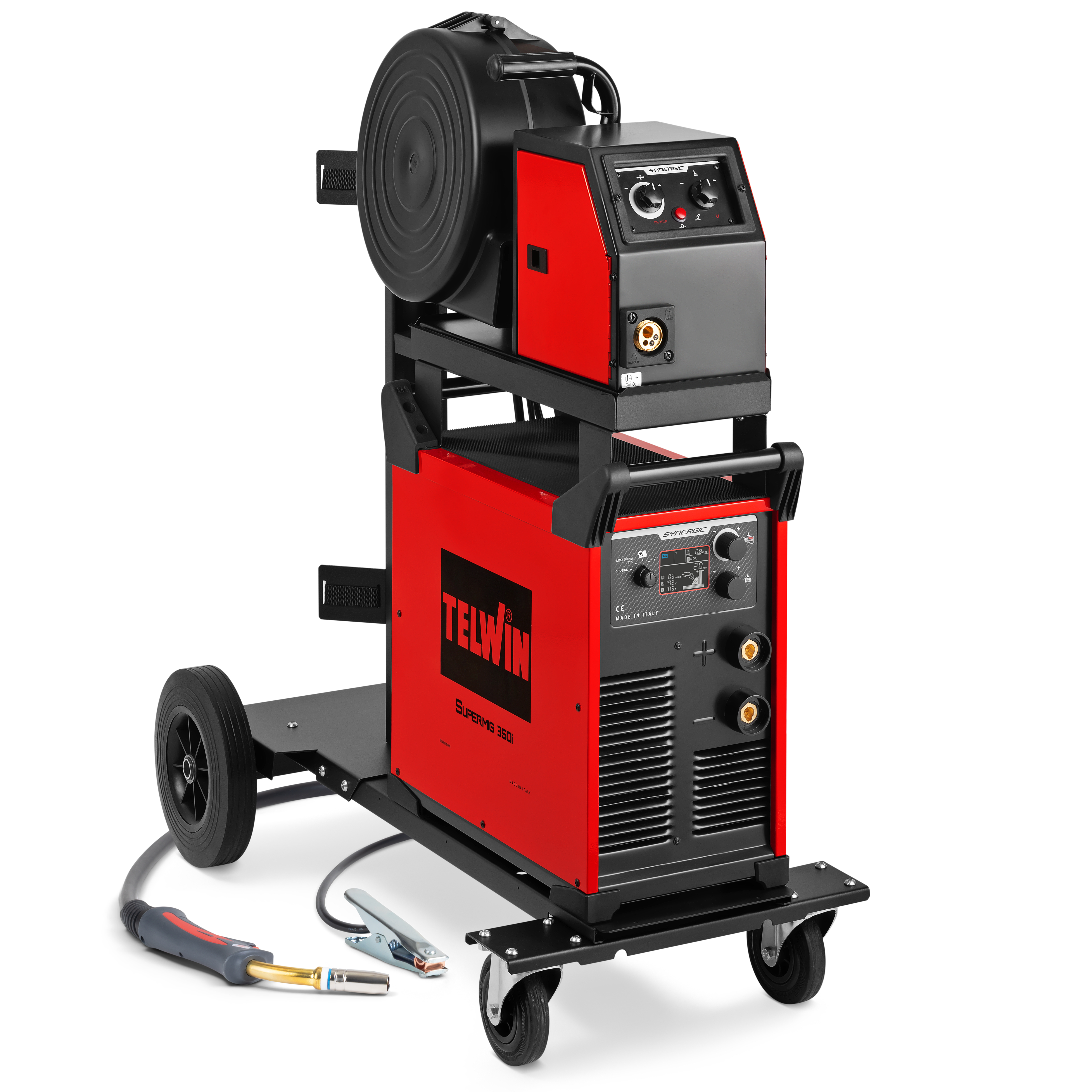

SUPERMIG 350i PACK + TROLLEY

SUPERMIG 350i PACK + TROLLEY

  • Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift and GOUGING) with external 4-roller wire feeder and trolley, 270A. 3ph 230/400V power supply.
  • OneTouch synergic adjustment. 35 preset synergic curves.
  • LCD display of the wire speed, welding voltage and current. 2/4 times, spot operating selection.
  • MMA: direct and pulse current (MMA PULSE) operation. VRD device.
  • Gouging process. TIG-DC Lift.
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
  • Strong, resistant to impact and dust; reduced weight and size. High energy savings.
  • Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift and GOUGING) with external 4-roller wire feeder and trolley, 270A. 3ph 230/400V power supply.
  • OneTouch synergic adjustment. 35 preset synergic curves.
  • LCD display of the wire speed, welding voltage and current. 2/4 times, spot operating selection.
  • MMA: direct and pulse current (MMA PULSE) operation. VRD device.
  • Gouging process. TIG-DC Lift.
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
  • Strong, resistant to impact and dust; reduced weight and size. High energy savings.

MIG-MAG/FLUX/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine, with 4-rolls, separate wire feeder. Flexibility of use with different materials (steel, stainless steel, high-strength steel, aluminium, etc.) and wide variety of fields of application (industry, metalwork, construction, etc.). Particularly resistant to dirt and dust thanks to the special construction of the ventilation system which, following a dedicated tunnel, preserves the electronic components, guaranteeing a longer life. The fast SYNERGIC adjustment of the welding parameters thanks to the "ONE TOUCH" technology, makes the product very easy to use. Just set the material thickness and start welding. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases. The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style. The graphic display allows a clear view of the main welding parameters and product settings. The ATC technology, Made in Telwin, allows excellent welds on thin surfaces to be obtained with great ease thanks to advanced arc control. The 4-roll- wire feeder with 4m long cables (direct connection), robust and transportable, allows for remote control of the power source. Electrode welding is possible in both direct and pulse current modes. The pulse mode (MMA Pulse) is recommended for basic electrodes and positional welding and guarantees less spatter and rework and higher weld quality. The GOUGING function is available with carbon electrodes. Light weight and compactness also ensure easy portability to all locations, both indoors and outdoors.

Features:

  • robust, impact and dust resistant;
  • reduced weight and dimensions;
  • high energy saving;
  • backlit LCD display

MIG-MAG

  • operating modes: manual and synergic;
  • 35 pre-set synergic curves;
  • LCD display of wire speed, welding voltage and current;
  • selection of 2/4 time operation, spot;
  • adjustments: wire upslope, electronic reactance, wire burn back time, post gas;
  • ATC
  • adjustments from the wire feeder unit: manual wire feed, weld bead adjustment, wire feed speed (MAN mode) and welding power (SYN mode);
  • possibility of connecting semi-automatic wire feeder units (CV).

MMA

  • DC and pulse current operation mode (MMA PULSE);
  • MMA adjustments: hot start, arc force;
  • antistick protection;
  • VRD device;
  • visualization on LCD display of voltage and welding current.

TIG

  • LIFT DC striking and visualization on LCD display of voltage and welding current.

GOUGING

  • Gouging function with visualization on LCD display of gouging voltage and current.

Protections: thermostat, overvoltage (+15%), undervoltage (-25%), overcurrent, motor-generator.

Complete with MIG-MAG torch, work cable and clamp, wire feeder unit with connecting cables and trolley Federal.

CODE

816903

THREE PHASE MAINS VOLTAGE

230/400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 250 / 20 - 270 A

MAX CURRENT

220 @ 40 % / 270 @ 40% A

DC CURRENT

185 / 220 A

MAX NO LOAD VOLTAGE

63 / 63 V

MAX ABSORBED CURRENT

26 / 20 A

ABSORBED CURRENT AT 60%

20 / 15 A

MAX ABSORBED POWER

7,5 / 10 kW

ABSORBED POWER AT 60%

5,8 / 7,5 kW

EFFICIENCY

86 %

POWER FACTOR

0,73

D. USABLE ELECTRODES IN DC

1,6 - 5 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1,2 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,2 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,2 mm

FLUX CORED WELDING WIRE DIAM.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

100 x 50 x 110 cm

WEIGHT

65 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

MIG-MAG/FLUX/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine, with 4-rolls, separate wire feeder. Flexibility of use with different materials (steel, stainless steel, high-strength steel, aluminium, etc.) and wide variety of fields of application (industry, metalwork, construction, etc.). Particularly resistant to dirt and dust thanks to the special construction of the ventilation system which, following a dedicated tunnel, preserves the electronic components, guaranteeing a longer life. The fast SYNERGIC adjustment of the welding parameters thanks to the "ONE TOUCH" technology, makes the product very easy to use. Just set the material thickness and start welding. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases. The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style. The graphic display allows a clear view of the main welding parameters and product settings. The ATC technology, Made in Telwin, allows excellent welds on thin surfaces to be obtained with great ease thanks to advanced arc control. The 4-roll- wire feeder with 4m long cables (direct connection), robust and transportable, allows for remote control of the power source. Electrode welding is possible in both direct and pulse current modes. The pulse mode (MMA Pulse) is recommended for basic electrodes and positional welding and guarantees less spatter and rework and higher weld quality. The GOUGING function is available with carbon electrodes. Light weight and compactness also ensure easy portability to all locations, both indoors and outdoors.

Features:

  • robust, impact and dust resistant;
  • reduced weight and dimensions;
  • high energy saving;
  • backlit LCD display

MIG-MAG

  • operating modes: manual and synergic;
  • 35 pre-set synergic curves;
  • LCD display of wire speed, welding voltage and current;
  • selection of 2/4 time operation, spot;
  • adjustments: wire upslope, electronic reactance, wire burn back time, post gas;
  • ATC
  • adjustments from the wire feeder unit: manual wire feed, weld bead adjustment, wire feed speed (MAN mode) and welding power (SYN mode);
  • possibility of connecting semi-automatic wire feeder units (CV).

MMA

  • DC and pulse current operation mode (MMA PULSE);
  • MMA adjustments: hot start, arc force;
  • antistick protection;
  • VRD device;
  • visualization on LCD display of voltage and welding current.

TIG

  • LIFT DC striking and visualization on LCD display of voltage and welding current.

GOUGING

  • Gouging function with visualization on LCD display of gouging voltage and current.

Protections: thermostat, overvoltage (+15%), undervoltage (-25%), overcurrent, motor-generator.

Complete with MIG-MAG torch, work cable and clamp, wire feeder unit with connecting cables and trolley Federal.

CODE

816903

THREEPHASE MAINS VOLTAGE

230/400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 250 / 20 - 270 A

MAX CURRENT DC EN60974-1

220 @ 40 % / 270 @ 40% A

DC CURRENT AT 60%

185 / 220 A

MAX NO LOAD VOLTAGE IN DC

63 / 63 V

MAX ABSORBED CURRENT

26 / 20 A

ABSORBED CURRENT AT 60%

20 / 15 A

MAX ABSORBED POWER

7,5 / 10 kW

ABSORBED POWER AT 60%

5,8 / 7,5 kW

EFFICIENCY

86 %

POWER FACTOR(cosphi) (cosphi)

0,73

D.USABLE ELECTRODES IN DC

1,6 - 5 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1,2 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1,2 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,2 mm

FLUX CORED WELDI.WIRE DIA.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

100 x 50 x 110 cm

WEIGHT

65 kg
