SUPERMIG 450i PACK + TROLLEY

Home Products Manual Welding Multiprocess MIG-MAG SUPERMIG 450i PACK + TROLLEY

SUPERMIG 450i PACK + TROLLEY

SUPERMIG 450i PACK + TROLLEY

Download PDF Request Info

MIG-MAG/FLUX/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine, with 4-rolls, separate wire feeder. Flexibility of use with different materials (steel, stainless steel, high-strength steel, aluminium, etc.) and wide variety of fields of application (industry, metalwork, construction, etc.). Particularly resistant to dirt and dust thanks to the special construction of the ventilation system which, following a dedicated tunnel, preserves the electronic components, guaranteeing a longer life. The fast SYNERGIC adjustment of the welding parameters thanks to the "ONE TOUCH" technology, makes the product very easy to use. Just set the material thickness and start welding. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases. The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style. The graphic display allows a clear view of the main welding parameters and product settings. The ATC technology, Made in Telwin, allows excellent welds on thin surfaces to be obtained with great ease thanks to advanced arc control. The 4-roll- wire feeder with 4m long cables (direct connection), robust and transportable, allows for remote control of the power source. Electrode welding is possible in both direct and pulse current modes. The pulse mode (MMA Pulse) is recommended for basic electrodes and positional welding and guarantees less spatter and rework and higher weld quality. The GOUGING function is available with carbon electrodes. Light weight and compactness also ensure easy portability to all locations, both indoors and outdoors.

Features:

robust, impact and dust resistant;
reduced weight and dimensions;
high energy saving;
backlit LCD display

MIG-MAG

operating modes: manual and synergic;
40 pre-set synergic curves;
LCD display of wire speed, welding voltage and current;
selection of 2/4 time operation, spot;
adjustments: wire upslope, electronic reactance, wire burn back time, post gas;
ATC
adjustments from the wire feeder unit: manual wire feed, weld bead adjustment, wire feed speed (MAN mode) and welding power (SYN mode);
possibility of connecting semi-automatic wire feeder units (CV).

MMA

DC and pulse current operation mode (MMA PULSE);
MMA adjustments: hot start, arc force;
antistick protection;
VRD device;
visualization on LCD display of voltage and welding current.

TIG

LIFT DC striking and visualization on LCD display of voltage and welding current.

GOUGING

Gouging function with visualization on LCD display of gouging voltage and current.

Protections: thermostat, overvoltage (+15%), undervoltage (-25%), overcurrent, motor-generator.

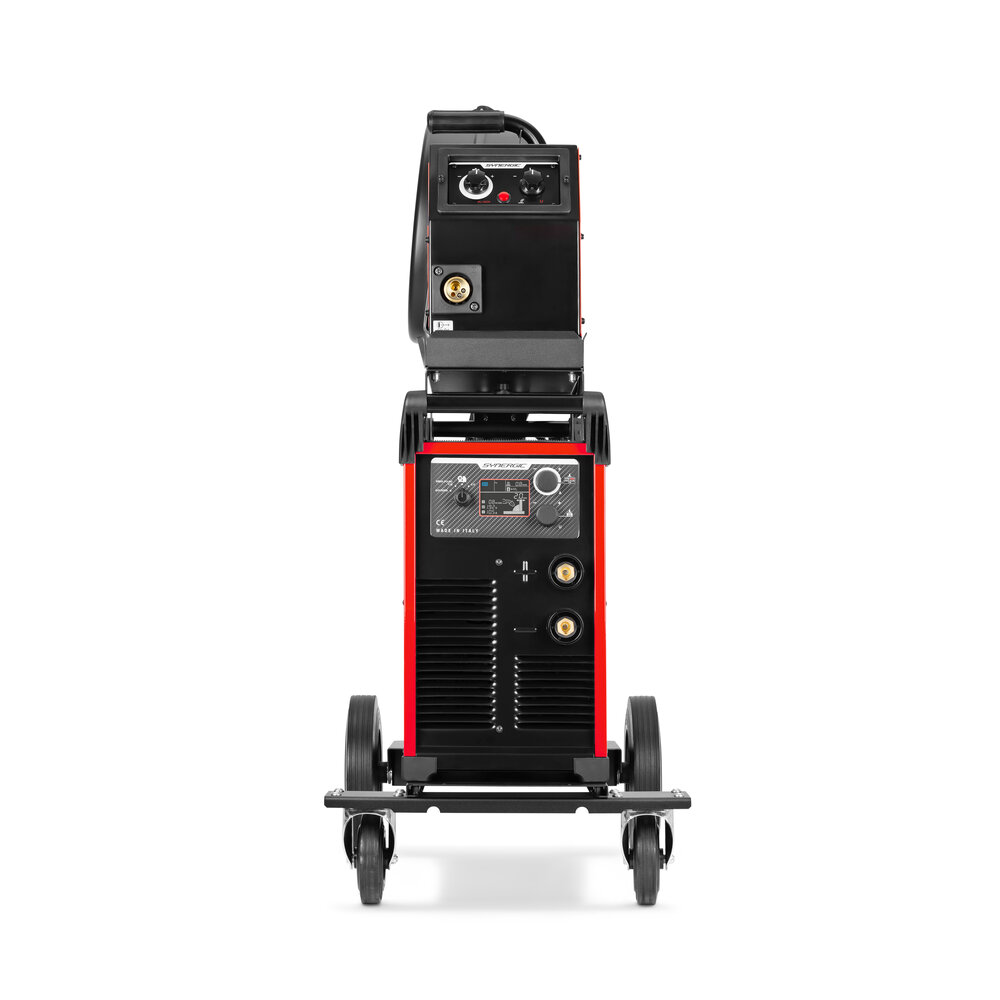

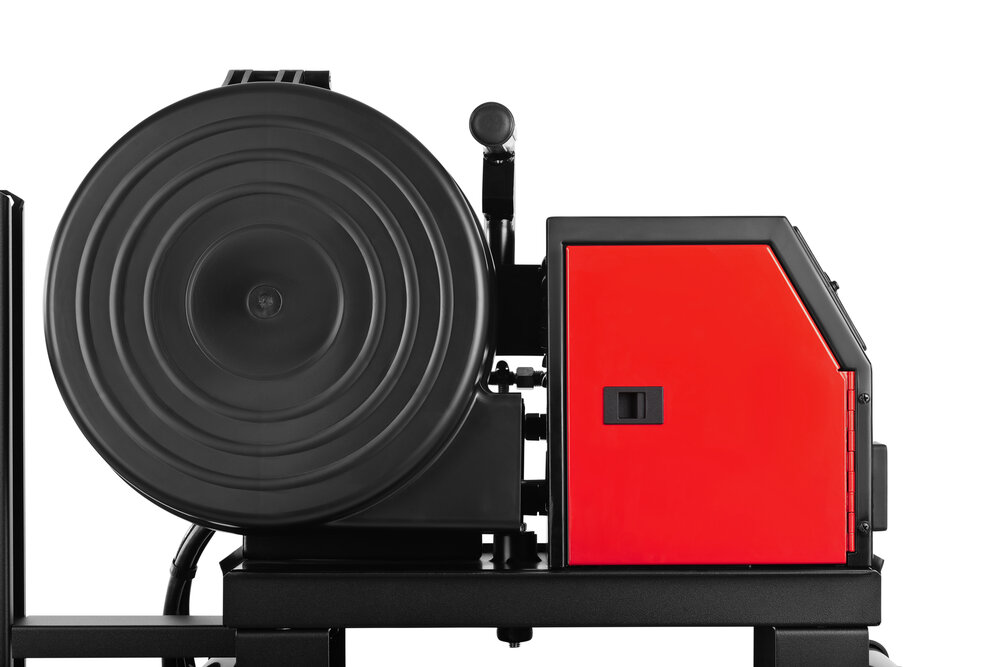

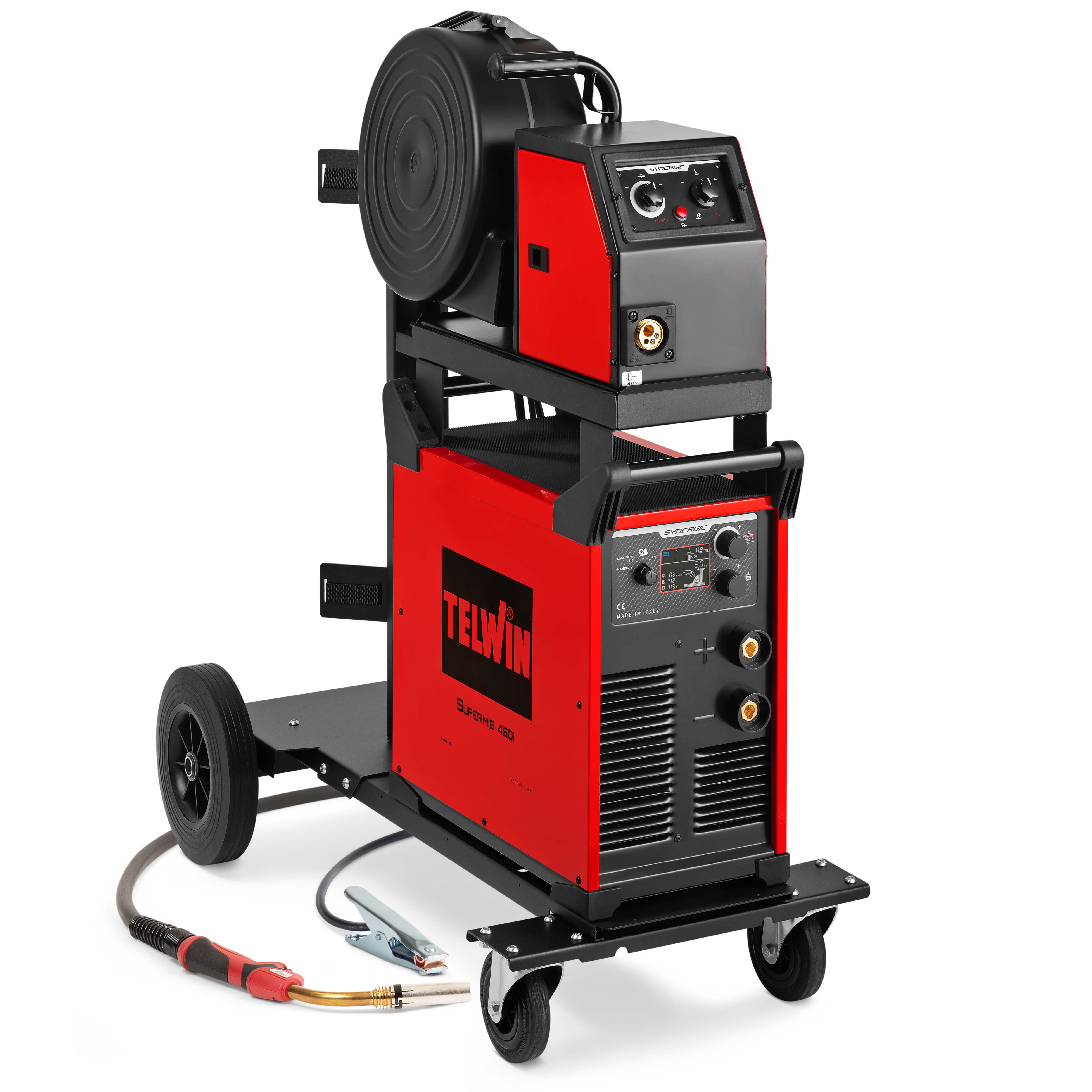

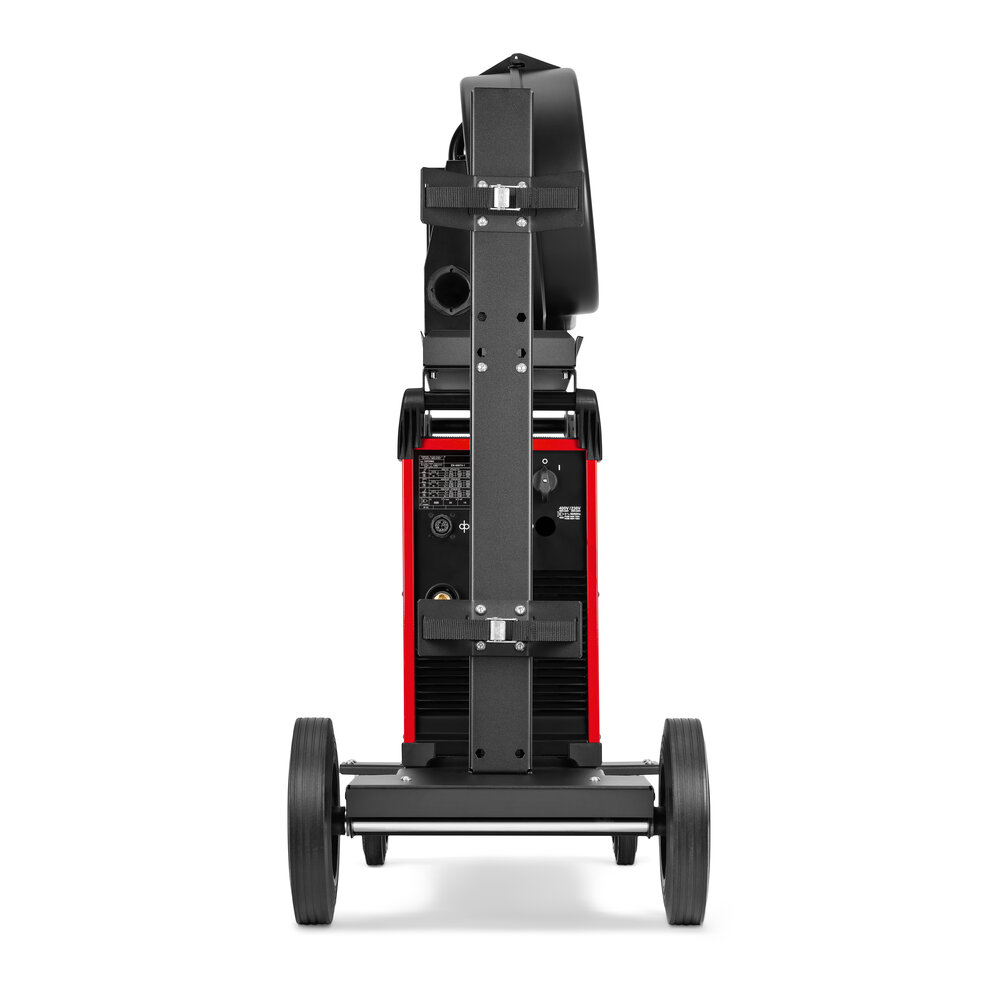

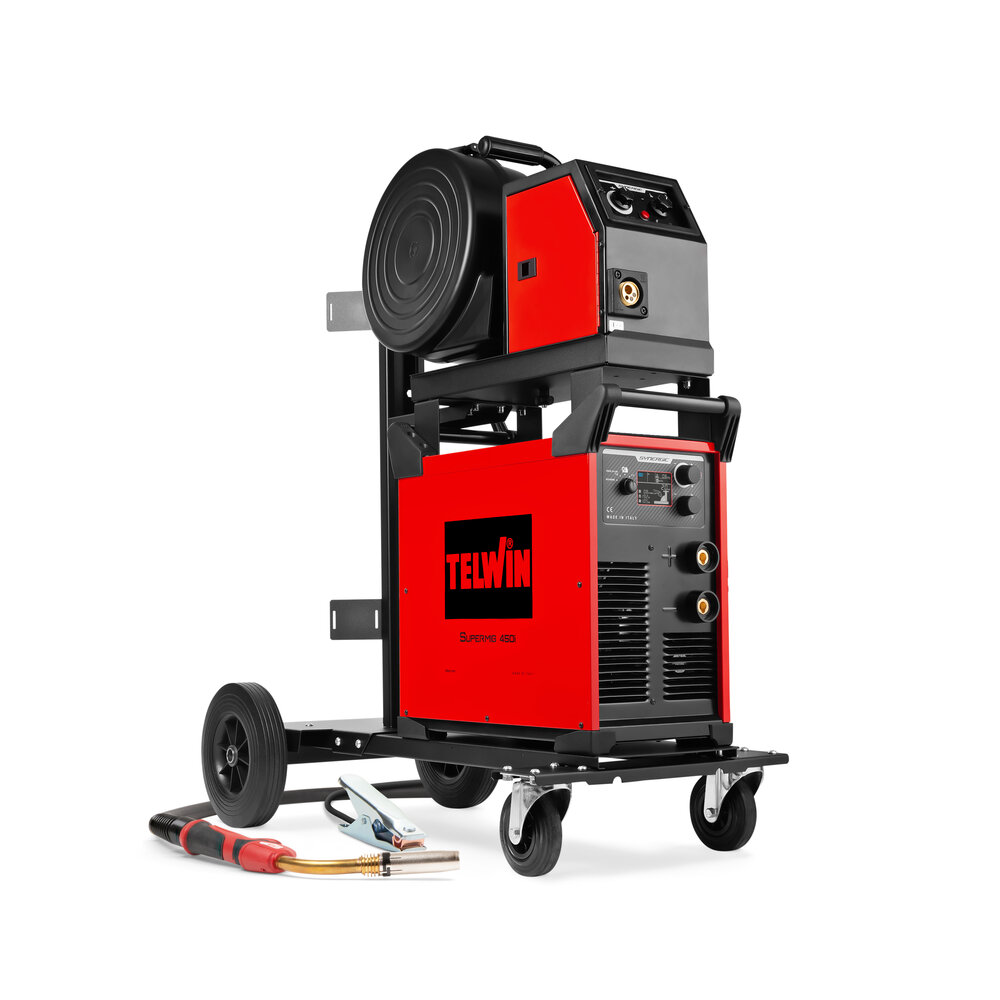

Complete with MIG-MAG torch, work cable and clamp, wire feeder unit with connecting cables and trolley Federal.

CODE

816905

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 320 / 20 - 400 A

MAX CURRENT

300 @ 40% / 400 @ 40% A

DC CURRENT

240 / 300 A

MAX NO LOAD VOLTAGE

82 / 77 V

MAX ABSORBED CURRENT

38 / 31 A

ABSORBED CURRENT AT 60%

27 / 21 A

MAX ABSORBED POWER

11 / 16 kW

ABSORBED POWER AT 60%

7,9 / 10,8 kW

EFFICIENCY

89 %

POWER FACTOR

0,74

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1,6 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,6 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

100 x 50 x 110 cm

WEIGHT

69 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

brochure

Download PDF

Certificate

Download PDF

TROLLEY - FEDERAL

803091

TS 500 WIRE FEEDER

806170

SUPERMIG 450i

816199

ARGON GAS BOTTLE IT ADAPTOR

432036

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

ST26V TIG TORCH AX50 4M

742058

MT36 MIG TORCH 4M

742187

MT36 MIG TORCH 5M

742188

CONNECTING CABLE 70MMQ 4M 14 POLES

802348

CONNECTING CABLE 70MMQ 10M 14 POLES

802349

COIL ADAPTOR 200 MM

802486

GOUGING KIT

802666

VANTAGE RED XL MMA/MIG-MAG/TIG HELMET

802936

ELECTRODE HOLDER + CABLE 35MMQ 4M AX50

804124

QUICK GAS CONNECTOR

804208

ALUMINIUM WELDING KIT D. 1-1,6 MM

804397

FLUX CORED WIRE WELDING KIT D. 1-1,6 MM

804398
