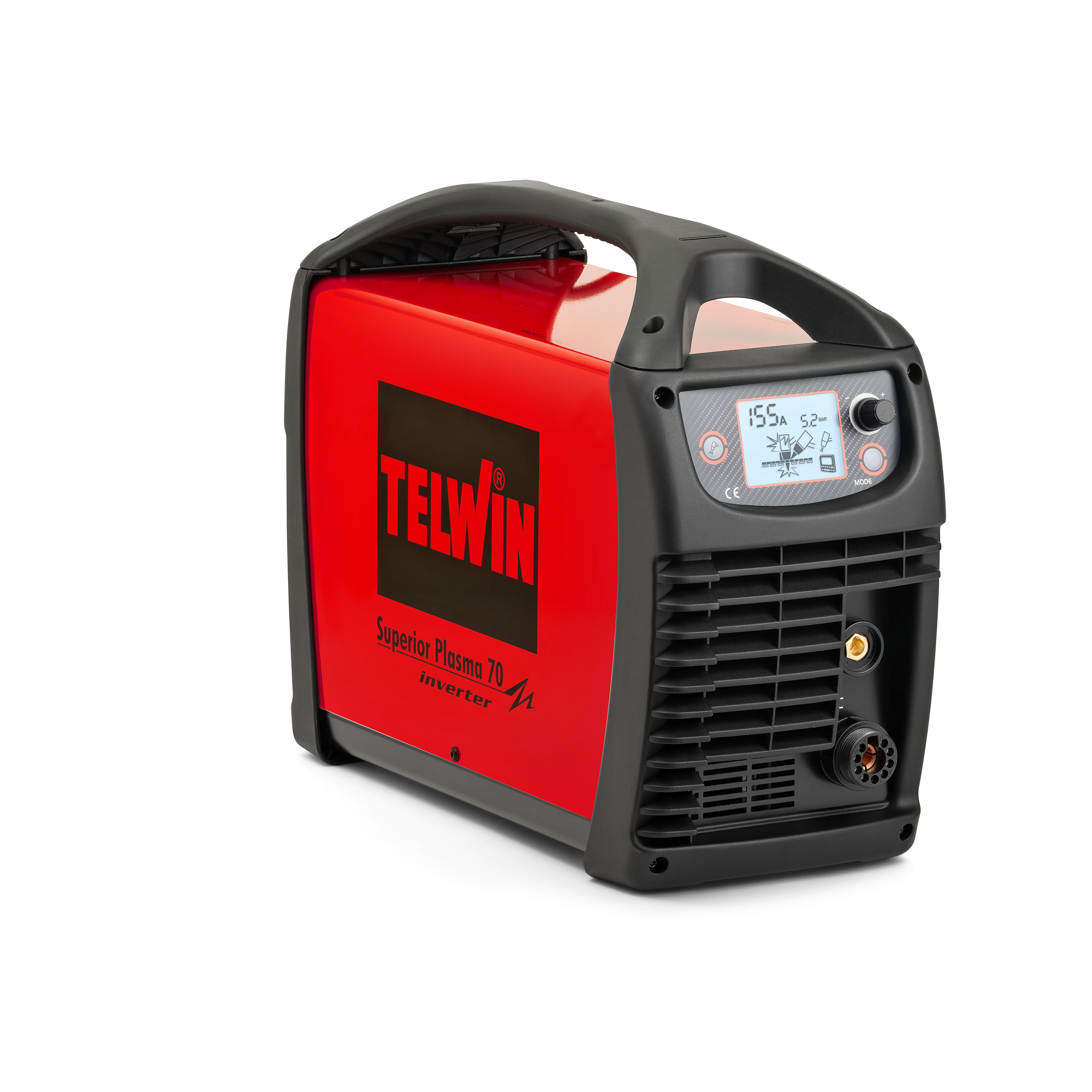

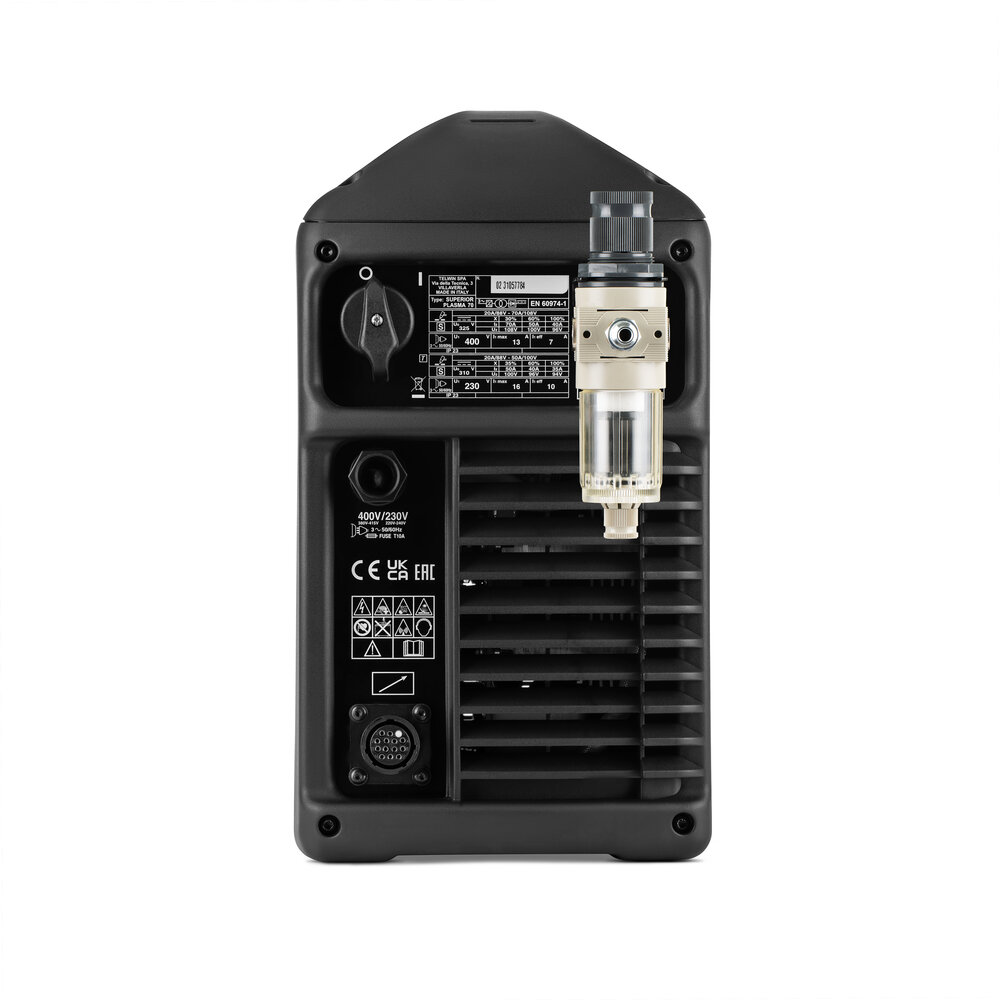

SUPERIOR PLASMA 70

SUPERIOR PLASMA 70

Download PDF Request Info

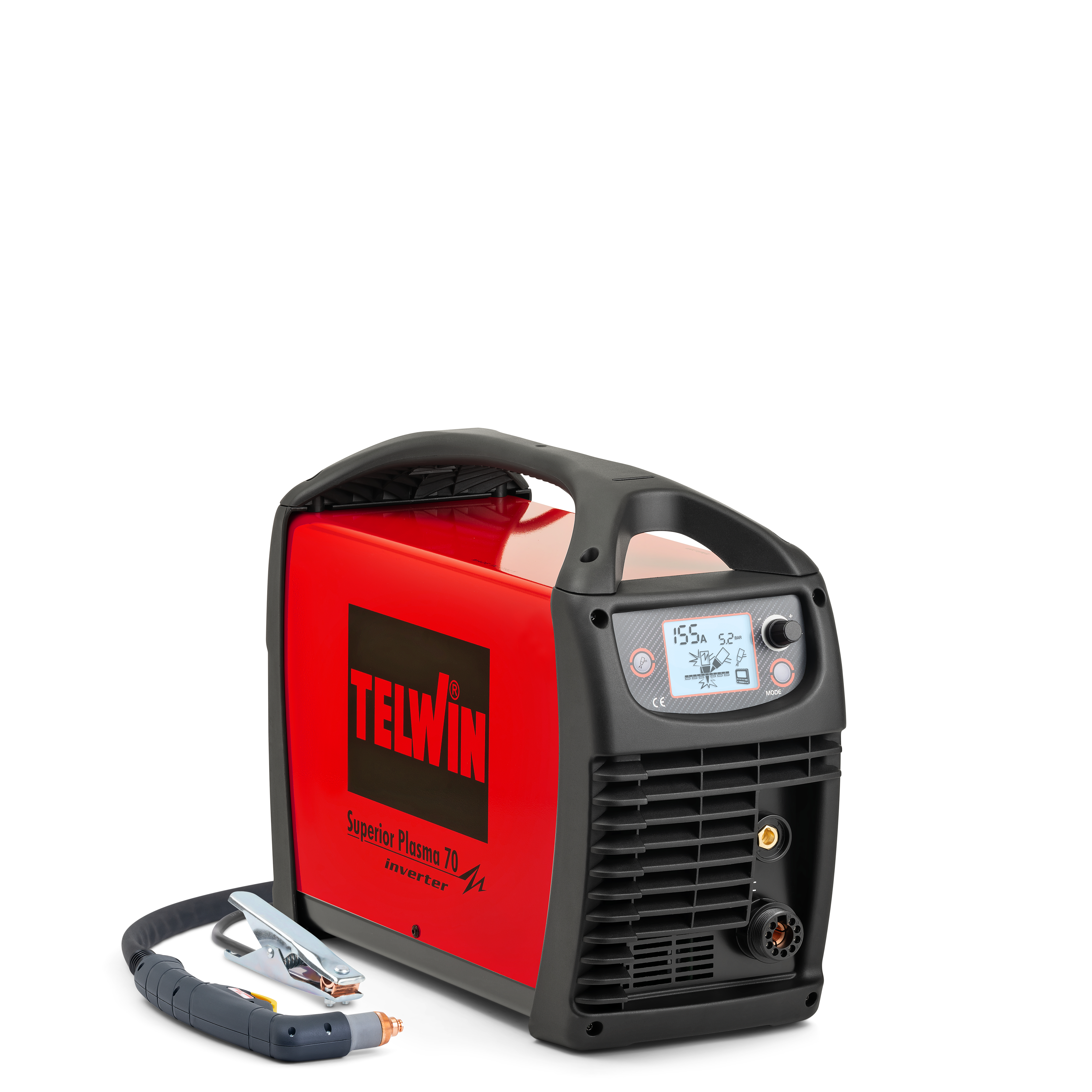

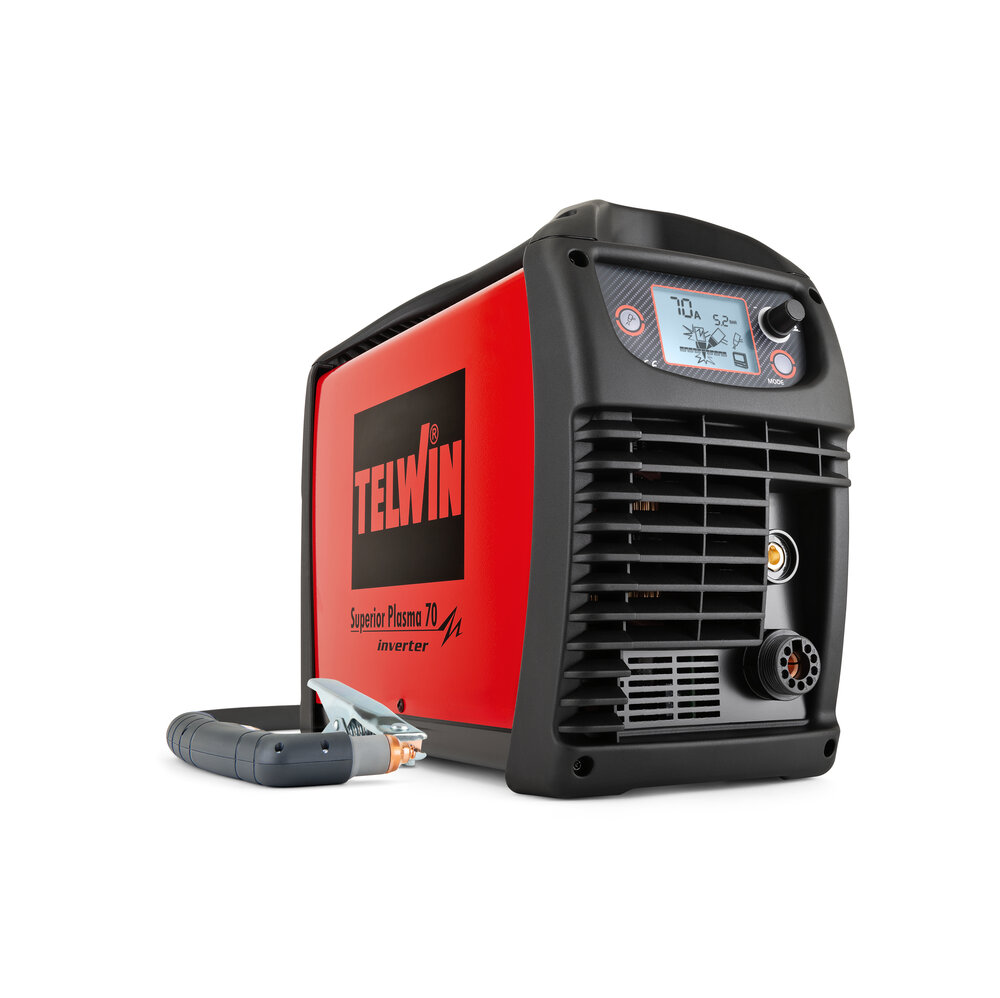

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting, grid cutting and gauging of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
It allows interfacing with automated cutting systems.
Features:
- easy to carry;
- high cutting current stability;

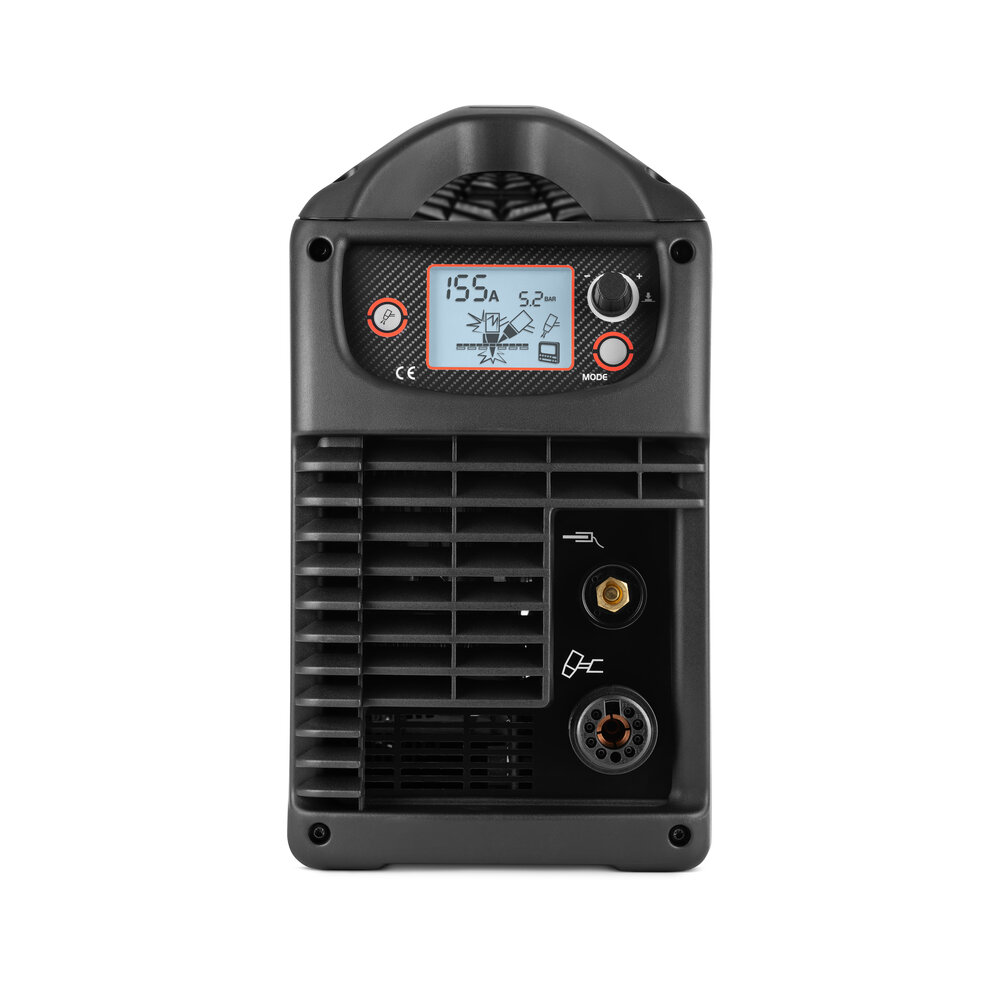

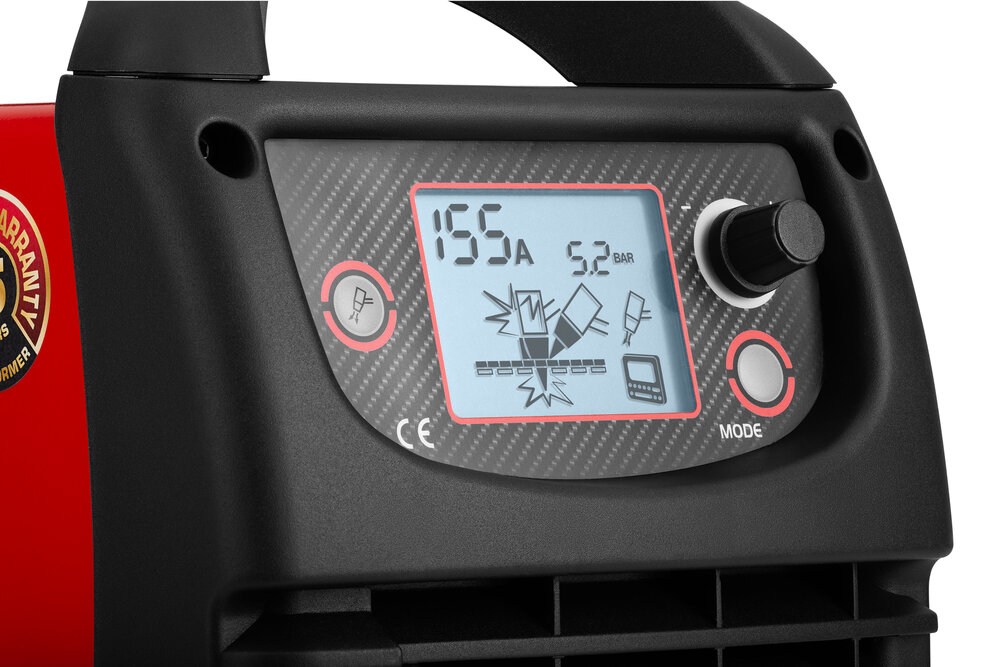

- user-friendly easy to read and adjust digital panel;
- remote control;
- thermostatic, overvoltage, undervoltage, overcurrent, torch short circuit, phase and air failure protections.
Complete with torch.

CODE

816170

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 50 / 20 - 70 A

MAX CURRENT

50 @ 35% / 70 @ 30% A

MAX NO LOAD VOLTAGE

310 / 325 V

MAX ABSORBED CURRENT

16 / 13 A

MAX ABSORBED POWER

5,5 / 8,5 kW

EFFICIENCY

90 %

POWER FACTOR

0,9

MAX CUTTING THICKNESS

20 / 30 mm

COMPRESSED AIR CAPACITY

200 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS

47 x 19 x 35,5 cm

WEIGHT

15,8 kg

Catalog Image

Instruction Manual

brochure

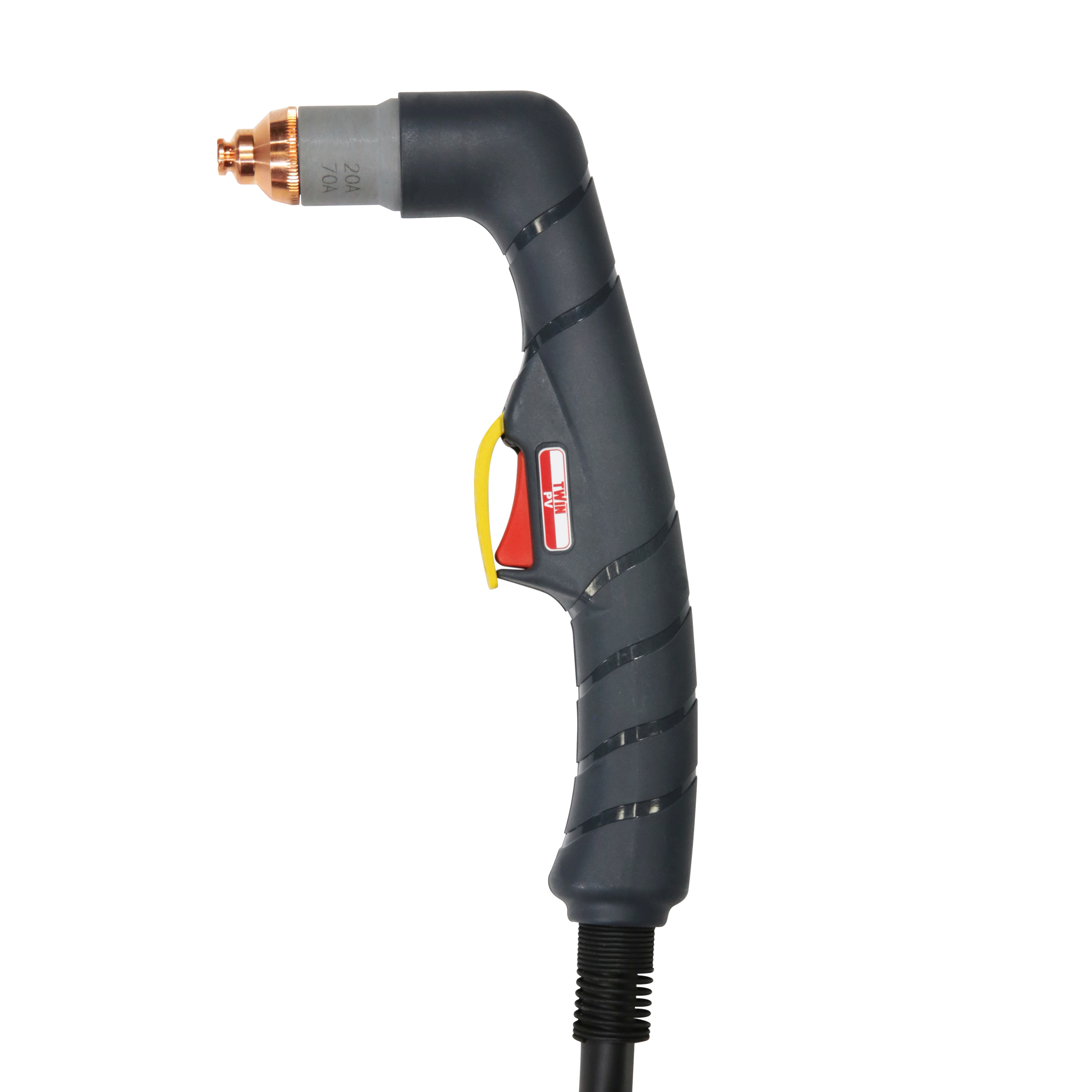

PV PLASMA TORCH 6 M

SUPERIOR PLASMA 70

MMS-10 MOISTURE & MIXTURE STOP FILTER

MMS-10 AIR FILTER CARTRIDGES 4 PCS

STARTER KIT 45A PX A

STARTER KIT 65A PX A

KIT 2 SHIELDS 45A-85A PXA

KIT 1 SAFETY CAP 45A-85A PX-PXA

KIT 2 DIFFUSERS 45A-85A PX-PXA

KIT 5 ELECTRODES 45A-150A PX-PXA

KIT 5 NOZZLES 45A PX-PXA

KIT 5 NOZZLES 65A PX-PXA

PXA PLASMA TORCH 12 M

KIT 5 ELECTRODES PV

LONG ELECTRODES PV 5 PCS

DIFFUSERS 20A-70A PV 2 PCS

NOZZLES 20A-50A PV 5 PCS

LONG NOZZLES 20A-50A PV 5 PCS

NOZZLES 70A PV 5 PCS

LONG NOZZLES 70A PV 5 PCS

SAFETY CAP 20A-70A PV

SHIELDS 20A-70A PV 2 PCS

PROLONGED SHIELDS PV 2 PCS

O-RING PV 10 PCS

CIRCULAR CUTTING UNIT

GOUGING SHIELDS 45A PV 3 PCS

KIT 5 GOUGING NOZZLES 45A PV

ELECTRODES PV XLONG 3 PCS

SAFETY CAP PV XLONG

RINGS PV XLONG 3 PCS

NOZZLES 45A PV XLONG 5 PCS

NOZZLES 70A PV XLONG 5 PCS

NOZZLES EXTRACTOR PV XLONG

SHIELDS 20A-100A PV XLONG 2 PCS

GOUGING NOZZLES 70A PV XLONG 5 PCS

GOUGING SHIELDS 50A-100A PV XLONG 3 PCS

ELECTRODES 40A-70A HORIZONTAL CUT 5 PCS

NOZZLES 40A-70A HORIZONTAL CUT 5 PCS

DIFFUSERS 40A-70A HORIZONTAL CUT 2 PCS

RETENTION CAP HORIZONTAL CUT

RETENTION RING HORIZONTAL CUT

TROLLEY - AMERICA

CONSUMABLES BOX FOR PV TORCH

CONSUMABLES BOX PV XLONG

CONSUMABLES BOX HORIZONTAL CUT 70

CONNECTING CABLE CNC 10M

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting, grid cutting and gauging of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
It allows interfacing with automated cutting systems.
Features:
- easy to carry;
- high cutting current stability;
- user-friendly easy to read and adjust digital panel;
- remote control;
- thermostatic, overvoltage, undervoltage, overcurrent, torch short circuit, phase and air failure protections.
Complete with torch.

CODE

816170

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 50 / 20 - 70 A

MAX CURRENT EN60974-1

50 @ 35% / 70 @ 30% A

MAX NO LOAD VOLTAGE

310 / 325 V

MAX ABSORBED CURRENT

16 / 13 A

MAX ABSORBED POWER

5,5 / 8,5 kW

EFFICIENCY

90 %

POWER FACTOR(cosphi) (cosphi)

0,9

MAX CUTTING THICKNESS

20 / 30 mm

COMPRESSED AIR CAPAC.

200 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

47 x 19 x 35,5 cm

WEIGHT

15,8 kg

Catalog Image

Instruction Manual

brochure

PV PLASMA TORCH 6 M

804041

SUPERIOR PLASMA 70

816070

MMS-10 MOISTURE & MIXTURE STOP FILTER

804340

MMS-10 AIR FILTER CARTRIDGES 4 PCS

804343

STARTER KIT 45A PX A

802879

STARTER KIT 65A PX A

802880

KIT 2 SHIELDS 45A-85A PXA

802884

KIT 1 SAFETY CAP 45A-85A PX-PXA

802887

KIT 2 DIFFUSERS 45A-85A PX-PXA

802888

KIT 5 ELECTRODES 45A-150A PX-PXA

802889

KIT 5 NOZZLES 45A PX-PXA

802892

KIT 5 NOZZLES 65A PX-PXA

802893

PXA PLASMA TORCH 12 M

802955

KIT 5 ELECTRODES PV

804042

LONG ELECTRODES PV 5 PCS

804043

DIFFUSERS 20A-70A PV 2 PCS

804044

NOZZLES 20A-50A PV 5 PCS

804045

LONG NOZZLES 20A-50A PV 5 PCS

804046

NOZZLES 70A PV 5 PCS

804047

LONG NOZZLES 70A PV 5 PCS

804048

SAFETY CAP 20A-70A PV

804049

SHIELDS 20A-70A PV 2 PCS

804050

PROLONGED SHIELDS PV 2 PCS

804051

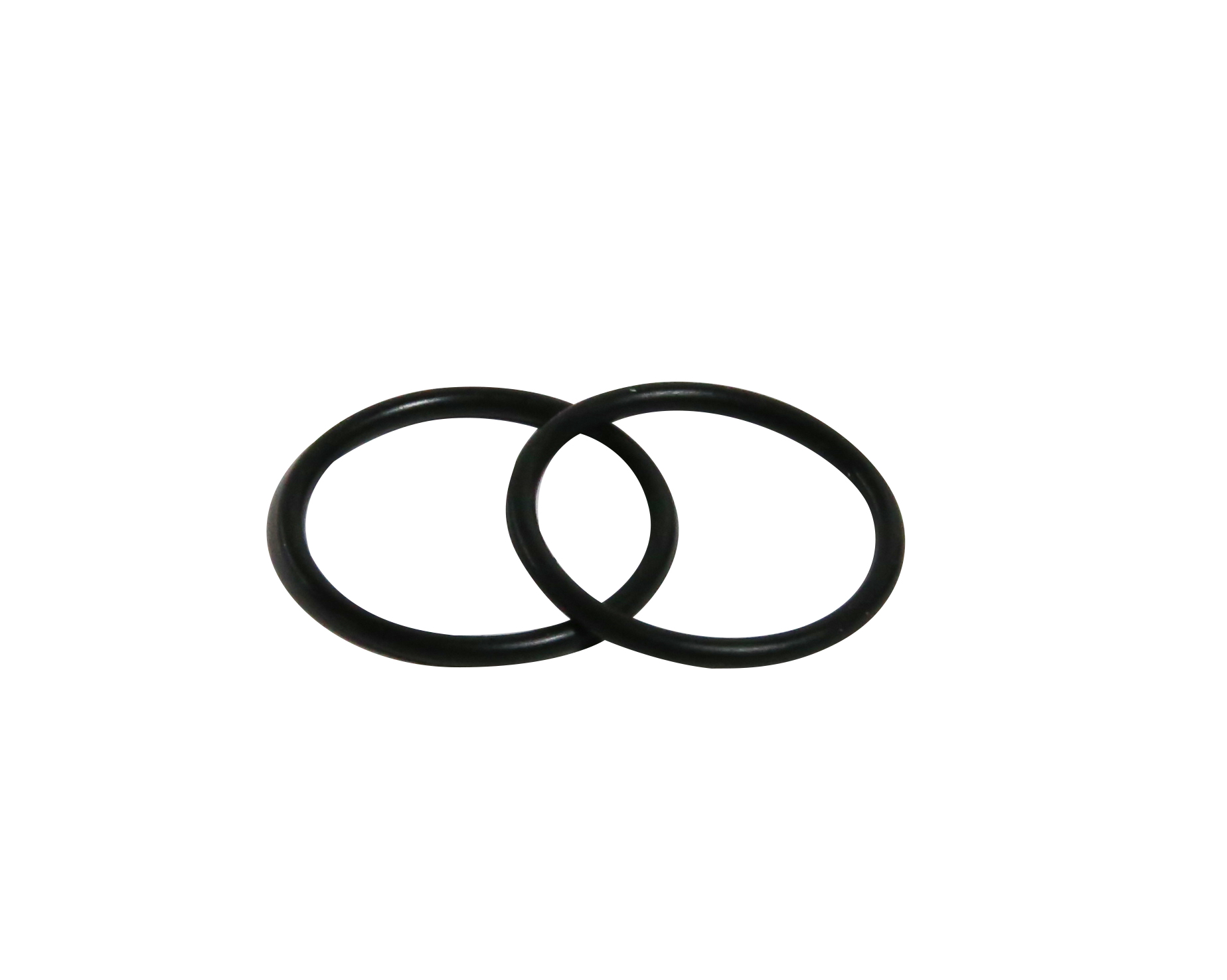

O-RING PV 10 PCS

804052

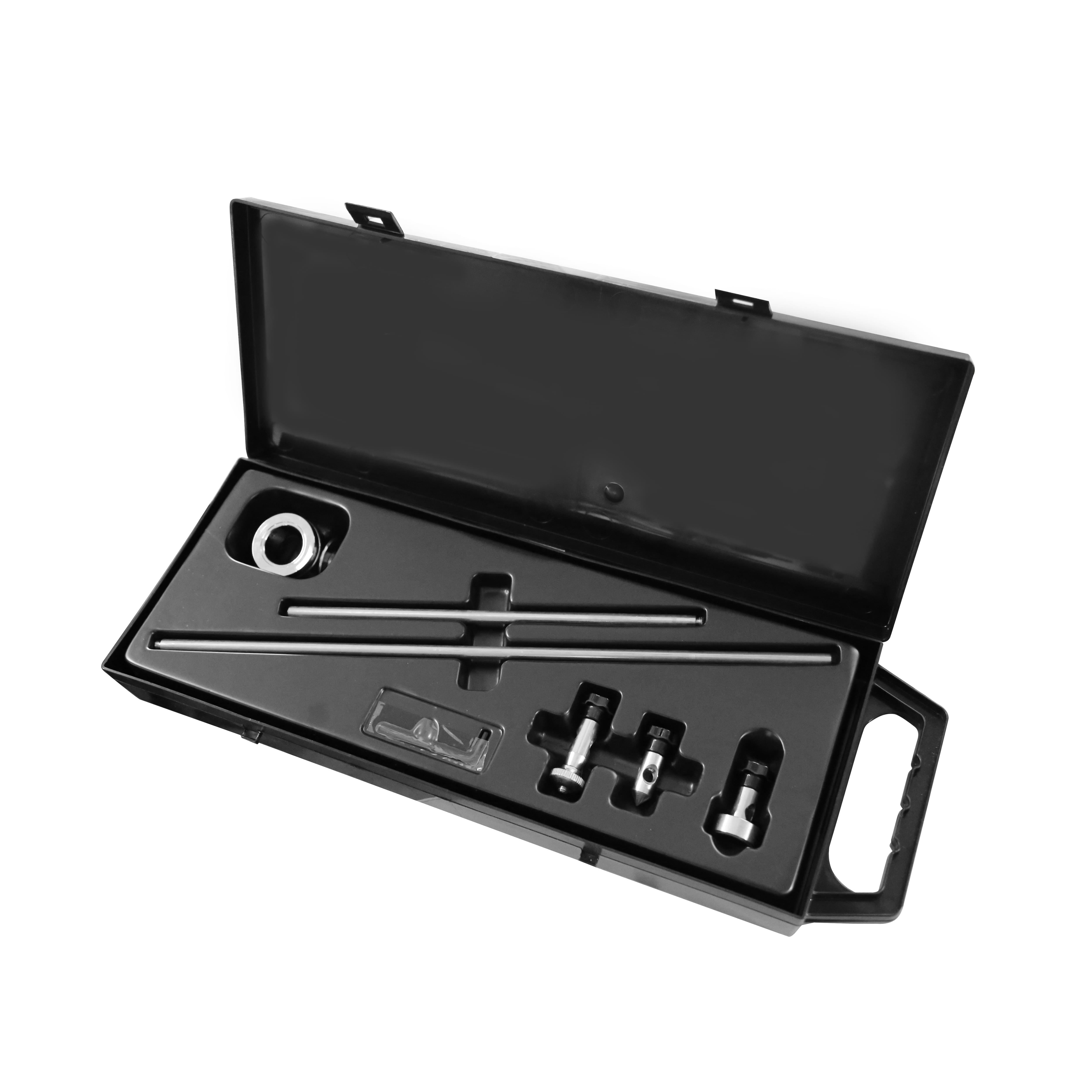

CIRCULAR CUTTING UNIT

804059

GOUGING SHIELDS 45A PV 3 PCS

804061

KIT 5 GOUGING NOZZLES 45A PV

804062

ELECTRODES PV XLONG 3 PCS

804355

SAFETY CAP PV XLONG

804356

RINGS PV XLONG 3 PCS

804357

NOZZLES 45A PV XLONG 5 PCS

804358

NOZZLES 70A PV XLONG 5 PCS

804359

NOZZLES EXTRACTOR PV XLONG

804361

SHIELDS 20A-100A PV XLONG 2 PCS

804372

GOUGING NOZZLES 70A PV XLONG 5 PCS

804373

GOUGING SHIELDS 50A-100A PV XLONG 3 PCS

804375

ELECTRODES 40A-70A HORIZONTAL CUT 5 PCS

804378

NOZZLES 40A-70A HORIZONTAL CUT 5 PCS

804379

DIFFUSERS 40A-70A HORIZONTAL CUT 2 PCS

804382

RETENTION CAP HORIZONTAL CUT

804383

RETENTION RING HORIZONTAL CUT

804384

TROLLEY - AMERICA

803084

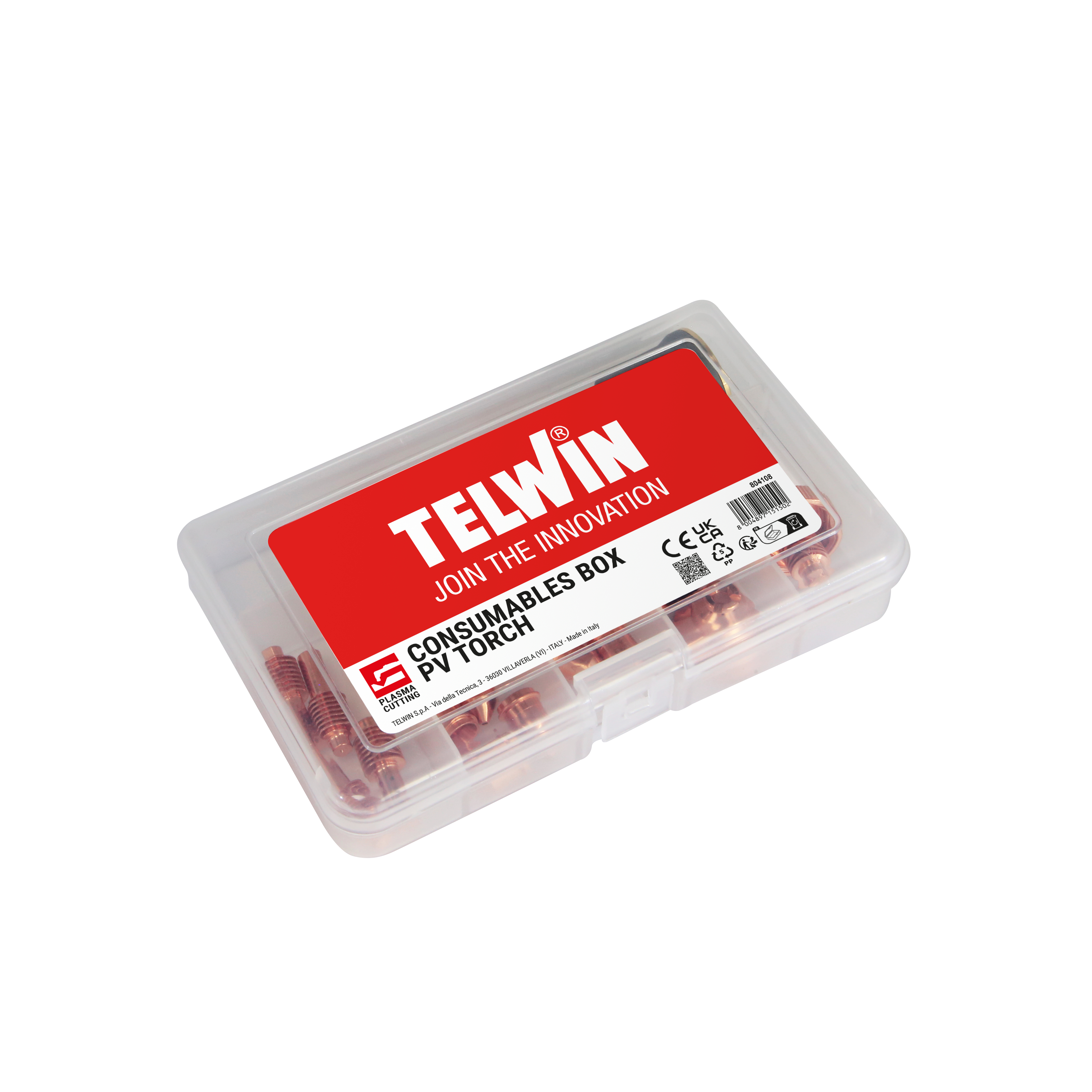

CONSUMABLES BOX FOR PV TORCH

804108

CONSUMABLES BOX PV XLONG

804354

CONSUMABLES BOX HORIZONTAL CUT 70

804376

CONNECTING CABLE CNC 10M

804976
