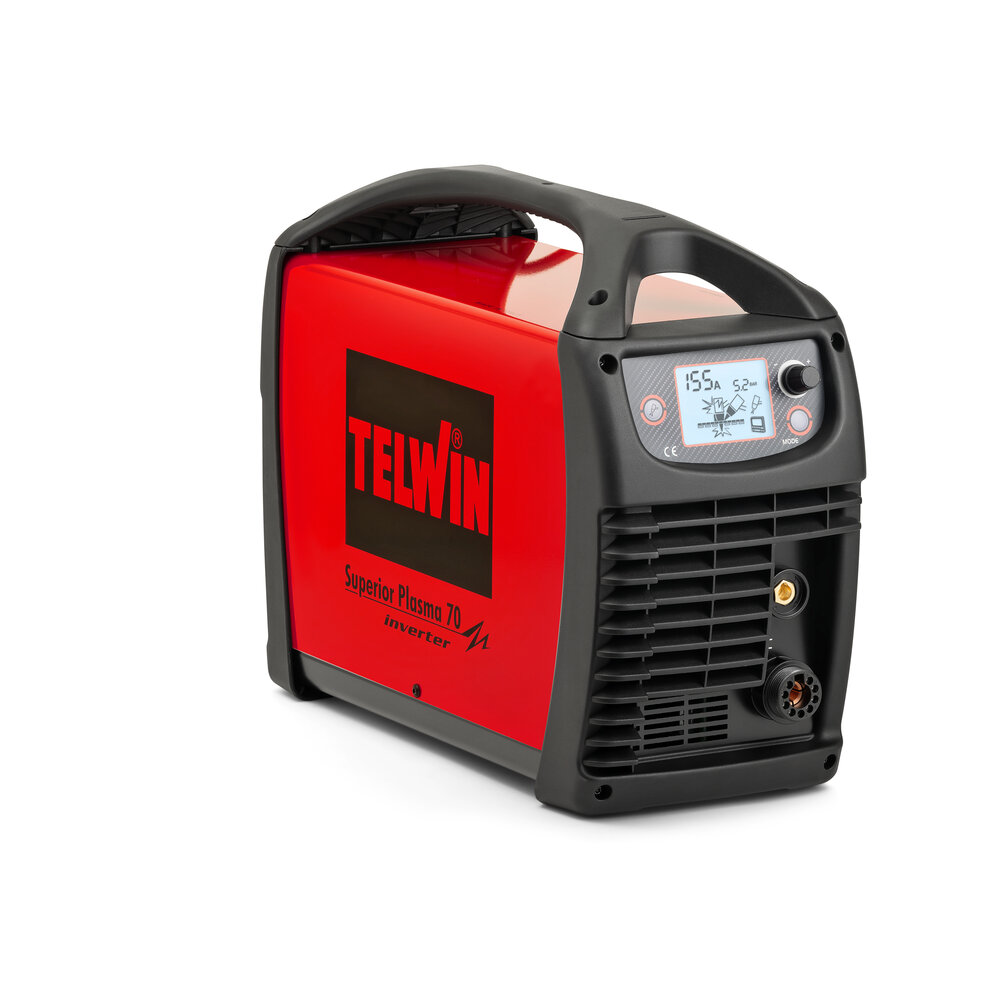

SUPERIOR PLASMA 70

Home special SUPERIOR PLASMA 70

SUPERIOR PLASMA 70

SUPERIOR PLASMA 70

Download PDF Request Info

70A plasma cutting inverter system with compressed air and strike on contact of the pilot arc. Integrated connection interface with automated cutting systems. 3ph 230/400V power supply.
Max. cut 30 mm. Advanced functions: grid cutting, 4T cut and gouging of all the conductor materials.
Interfacing with automated cutting systems is also an option. Specific connector to set the various control signals of the cutting process. Compatible with remote control.
High stability cutting current.
LCD display for simple reading and adjustment.
Thermostatic, overvoltage, undervoltage, overcurrent protection, circuit in torch, phase failure, no air protection.

70A plasma cutting inverter system with compressed air and strike on contact of the pilot arc. Integrated connection interface with automated cutting systems. 3ph 230/400V power supply.
Max. cut 30 mm. Advanced functions: grid cutting, 4T cut and gouging of all the conductor materials.
Interfacing with automated cutting systems is also an option. Specific connector to set the various control signals of the cutting process. Compatible with remote control.
High stability cutting current.
LCD display for simple reading and adjustment.
Thermostatic, overvoltage, undervoltage, overcurrent protection, circuit in torch, phase failure, no air protection.

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting, grid cutting and gauging of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
It allows interfacing with automated cutting systems.
Features:

easy to carry
high cutting current stability
user-friendly easy to read and adjust digital panel
remote control
thermostatic, overvoltage, undervoltage, overcurrent, torch short circuit, phase failure protections.

CODE

816070

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX CUTTING CURRENT EN60974-1

70 @ 30% A

CURRENT CONTROL RANGE DC

20 - 70 A

CUTTING CURRENT 60%

40 / 50 A

CUTTING CURRENT 100%

40 A

MAX ABSORBED CURRENT

13 A

RANGE V OUT

80 - 210 V

MAX NO LOAD VOLTAGE

310 / 325 V

MAX ABSORBED POWER

8,5 kW

FUSE

10 A

EFFICIENCY

90 %

MAX CUTTING THICKNESS

30 mm

COMPRESSED AIR CAPACITY

200

COMPRESSED AIR PRESSURE

4 - 5 bar

SUPPLY CABLE LENGTH

2,5 m

NORM

EN 60974-1 /-10

PROTECTION DEGREE

IP23

DIMENSIONS

54 x 19 x 35 cm

WEIGHT

13,5 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

CABLE TW05V-A 1X016 L=05,00M/DINSE

TOLEDO 300 WORK CLAMP
