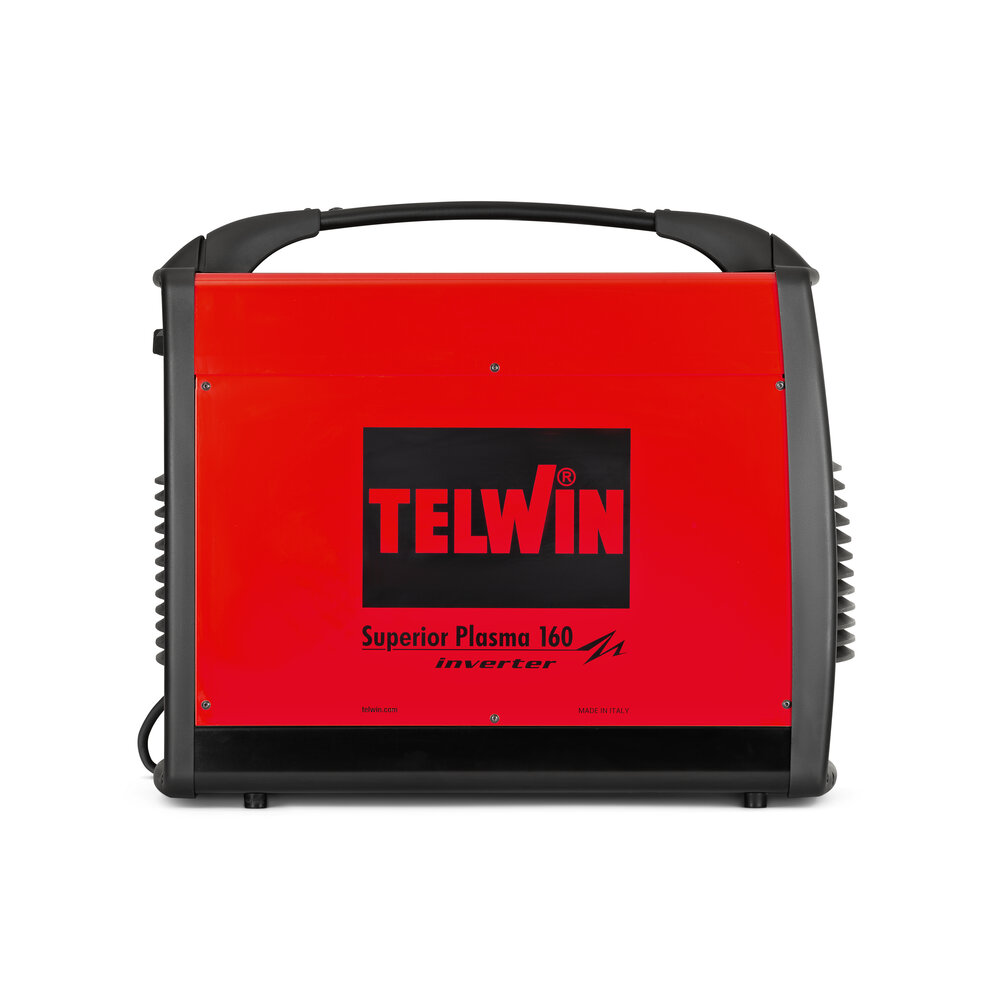

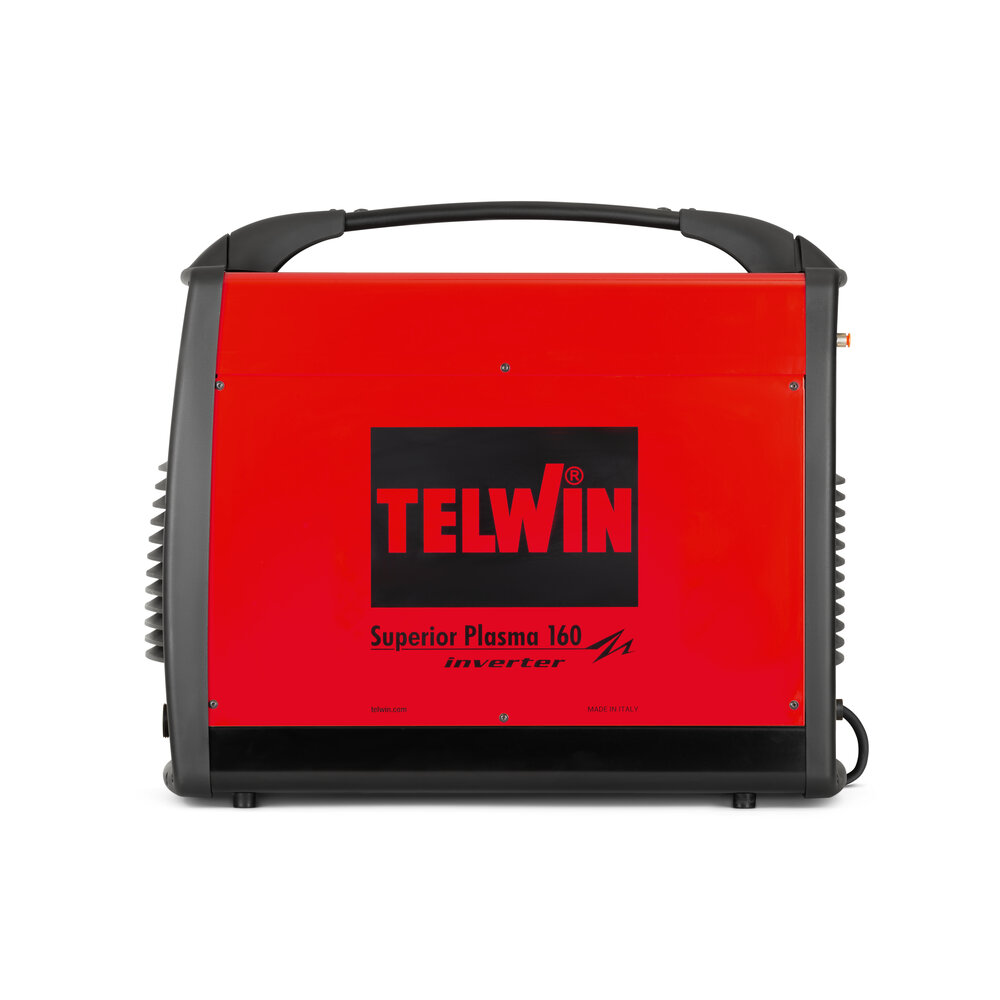

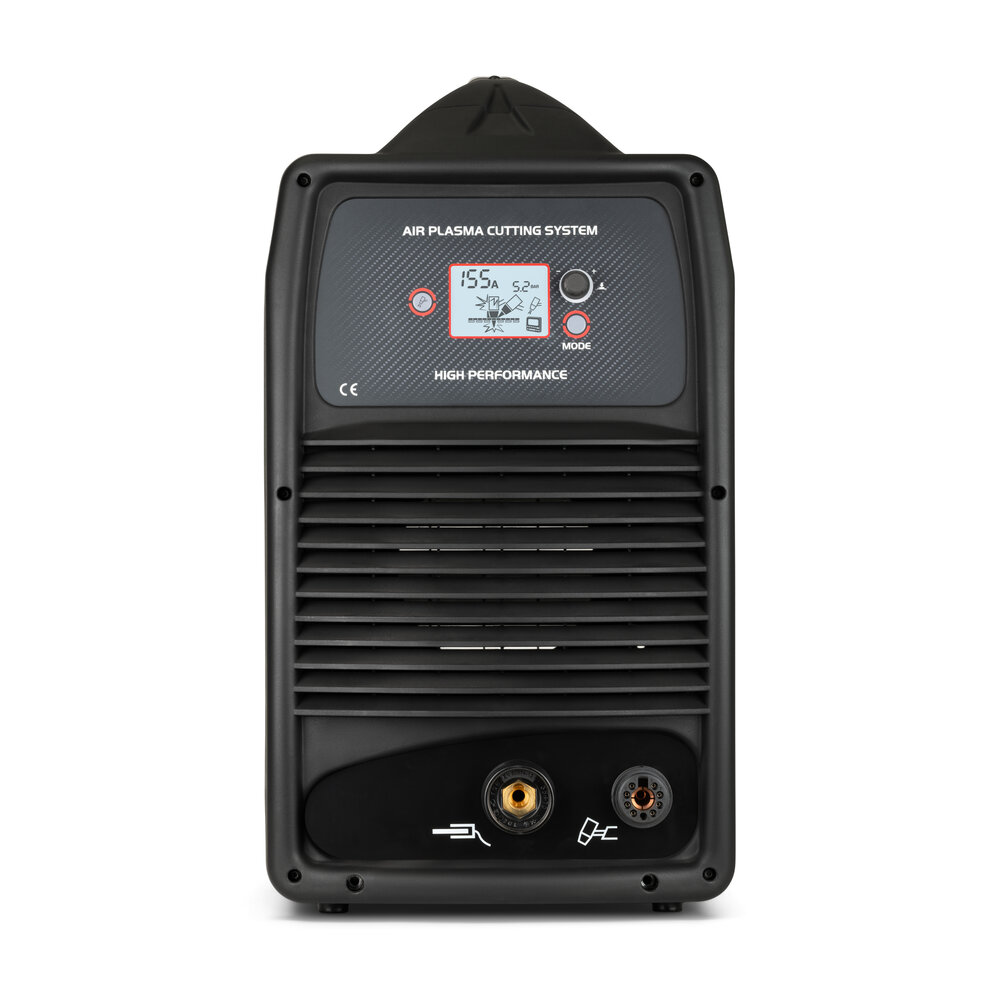

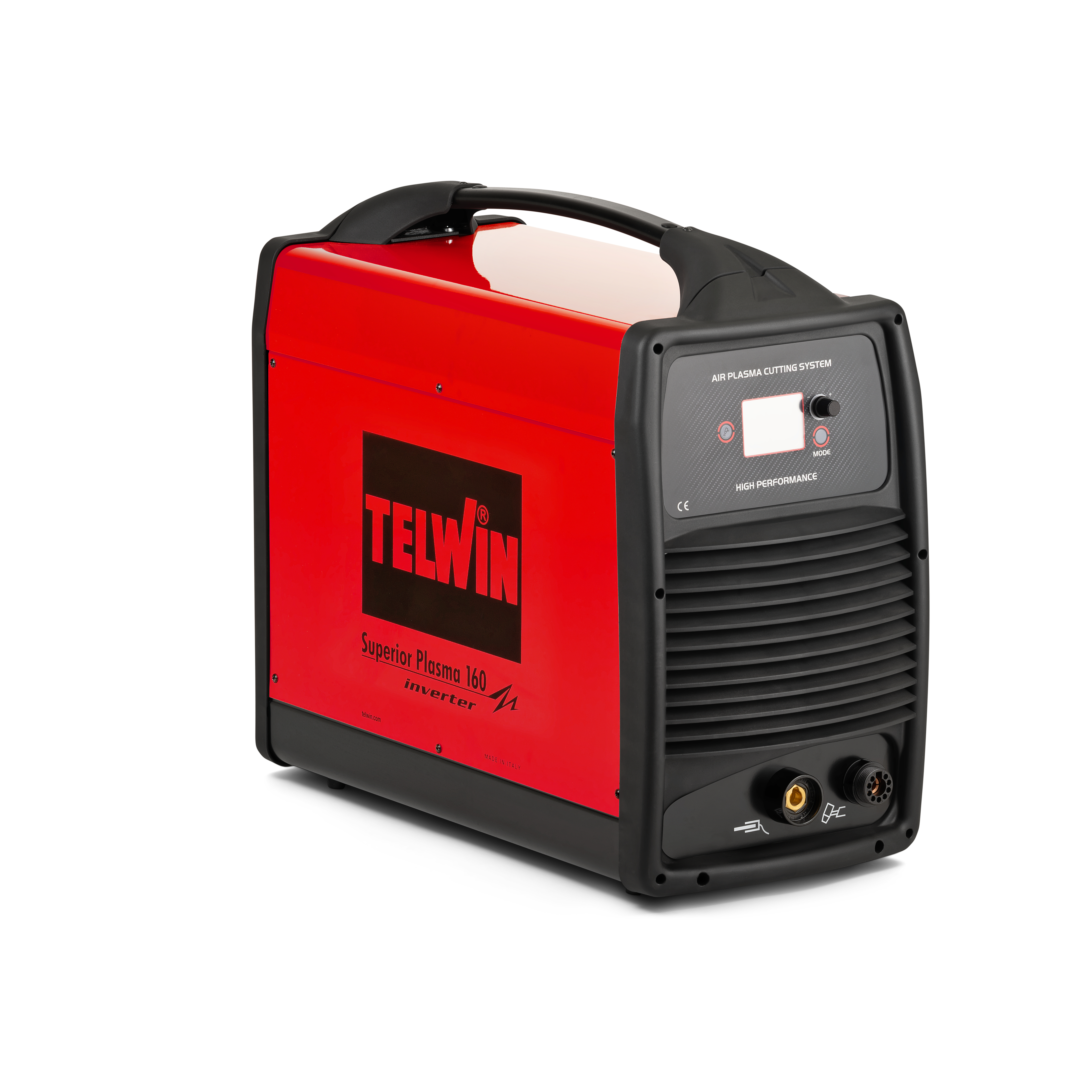

SUPERIOR PLASMA 160 + ACC.

SUPERIOR PLASMA 160 + ACC.

Download PDF Request Info

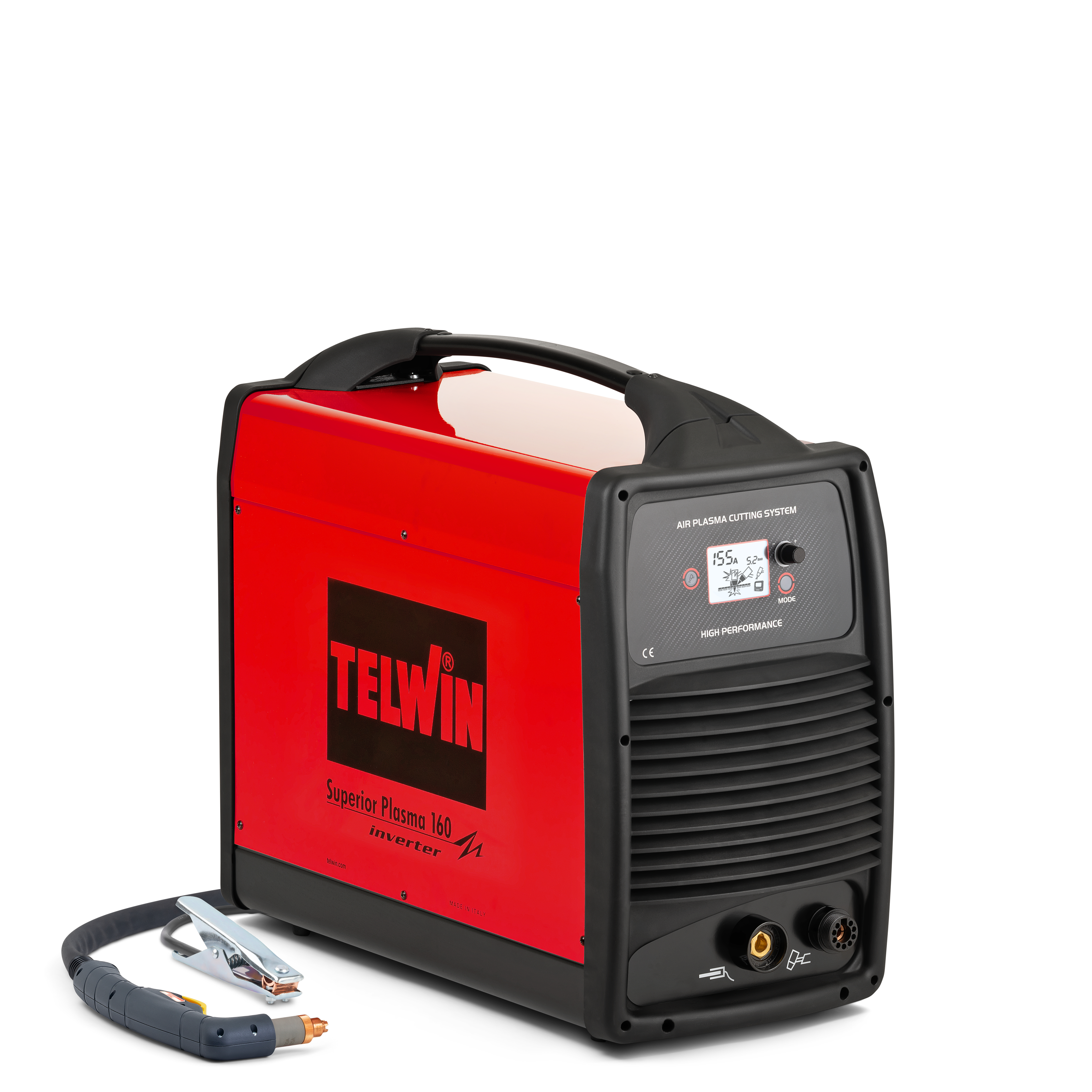

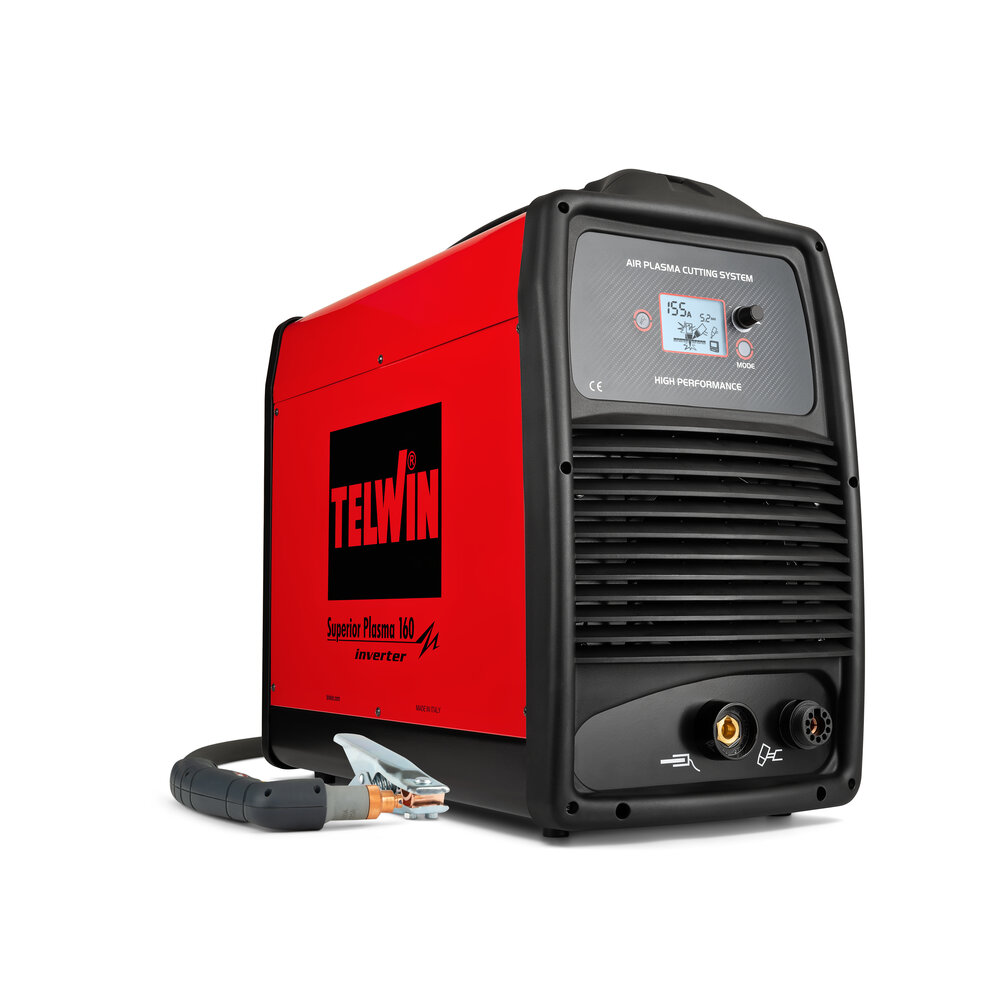

160A plasma cutting inverter system with compressed air and strike on contact of the pilot arc. Integrated connection interface with automated cutting systems. 3ph 230/400V power supply. With PX torch.
Max. cut 50 mm. Advanced functions: grid cutting, 4T cut and gouging of all the conductor materials.

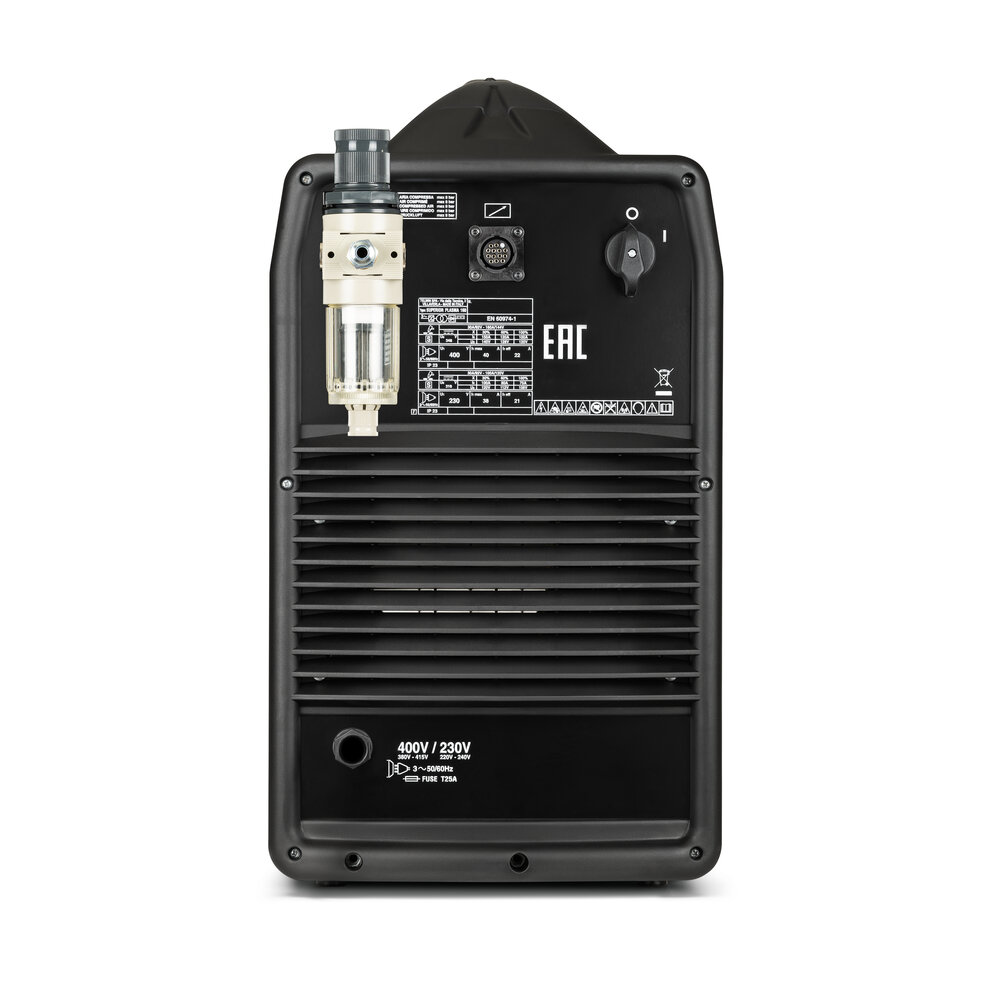

Interfacing with automated cutting systems is also an option. Specific connector to set the various control signals of the cutting process. Compatible with remote control.
High stability cutting current.

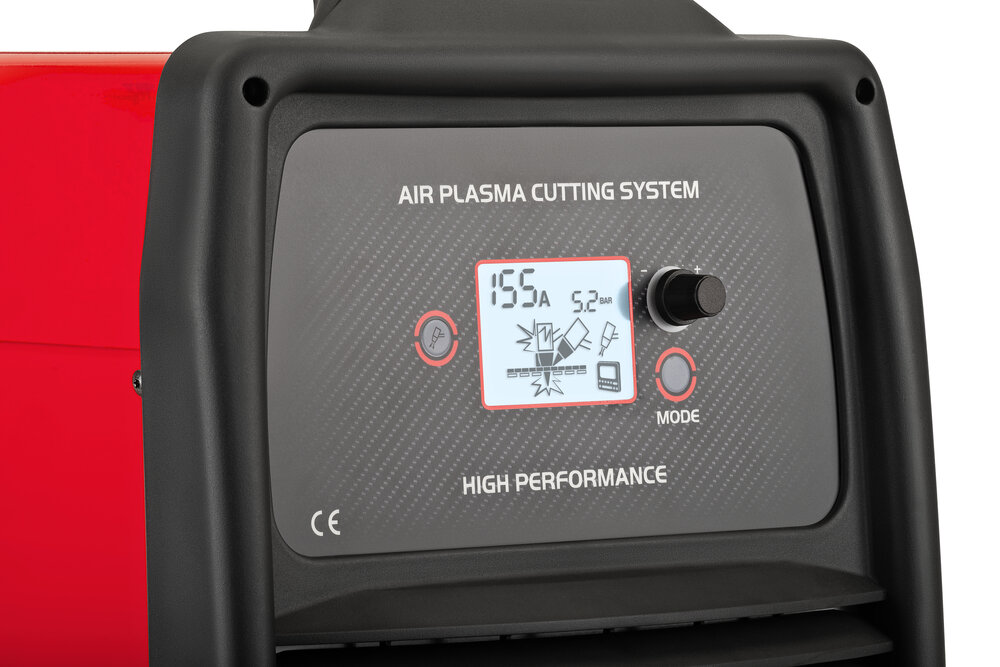

LCD display for simple reading and adjustment.
Thermostatic, overvoltage, undervoltage, overcurrent protection, circuit in torch, phase failure, no air protection.

160A plasma cutting inverter system with compressed air and strike on contact of the pilot arc. Integrated connection interface with automated cutting systems. 3ph 230/400V power supply. With PX torch.
Max. cut 50 mm. Advanced functions: grid cutting, 4T cut and gouging of all the conductor materials.
Interfacing with automated cutting systems is also an option. Specific connector to set the various control signals of the cutting process. Compatible with remote control.
High stability cutting current.
LCD display for simple reading and adjustment.
Thermostatic, overvoltage, undervoltage, overcurrent protection, circuit in torch, phase failure, no air protection.

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting, grid cutting and gauging of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
It allows interfacing with automated cutting systems.
Features:

Easy to carry;
High cutting current stability;
User-friendly easy to read and adjust digital panel;
Remote control;
Thermostatic, overvoltage, undervoltage, overcurrent, torch short circuit, phase and air failure protections.

Complete with torch.

CODE

816174

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

30 - 100 / 30 - 160 A

MAX CURRENT

100 @ 30% / 150 @ 30 % A

MAX NO LOAD VOLTAGE

316 / 348 V

MAX ABSORBED CURRENT

38 / 40 A

MAX ABSORBED POWER

12,5 / 25 kW

EFFICIENCY

86 %

POWER FACTOR

0,9

MAX CUTTING THICKNESS

40 / 50 mm

COMPRESSED AIR CAPACITY

290 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS

67 x 31 x 56 cm

WEIGHT

46 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

brochure

Download PDF

PX PLASMA TORCH 6 M

802965

SUPERIOR PLASMA 160 230-400V

816074

PLASMA TORCHES

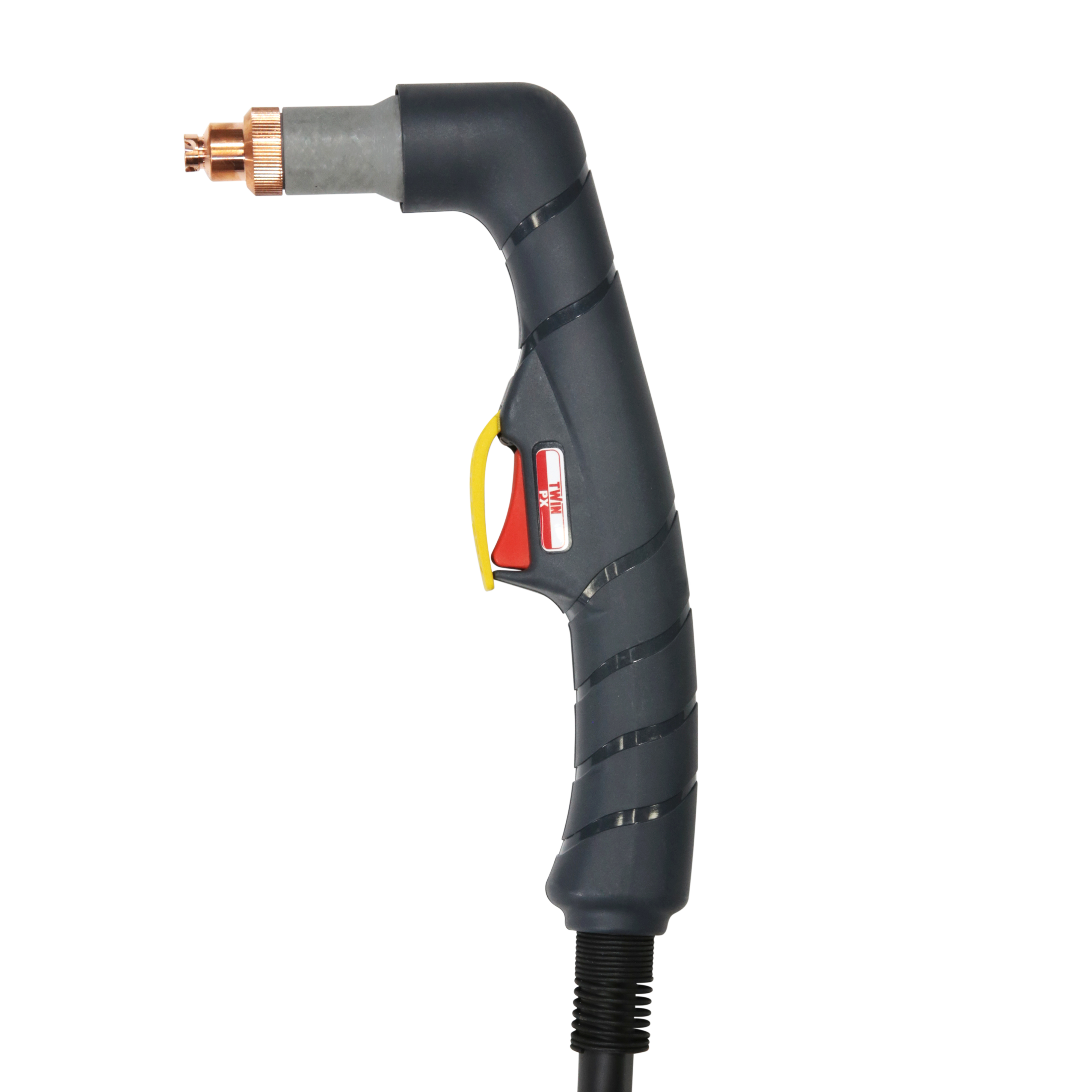

PX PLASMA TORCH 12 M

802973

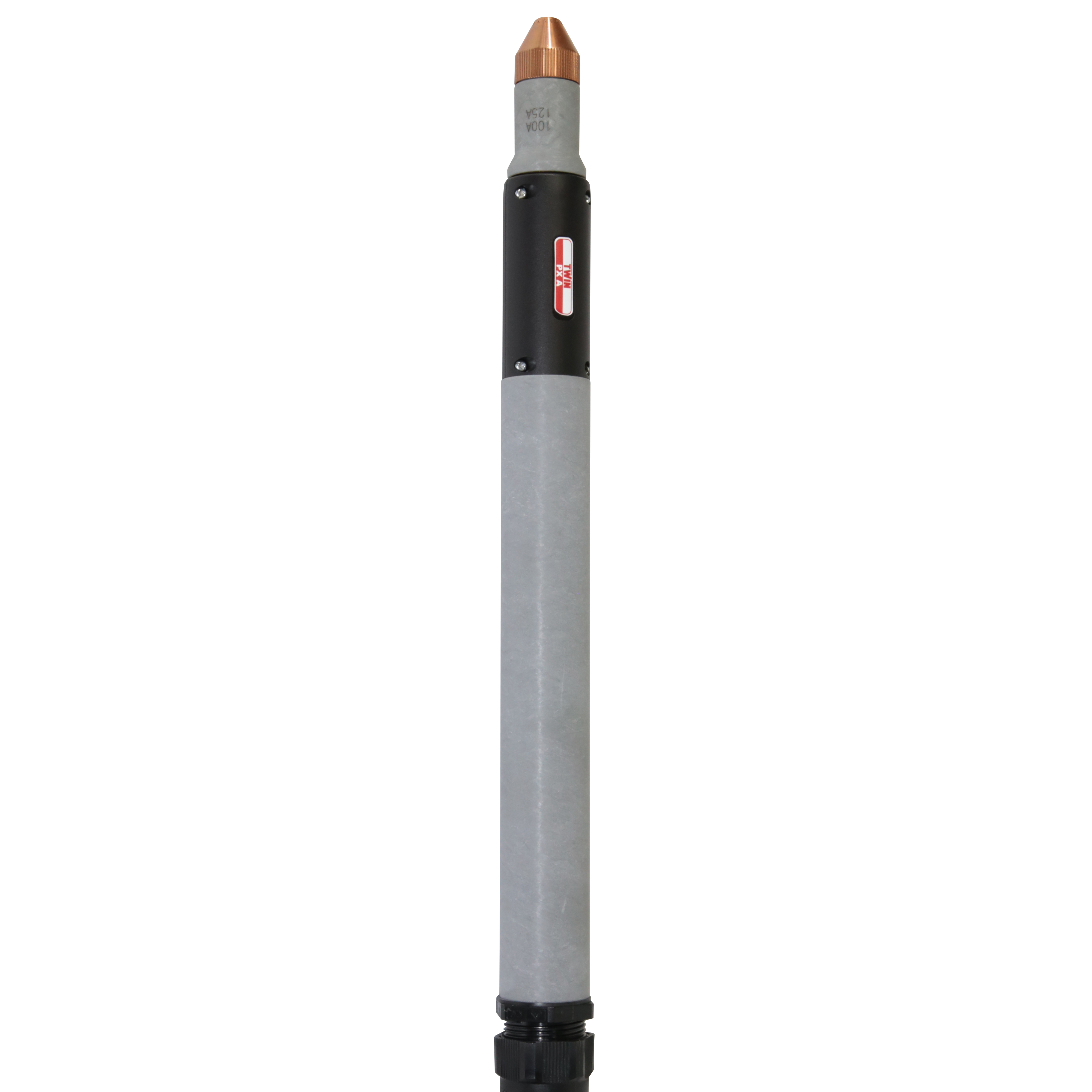

PXA PLASMA TORCH 12 M

802955

OTHER PLASMA ACCESSORIES

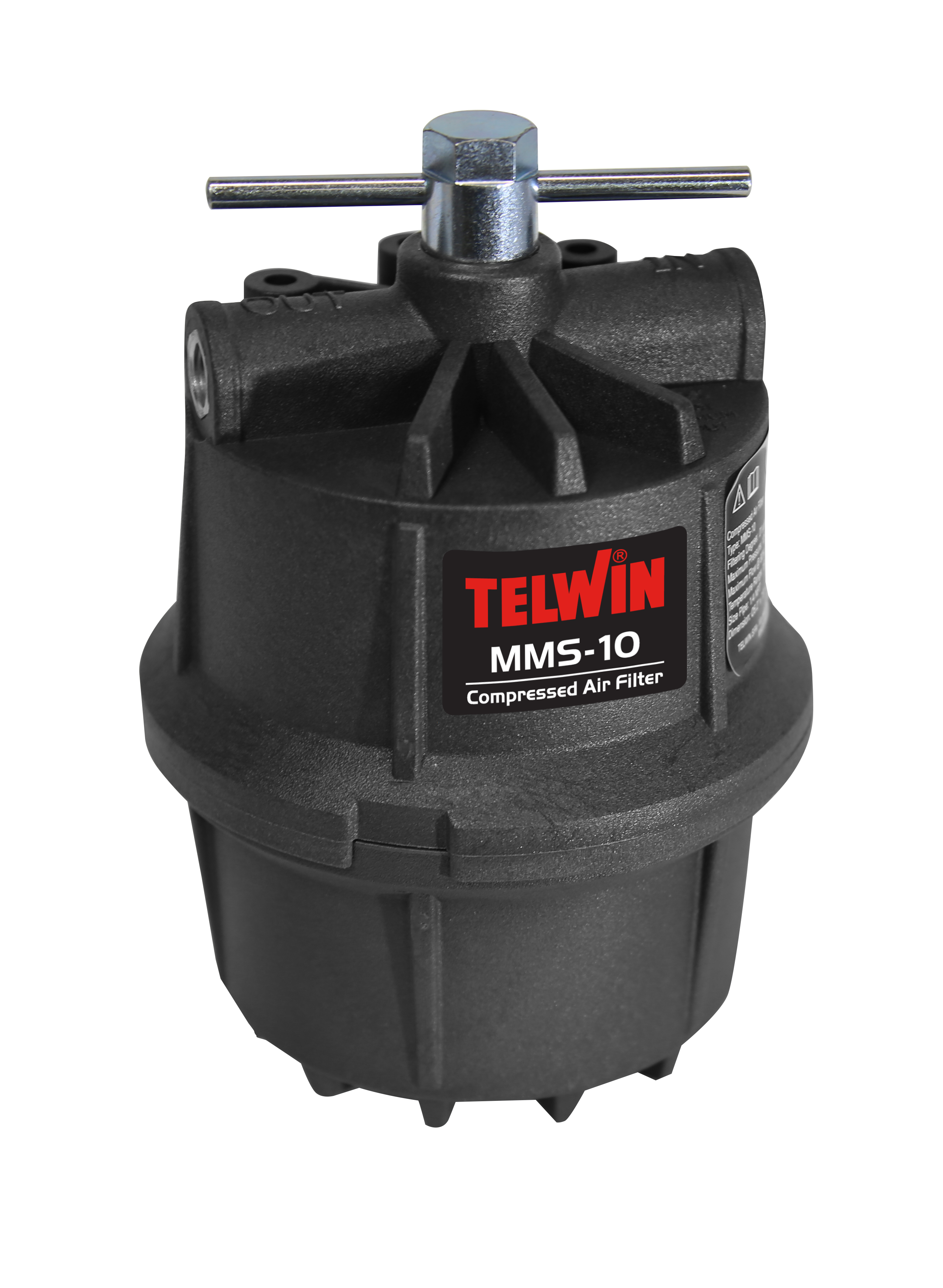

MMS-10 MOISTURE & MIXTURE STOP FILTER

804340

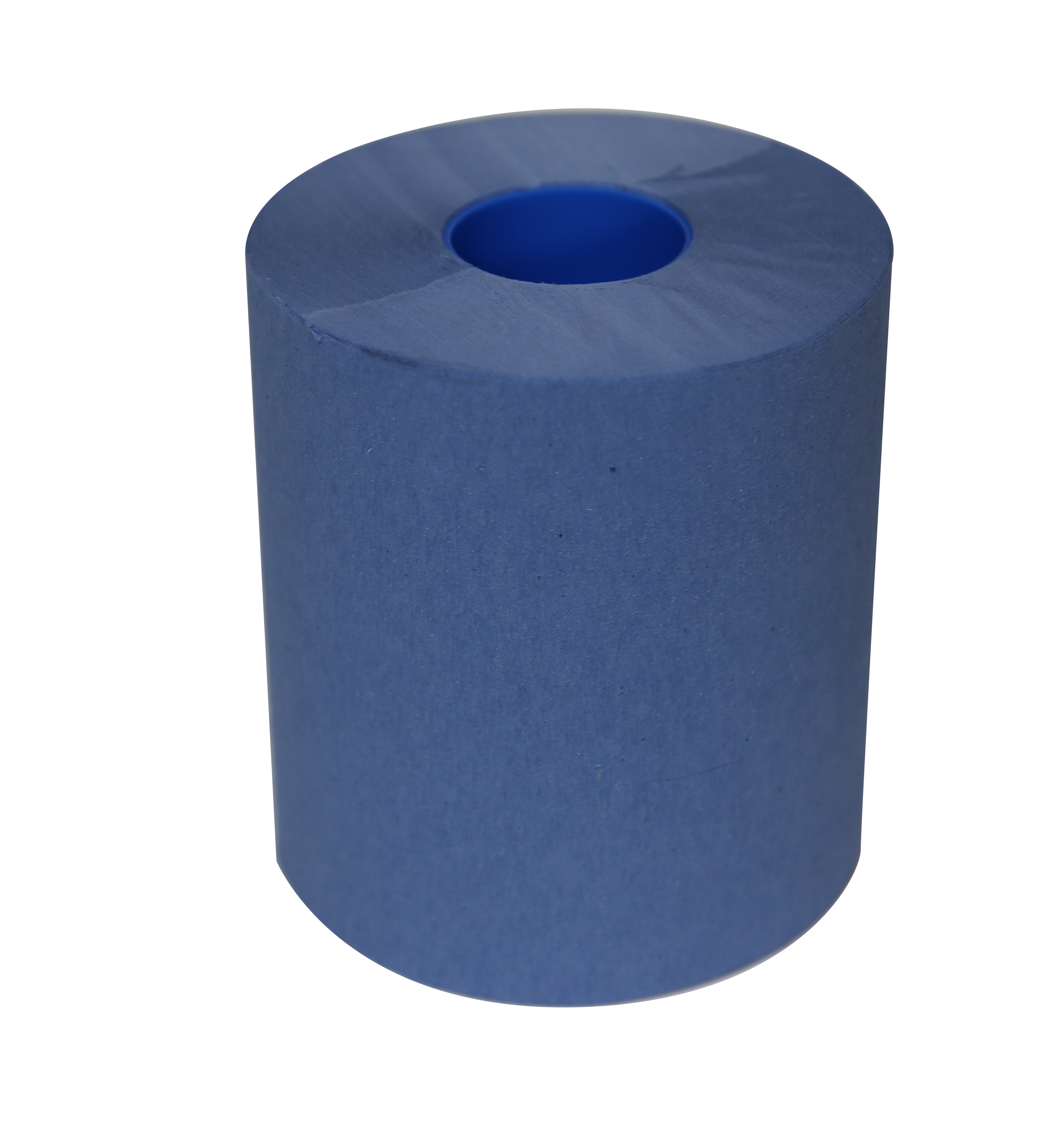

MMS-10 AIR FILTER CARTRIDGES 4 PCS

804343

CONNECTING CABLE CNC 10M

804976

TROLLEYS AND ACCESSORIES

TROLLEY - CONTINENTAL

803064

Easy to carry;
High cutting current stability;
User-friendly easy to read and adjust digital panel;
Remote control;
Thermostatic, overvoltage, undervoltage, overcurrent, torch short circuit, phase and air failure protections.

Complete with torch.

CODE

816174

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

30 - 100 / 30 - 160 A

MAX CURRENT EN60974-1

100 @ 30% / 150 @ 30 % A

MAX NO LOAD VOLTAGE

316 / 348 V

MAX ABSORBED CURRENT

38 / 40 A

MAX ABSORBED POWER

12,5 / 25 kW

EFFICIENCY

86 %

POWER FACTOR(cosphi) (cosphi)

0,9

MAX CUTTING THICKNESS

40 / 50 mm

COMPRESSED AIR CAPAC.

290 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

67 x 31 x 56 cm

WEIGHT

46 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

brochure

Download PDF

PX PLASMA TORCH 6 M

802965

SUPERIOR PLASMA 160 230-400V

816074

PLASMA TORCHES

PX PLASMA TORCH 12 M

802973

PXA PLASMA TORCH 12 M

802955

OTHER PLASMA ACCESSORIES

MMS-10 MOISTURE & MIXTURE STOP FILTER

804340

MMS-10 AIR FILTER CARTRIDGES 4 PCS

804343

CONNECTING CABLE CNC 10M

804976

TROLLEYS AND ACCESSORIES

TROLLEY - CONTINENTAL

803064

Superior Plasma

FOR SUPERIOR CUTTING QUALITY

Everything you need from a plasma cutting system.

And much more.

The Superior Plasma range combines efficiency and flexibility (manual and automated cutting) with excellent quality and superior reliability in plasma cutting.
Pure power, no task will ever be a problem again.
Intuitive setting and easy to use, it takes full advantage of the potential of the Superior Plasma.

performance: among the best in its category;
versatile: manual use and with automatic cutting systems;
intuitive: simple interaction and setting;
compact: compact and strong design, to adapt to all types of environments, even the most hostile ones;
quality: clean and precise cut.

Maximum interference-free workability
The strike system without HF allows work in environments with sensitive tools without creating interference and without restricting cutting configurations.

Operations guaranteed anywhere
The wide voltage range guarantees use with engine driven generators up to +/-15%.

Designed to last
Compact and robust, it gives optimum performance in particularly heavy working conditions and difficult environments.

“Superior” power

Maximum cutting capacity up to 50mm on steel.

Longer lifetime for consumables
The Superior Plasma range was designed to optimise the average life of consumables with a significant reduction in system downtime

More precise and cleaner cut
The Superior Plasma series guarantees greater precision cutting with reduced re-working times

Energy saving
Reduced energy consumption (up to -30%).

Increasingly faster cut
Cutting speed more than doubled compared to oxy-cutting.

Immediate connection to automatic cutting systems
Easy to interface with CNC systems thanks to the specific connector to set the various control signals of the cutting process

Automatic torch detection
All models in the Superior Plasma series include automatic recognition of the Plug and Play torch (manual and automatic).
