PV PLASMA TORCH 6 M

PV PLASMA TORCH 6 M

Download PDF Request Info

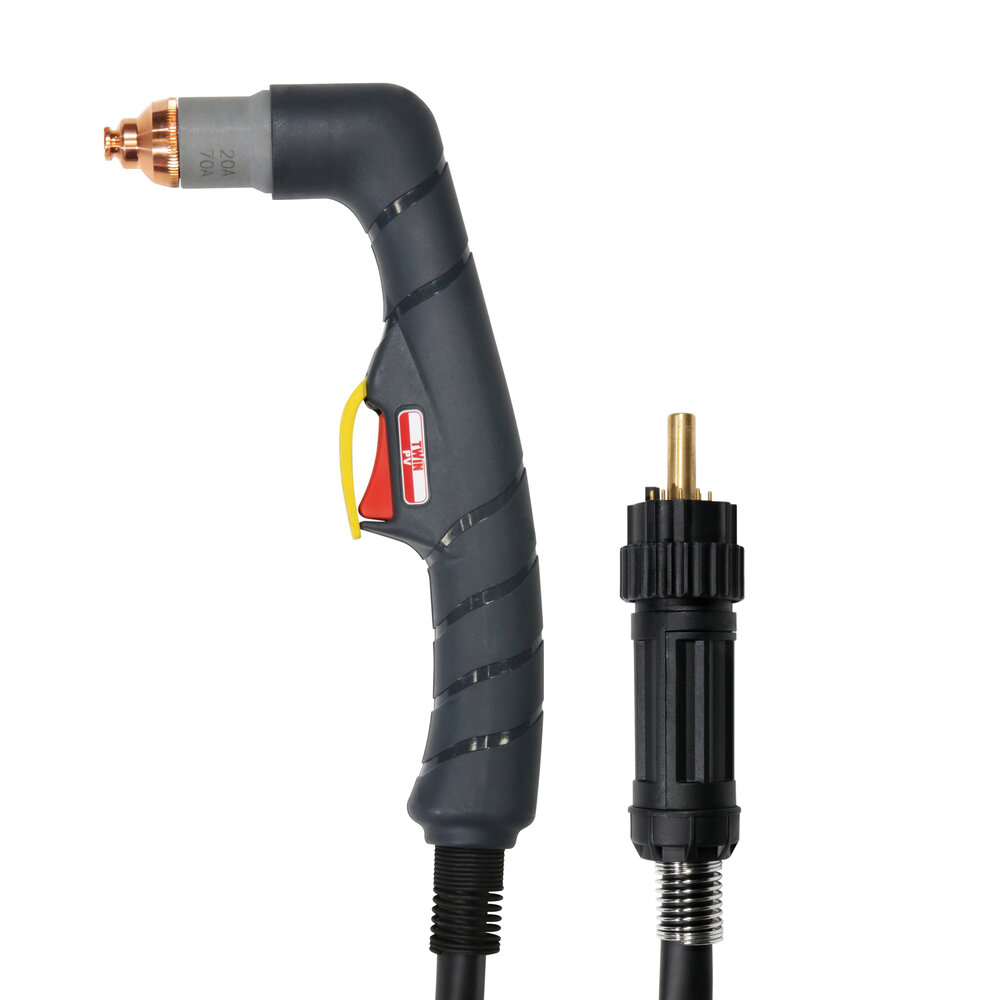

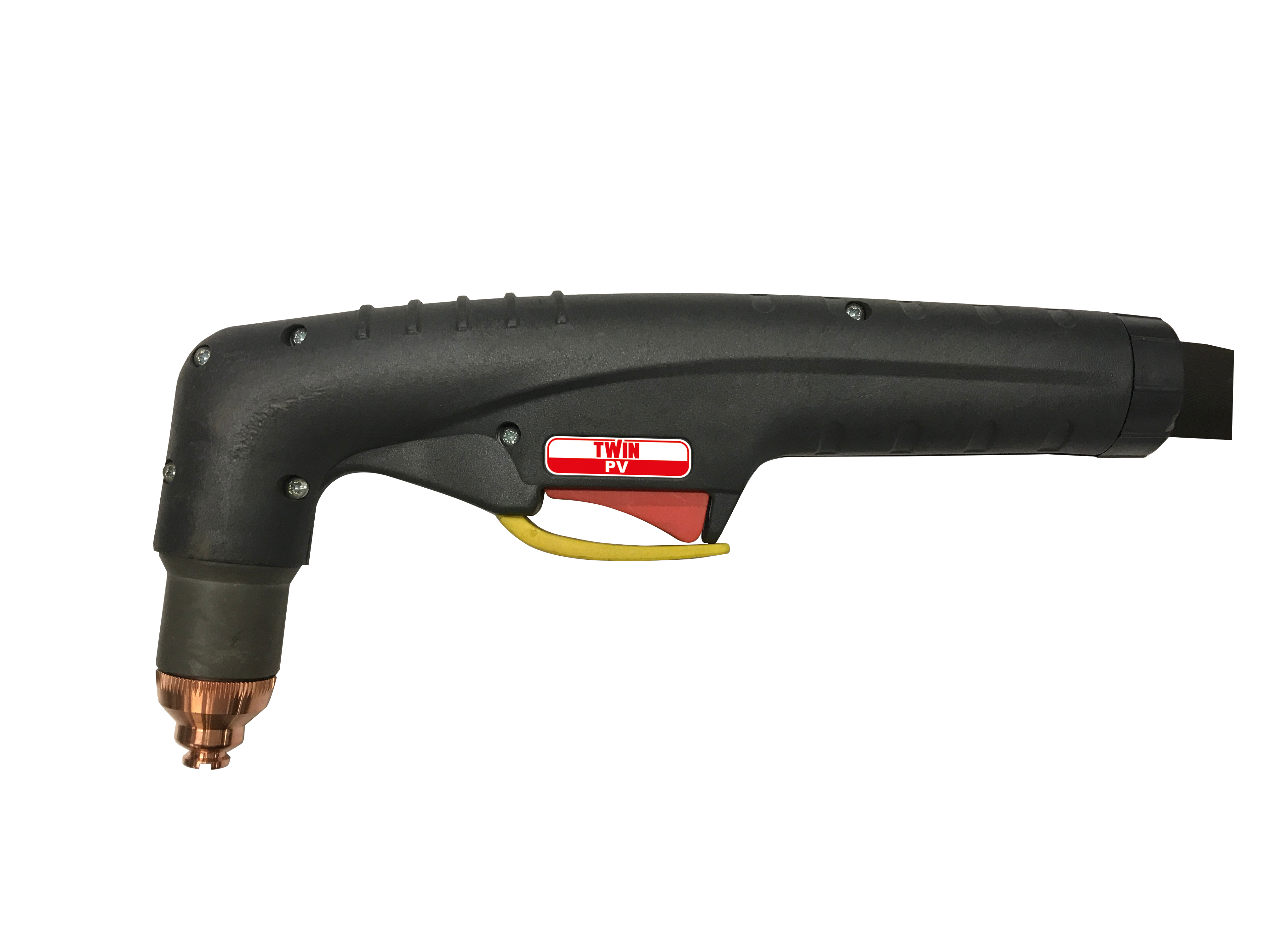

PV torch for plasma cutting system with 6-metre cable (EURO connection).
Max current 65A@60% / 50A@100%.
Max cutting thickness 20 mm.
With air cooling system (5 bar pressure and 200-220 litres/min capacity).

PV torch for plasma cutting system with 6-metre cable (EURO connection).
Max current 65A@60% / 50A@100%.
Max cutting thickness 20 mm.
With air cooling system (5 bar pressure and 200-220 litres/min capacity).

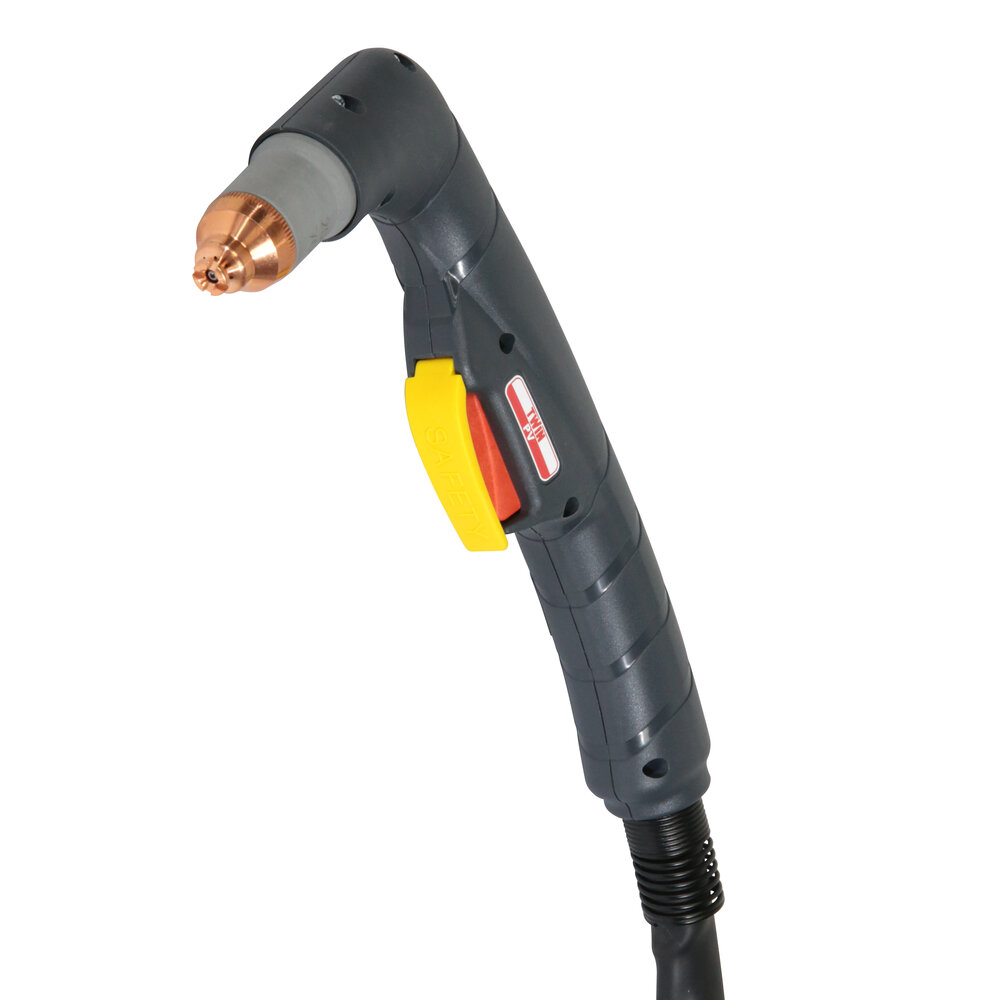

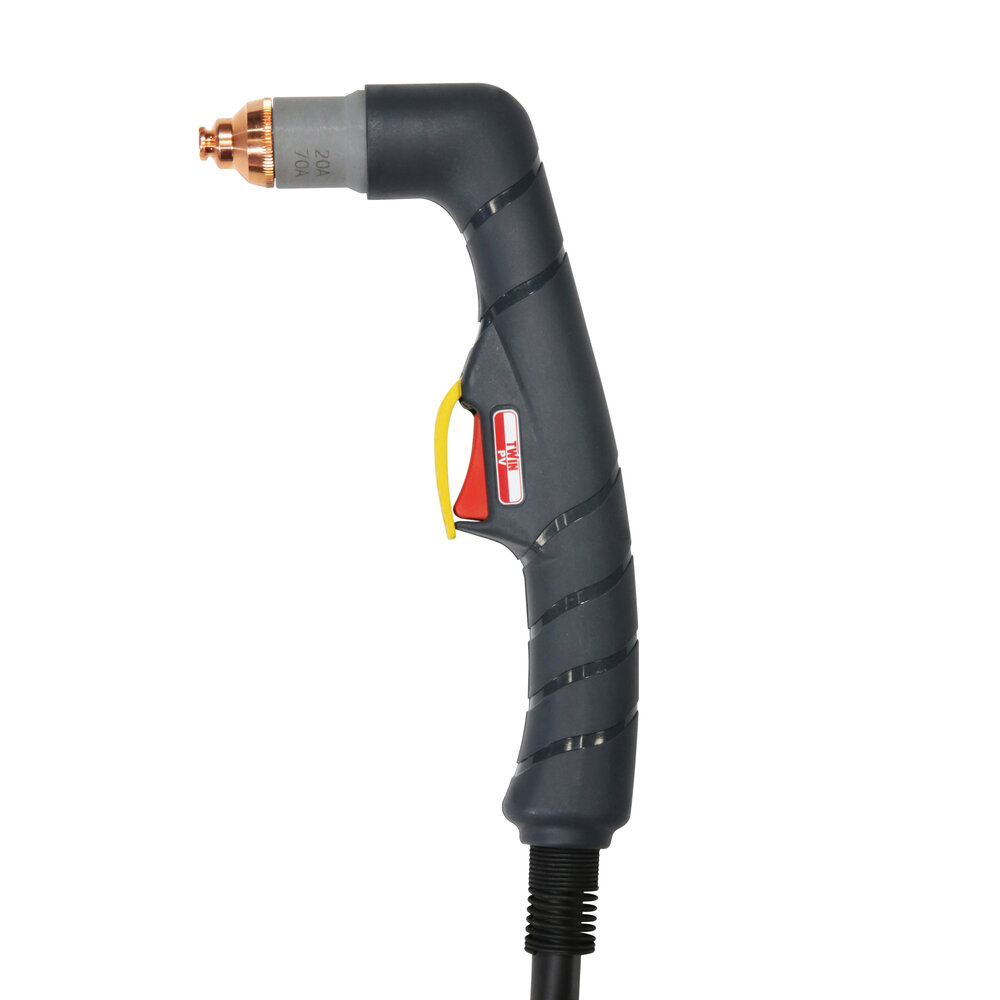

PV torch for plasma cutting manual system with 6-metre cable with EURO connection. The torch works with a maximum current of 65A@60% / 50A@100% and can cut thicknesses up to 20 mm. With air cooling, it requires a compressed air supply with 5 bar pressure and 220 litres/min capacity. Trigger protection against accidental start-up.

CODE

804041

CABLE LENGHT

4 m

CABLE SECTION

8 mm²

MAX. CURRENT

65A @60% / 50A @100% A

MAX CUTTING THICKNESS

20 mm

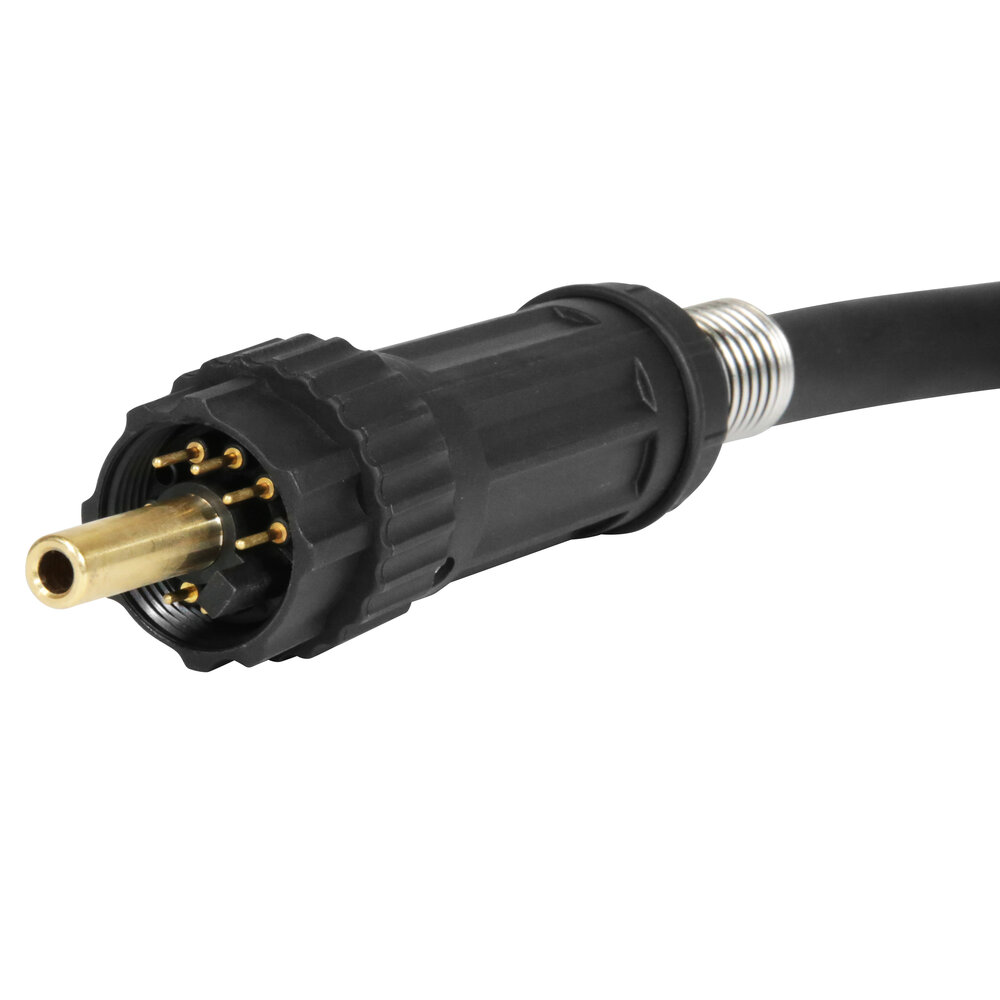

CONNECTION

EURO Connector

GAS

AIR

GAS PRESSURE

5 bar

GAS FLOW

200÷220 (l/min)

STANDARD

EN 60974-7

DIMENSIONS

500x380x75 mm

WEIGHT

2,270 kg

Catalog Image

Instruction Manual

PV PLASMA TORCH 6 M

PLASMA CONSUMABLES BOXES

CONSUMABLES BOX FOR PV TORCH

CONSUMABLES BOX PV XLONG

CONSUMABLES BOX HORIZONTAL CUT 70

PLASMA CONSUMABLES/SPARE PARTS

SHIELDS 20A-70A PV 2 PCS

SHIELDS 20A-100A PV XLONG 2 PCS

PROLONGED SHIELDS PV 2 PCS

GOUGING SHIELDS 50A-100A PV XLONG 3 PCS

GOUGING SHIELDS 45A PV 3 PCS

KIT 5 ELECTRODES PV

ELECTRODES PV XLONG 3 PCS

ELECTRODES 40A-70A HORIZONTAL CUT 5 PCS

LONG ELECTRODES PV 5 PCS

NOZZLES 45A PV XLONG 5 PCS

NOZZLES 70A PV XLONG 5 PCS

NOZZLES 20A-50A PV 5 PCS

NOZZLES 70A PV 5 PCS

LONG NOZZLES 20A-50A PV 5 PCS

LONG NOZZLES 70A PV 5 PCS

KIT 5 GOUGING NOZZLES 45A PV

GOUGING NOZZLES 70A PV XLONG 5 PCS

NOZZLES 40A-70A HORIZONTAL CUT 5 PCS

DIFFUSERS 20A-70A PV 2 PCS

DIFFUSERS 40A-70A HORIZONTAL CUT 2 PCS

RETENTION CAP HORIZONTAL CUT

O-RING PV 10 PCS

SAFETY CAP 20A-70A PV

SAFETY CAP PV XLONG

NOZZLES EXTRACTOR PV XLONG

RINGS PV XLONG 3 PCS

RETENTION RING HORIZONTAL CUT

CIRCULAR CUTTING UNITS

CIRCULAR CUTTING UNIT

OTHER PLASMA ACCESSORIES

MAGNETIC STRIP 1 M

PV torch for plasma cutting manual system with 6-metre cable with EURO connection. The torch works with a maximum current of 65A@60% / 50A@100% and can cut thicknesses up to 20 mm. With air cooling, it requires a compressed air supply with 5 bar pressure and 220 litres/min capacity. Trigger protection against accidental start-up.

CODE

804041

CABLE LENGTH

4 m

T04050

8 mm²

MAX CURRENT

65A @60% / 50A @100% A

T04062

20 mm

T04058

EURO Connector

T04063

AIR

T04064

5 bar

T04065

200÷220 (l/min)

STANDARD

EN 60974-7

DIMENSIONS

500x380x75 mm

WEIGHT

2,270 kg

Catalog Image

Instruction Manual

PV PLASMA TORCH 6 M

PLASMA CONSUMABLES BOXES

CONSUMABLES BOX FOR PV TORCH

804108

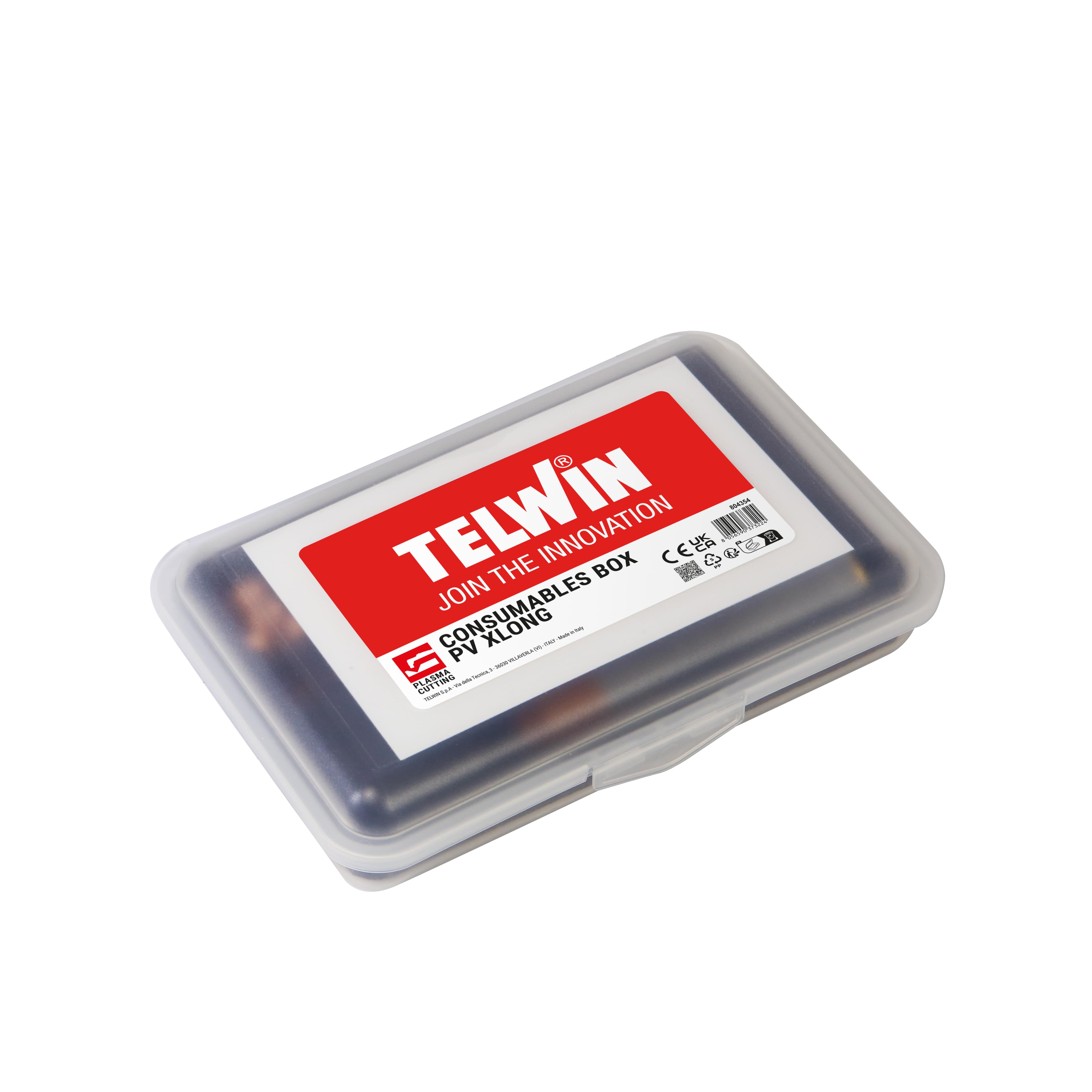

CONSUMABLES BOX PV XLONG

804354

CONSUMABLES BOX HORIZONTAL CUT 70

804376

PLASMA CONSUMABLES/SPARE PARTS

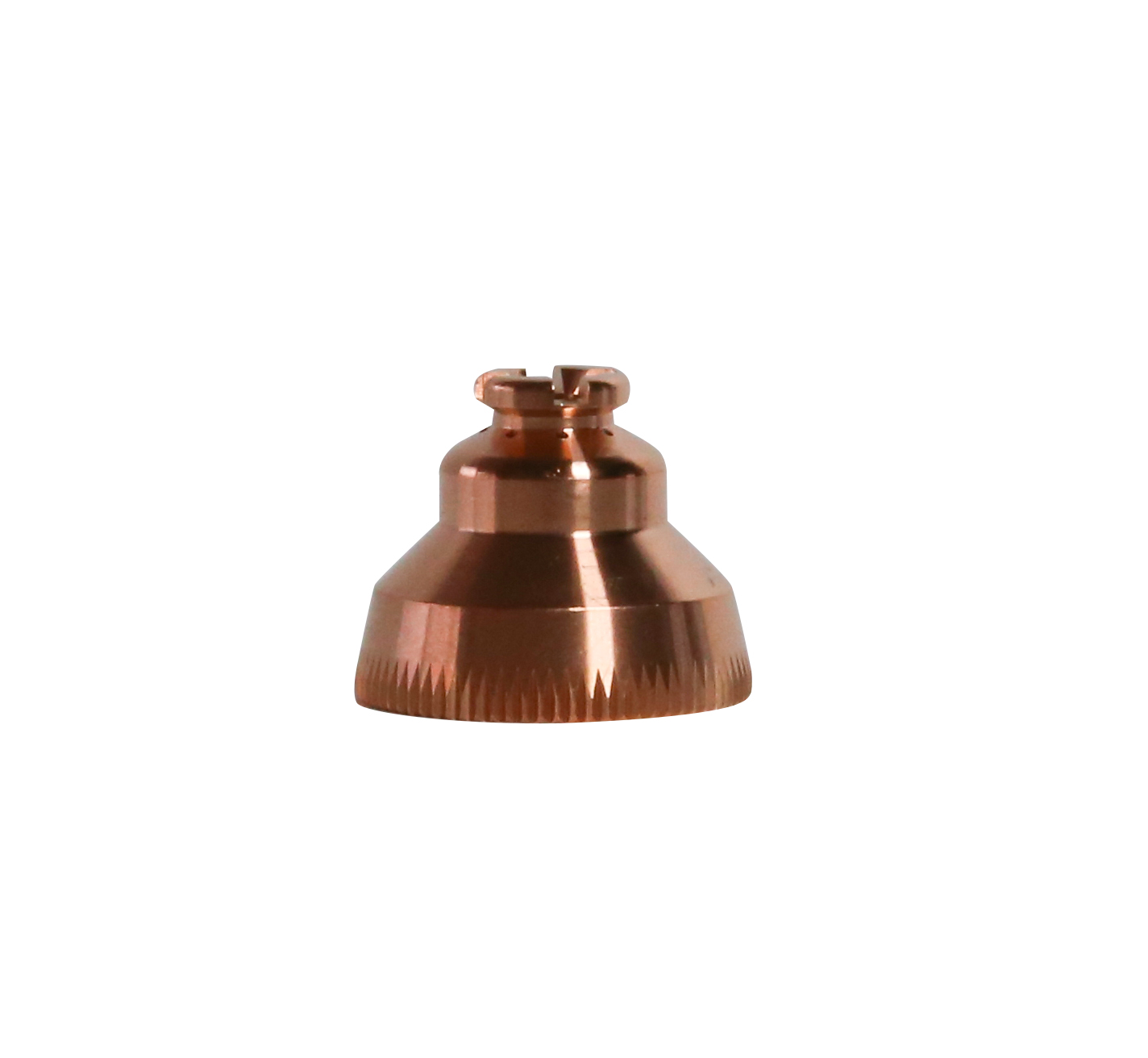

SHIELDS 20A-70A PV 2 PCS

804050

SHIELDS 20A-100A PV XLONG 2 PCS

804372

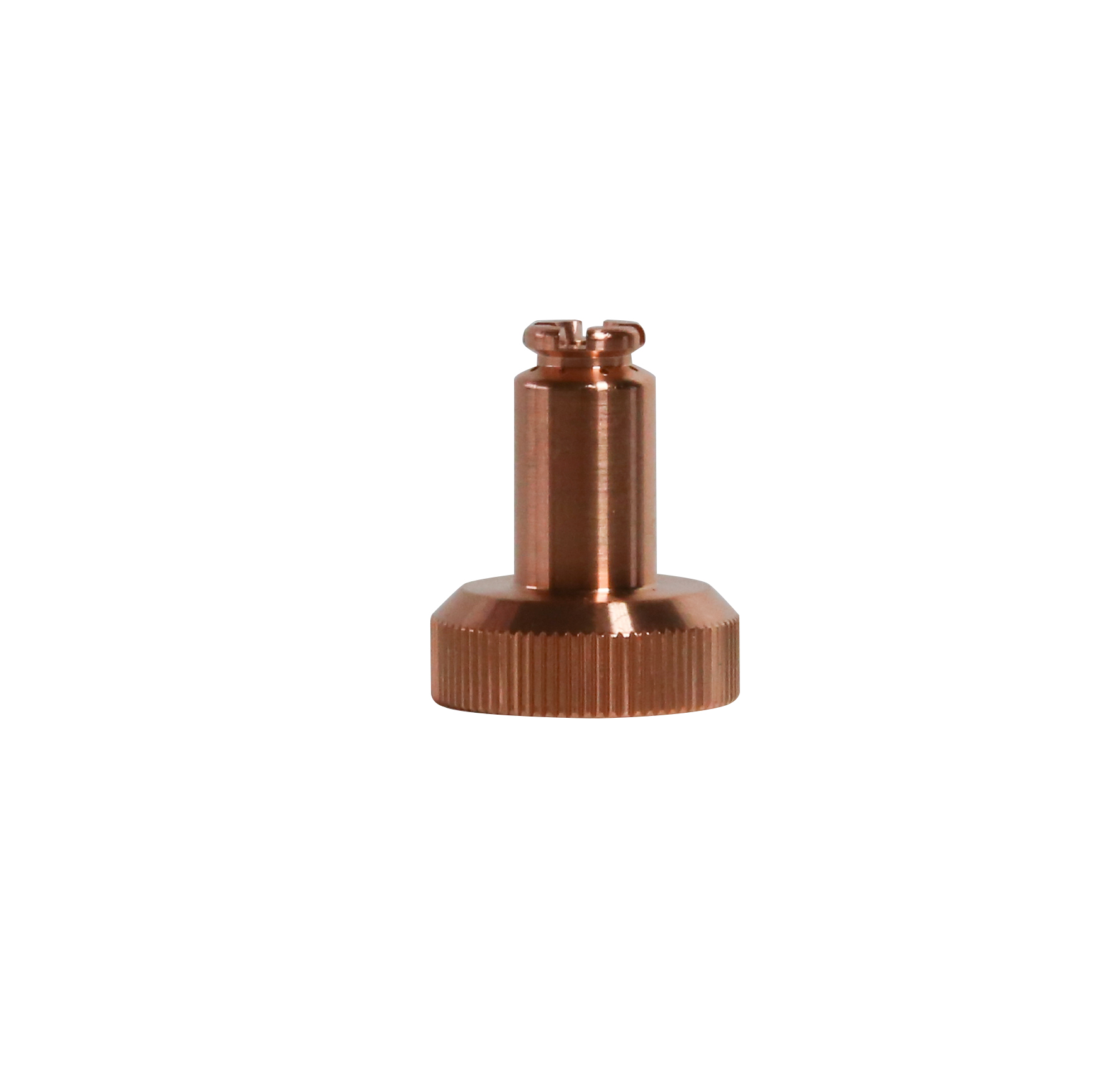

PROLONGED SHIELDS PV 2 PCS

804051

GOUGING SHIELDS 50A-100A PV XLONG 3 PCS

804375

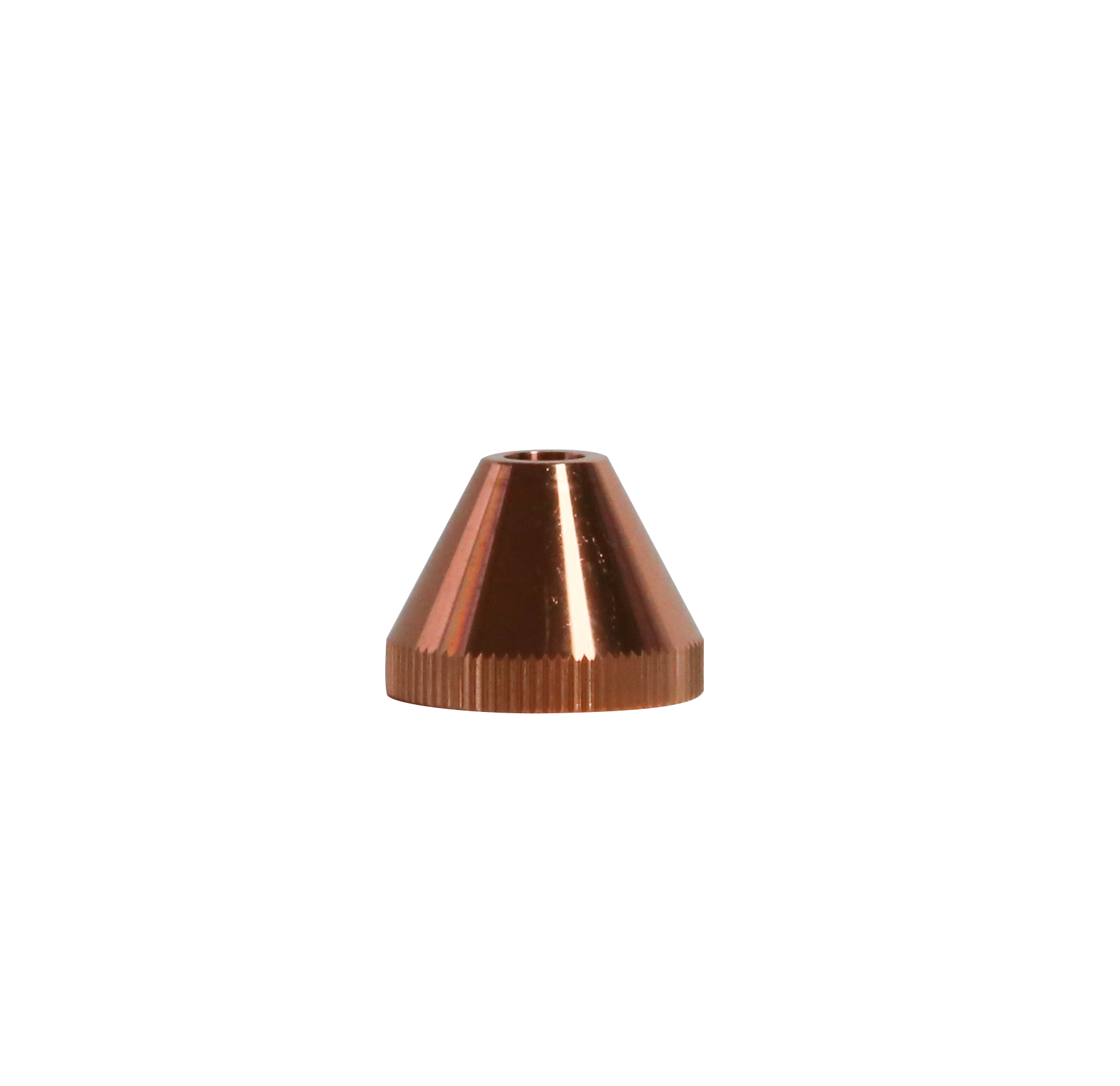

GOUGING SHIELDS 45A PV 3 PCS

804061

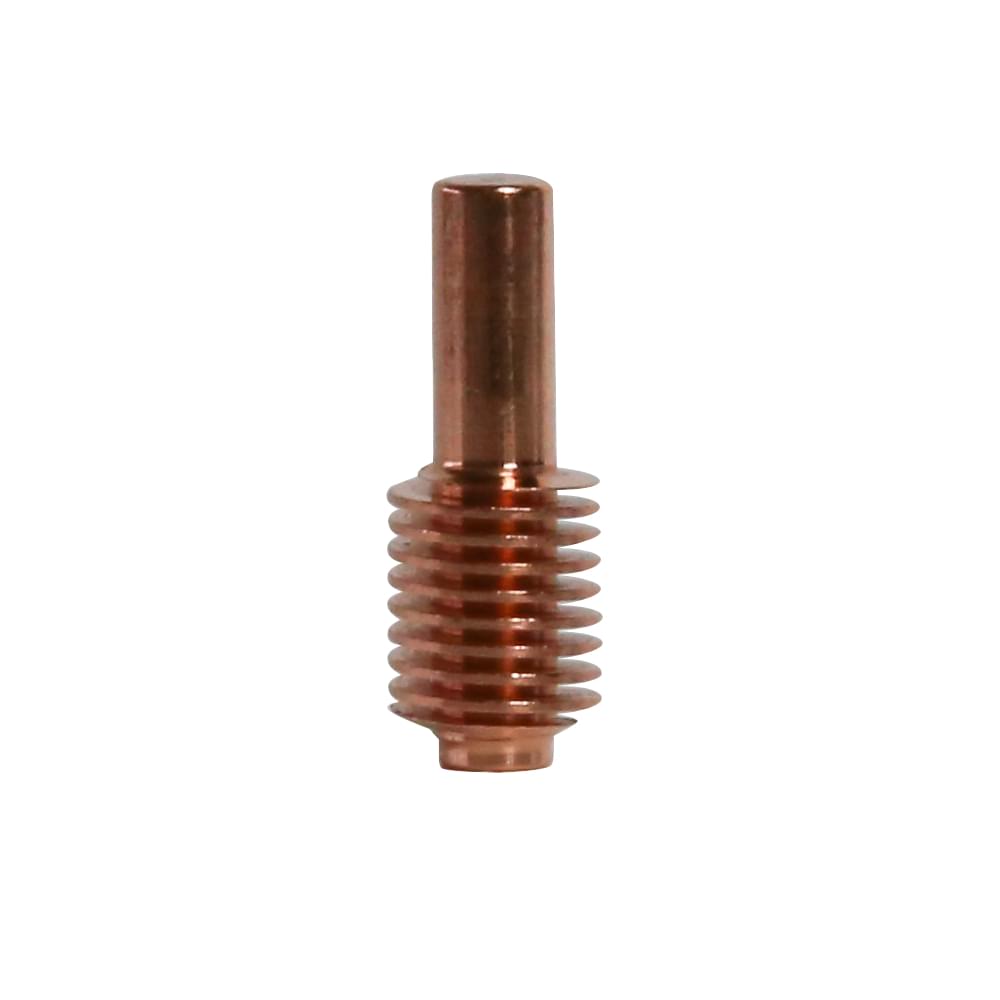

KIT 5 ELECTRODES PV

804042

ELECTRODES PV XLONG 3 PCS

804355

ELECTRODES 40A-70A HORIZONTAL CUT 5 PCS

804378

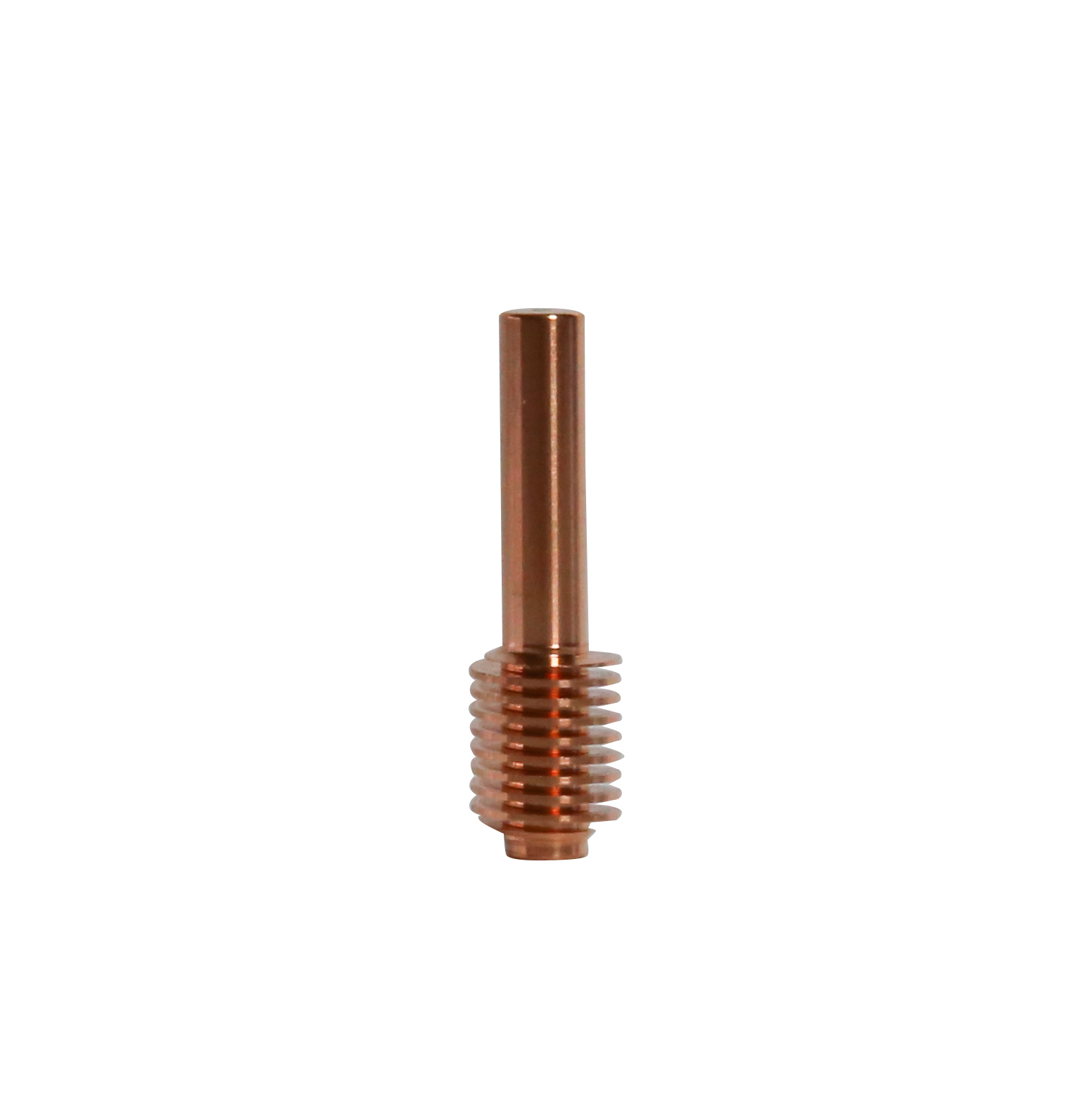

LONG ELECTRODES PV 5 PCS

804043

NOZZLES 45A PV XLONG 5 PCS

804358

NOZZLES 70A PV XLONG 5 PCS

804359

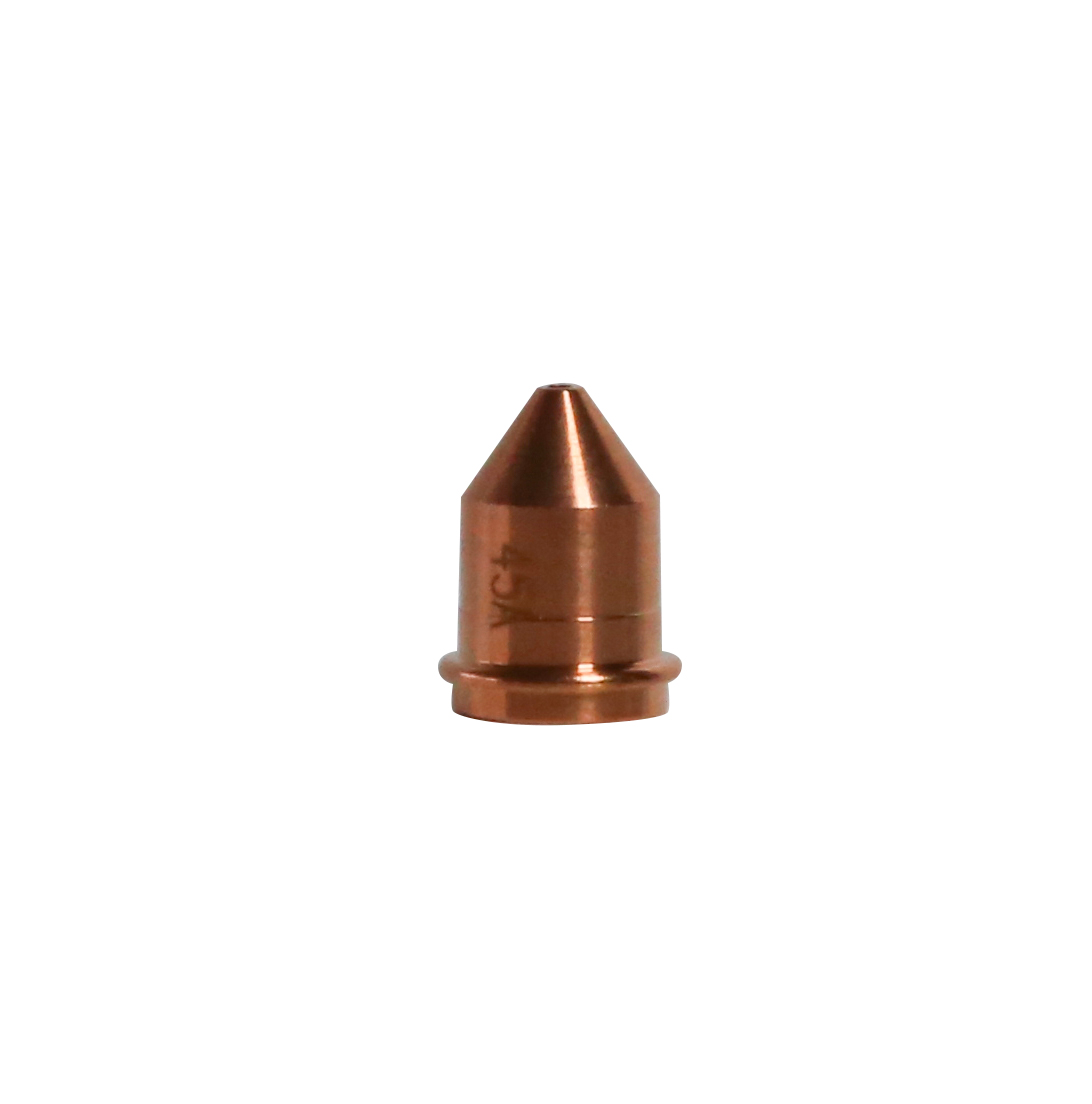

NOZZLES 20A-50A PV 5 PCS

804045

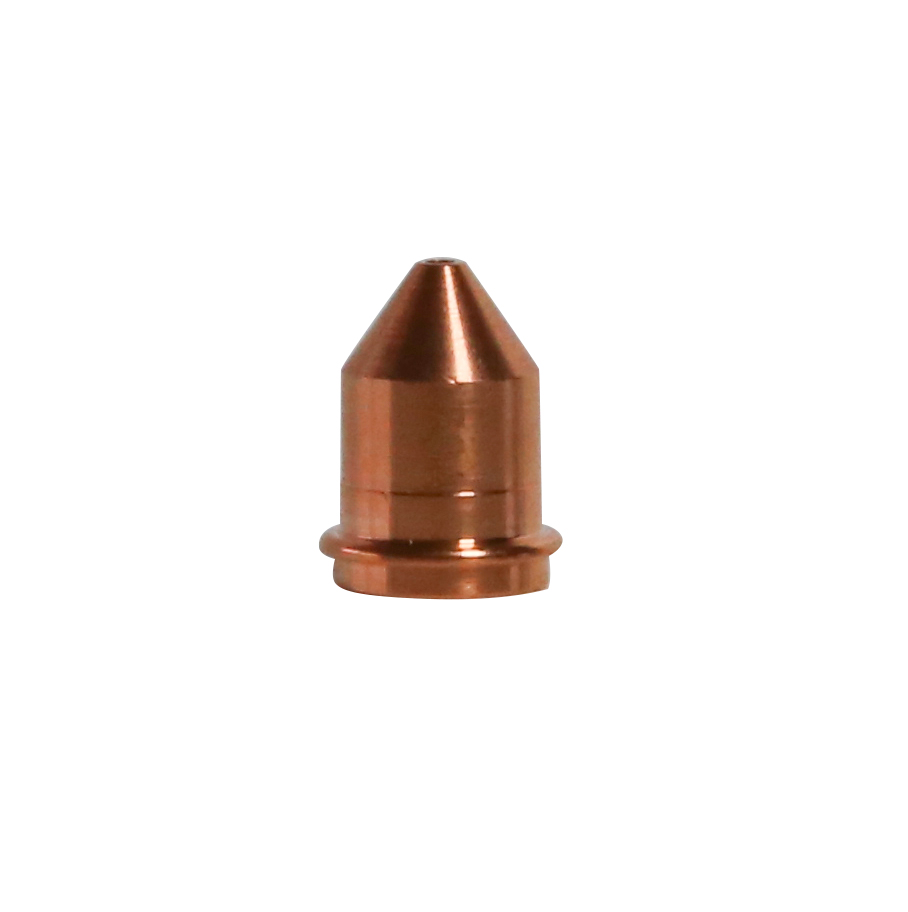

NOZZLES 70A PV 5 PCS

804047

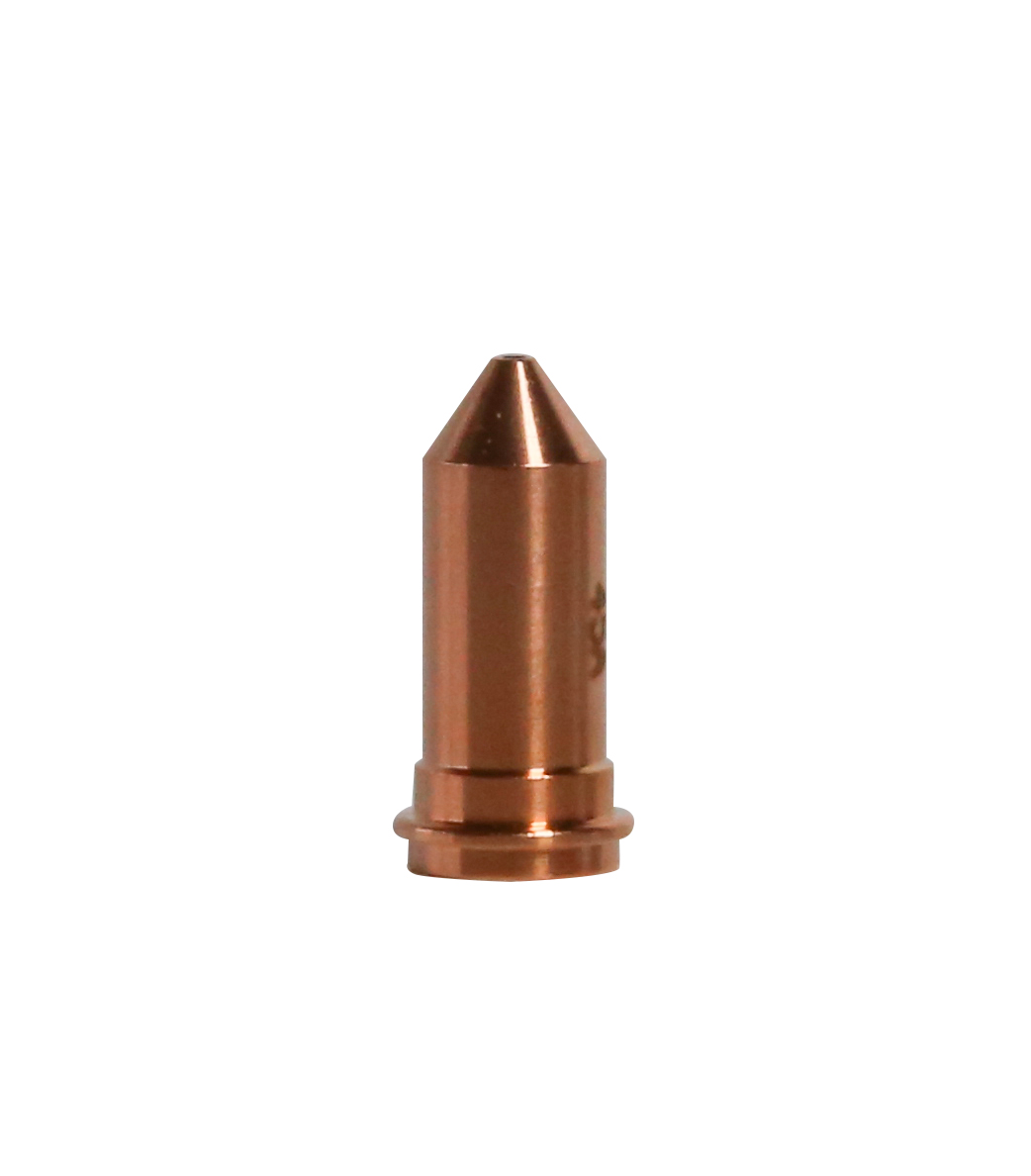

LONG NOZZLES 20A-50A PV 5 PCS

804046

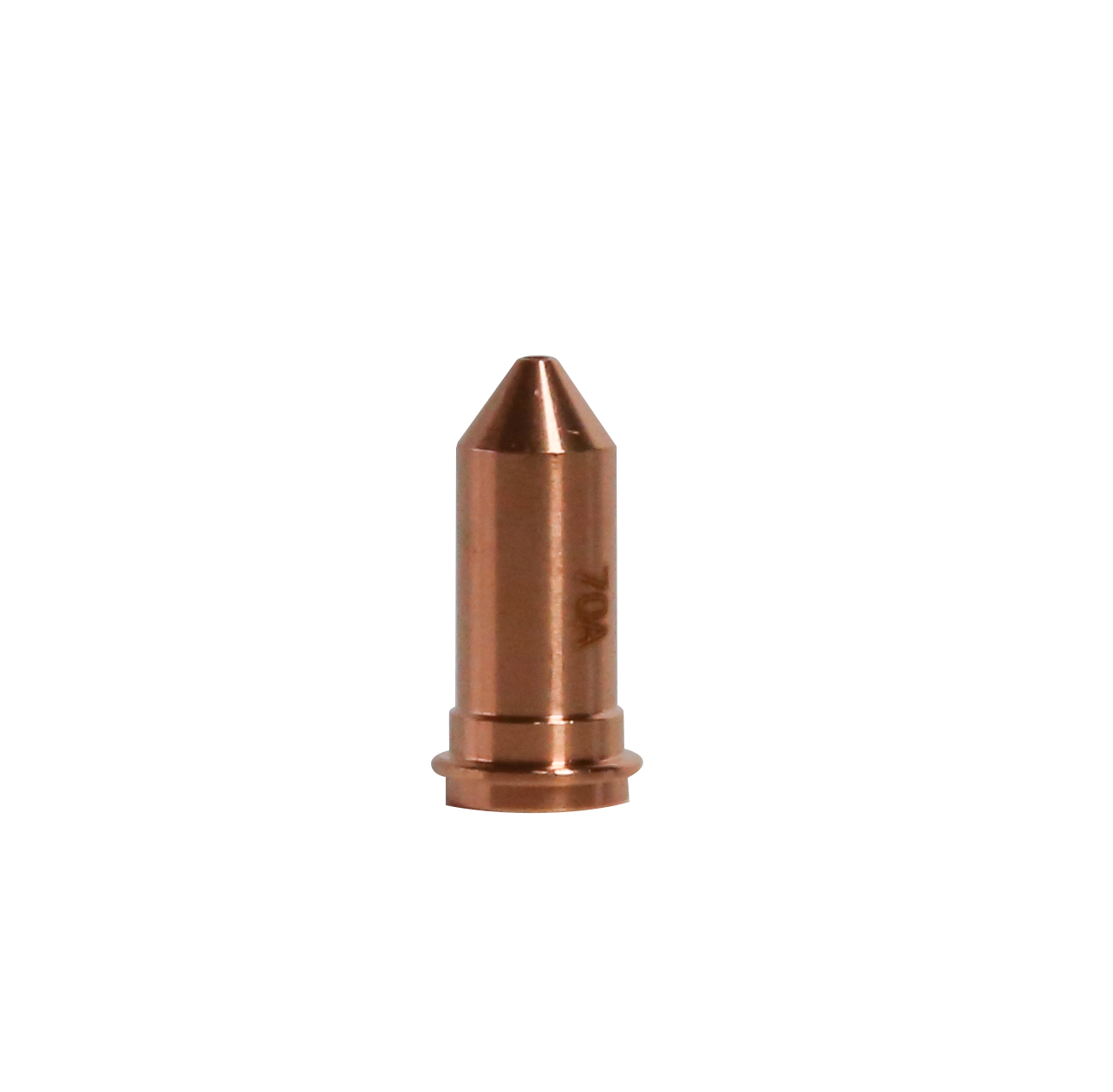

LONG NOZZLES 70A PV 5 PCS

804048

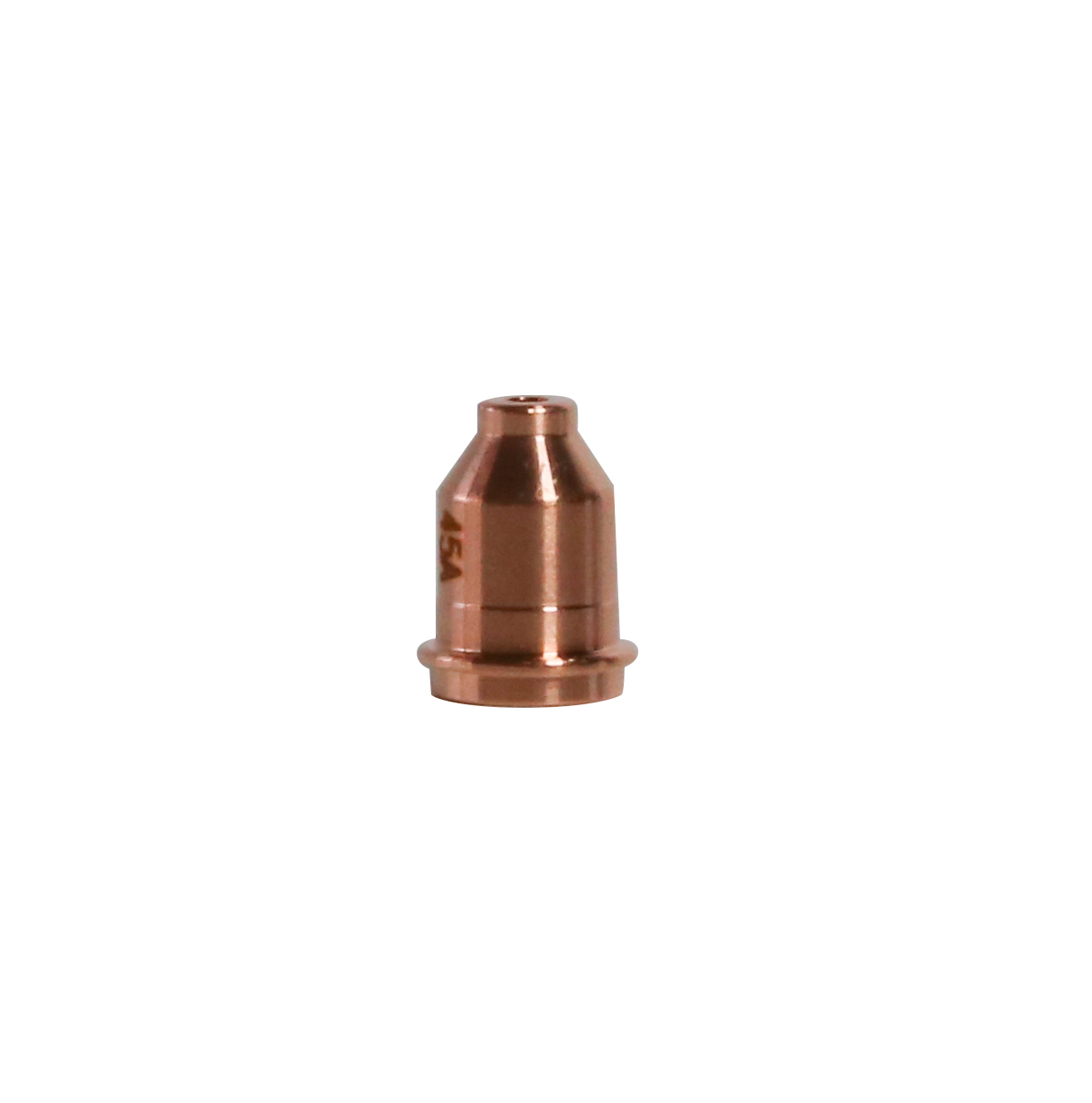

KIT 5 GOUGING NOZZLES 45A PV

804062

GOUGING NOZZLES 70A PV XLONG 5 PCS

804373

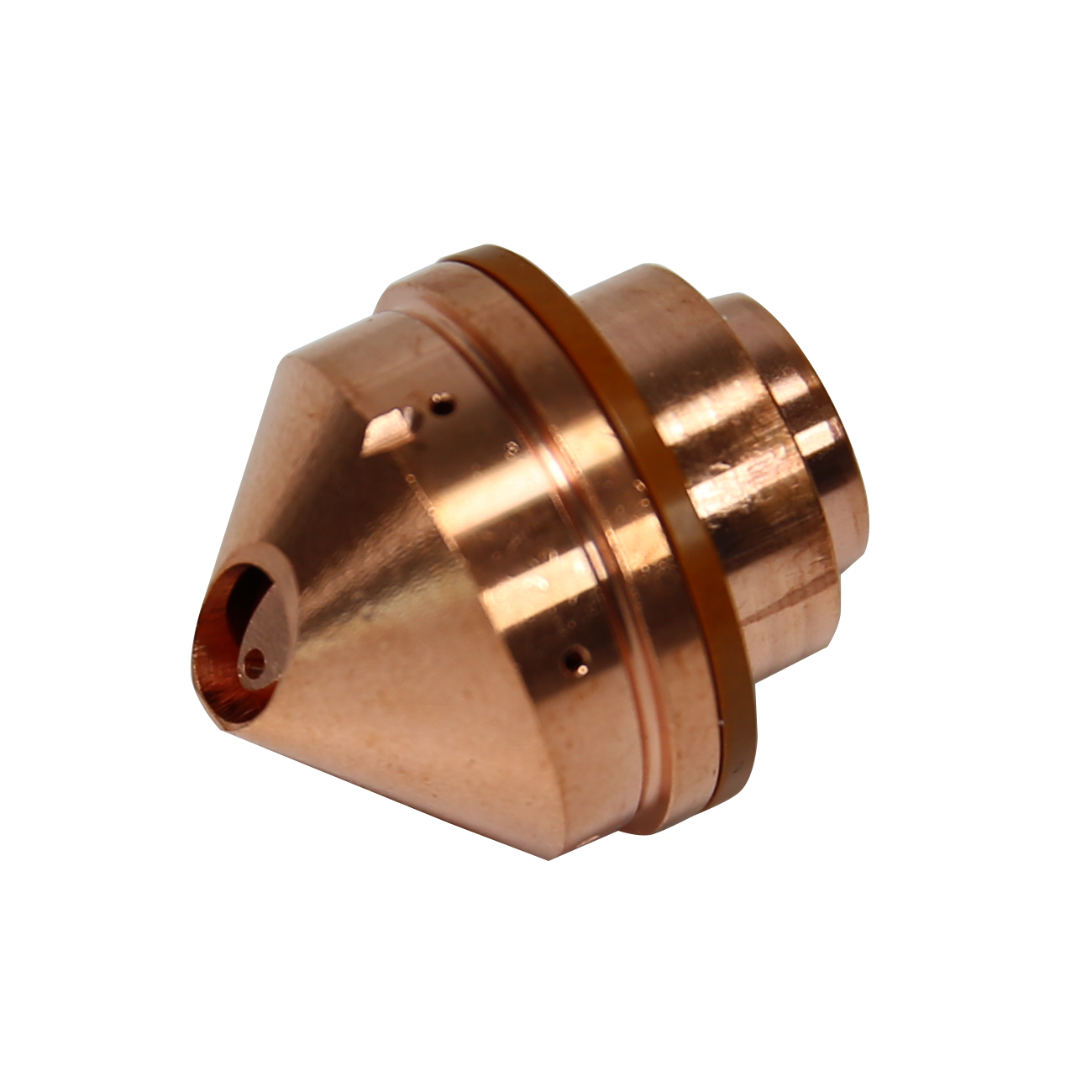

NOZZLES 40A-70A HORIZONTAL CUT 5 PCS

804379

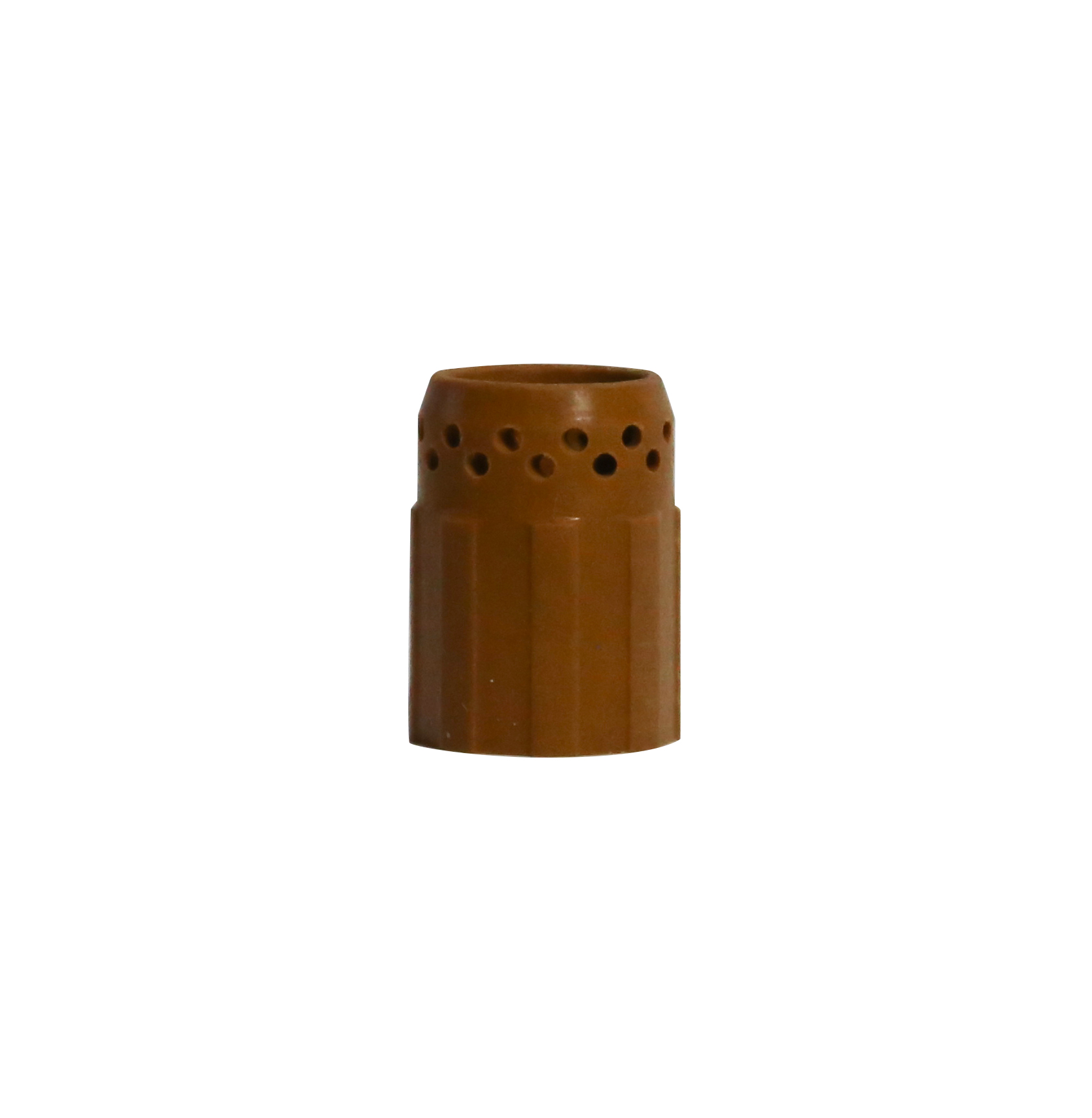

DIFFUSERS 20A-70A PV 2 PCS

804044

DIFFUSERS 40A-70A HORIZONTAL CUT 2 PCS

804382

RETENTION CAP HORIZONTAL CUT

804383

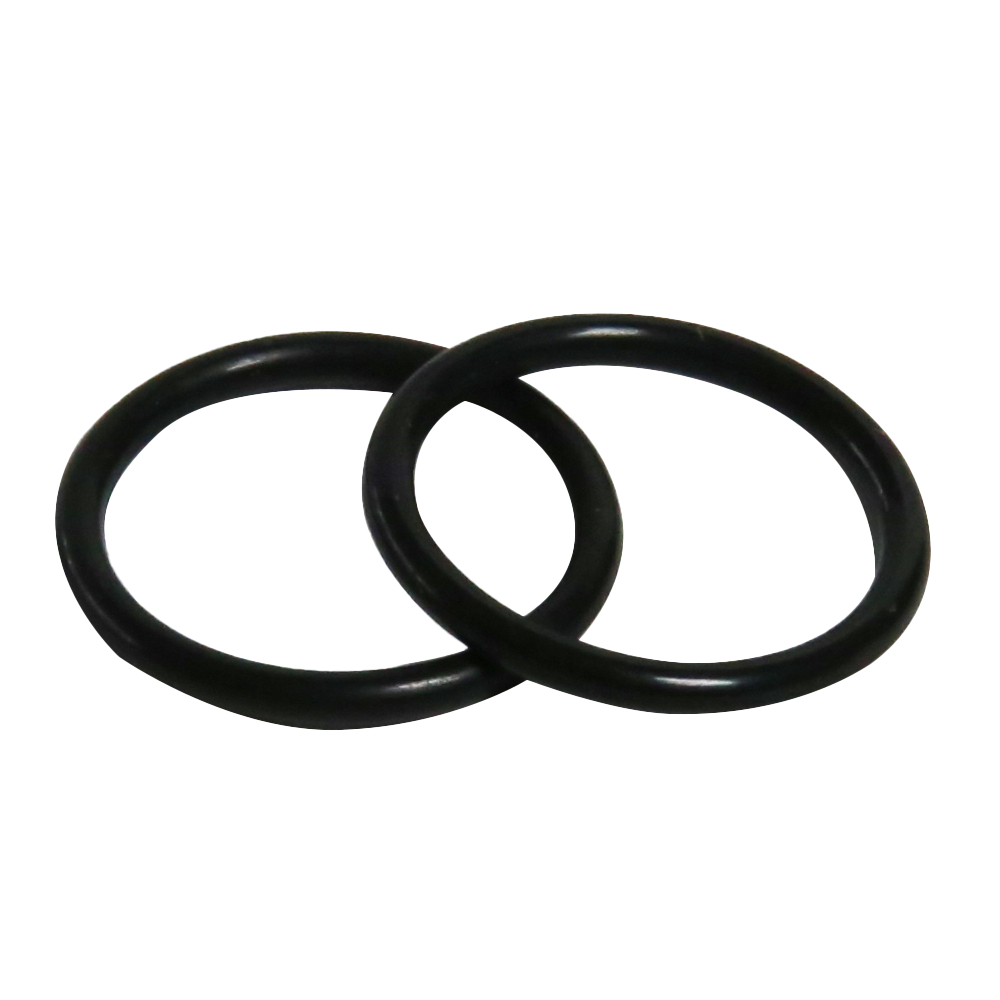

O-RING PV 10 PCS

804052

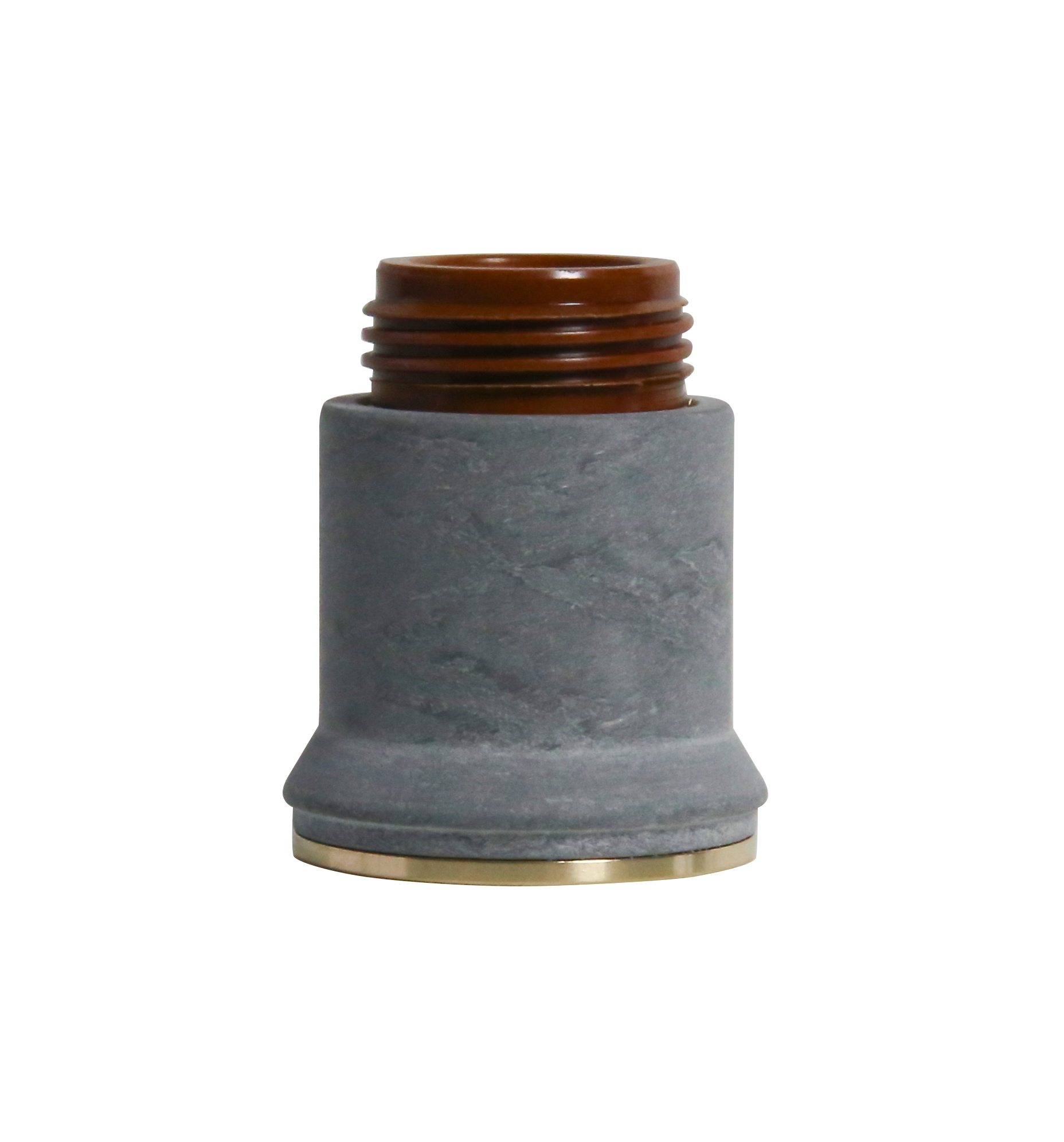

SAFETY CAP 20A-70A PV

804049

SAFETY CAP PV XLONG

804356

NOZZLES EXTRACTOR PV XLONG

804361

RINGS PV XLONG 3 PCS

804357

RETENTION RING HORIZONTAL CUT

804384

CIRCULAR CUTTING UNITS

CIRCULAR CUTTING UNIT

804059

OTHER PLASMA ACCESSORIES

MAGNETIC STRIP 1 M

802143
