ELECTROMIG 550 SYNERGIC BASE

ELECTROMIG 550 SYNERGIC BASE

Download PDF Request Info

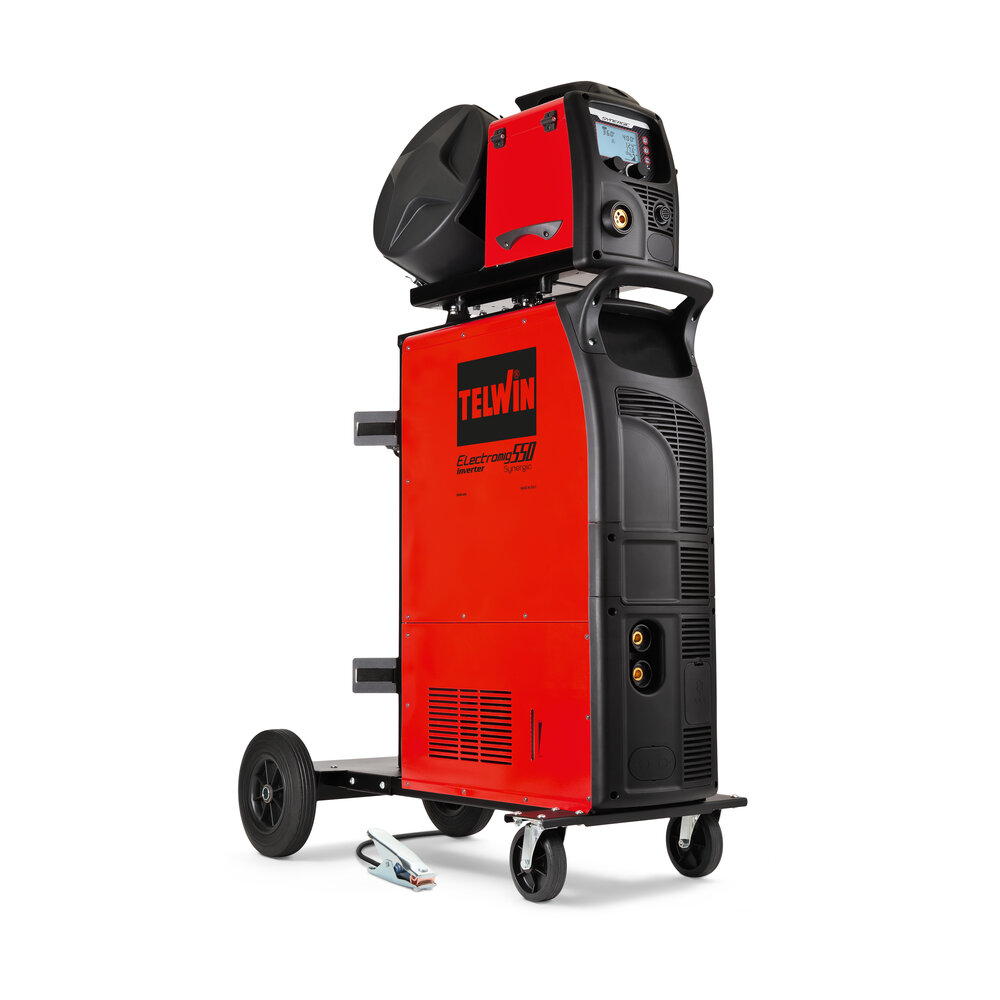

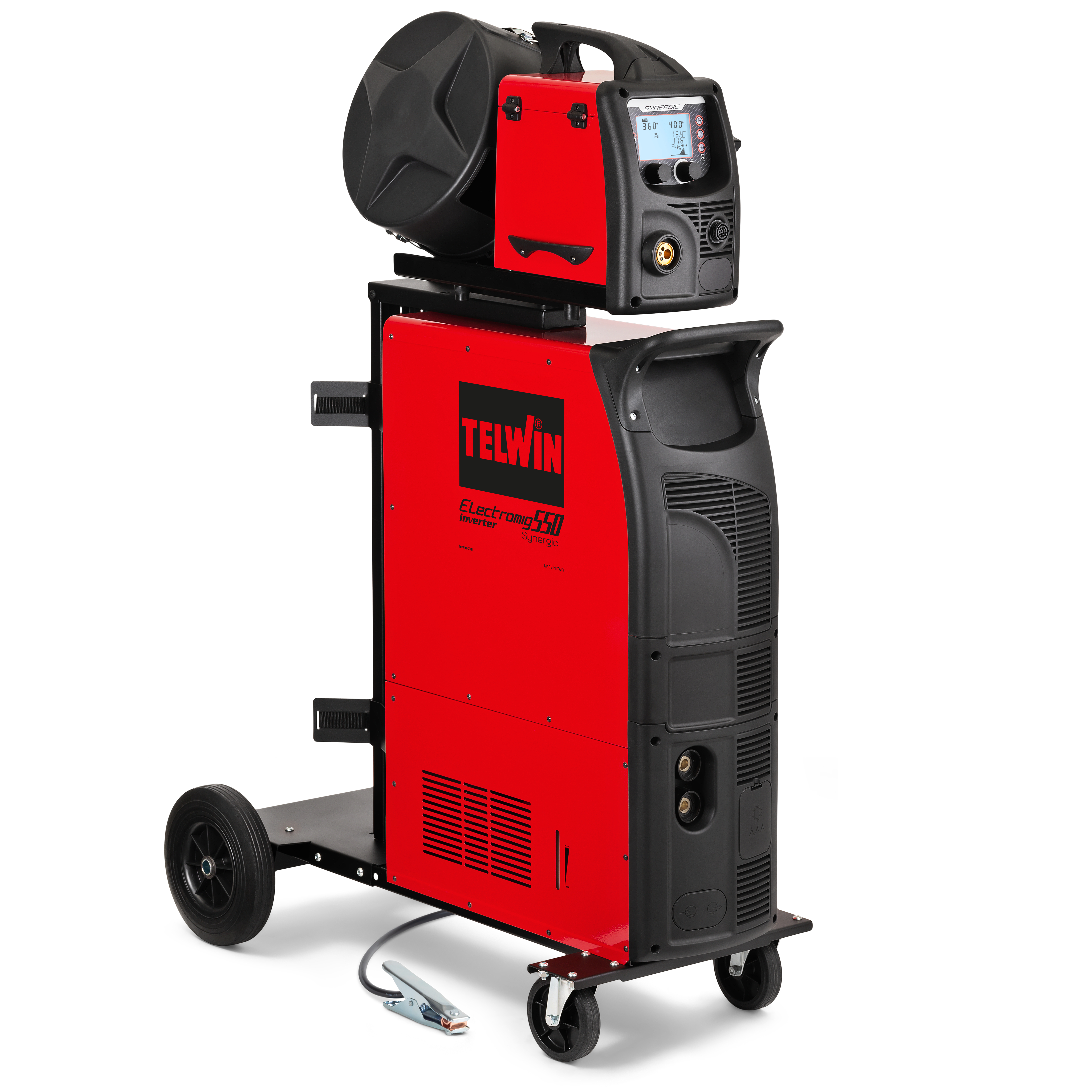

Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA/TIG DC-Lift) with external 4-roller wire feeder, 500A. 3ph 230/400V power supply.
OneTouch synergic adjustment: easy to use. 40 pre-set synergic curves for various gases and materials. Possibility of creating, saving and retrieving customised welding programs.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.
Ample, immediate and easy reading LCD display.
High performance with reduced consumption.

Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA/TIG DC-Lift) with external 4-roller wire feeder, 500A. 3ph 230/400V power supply.
OneTouch synergic adjustment: easy to use. 40 pre-set synergic curves for various gases and materials. Possibility of creating, saving and retrieving customised welding programs.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.
Ample, immediate and easy reading LCD display.
High performance with reduced consumption.

MIG-MAG/FLUX gas shielded/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine, with 4-roller wire feeder. Flexible use with various welded materials (steel, stainless steel, aluminium) or brazed materials (galvanised sheet metal). Wide variety of application fields, from industry to maintenance, installation to bodywork activities. Synergic adjustment makes the product simple to use. The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
Features:

Manual or synergic operating;
40 pre-set synergic curves;
Possibility of creating, saving and retrieving customised welding programs;
MIG-MAG adjustments: wire up slope, electronic reactance, wire burn-back time, post gas;
2/4 time operation selection, Bi-Level, spot, inch and mm material thicknesses;
Adjustments in MMA: hot start, arc force, anti-stick;
VRD selection.
Protections: thermostatic, overvoltage, undervoltage, overcurrent, engine driven generator (+/-15%);
TIG Lift

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 400 / 20 - 500 A

MAX CURRENT

400 @ 40% / 500 @ 40% A

DC CURRENT

330 / 400 A

MAX NO LOAD VOLTAGE

110 / 85 V

MAX ABSORBED CURRENT

45 / 35 A

ABSORBED CURRENT AT 60%

32 / 23 A

MAX ABSORBED POWER

17 / 23 kW

ABSORBED POWER AT 60%

11 / 15 kW

EFFICIENCY

90 %

POWER FACTOR

0,9

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 2,4 mm

INOX WELDING WIRE DIAMETER

0,8 - 2,4 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 2,4 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

103 x 51 x 145 cm

WEIGHT

79 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

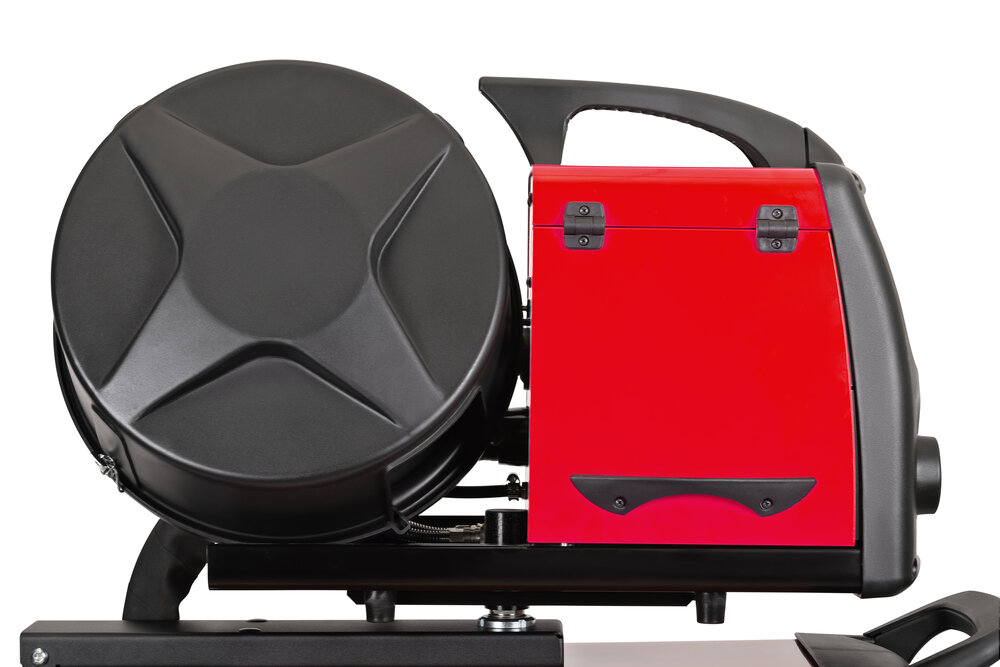

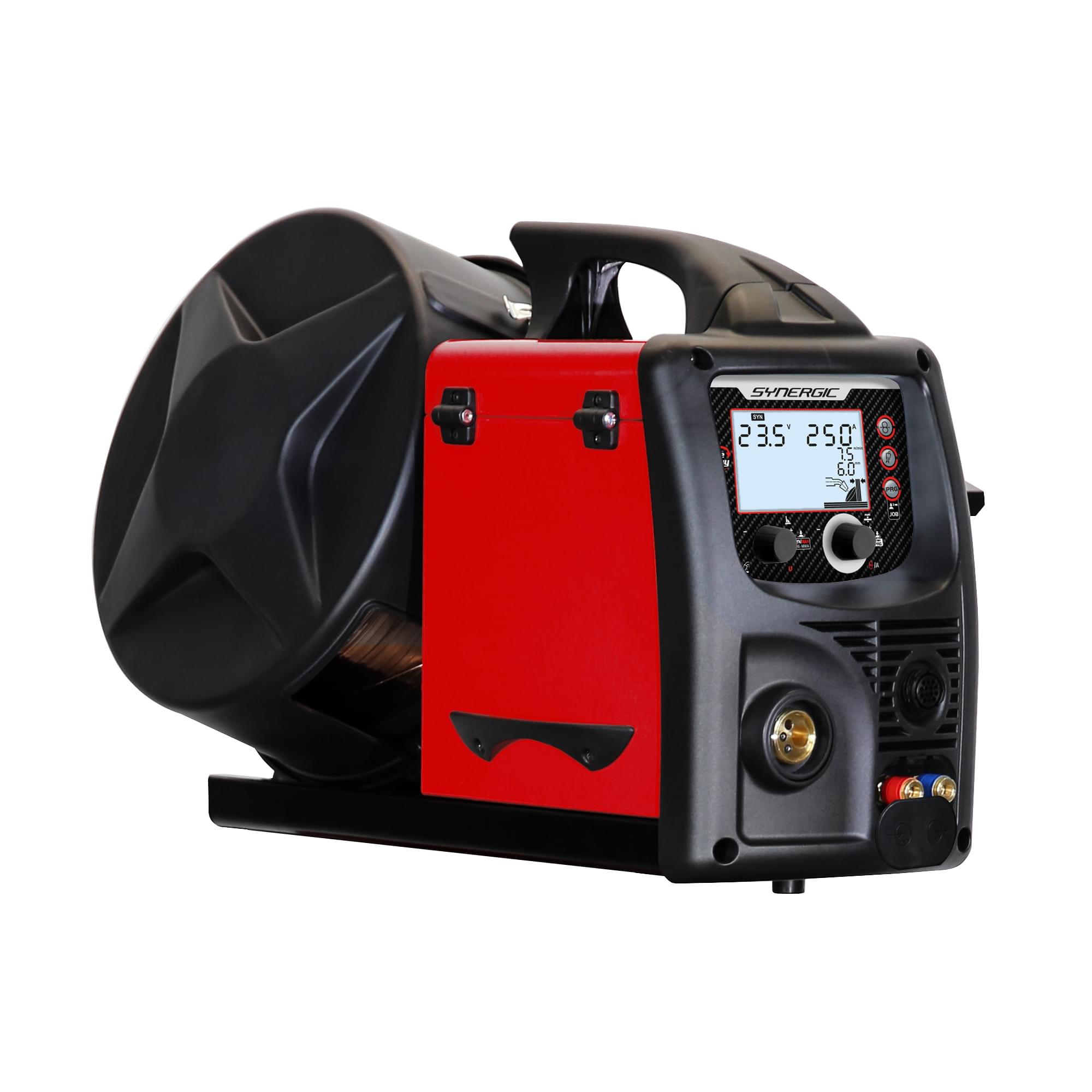

TE 550 WIRE FEEDER

806294

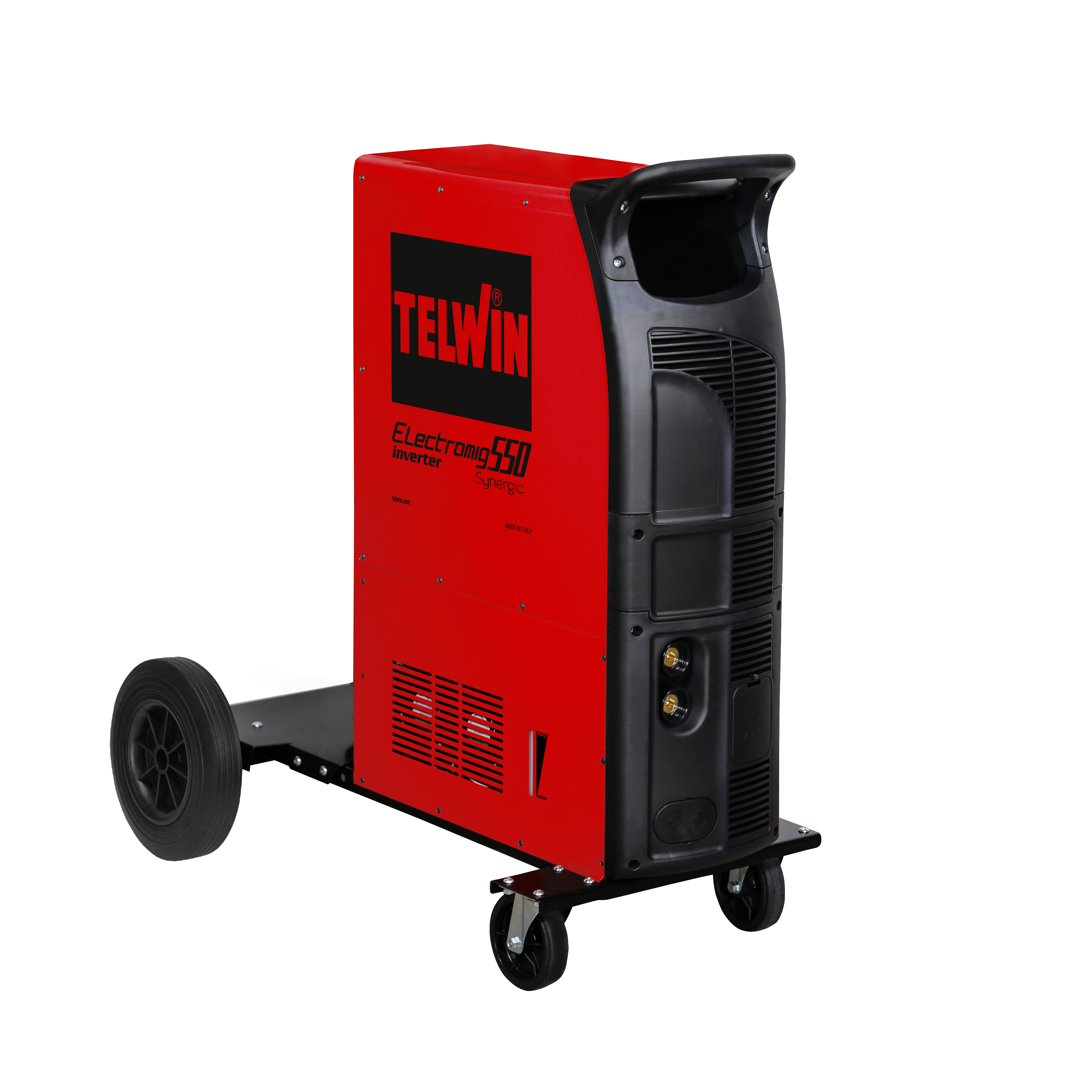

ELECTROMIG 550 SYN. powersource

816293

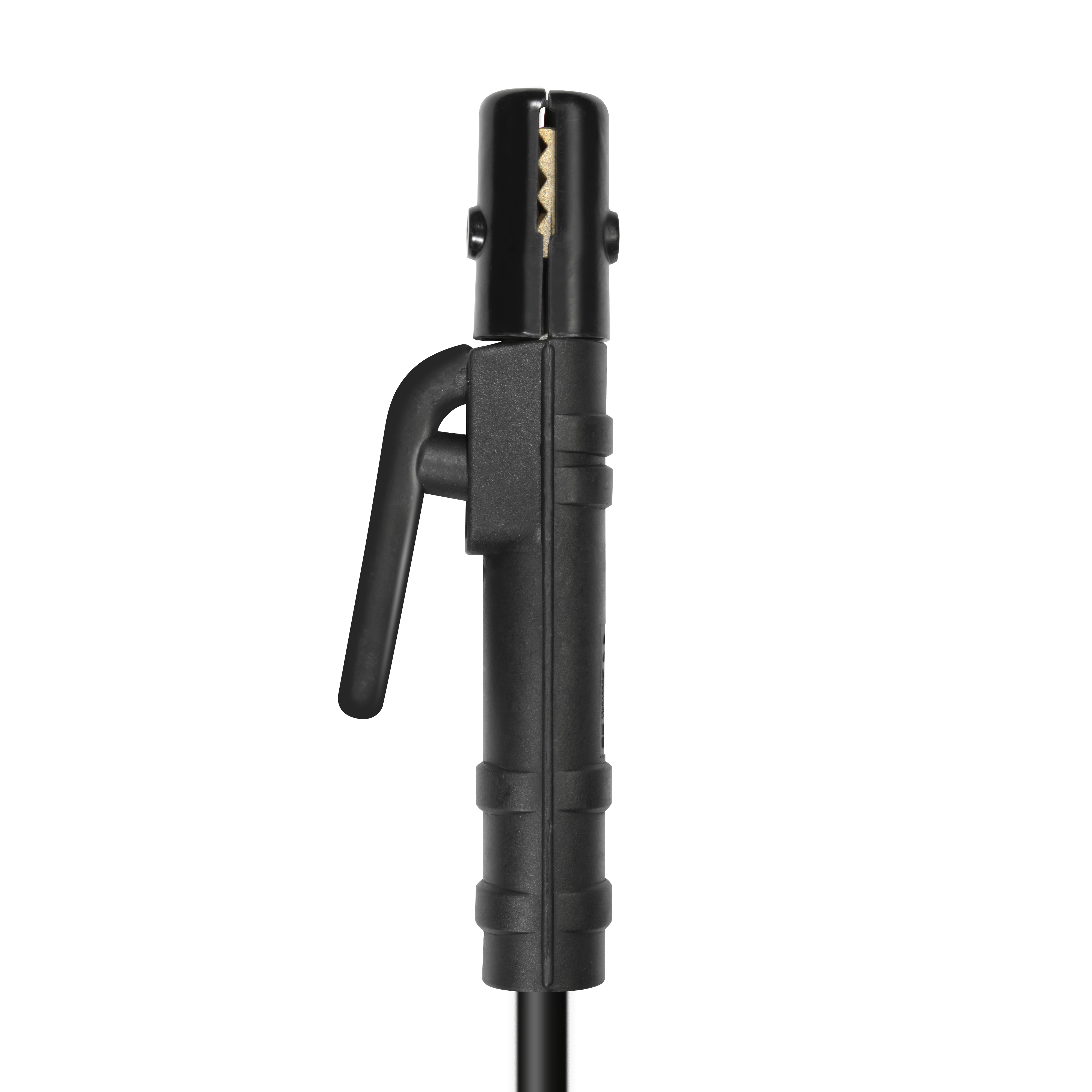

ELECTRODE HOLDER + CABLE 70MMQ 4M AX70

804126

RC-20 10 M CONTROL 2POT

802336

TWO GASBOTTLE HOLDER KIT

803067

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

ALUMINIUM WELDING KIT D. 1-1,6 MM

802409

FLUX CORED WIRE WELDING KIT D. 1-2,4 MM

802276

MT500 MIG TORCH 5M AQUA

722683

WIRE FEEDER WHEELS KIT

804224

COIL ADAPTOR B-300

802486

CONNECTING CABLE 70MMQ 4M AQUA

802398

CONNECTING CABLE 70MMQ 10M AQUA

802399

CONNECTING CABLE 95MMQ 30M AQUA

802470

ST26V TIG TORCH AX50 4M

742058

COOLANT FOR COOLING SYSTEMS

802976

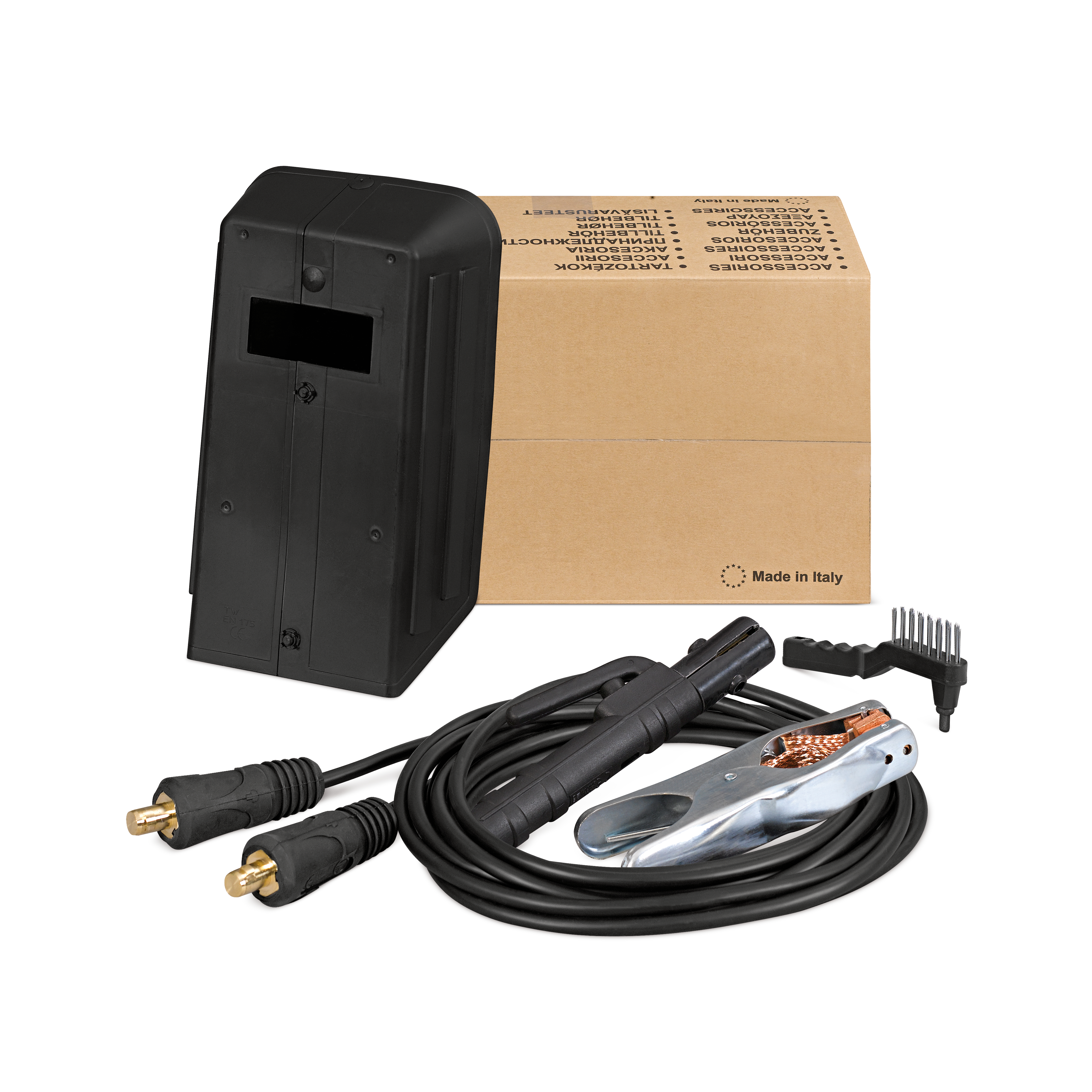

MMA WELDING KIT 600A 70 MMQ 4+3M AX70

801106

Manual or synergic operating;
40 pre-set synergic curves;
Possibility of creating, saving and retrieving customised welding programs;
MIG-MAG adjustments: wire up slope, electronic reactance, wire burn-back time, post gas;
2/4 time operation selection, Bi-Level, spot, inch and mm material thicknesses;
Adjustments in MMA: hot start, arc force, anti-stick;
VRD selection.
Protections: thermostatic, overvoltage, undervoltage, overcurrent, engine driven generator (+/-15%);
TIG Lift
