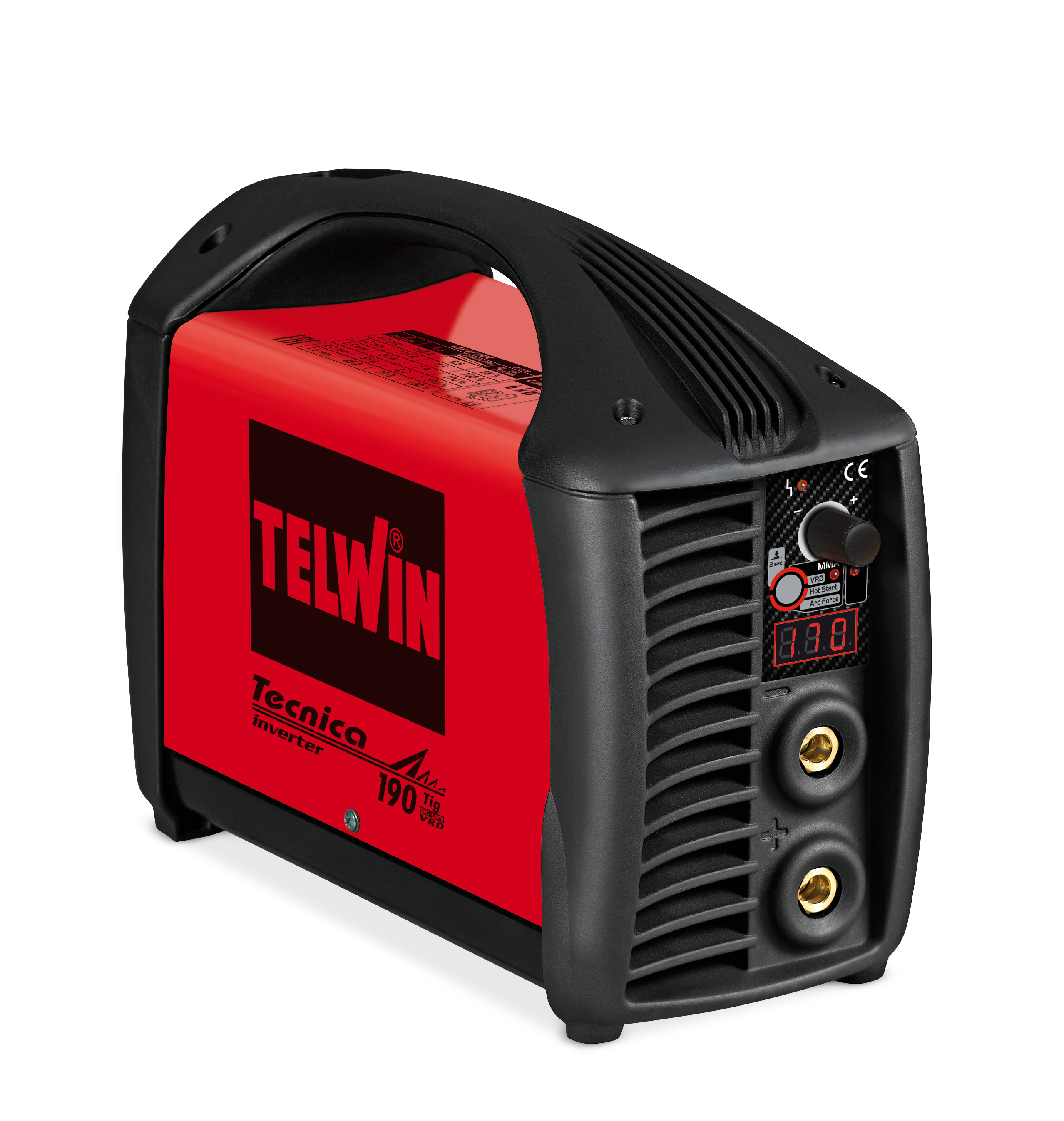

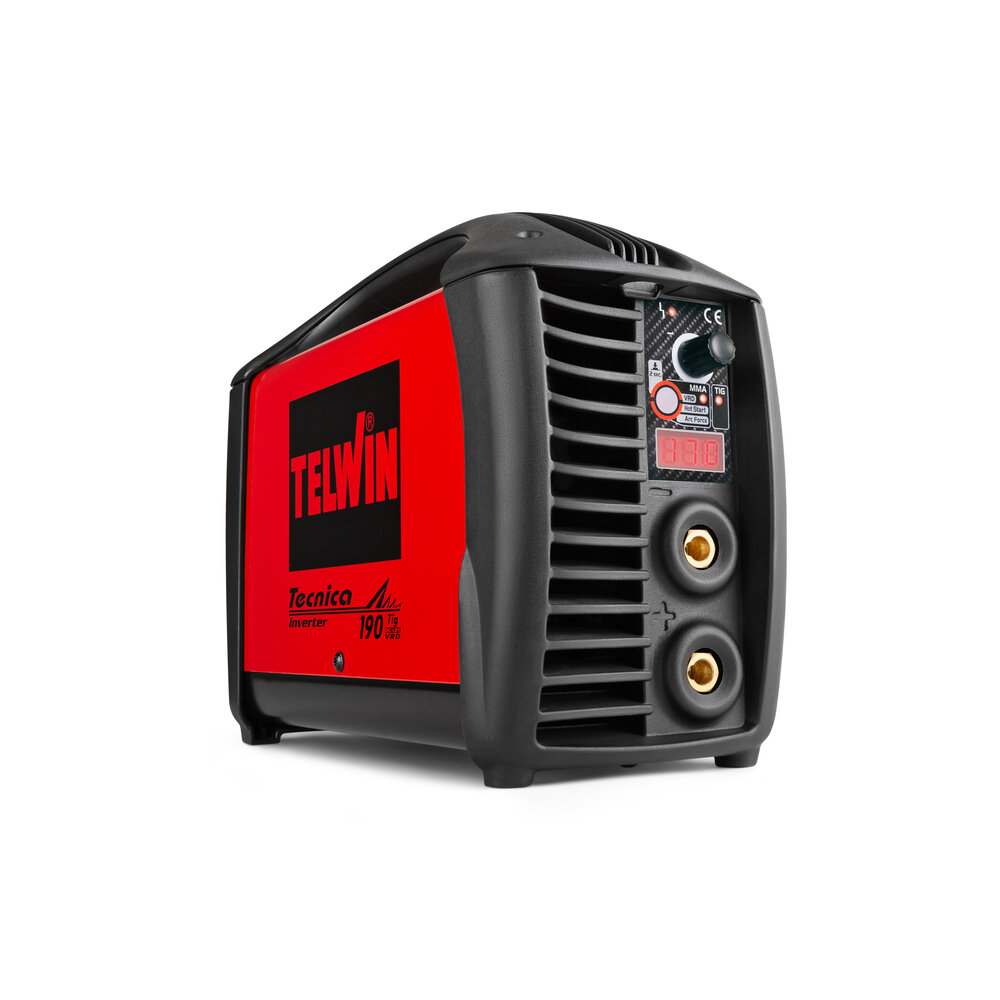

TECNICA TIG 190 DC

Home special TECNICA TIG 190 DC

TECNICA TIG 190 DC

TECNICA TIG 190 DC

Download PDF Request Info

Direct current (DC) TIG (LIFT strike) and MMA electrode inverter welding machine, 170A, with LCD display.
MMA welding with arc-force adjustment and presence of hot-start devices; welds rutile, basic, stainless steel and cast iron electrodes up to Ø 4mm.
With set welding current display.
Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
VDR device for greater safety in welding operations in damp environments.
Light and compact. Easy to transport. Contained consumption thanks to inverter technology.

Direct current (DC) TIG (LIFT strike) and MMA electrode inverter welding machine, 170A, with LCD display.
MMA welding with arc-force adjustment and presence of hot-start devices; welds rutile, basic, stainless steel and cast iron electrodes up to Ø 4mm.
With set welding current display.
Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
VDR device for greater safety in welding operations in damp environments.
Light and compact. Easy to transport. Contained consumption thanks to inverter technology.

TIG (LIFT striking) and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
The Voltage Reduction Device (VRD) is used to decrease the output voltage to a safe level when the welding machine is on but not in welding conditions. This grants the operator's safety: he can come into contact with the electrode without risks, until welding operations are resumed. (for use in damp environment such as mines or shipyards, etc.).
Features:

compact and light;
LCD display to check welding current;
MMA regulations: arc force and hot start;
MMA electrodes: rutile, basic, stainless steel and cast iron;
thermostatic, overcurrent, overvoltage, undervoltage, motorgenerator (+/-15%) protections.

CODE

816019

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT CONTROL RANGE DC

10 - 170 A

%USE (20°C USE)

88% @ 150A

MAX CURRENT DC EN60974-1

160 @ 20 % A

CURRENT 35% DC

115 A

DC CURRENT

110 A

MAX NO LOAD VOLTAGE

78 V

MAX NO LOAD VOLTAGE

14 V

MAX ABSORBED CURRENT

29 A

ABSORBED CURRENT AT 60%

17 A

MAX ABSORBED POWER

4,4 kW

ABSORBED POWER AT 60%

2,6 kW

MOTORGENERATOR MINIMUM POWER

6 kW

FUSE

16 A

EFFICIENCY

86 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

30 x 13 x 23 cm

WEIGHT

4,3 kg
