TECNICA 211/S + CARRY CASE

TECNICA 211/S + CARRY CASE

Download PDF Request Info

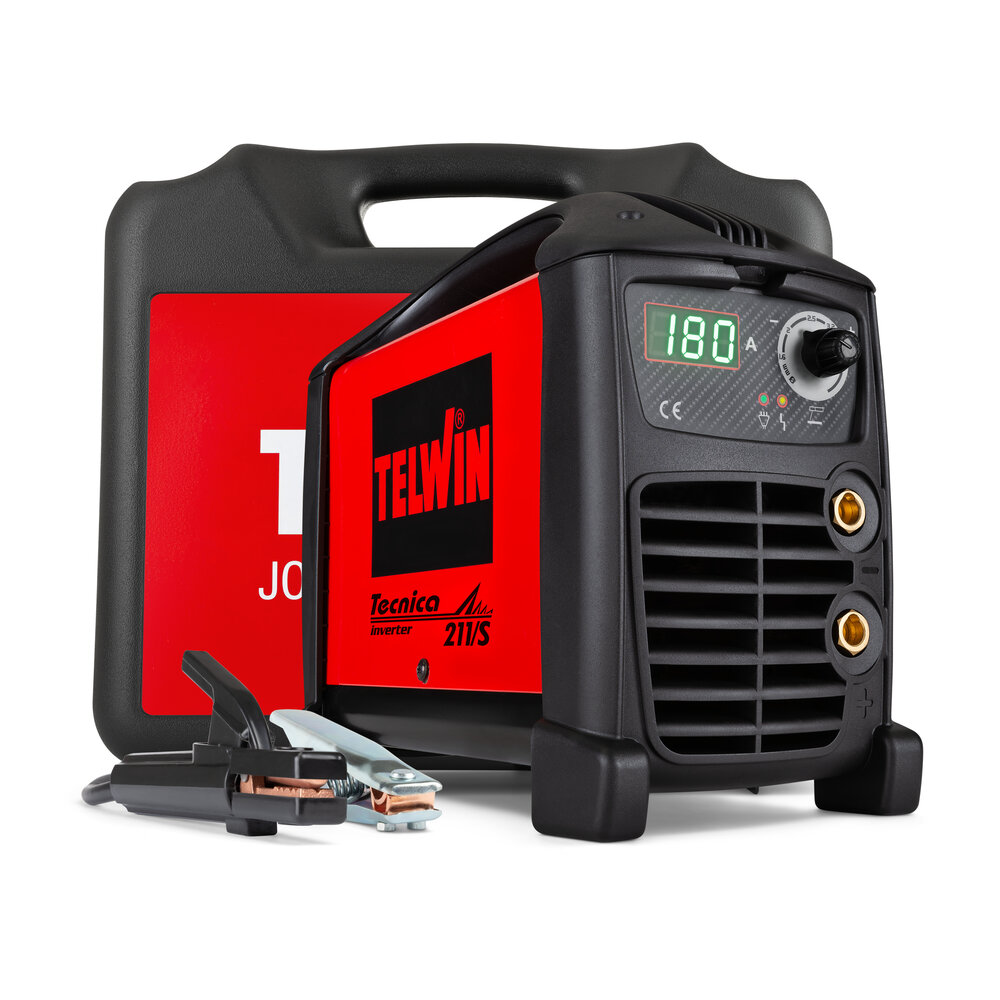

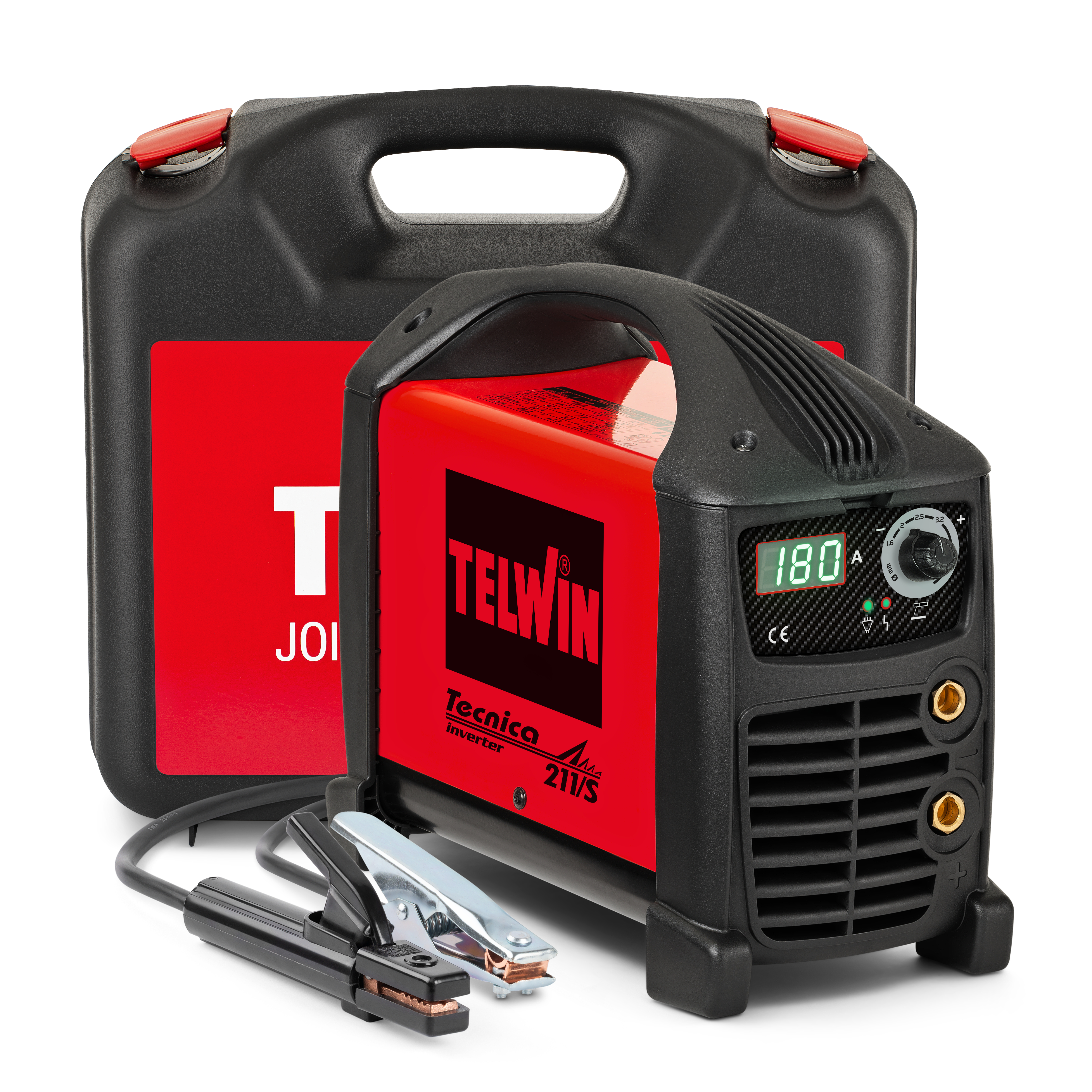

Direct current (DC) MMA and TIG (LIFT strike) electrode inverter welding machine, 180A, with LCD display. Supplied with accessories for electrode welding and plastic case.
Strong and raised structure against dust, water and dirt. Compact, light and easy to transport.
With set welding current display.
Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%). High stability of the welding current in power supply voltage variations.
Contained consumption thanks to inverter technology.

Direct current (DC) MMA and TIG (LIFT strike) electrode inverter welding machine, 180A, with LCD display. Supplied with accessories for electrode welding and plastic case.
Strong and raised structure against dust, water and dirt. Compact, light and easy to transport.
With set welding current display.
Advanced arc control devices: arc force, hot start, anti-stick. Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%). High stability of the welding current in power supply voltage variations.
Contained consumption thanks to inverter technology.

Inverter, MMA electrode and TIG welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.

Features:

robust, elevated construction against dust, water and dirt;
display showing the set welding current;
high welding current stability in spite of mains voltage fluctuations;
arc force, hot start and anti-stick devices;
thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

Complete with MMA welding accessories and plastic carry case.

CODE

816236

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT CONTROL RANGE DC

10 - 180 A

%USE (20°C USE)

95% @ 180A

MAX CURRENT DC EN60974-1

180 @ 20 % A

CURRENT 35% DC

145 A

DC CURRENT

110 A

MAX NO LOAD VOLTAGE

82 V

MAX ABSORBED CURRENT

36 A

ABSORBED CURRENT AT 60%

19 A

MAX ABSORBED POWER

5,6 kW

ABSORBED POWER AT 60%

3,1 kW

MOTORGENERATOR MINIMUM POWER

8 kW

EFFICIENCY

86 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

38 x 42 x 17 cm

WEIGHT

5,81 kg

Catalog Image

Download IMG

Spare Parts List

Download PDF

Certificate

Download PDF

PLASTIC CARRY CASE

322800

CABLE TW05V-A 1X025 1.80M PLUG ATLAS

124589

TOLEDO 250 WORK CLAMP 250A

DALLAS 300 ELECTRODE HOLDER 300A

TIG WELDING KITS

TIG WELDING KIT - ST9V

801097

BLISTER ELECTRODES

BASIC ELECTRODES D. 2,5 MM 10 PCS

804569

BASIC ELECTRODES D. 3,2 MM 8 PCS

804570

STAINLESS STEEL ELECTRODES D. 2,5 MM 10 PCS

804571

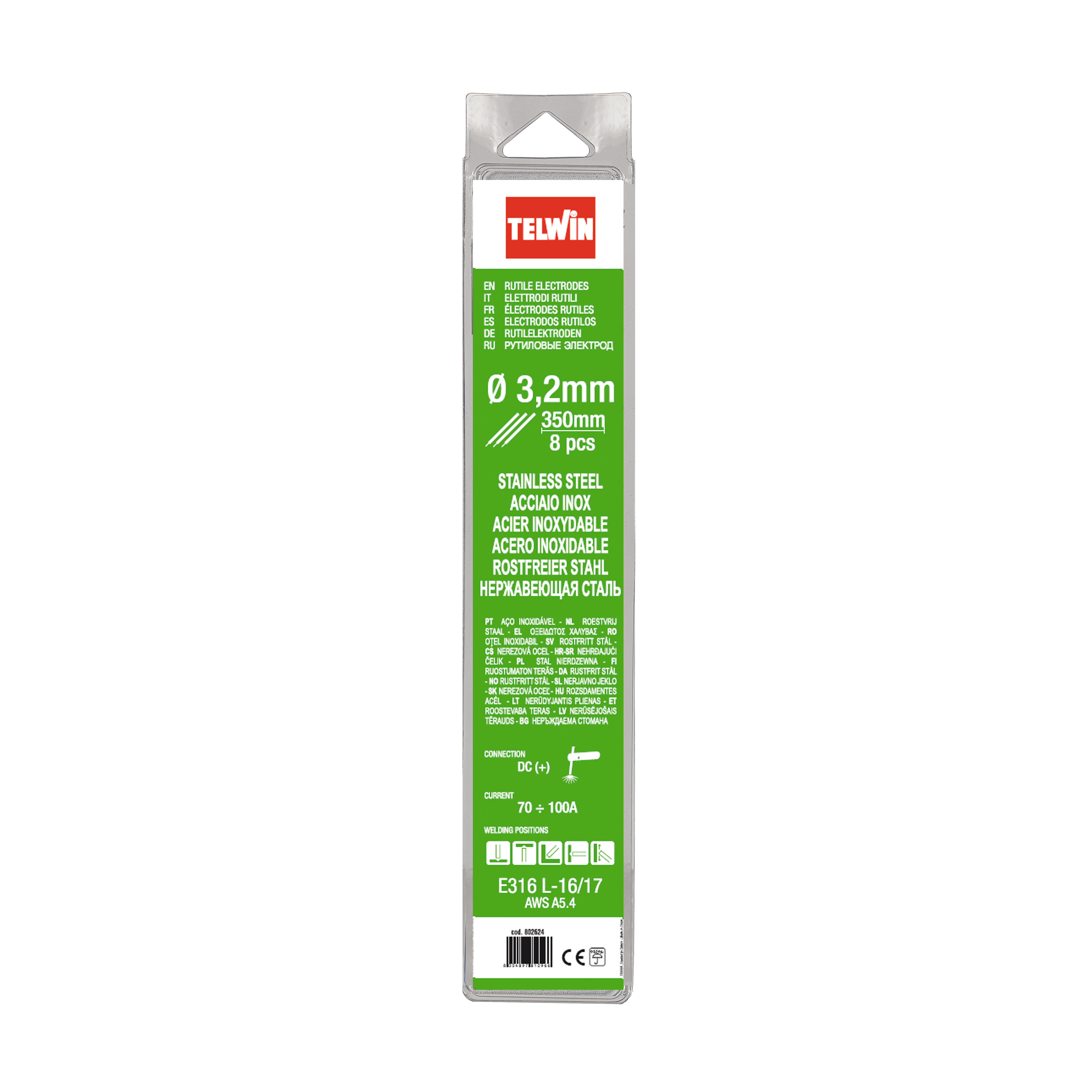

STAINLESS STEEL ELECTRODES D. 3,2 MM 8 PCS

804572

RUTILE ELECTRODES D. 1,6 MM 15 PCS

804564

RUTILE ELECTRODES D. 2,0 MM 15 PCS

804565

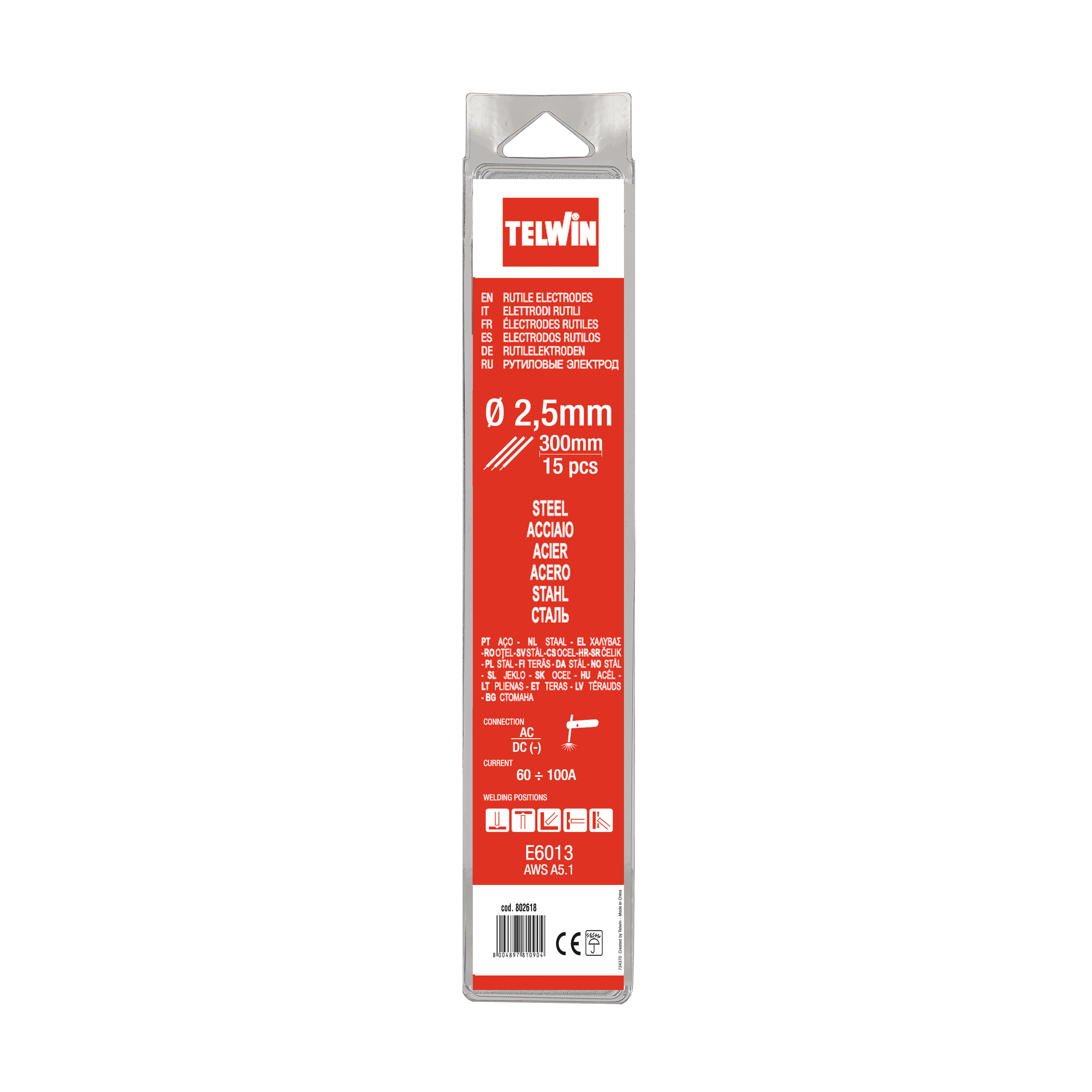

RUTILE ELECTRODES D. 2,5 MM 15 PCS

804566

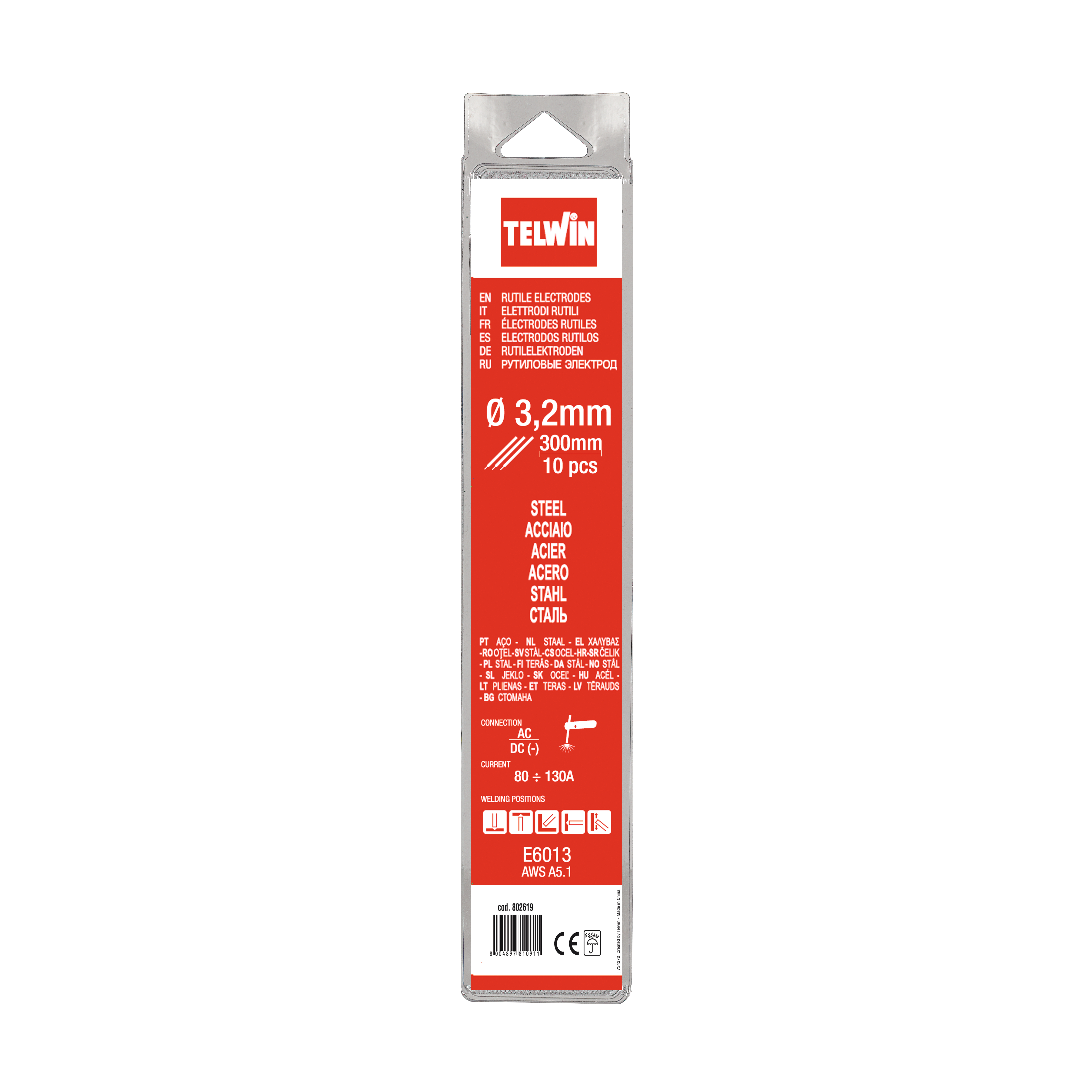

RUTILE ELECTRODES D. 3,2 MM 10 PCS

804567

RUTILE ELECTRODES D. 4 MM 8 PCS

802620

BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

802737

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

802739

RUTILE ELECTRODES D. 3,2 MM 4 KG

802749

ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 200A 16 MMQ 3+2M AX25

801096
