TECHNOLOGY PLASMA 60 XT

TECHNOLOGY PLASMA 60 XT

Download PDF Request Info

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting, grid cutting and gauging of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
Features:
- robust and impact resistant;
- reduced weight and dimensions;

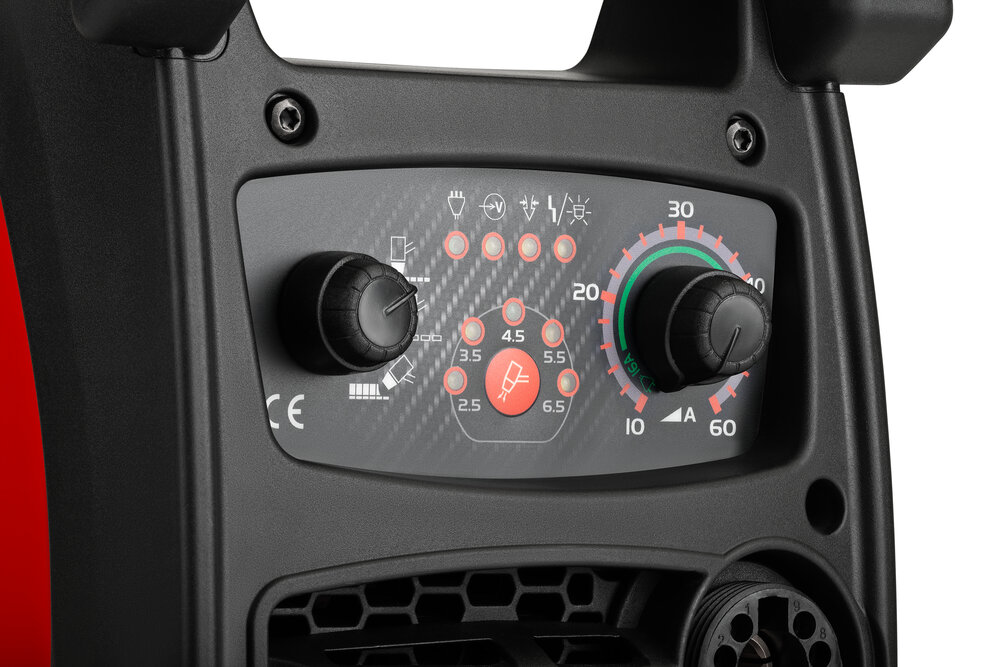

- warning led for torch under voltage, protections;
- warning led for consumables change;
- torch automatic cooling;

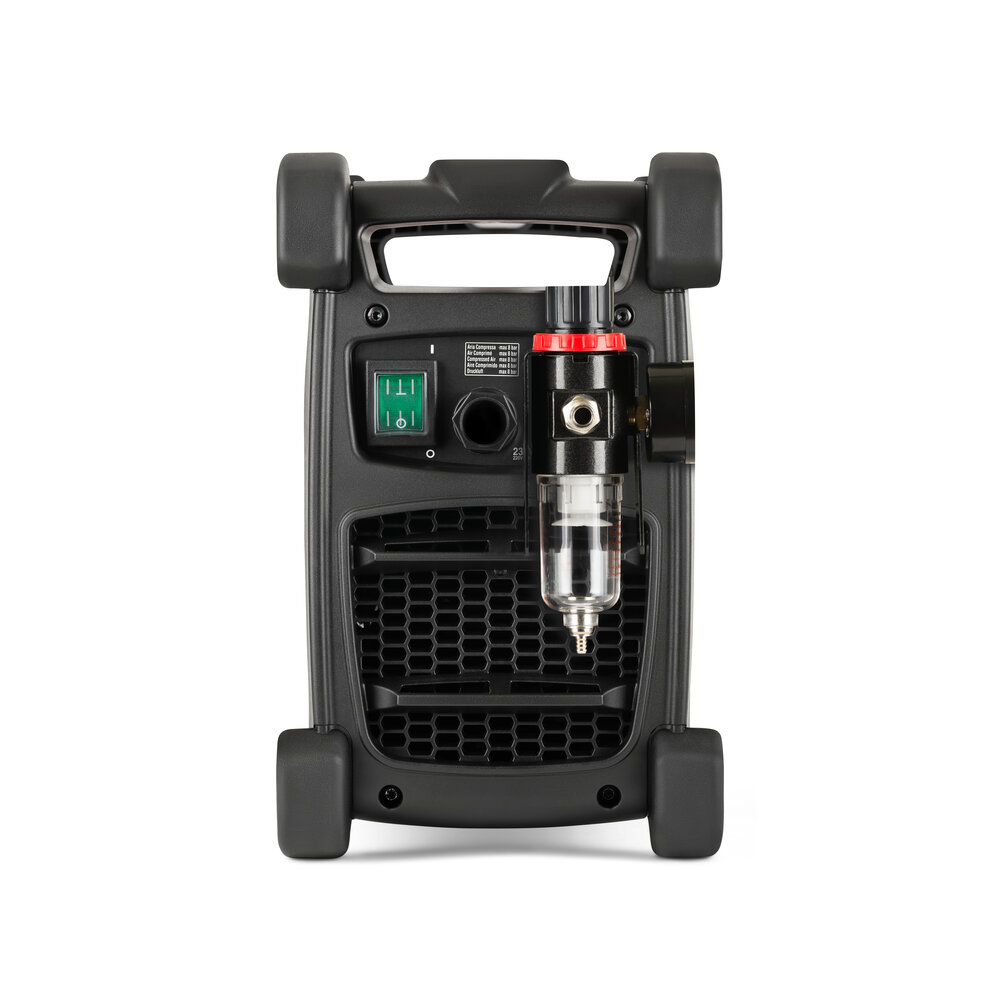

- visualization of air pressure;
- thermostatic, overvoltage, undervoltage, overcurrent, air failure protections.
Complete with PH torch.

CODE

816148

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 60 A

MAX CURRENT

50A @ 30 % A

MAX NO LOAD VOLTAGE

313 V

MAX ABSORBED CURRENT

34 A

MAX ABSORBED POWER

5,5 kW

MAINS FUSE

20 A

EFFICIENCY

90 %

POWER FACTOR

0,7

MAX CUTTING THICKNESS

20 mm

COMPRESSED AIR CAPACITY

100 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS

50,6 x 18,2 x 29,2 cm

WEIGHT

10,3 kg

Catalog Image

Instruction Manual

Spare Parts List

brochure

MAGNETIC STRIP 1 M

CIRCULAR CUTTING UNIT

ELECTRODES PH-PK 5 PCS

DIFFUSERS KIT PH-PK 5 PCS

SAFETY CAPS PH 2 PCS

LONG ELECTRODES PH 5 PCS

LONG NOZZLES PH 5 PCS

PH PLASMA TORCH 4 M

NOZZLES PH PERFORMANCE 5 PCS

MMS-10 MOISTURE & MIXTURE STOP FILTER

MMS-10 AIR FILTER CARTRIDGES 4 PCS

CONSUMABLES BOX FOR PH PERFORMANCE TORCH

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting, grid cutting and gauging of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
Features:
- robust and impact resistant;
- reduced weight and dimensions;
- warning led for torch under voltage, protections;
- warning led for consumables change;
- torch automatic cooling;
- visualization of air pressure;
- thermostatic, overvoltage, undervoltage, overcurrent, air failure protections.
Complete with PH torch.

CODE

816148

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 60 A

MAX CURRENT EN60974-1

50A @ 30 % A

MAX NO LOAD VOLTAGE

313 V

MAX ABSORBED CURRENT

34 A

MAX ABSORBED POWER

5,5 kW

MAINS FUSE

20 A

EFFICIENCY

90 %

POWER FACTOR(cosphi) (cosphi)

0,7

MAX CUTTING THICKNESS

20 mm

COMPRESSED AIR CAPAC.

100 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

50,6 x 18,2 x 29,2 cm

WEIGHT

10,3 kg

Catalog Image

Instruction Manual

Spare Parts List

brochure

MAGNETIC STRIP 1 M

802143

CIRCULAR CUTTING UNIT

802214

ELECTRODES PH-PK 5 PCS

802420

DIFFUSERS KIT PH-PK 5 PCS

802422

SAFETY CAPS PH 2 PCS

802425

LONG ELECTRODES PH 5 PCS

802428

LONG NOZZLES PH 5 PCS

802429

PH PLASMA TORCH 4 M

804155

NOZZLES PH PERFORMANCE 5 PCS

804157

MMS-10 MOISTURE & MIXTURE STOP FILTER

804340

MMS-10 AIR FILTER CARTRIDGES 4 PCS

804343

CONSUMABLES BOX FOR PH PERFORMANCE TORCH

804417
