TECHNOLOGY PLASMA 54 XT KOMPRESSOR

TECHNOLOGY PLASMA 54 XT KOMPRESSOR

Download PDF Request Info

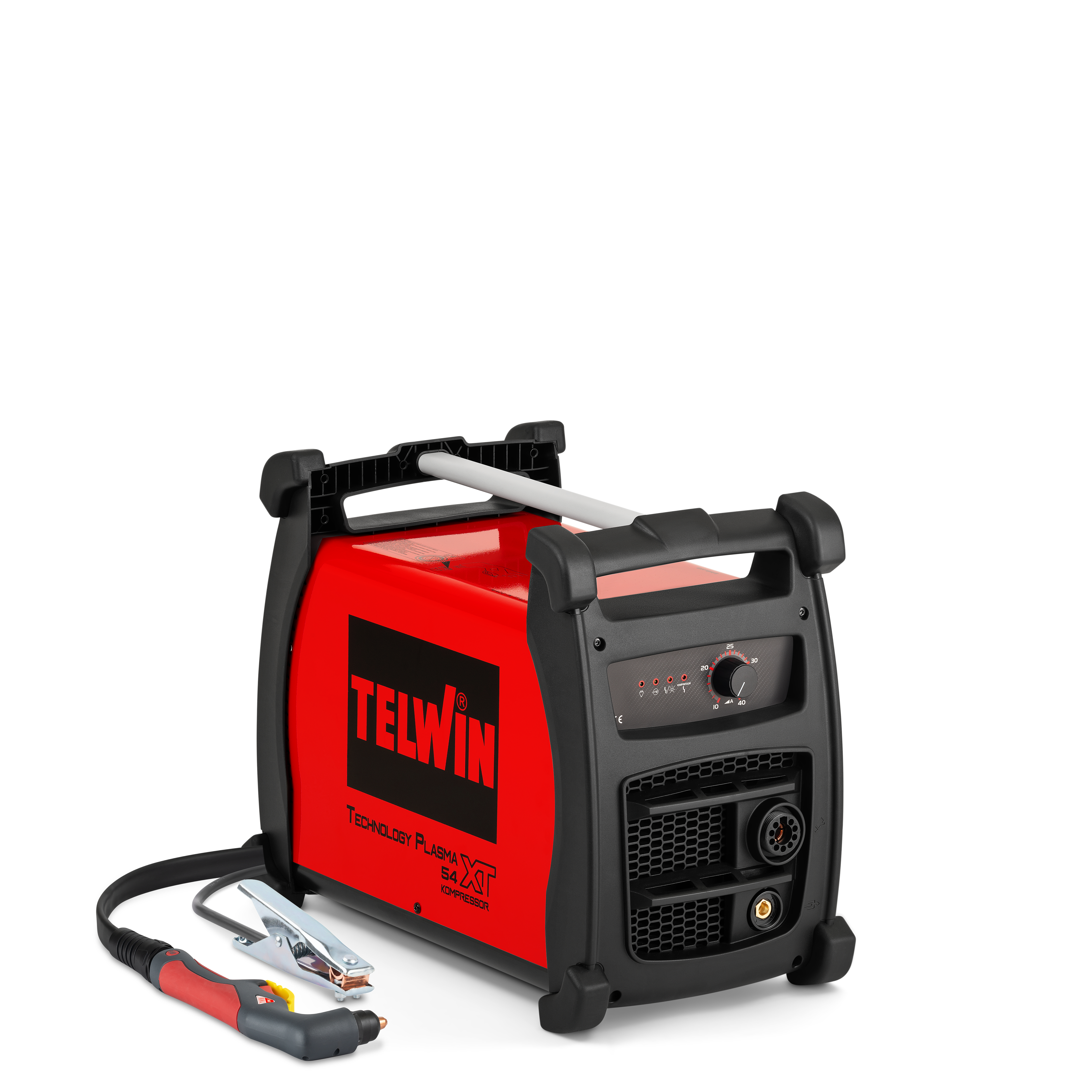

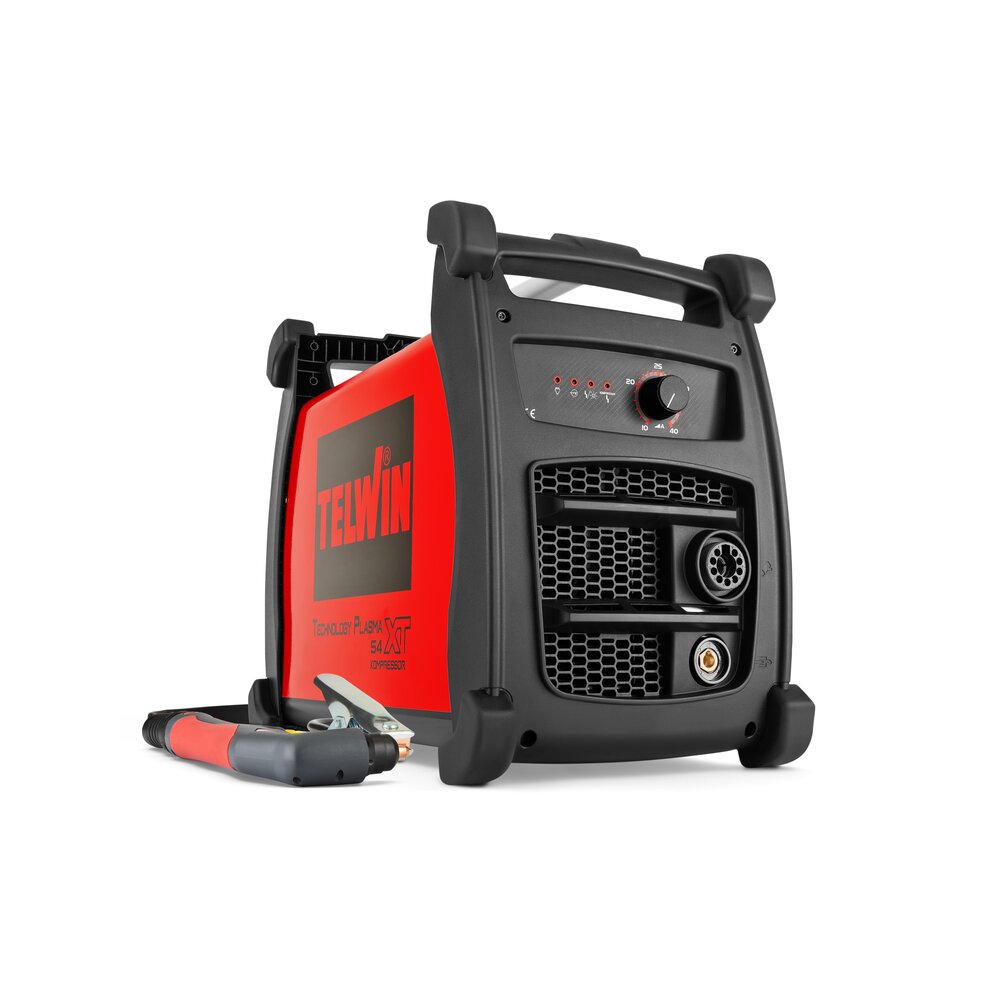

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
The model is equipped with a compressor and needs not to be connected to an external compressed air power source.
Features:
- robust and impact resistant;
- reduced weight and dimensions;

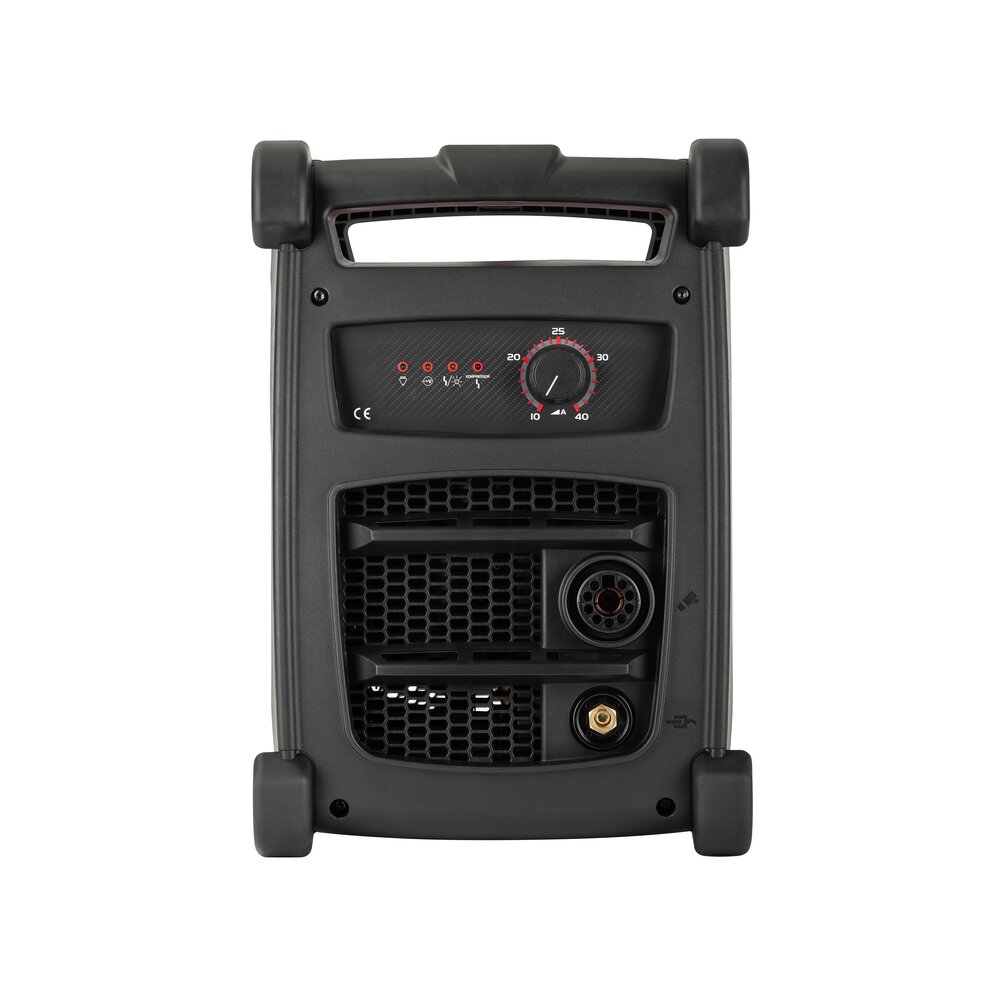

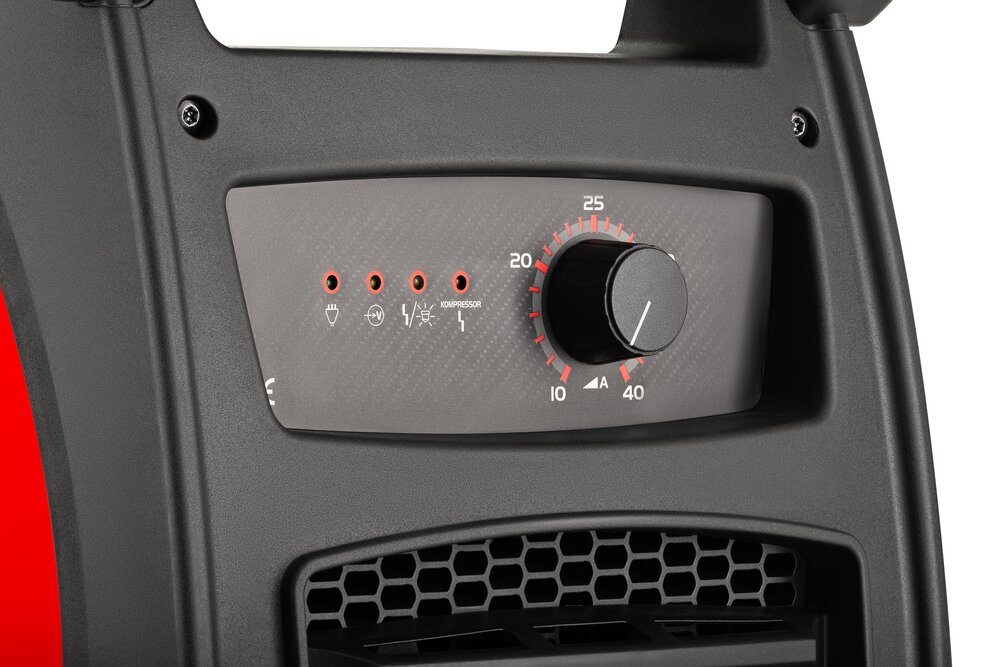

- warning led for torch under voltage, protections;
- warning led for consumables change;
- torch automatic cooling;
- thermostatic, overvoltage, undervoltage, overcurrent, air failure protections.
Complete with PK torch.

CODE

816147

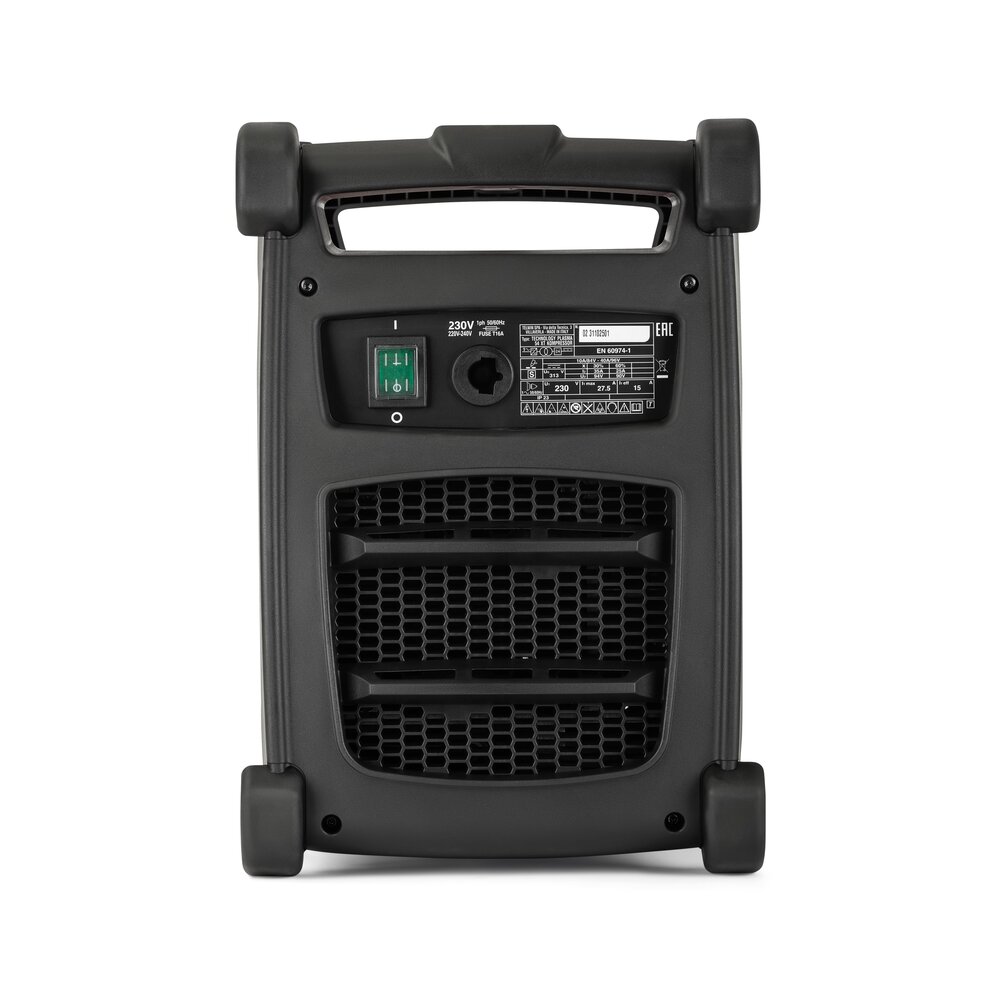

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 40 A

MAX CURRENT

35 @ 30 % A

MAX NO LOAD VOLTAGE

313 V

MAX ABSORBED CURRENT

27,5 A

MAX ABSORBED POWER

4,5 kW

MAINS FUSE

16 A

EFFICIENCY

82 %

POWER FACTOR

0,7

MAX CUTTING THICKNESS

12 mm

PROTECTION DEGREE

IP23

DIMENSIONS

47 x 26 x 37,8 cm

WEIGHT

17,8 kg

Catalog Image

Instruction Manual

Spare Parts List

brochure

Certificate

MAGNETIC STRIP 1 M

CIRCULAR CUTTING UNIT

ELECTRODES PH-PK 5 PCS

DIFFUSERS KIT PH-PK 5 PCS

NOZZLES PH-PK 5 PCS

LONG ELECTRODES PH 5 PCS

LONG NOZZLES PH 5 PCS

SAFETY CAPS PK 2 PCS

PK PLASMA TORCH 4 M

NOZZLES PH-PK 20A 5 PCS

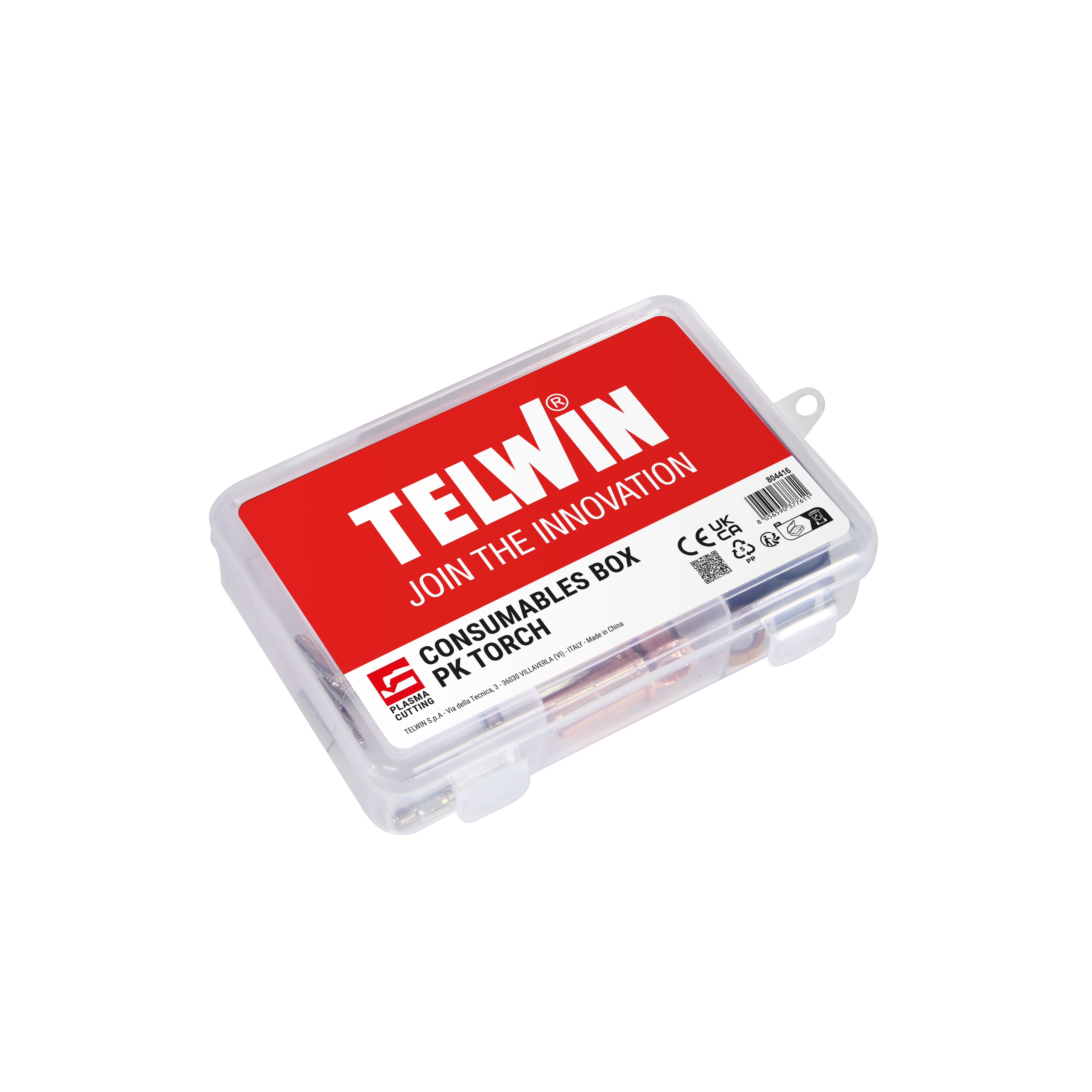

CONSUMABLES BOX FOR PK TORCH

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
The model is equipped with a compressor and needs not to be connected to an external compressed air power source.
Features:
- robust and impact resistant;
- reduced weight and dimensions;
- warning led for torch under voltage, protections;
- warning led for consumables change;
- torch automatic cooling;
- thermostatic, overvoltage, undervoltage, overcurrent, air failure protections.
Complete with PK torch.

CODE

816147

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 40 A

MAX CURRENT EN60974-1

35 @ 30 % A

MAX NO LOAD VOLTAGE

313 V

MAX ABSORBED CURRENT

27,5 A

MAX ABSORBED POWER

4,5 kW

MAINS FUSE

16 A

EFFICIENCY

82 %

POWER FACTOR(cosphi) (cosphi)

0,7

MAX CUTTING THICKNESS

12 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

47 x 26 x 37,8 cm

WEIGHT

17,8 kg

Catalog Image

Instruction Manual

Spare Parts List

brochure

Certificate

MAGNETIC STRIP 1 M

802143

CIRCULAR CUTTING UNIT

802214

ELECTRODES PH-PK 5 PCS

802420

DIFFUSERS KIT PH-PK 5 PCS

802422

NOZZLES PH-PK 5 PCS

802423

LONG ELECTRODES PH 5 PCS

802428

LONG NOZZLES PH 5 PCS

802429

SAFETY CAPS PK 2 PCS

802485

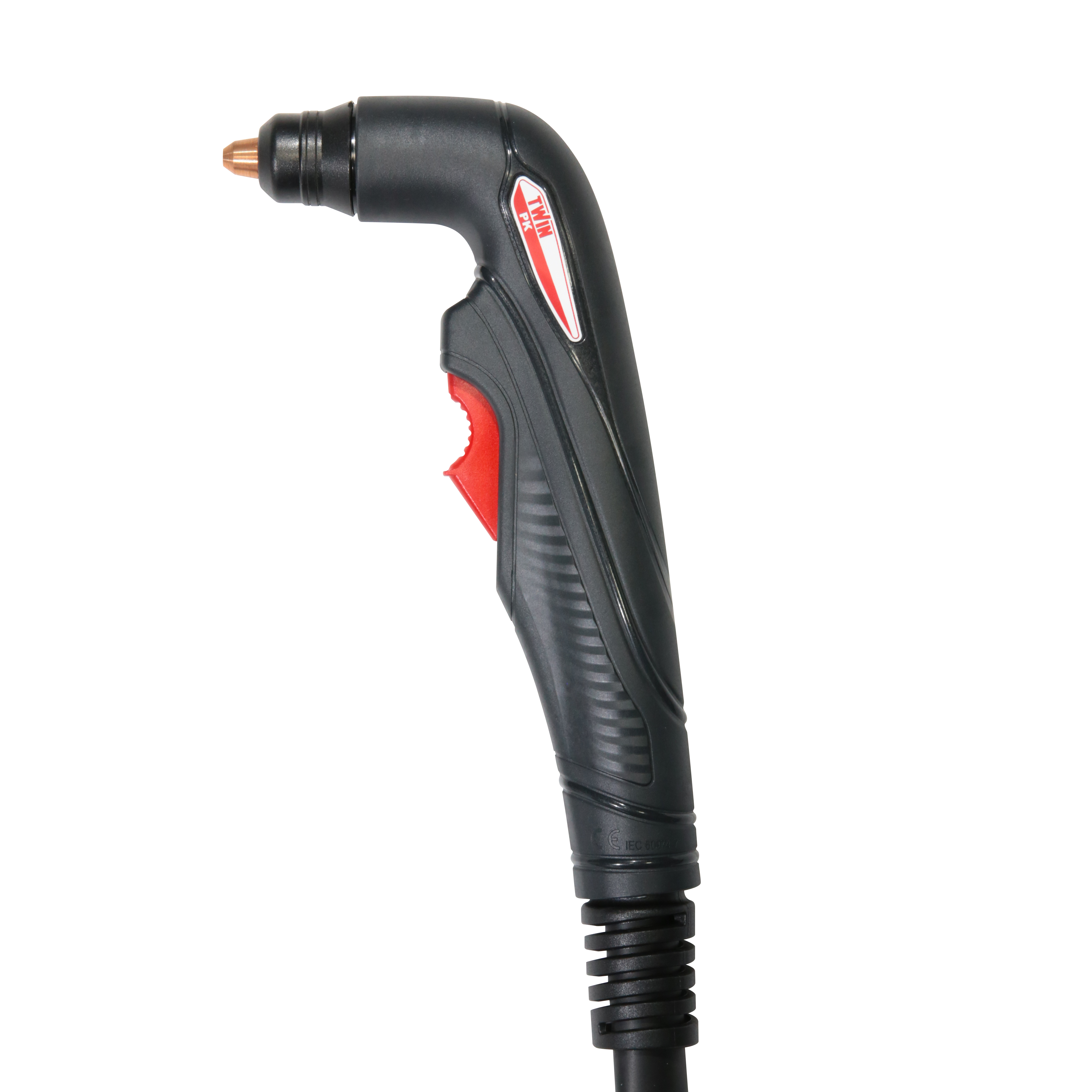

PK PLASMA TORCH 4 M

804156

NOZZLES PH-PK 20A 5 PCS

804418

CONSUMABLES BOX FOR PK TORCH

804416
