TECHNOLOGY PLASMA 41 XT

TECHNOLOGY PLASMA 41 XT

Download PDF Request Info

40A plasma cutting inverter system with compressed air and strike on contact of the pilot arc. With PH torch.
Max. cut 15 mm. Fast cutting without deformation of all the conductor materials.
Live voltage signal in torch, protection; change consumables signal, air pressure display.
Automatic torch cooling: gauge metal protection cage.
Thermostatic, overvoltage, undervoltage, overcurrent protection, no air protection.
Strong and resistant to impact; reduced weight and dimensions.

40A plasma cutting inverter system with compressed air and strike on contact of the pilot arc. With PH torch.
Max. cut 15 mm. Fast cutting without deformation of all the conductor materials.
Live voltage signal in torch, protection; change consumables signal, air pressure display.
Automatic torch cooling: gauge metal protection cage.
Thermostatic, overvoltage, undervoltage, overcurrent protection, no air protection.
Strong and resistant to impact; reduced weight and dimensions.

Inverter, compressed air plasma cutting system, with contact striking of pilot arc. Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
Ideal for numerous applications and environments, from maintenance to bodyshops.
Features:

robust and impact resistant;
reduced weight and dimensions;
ideal for cutting hollow square pipes;

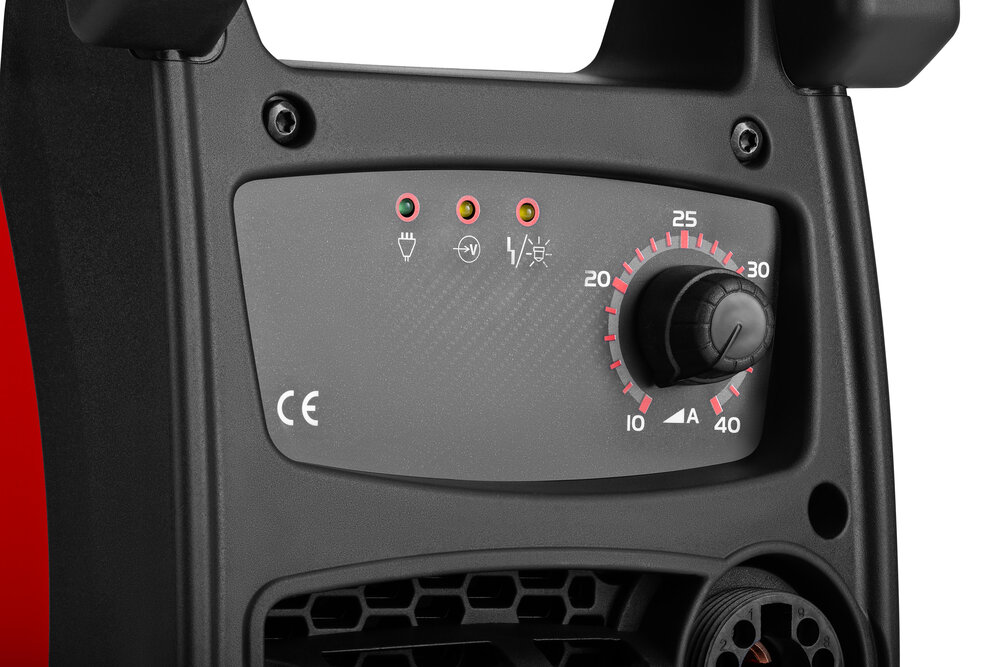

warning led for torch under voltage, protections;
torch automatic cooling;
warning led for consumables change;

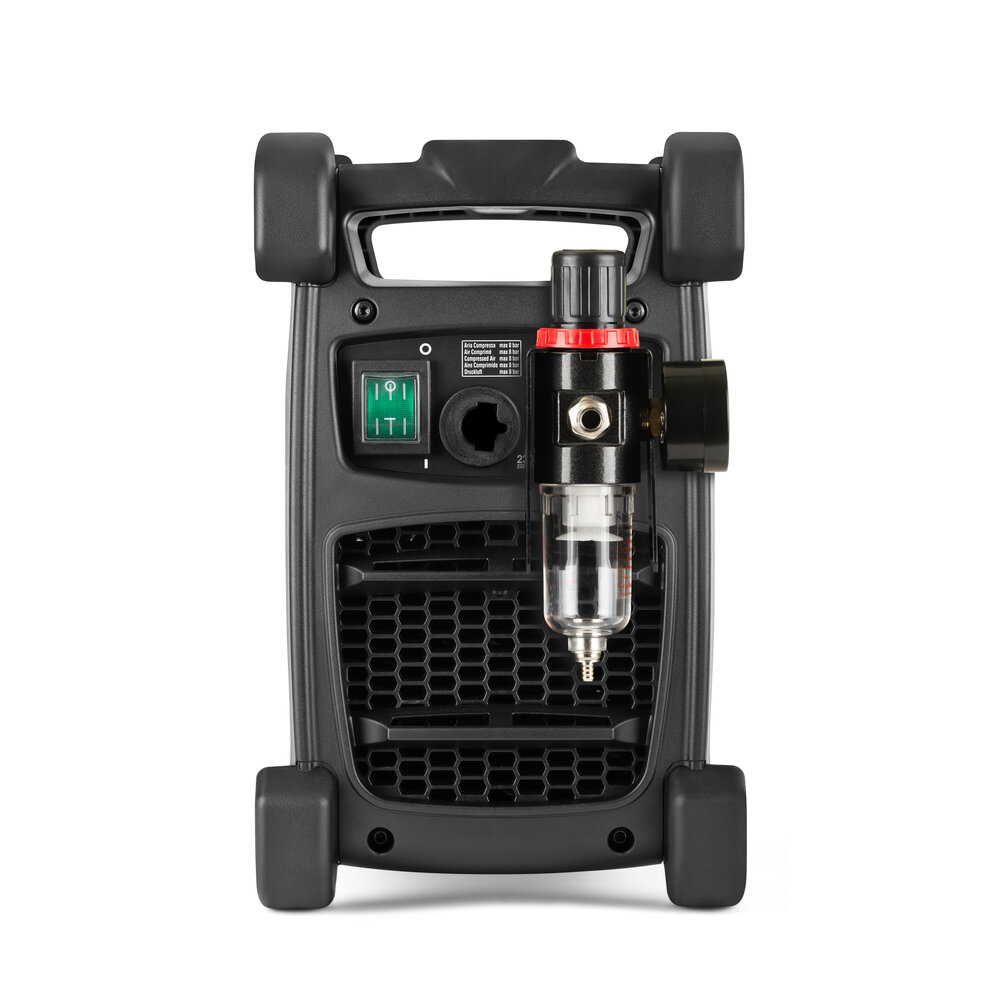

visualization of air pressure;
max. cutting thickness 15mm;
manometer metallic protection;
thermostatic, overvoltage, undervoltage, overcurrent, air failure protections.

Complete with PH torch.

CODE

816146

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 40 A

MAX CURRENT

35 @ 30 % A

MAX NO LOAD VOLTAGE

313 V

MAX ABSORBED CURRENT

25 A

MAX ABSORBED POWER

4 kW

EFFICIENCY

85 %

POWER FACTOR

0,7

MAX CUTTING THICKNESS

15 mm

COMPRESSED AIR CAPACITY

100 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS

47,5 x 18,2 x 29,2 cm

WEIGHT

9 kg

Catalog Image

Instruction Manual

Spare Parts List

brochure

PLASMA CONSUMABLES BOXES

CONSUMABLES BOX FOR PH TORCH

OTHER PLASMA ACCESSORIES

MMS-10 MOISTURE & MIXTURE STOP FILTER

MMS-10 AIR FILTER CARTRIDGES 4 PCS

Inverter, compressed air plasma cutting system, with contact striking of pilot arc. Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
Ideal for numerous applications and environments, from maintenance to bodyshops.
Features:

robust and impact resistant;
reduced weight and dimensions;
ideal for cutting hollow square pipes;
warning led for torch under voltage, protections;
torch automatic cooling;
warning led for consumables change;
visualization of air pressure;
max. cutting thickness 15mm;
manometer metallic protection;
thermostatic, overvoltage, undervoltage, overcurrent, air failure protections.

Complete with PH torch.

CODE

816146

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 40 A

MAX CURRENT EN60974-1

35 @ 30 % A

MAX NO LOAD VOLTAGE

313 V

MAX ABSORBED CURRENT

25 A

MAX ABSORBED POWER

4 kW

EFFICIENCY

85 %

POWER FACTOR(cosphi) (cosphi)

0,7

MAX CUTTING THICKNESS

15 mm

COMPRESSED AIR CAPAC.

100 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

47,5 x 18,2 x 29,2 cm

WEIGHT

9 kg

Catalog Image

Instruction Manual

Spare Parts List

brochure

PLASMA CONSUMABLES BOXES

CONSUMABLES BOX FOR PH TORCH

804415

OTHER PLASMA ACCESSORIES

MMS-10 MOISTURE & MIXTURE STOP FILTER

804340

MMS-10 AIR FILTER CARTRIDGES 4 PCS

804343
