ELECTROMIG 220 SYNERGIC

ELECTROMIG 220 SYNERGIC

Download PDF Request Info

Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift), 230A. 3ph 400V power supply.
Rapid synergic adjustment: easy to use. Preset synergic curves.
Immediate and easy reading LCD display.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.
VDR device for greater safety in welding operations in damp environments.

Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift), 230A. 3ph 400V power supply.
Rapid synergic adjustment: easy to use. Preset synergic curves.
Immediate and easy reading LCD display.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.
VDR device for greater safety in welding operations in damp environments.

MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift inverter multiprocess welding machine.
Its flexibility of use and the different materials it can weld (steel, stainless steel, aluminium) or braze weld (galvanized sheet) allow for a wide range of applications, from maintenanceto installation and interventions in body shops.
The quick SYNERGIC regulation of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes this product easy to use.
The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.
The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style.

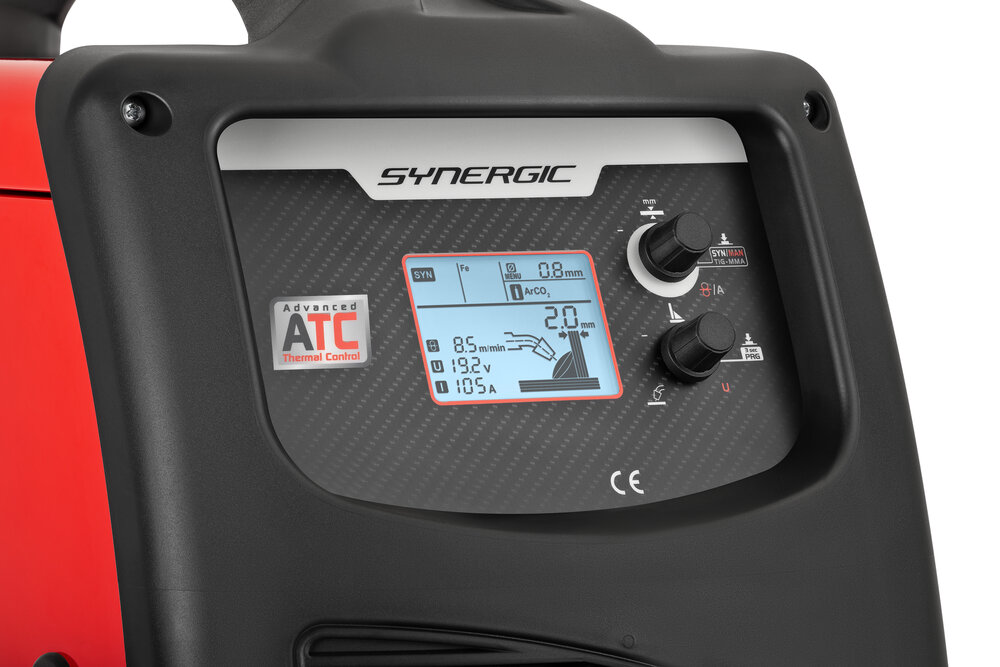

The ONE TOUCH LCD graphic display allows for a better reading of all welding parameters.
Lightweight and very compact, it can be moved around easily in all intervention areas, both indoors and outdoors.
Features:

17 synergy curves available;
visualization on LCD display of voltage, current, welding speed;
regulation of: wire speed up slope, electronic reactance, burn-back time, post gas;
choice of 2/4 times, spot operation;
thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

Complete with MIG-MAG torch, work clamp and cable.

CODE

816059

THREE PHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 230 A

MAX CURRENT

200 @ 20% A

DC CURRENT

105 A

MAX NO LOAD VOLTAGE

75 V

MAX ABSORBED CURRENT

9 A

ABSORBED CURRENT AT 60%

5 A

MAX ABSORBED POWER

5,8 kW

ABSORBED POWER AT 60%

3 kW

EFFICIENCY

87 %

POWER FACTOR

0,9

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1 mm

INOX WELDING WIRE DIAMETER

0,8 - 1 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDING WIRE DIAM.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP23

DIMENSIONS

62 x 26 x 49 cm

WEIGHT

23 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

MT15 MIG TORCH 3M (RED)

742180

TOLEDO 250 WORK CLAMP 250A

712030

FEED ROLL 2R 0,6FE-0,8FE "F"

742575

CABLE TW05V-A 1X025 L=03,00M ATLAS 50MMQ

124887

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 12 L\min

722119

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

STAINLESS STEEL WELDING KIT D. 0,8 MM

802037

ALUMINIUM WELDING KIT D. 0,8-1 MM

802817

NAIL WELDING KIT

802034

MIG TORCHES

MT15 MIG TORCH 4M

742181

MT15 MIG TORCH 5M

742182

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

TROLLEYS AND ACCESSORIES

TROLLEY - EUROPA

803073

TROLLEY - COSMOPOLITAN

803079

17 synergy curves available;
visualization on LCD display of voltage, current, welding speed;
regulation of: wire speed up slope, electronic reactance, burn-back time, post gas;
choice of 2/4 times, spot operation;
thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.

Complete with MIG-MAG torch, work clamp and cable.

CODE

816059

THREEPHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

10 - 230 A

MAX CURRENT DC EN60974-1

200 @ 20% A

DC CURRENT AT 60%

105 A

MAX NO LOAD VOLTAGE IN DC

75 V

MAX ABSORBED CURRENT

9 A

ABSORBED CURRENT AT 60%

5 A

MAX ABSORBED POWER

5,8 kW

ABSORBED POWER AT 60%

3 kW

EFFICIENCY

87 %

POWER FACTOR(cosphi) (cosphi)

0,9

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDI.WIRE DIA.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

62 x 26 x 49 cm

WEIGHT

23 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

MT15 MIG TORCH 3M (RED)

742180

TOLEDO 250 WORK CLAMP 250A

712030

FEED ROLL 2R 0,6FE-0,8FE "F"

742575

CABLE TW05V-A 1X025 L=03,00M ATLAS 50MMQ

124887

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 12 L\min

722119

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

STAINLESS STEEL WELDING KIT D. 0,8 MM

802037

ALUMINIUM WELDING KIT D. 0,8-1 MM

802817

NAIL WELDING KIT

802034

MIG TORCHES

MT15 MIG TORCH 4M

742181

MT15 MIG TORCH 5M

742182

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

TROLLEYS AND ACCESSORIES

TROLLEY - EUROPA

803073

TROLLEY - COSMOPOLITAN

803079

ONE TOUCH

Set the material thickness and start welding!

The ONE TOUCH synergic adjustment reduces setting times and guarantees excellent work quality. Once the wire/gas programme has been selected, just set the thickness and start welding: the synergic curves are loaded automatically. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions.
