ELECTROMIG 400 SYNERGIC

ELECTROMIG 400 SYNERGIC

Download PDF Request Info

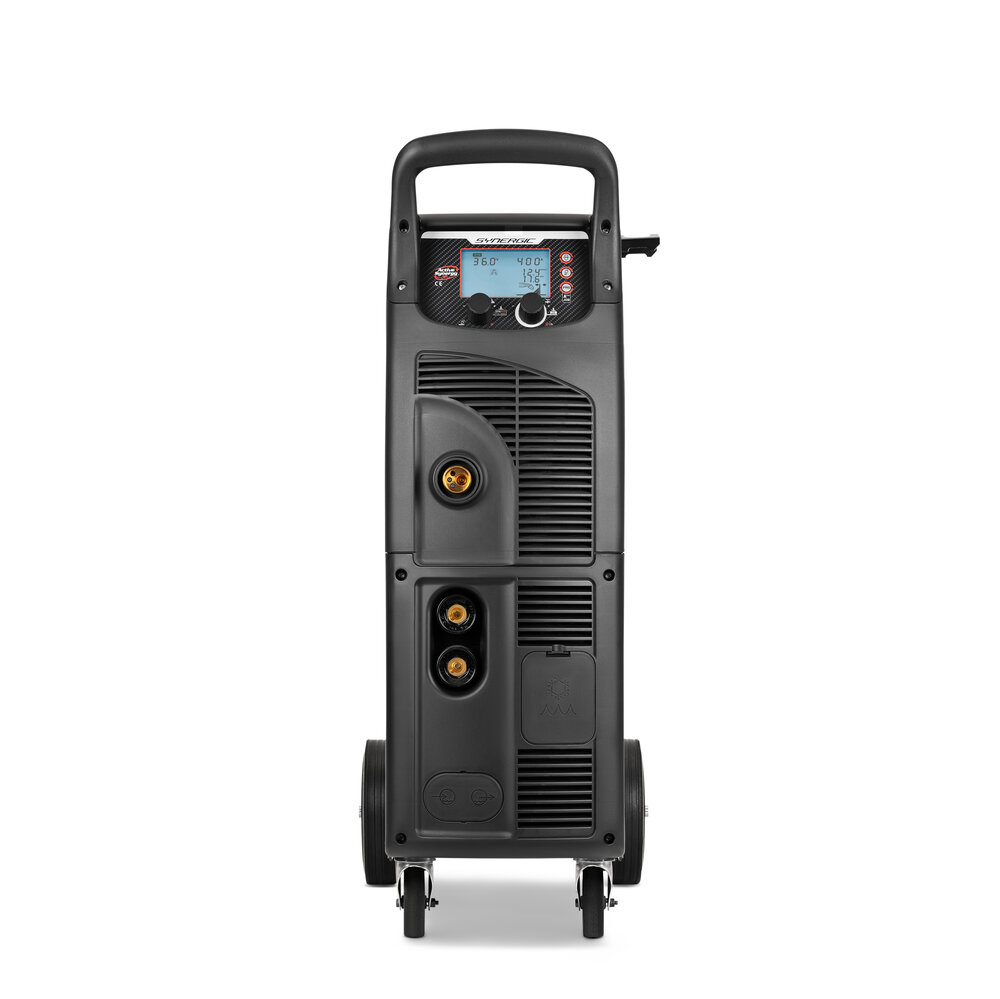

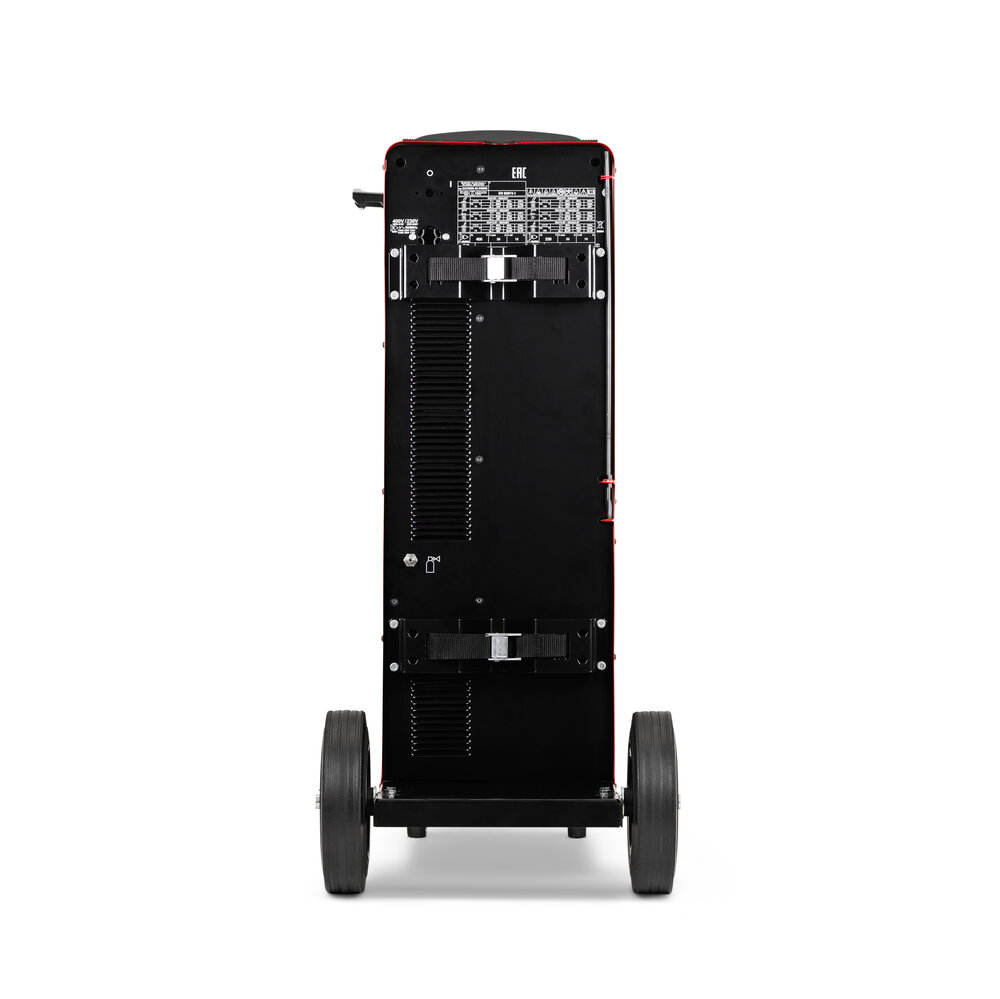

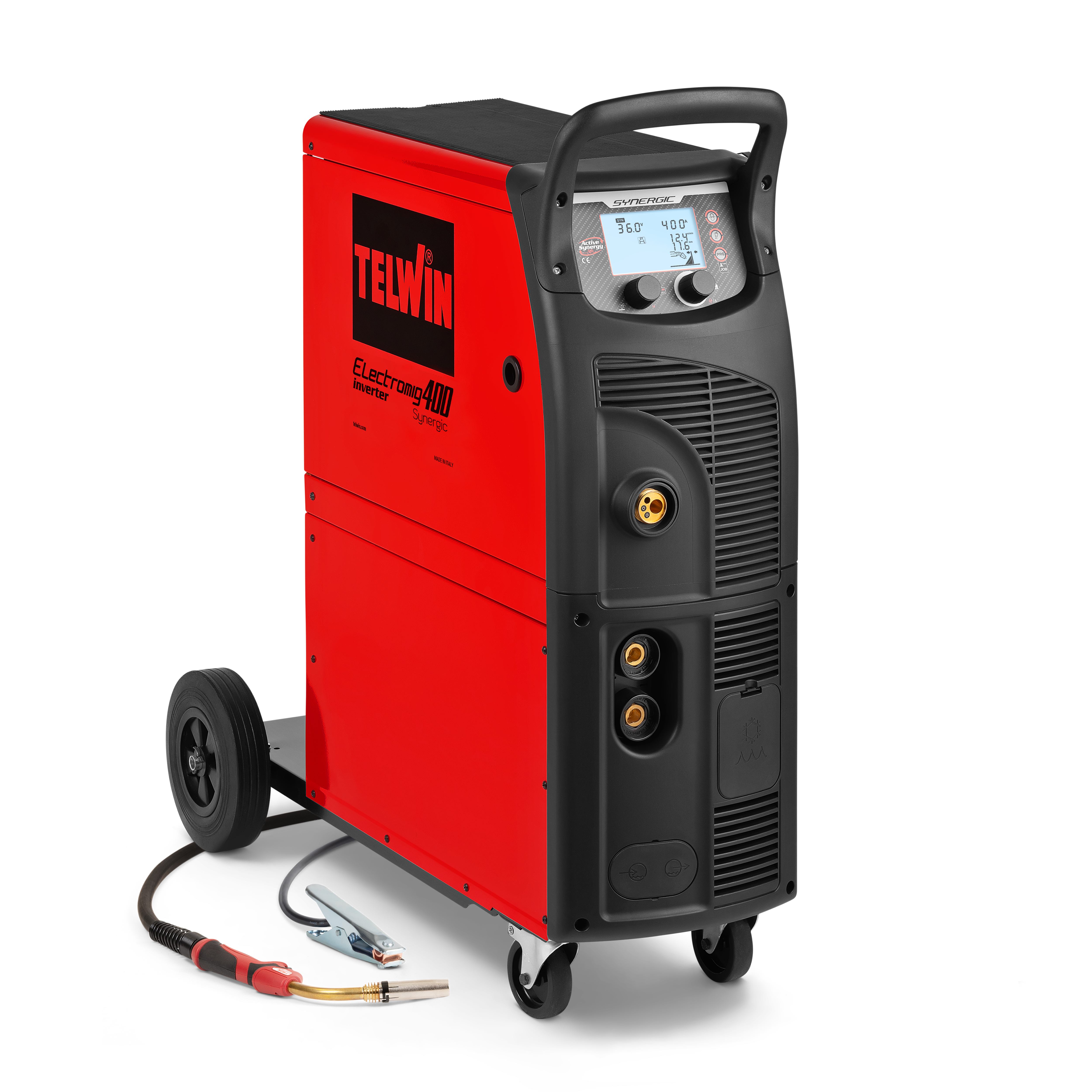

Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA/TIG DC-Lift), 300A. 3ph 400V power supply. On wheels.
Rapid synergic adjustment: easy to use. Preset synergic curves.
Immediate and easy reading LCD display.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.
VDR device for greater safety in welding operations in damp environments.

Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA/TIG DC-Lift), 300A. 3ph 400V power supply. On wheels.
Rapid synergic adjustment: easy to use. Preset synergic curves.
Immediate and easy reading LCD display.
ATC (Advanced Thermal Control) to facilitate welding on thin materials.
VDR device for greater safety in welding operations in damp environments.

MIG-MAG/FLUX gas shielded/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine, with external 4-roller wire feeder.
Flexible use with different materials (steel, stainless steel, high-strength steels, aluminium, galvanised sheets, etc.) and a wide variety of applications (industry, maintenance, installation, metalwork, construction, etc.).
The rapid SYNERGIC adjustment of welding parameters, thanks to ONE TOUCH SYNERGY technology, makes the product very easy to use.
Intelligent, automatic arc control, moment by moment, maintains high performance in all working conditions, with different materials and/or gases. It is also possible to manually adjust the arc length: this adjustment allows the shape of the weld bead to be modified according to the welder's style.

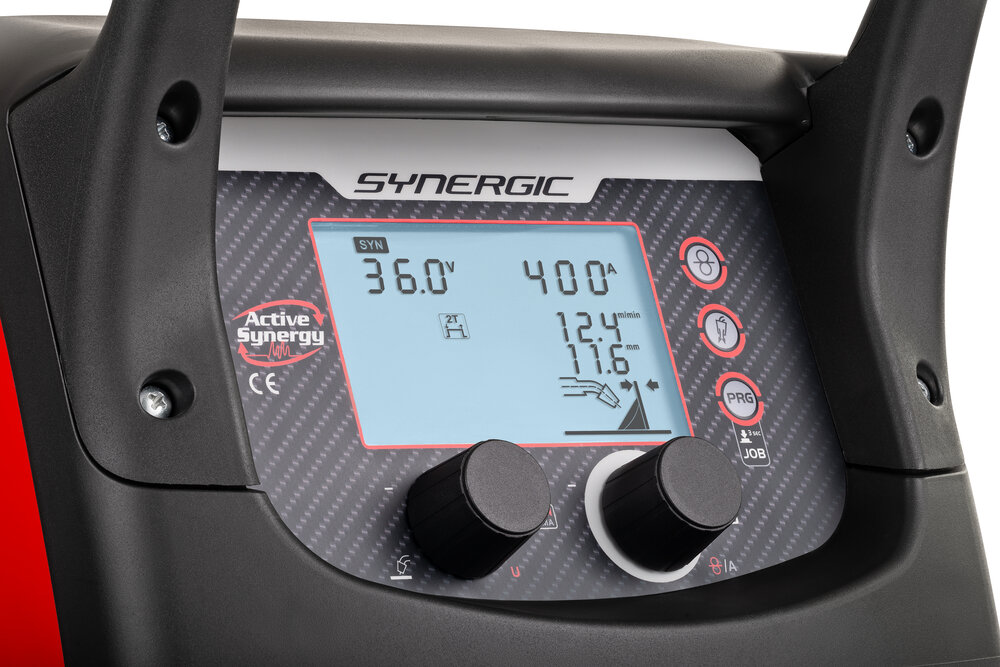

The ONE TOUCH LCD graphic display allows for better reading of all welding parameters.
Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.

Features:

robust and impact resistant;
compact and ergonomic structure;
high energy efficiency and low consumption;
backlit LCD display.

MIG-MAG

operating modes: manual and synergic;
30 pre-set synergic curves;
Possibility of creating, saving and retrieving customised welding programs;
LCD display showing wire speed, voltage and welding current;
selection of 2/4-stroke operation, Bi-Level, spot, material thicknesses in inches and millimetres;
adjustments: wire up slope, electronic reactance, wire burn-back time, post gas;

MMA

MMA adjustments: hot start, arc force;
anti-stick protection;
VRD device;
display showing voltage and welding current.

TIG

LIFT DC striking and display of welding voltage and current.

Thermostatic protection, overvoltage (+15%), undervoltage (-15%), overcurrent, motor generator.
Complete with MIG-MAG torch, cable and earth clamp.

CODE

816271

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX CURRENT DC EN60974-1

400 @ 30% A

CURRENT CONTROL RANGE DC

20 - 400 A

CURRENT 60% DC

270 A

CURRENT 100% DC

210 A

MAX ABSORBED CURRENT

25 A

MAX DC NO LOAD VOLTAGE

73 V

RANGE V OUT MIG

9 - 34 V

ABSORBED CURRENT AT 60%

15 A

ABSORBED POWER AT 60%

9,5 kW

MAX ABSORBED POWER

16,5 kW

FUSE

16 A

EFFICIENCY

89 %

DIAMETER

1,6 - 8 mm

T04313

INTEGRATO

STEEL WELDING WIRE DIAMETER

0,6 - 1,6 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,6 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

WIRE SPEED RANGE

1,5 - 20 m/min

SUPPLY CABLE LENGTH

2,50 m

NORM

EN 60974-1 /-5 /-10

PROTECTION DEGREE

IP23

DIMENSIONS

86,5 x 39 x 91,5 cm

WEIGHT

42 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

MT36 MIG TORCH 3 M

802742

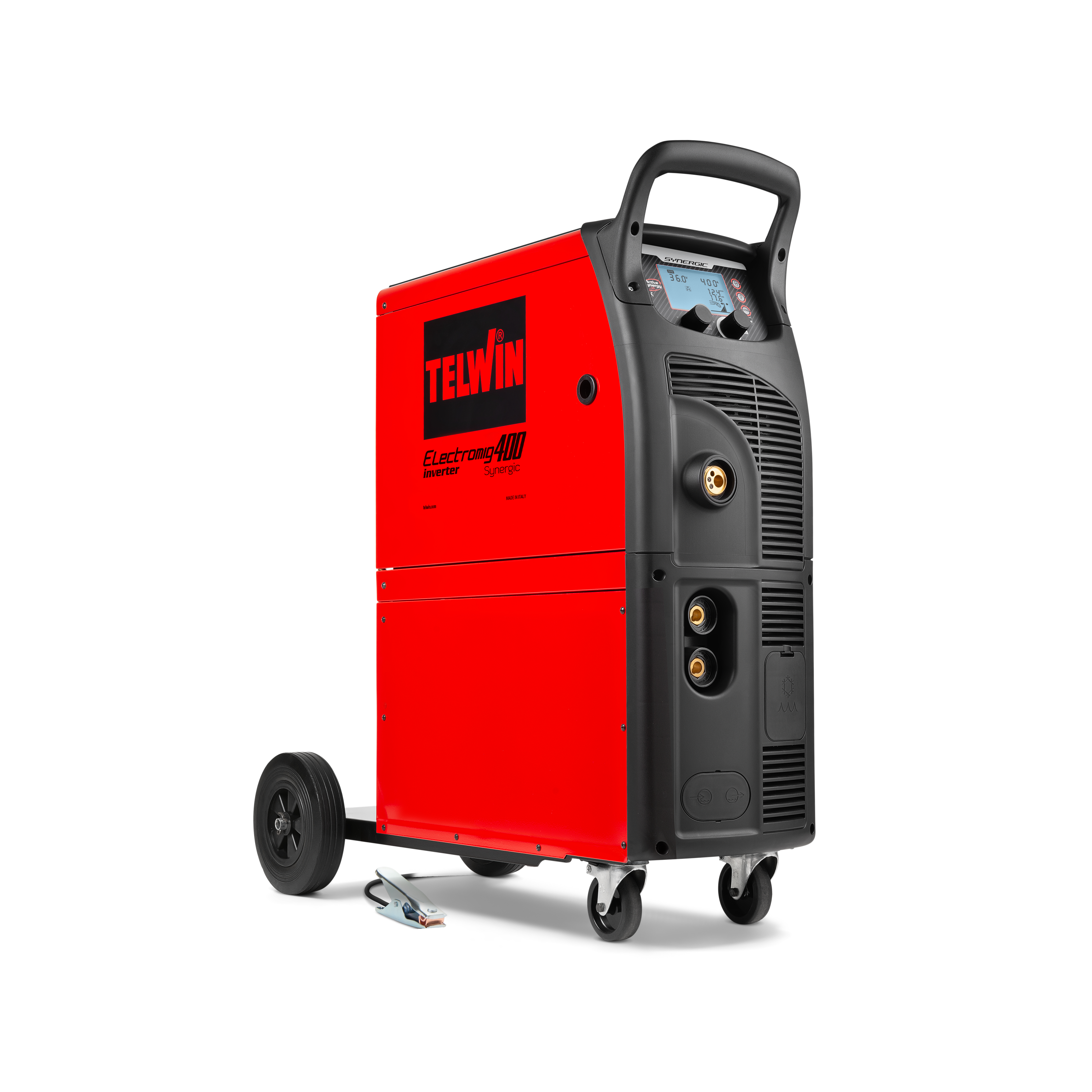

ELECTROMIG 400 SYNERGIC BASE

816909

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 35MMQ 4M AX50

804124

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802273

MIG TORCHES

MT36 MIG TORCH 3M

742186

MT36 MIG TORCH 4M

742187

MT36 MIG TORCH 5M

742188

WIRE FEEDERS AND ACCESSORIES

COIL ADAPTOR B-300

802486

TIG TORCHES

ST26V 4M AX50 TIG TORCH

742058
