SUPERTIG 302 AC/DC AQUA + ACC.

New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison

SUPERTIG 302 AC/DC AQUA + ACC.

Download PDF Request Info
  • TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine, 270A. With TIG welding accessories and water cooling system.
  • With LCD display for interaction and simplified adjustment of the welding parameters.
  • PULSE and EASY PULSE operation. THINSPOT advanced utility for easy, rapid and accurate TIG spot welding of thin sheet metal. MIX AC-DC to heat the workpiece to weld and prepare it for AC welding.
  • 10 customisable welding programs.
  • MMA welding: continuous or pulse mode (MMA Pulse).
  • Resistant to dirt and dust thanks to the ventilation system (dedicated tunnel) that preserves the electronic components, guaranteeing longer duration over time. Solid and strong structure.
  • Setup for remote controls.
  • TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine, 270A. With TIG welding accessories and water cooling system.
  • With LCD display for interaction and simplified adjustment of the welding parameters.
  • PULSE and EASY PULSE operation. THINSPOT advanced utility for easy, rapid and accurate TIG spot welding of thin sheet metal. MIX AC-DC to heat the workpiece to weld and prepare it for AC welding.
  • 10 customisable welding programs.
  • MMA welding: continuous or pulse mode (MMA Pulse).
  • Resistant to dirt and dust thanks to the ventilation system (dedicated tunnel) that preserves the electronic components, guaranteeing longer duration over time. Solid and strong structure.
  • Setup for remote controls.
TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine.
Use with different types of materials such as steel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Designed to ensure excellent results on every thickness even the thinnest, the PULSE mode (also in the EASY PULSE version) reduces material deformation ensuring high arc stability.
Presence of advanced features: MIX AC-DC for preparation of AC welding of workpieces with considerable weights; THINSPOT for spot welding of very thin sheet metal.
The LCD screen facilitates interaction with the product and simplifies adjustment of multiple parameters of the TIG welding curve depending on processing needs.
You can save and retrieve customised programs.
Electrode welding both in continuous and pulsed mode (MMA Pulse) which ensures excellent results with basic electrodes and in position welding.
Designed for reliability over time, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Features:
TIG
  • operation in pulse and EASY pulse mode; in 2/ 4 times, Bi Level;
  • 10 customisable welding programs;
  • adjustment of multiple welding curve parameters: pre-heating electrode, initial/final current, spot time, pre/post gas, start/end current ramp, DC/AC balance, square wave frequency;
  • advanced functions: THINSPOT for spot welding of very thin sheet metal; MIX AC-DC to heat the workpiece to weld and prepare it for AC welding;
  • optimised minimum current start-up (HF/LIFT);
  • set up for remote control;
  • compatibility with PRO torches;
MMA
  • direct current and pulse (MMA PULSE) operation;
  • hot start, arc force settings;
  • anti-stick protection;
  • VRD device;
Other features:
  • LCD screen for simplified interaction and immediate display and parameter setting;
  • reliability over time thanks to cooling system with dedicated air tunnel that protects against dust and dirt;
  • ensures the best performance even in the presence of undervoltages (up to -25%) and overvoltages (+ 15%);
  • compact and robust design for easier transport and less space needed;
  • thermostatic, overvoltage, undervoltage, internal dirt, overcurrent, phase failure, liquid of cooling unit protections.

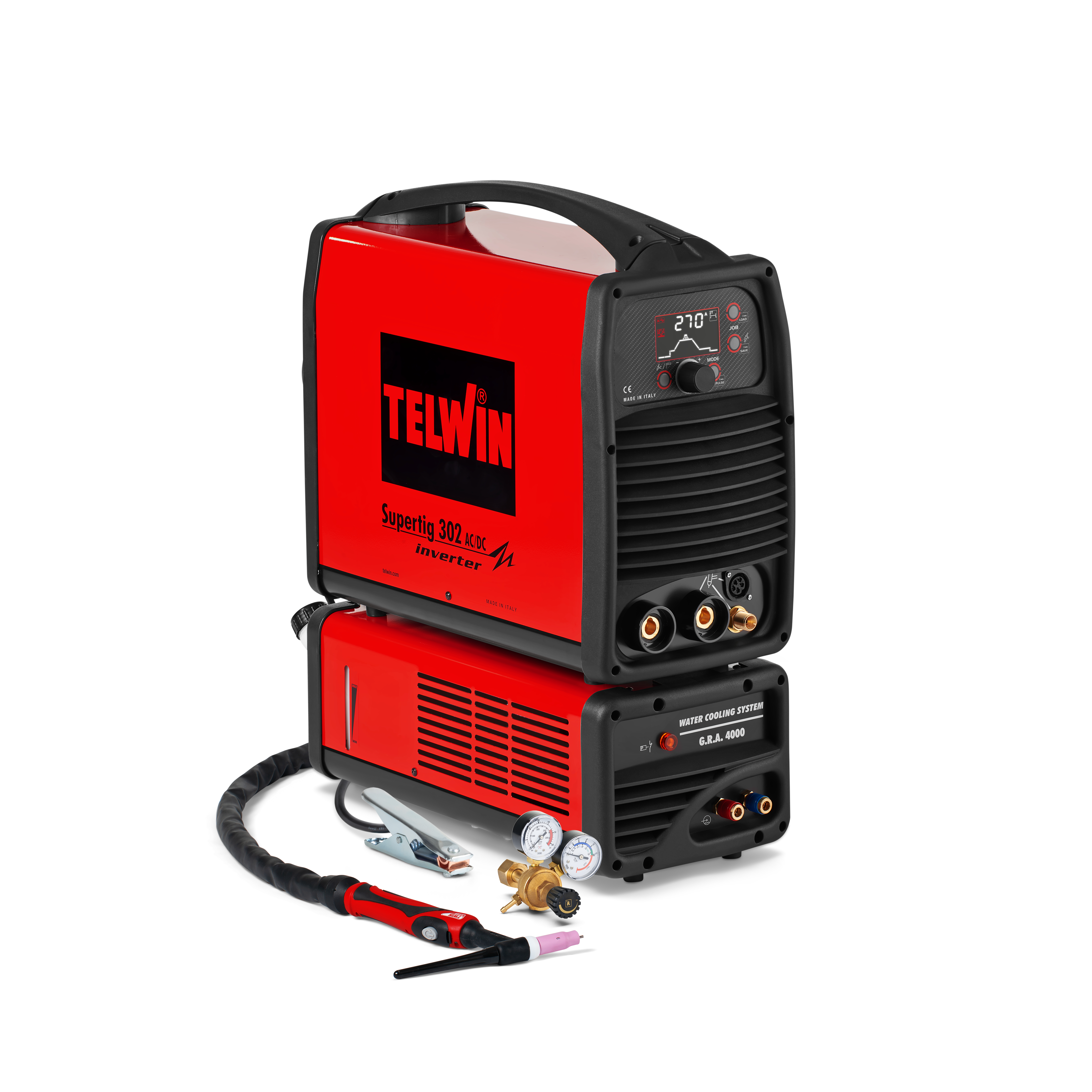

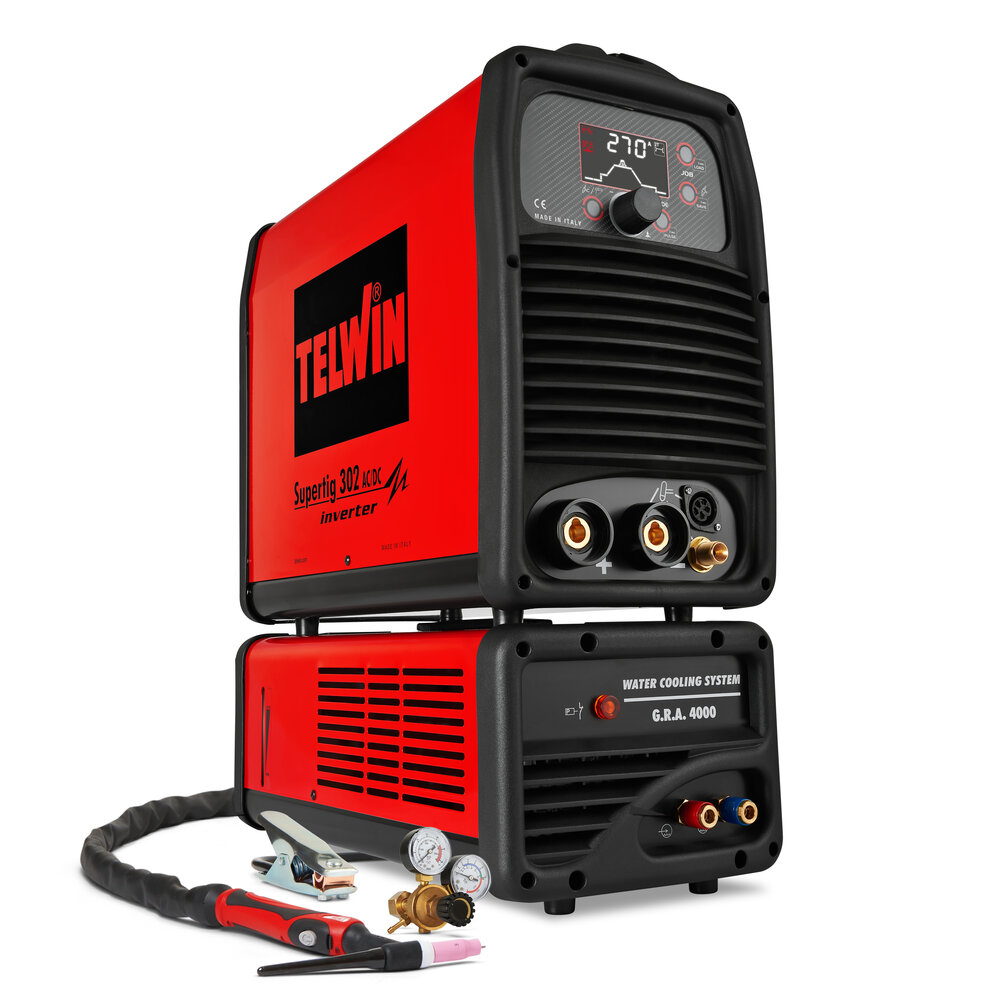

Complete with TIG welding accessories and GRA 4000 water cooling unit.

CODE

816247

THREE PHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

5 - 270 A

CURRENT RANGE

5 - 270 A

MAX CURRENT

250 @ 30 % A

DC CURRENT

170 A

MAX NO LOAD VOLTAGE

62 V

MAX ABSORBED CURRENT

16 A

ABSORBED CURRENT AT 60%

9,5 A

MAX ABSORBED POWER

7,8 kW

ABSORBED POWER AT 60%

4,6 kW

EFFICIENCY

86 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 5 mm

PROTECTION DEGREE

IP23

DIMENSIONS

58,5 x 24 x 64 cm

WEIGHT

37,35 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine.
Use with different types of materials such as steel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Designed to ensure excellent results on every thickness even the thinnest, the PULSE mode (also in the EASY PULSE version) reduces material deformation ensuring high arc stability.
Presence of advanced features: MIX AC-DC for preparation of AC welding of workpieces with considerable weights; THINSPOT for spot welding of very thin sheet metal.
The LCD screen facilitates interaction with the product and simplifies adjustment of multiple parameters of the TIG welding curve depending on processing needs.
You can save and retrieve customised programs.
Electrode welding both in continuous and pulsed mode (MMA Pulse) which ensures excellent results with basic electrodes and in position welding.
Designed for reliability over time, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Features:
TIG
  • operation in pulse and EASY pulse mode; in 2/ 4 times, Bi Level;
  • 10 customisable welding programs;
  • adjustment of multiple welding curve parameters: pre-heating electrode, initial/final current, spot time, pre/post gas, start/end current ramp, DC/AC balance, square wave frequency;
  • advanced functions: THINSPOT for spot welding of very thin sheet metal; MIX AC-DC to heat the workpiece to weld and prepare it for AC welding;
  • optimised minimum current start-up (HF/LIFT);
  • set up for remote control;
  • compatibility with PRO torches;
MMA
  • direct current and pulse (MMA PULSE) operation;
  • hot start, arc force settings;
  • anti-stick protection;
  • VRD device;
Other features:
  • LCD screen for simplified interaction and immediate display and parameter setting;
  • reliability over time thanks to cooling system with dedicated air tunnel that protects against dust and dirt;
  • ensures the best performance even in the presence of undervoltages (up to -25%) and overvoltages (+ 15%);
  • compact and robust design for easier transport and less space needed;
  • thermostatic, overvoltage, undervoltage, internal dirt, overcurrent, phase failure, liquid of cooling unit protections.
Complete with TIG welding accessories and GRA 4000 water cooling unit.

CODE

816247

THREEPHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN AC

5 - 270 A

CURRENT RANGE IN DC

5 - 270 A

MAX CURRENT DC EN60974-1

250 @ 30 % A

DC CURRENT AT 60%

170 A

MAX NO LOAD VOLTAGE IN DC

62 V

MAX ABSORBED CURRENT

16 A

ABSORBED CURRENT AT 60%

9,5 A

MAX ABSORBED POWER

7,8 kW

ABSORBED POWER AT 60%

4,6 kW

EFFICIENCY

86 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 5 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

58,5 x 24 x 64 cm

WEIGHT

37,35 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

GRA 4000 WATER COOLING UNIT

802640

TIG WELDING KIT - ST18 AQUA

802789

SUPERTIG 302 AC/DC

816209

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123
REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336

FPC-200 10 M FOOT CONTROL

804456
GAS REGULATORS

QUICK GAS CONNECTOR

804208
TIG TORCHES - PREMIUM AQUA

ST18A TIG TORCH AX50 4M AQUA GREEN LINE

742617

ST18A TIG TORCH AX50 8M AQUA GREEN LINE

742620
WATER COOLING UNITS

COOLANT FOR COOLING SYSTEMS

802976
TROLLEYS AND ACCESSORIES

TROLLEY - MONDIAL

803072

TROLLEY - EUROPA

803073

TROLLEY - COSMOPOLITAN

803079

PULSE & EASY PULSE

Welding in all positions

This model operates in both pulsed (PULSE) and facilitated pulsed (EASY PULSE) modes, ideal for applications on thin thicknesses or easily deformable materials, using optimized minimum current arc strike (HF/LIFT).

Discover more

THINSPOT

ThinSpot is an advanced function that allows spot welding in TIG of thin sheets in an easy, precise and rapid way. Particularly designed for working on stainless steel, it can also be used on Steel and Titanium.

Discover more

MIX AC/DC

Function designed to heat the piece to be welded and prepare it for AC welding. It alternates current phases in AC to others in DC. It is particularly useful when working on thicknesses or pieces with large masses.

Discover more

Pulsed MMA

Pulsed mode ensures excellent results with basic, cellulosic electrodes and in positional welding. It is possible to set the two pulsing currents and their times for a reduced heat input and better arc control. Less spatter and rework, higher welding seam quality.
