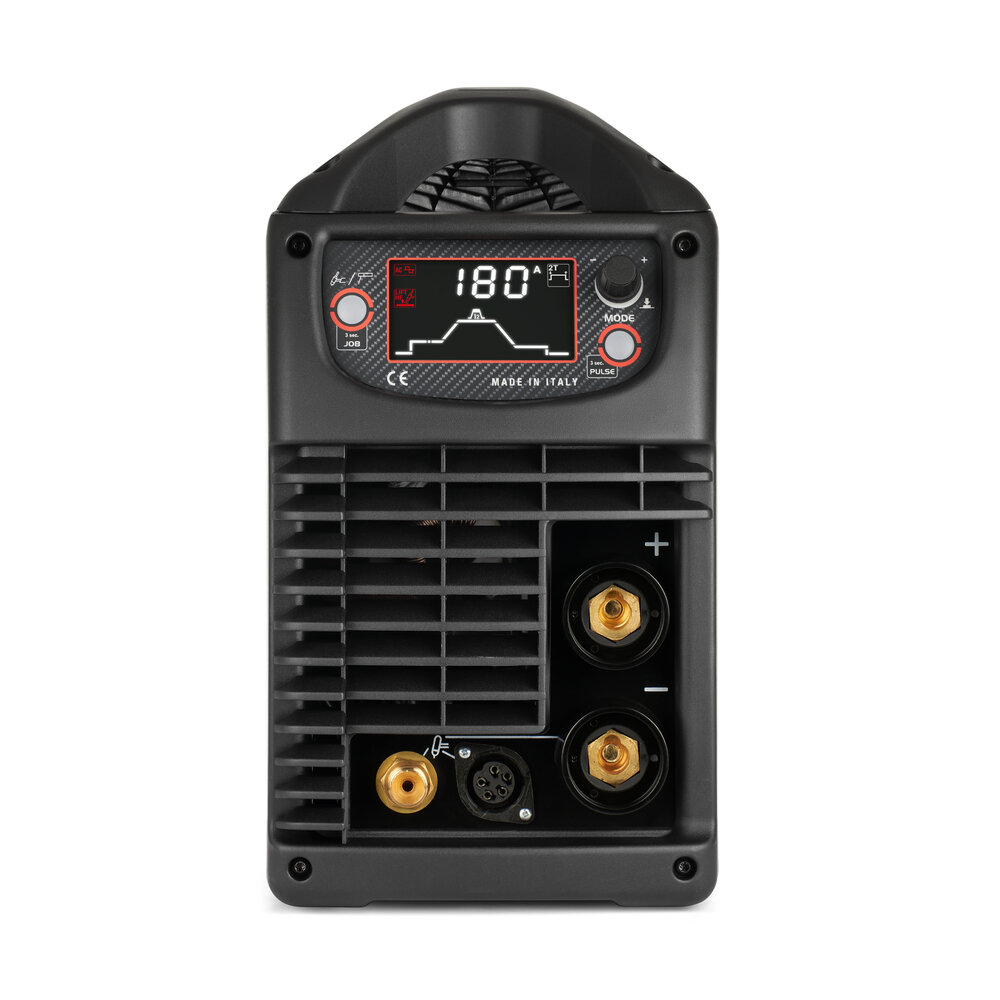

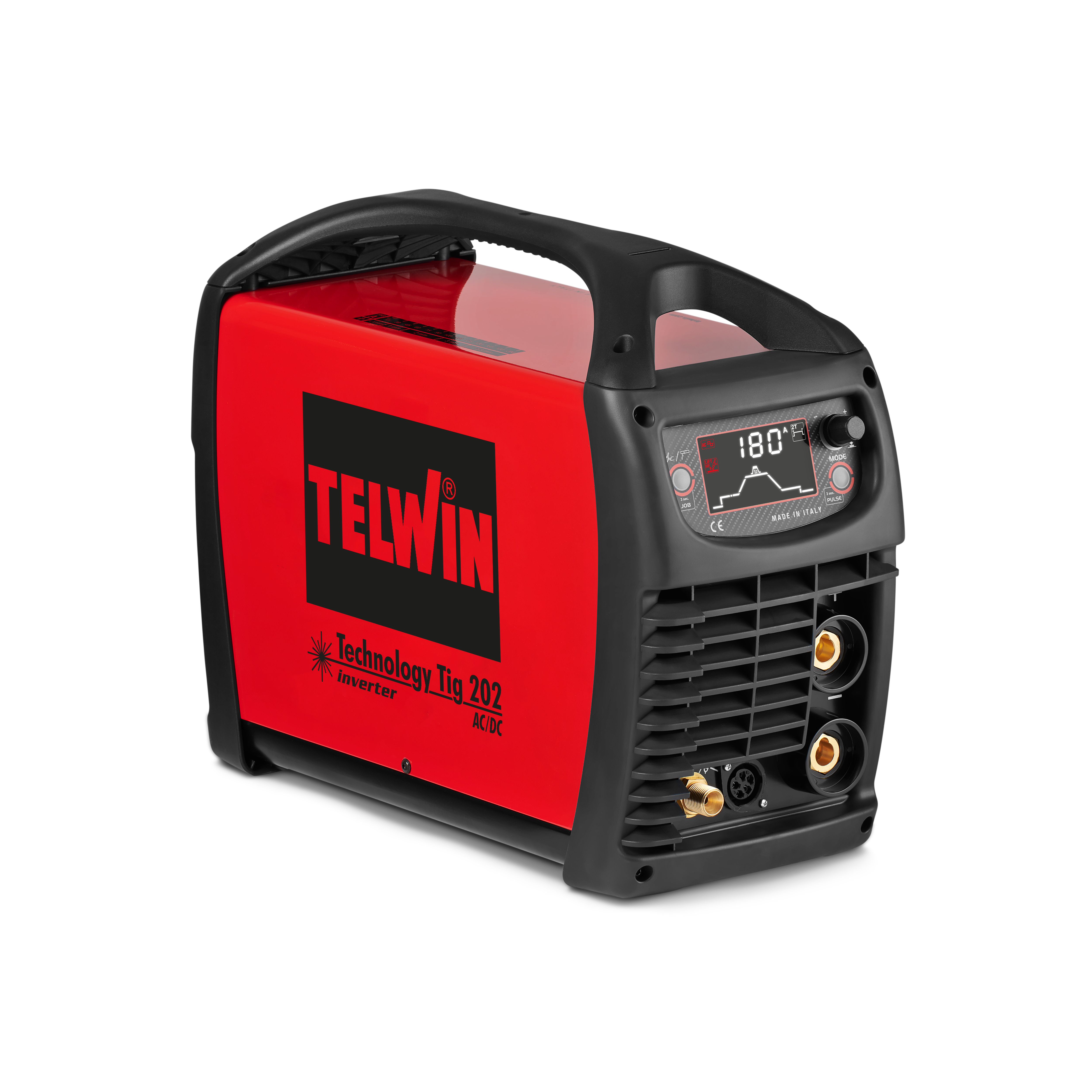

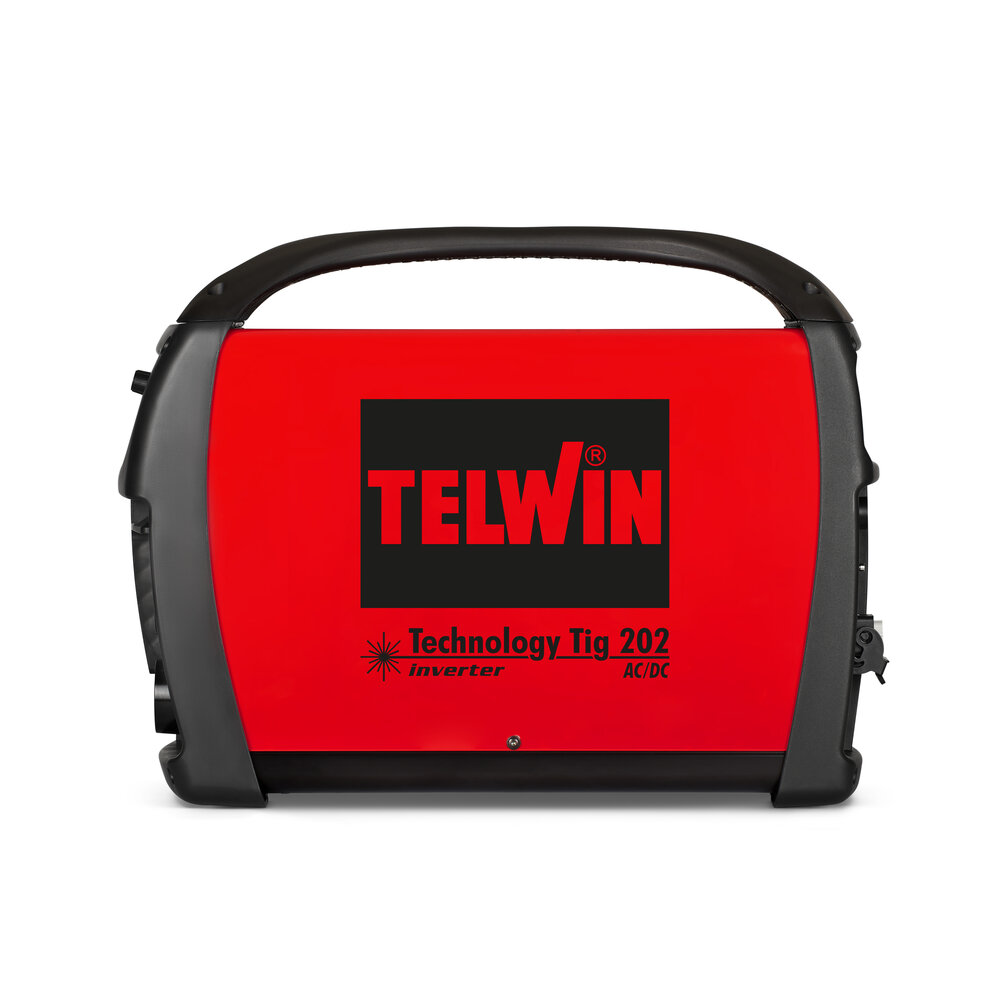

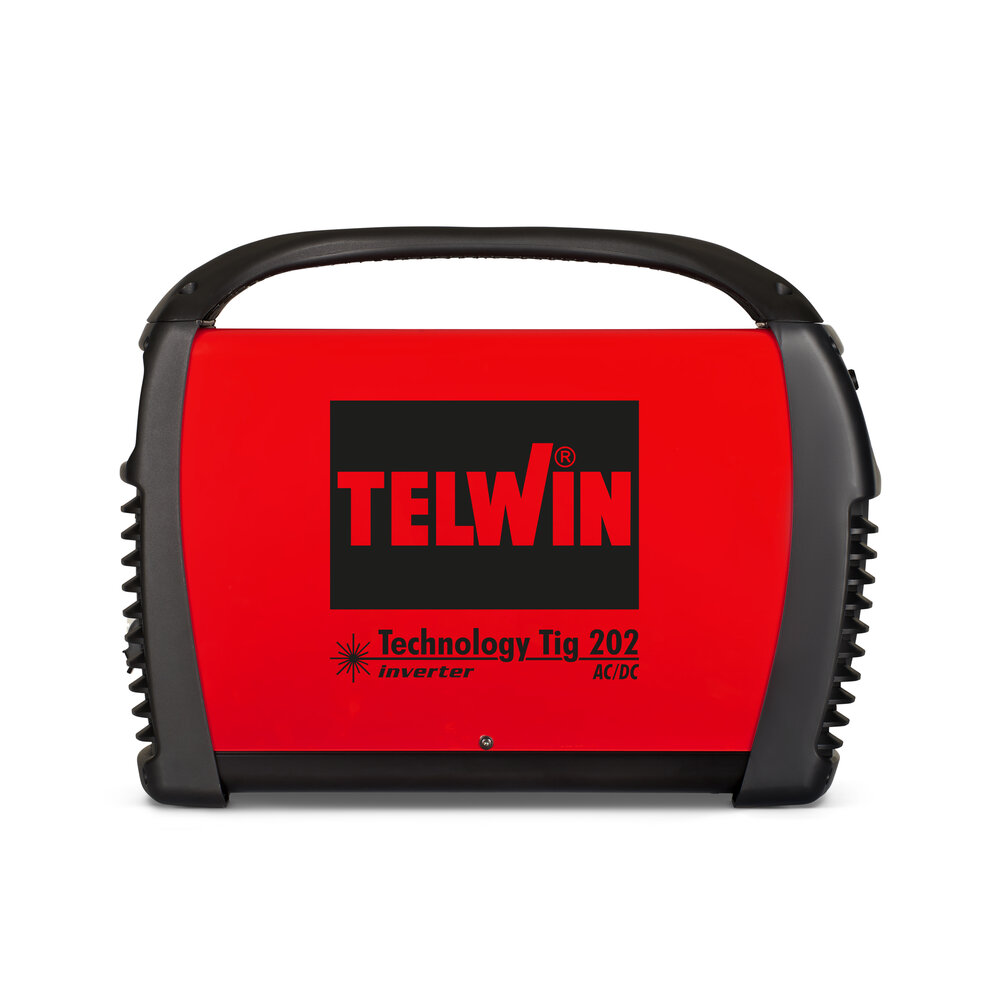

TECHNOLOGY TIG 202 AC/DC + ACC.

New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison

TECHNOLOGY TIG 202 AC/DC + ACC.

Download PDF Request Info
  • TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine, 180A. With TIG welding accessories.
  • With LCD display for interaction and simplified adjustment of the welding parameters.
  • PULSE and EASY PULSE operation. THINSPOT advanced utility for easy, rapid and accurate TIG spot welding of thin sheet metal. MIX AC-DC to heat the workpiece to weld and prepare it for AC welding.
  • MMA welding: continuous or pulse mode (MMA Pulse).
  • Resistant to dirt and dust thanks to the ventilation system (dedicated tunnel) that preserves the electronic components, guaranteeing longer duration over time. Solid and strong structure.
  • Setup for remote controls.
  • TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine, 180A. With TIG welding accessories.
  • With LCD display for interaction and simplified adjustment of the welding parameters.
  • PULSE and EASY PULSE operation. THINSPOT advanced utility for easy, rapid and accurate TIG spot welding of thin sheet metal. MIX AC-DC to heat the workpiece to weld and prepare it for AC welding.
  • MMA welding: continuous or pulse mode (MMA Pulse).
  • Resistant to dirt and dust thanks to the ventilation system (dedicated tunnel) that preserves the electronic components, guaranteeing longer duration over time. Solid and strong structure.
  • Setup for remote controls.
TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine.
Use with different types of materials such as steel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Designed to ensure excellent results on every thickness even the thinnest, the PULSE mode (also in the EASY PULSE version) reduces material deformation ensuring high arc stability.
Presence of advanced features: MIX AC-DC for preparation of AC welding of workpieces with considerable weights; THINSPOT for spot welding of very thin sheet metal.

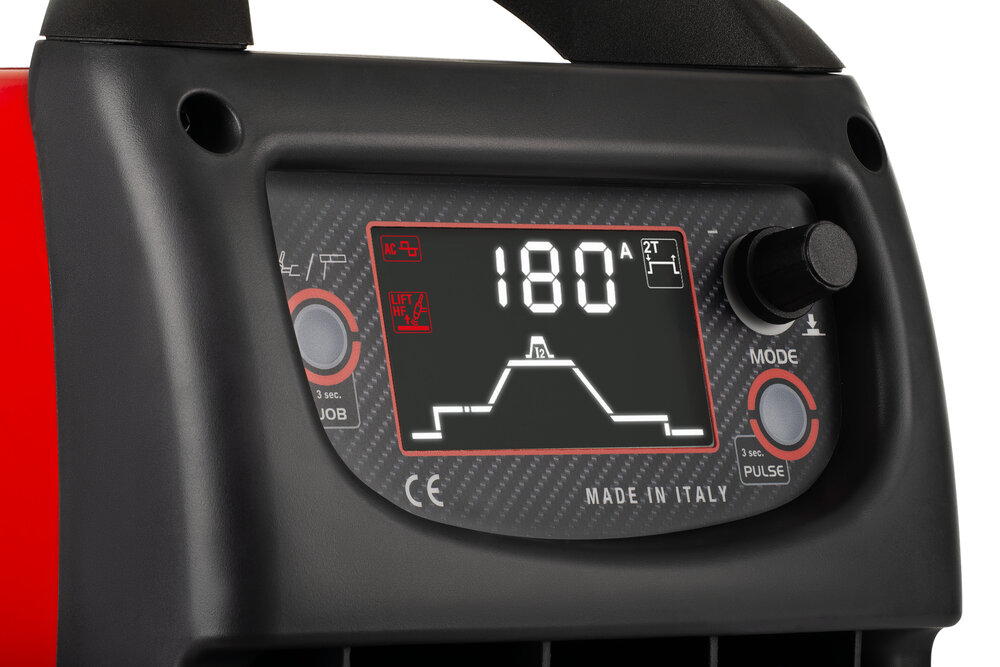

The LCD screen facilitates interaction with the product and simplifies adjustment of multiple parameters of the TIG welding curve depending on processing needs.
You can save and retrieve customised programs.
Electrode welding both in continuous and pulsed mode (MMA Pulse) which ensures excellent results with basic electrodes and in position welding.
Designed for reliability over time, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Features:
TIG
  • operation in pulse and EASY pulse mode; in 2/ 4 times, Bi Level;
  • 10 customisable welding programs;
  • adjustment of multiple welding curve parameters: pre-heating electrode, initial/final current, spot time, pre/post gas, start/end current ramp, DC/AC balance, square wave frequency;
  • advanced functions: THINSPOT for spot welding of very thin sheet metal; MIX AC-DC to heat the workpiece to weld and prepare it for AC welding;
  • optimised minimum current start-up (HF/LIFT);
  • set up for remote control;
  • compatibility with PRO torches;
MMA
  • direct current and pulse (MMA PULSE) operation;
  • hot start, arc force settings;
  • anti-stick protection;
  • VRD device;
Other features:
  • LCD screen for simplified interaction and immediate display and parameter setting;
  • reliability over time thanks to cooling system with dedicated air tunnel that protects against dust and dirt;
  • ensures the best performance even in the presence of undervoltages (up to -15%) and overvoltages (+ 15%);
  • compact and robust design for easier transport and less space needed;
  • thermostatic protection, overvoltage, undervoltage, overcurrent.

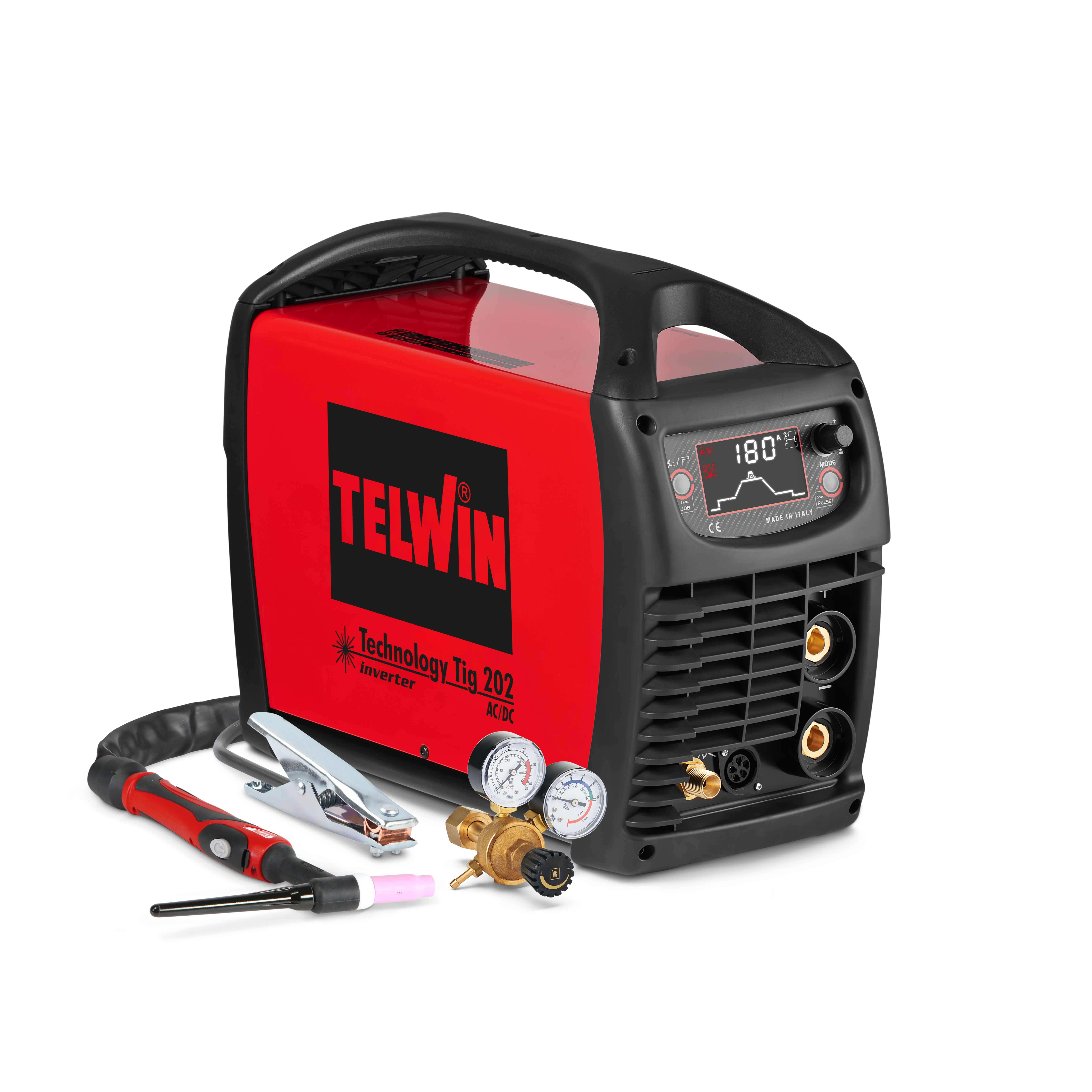

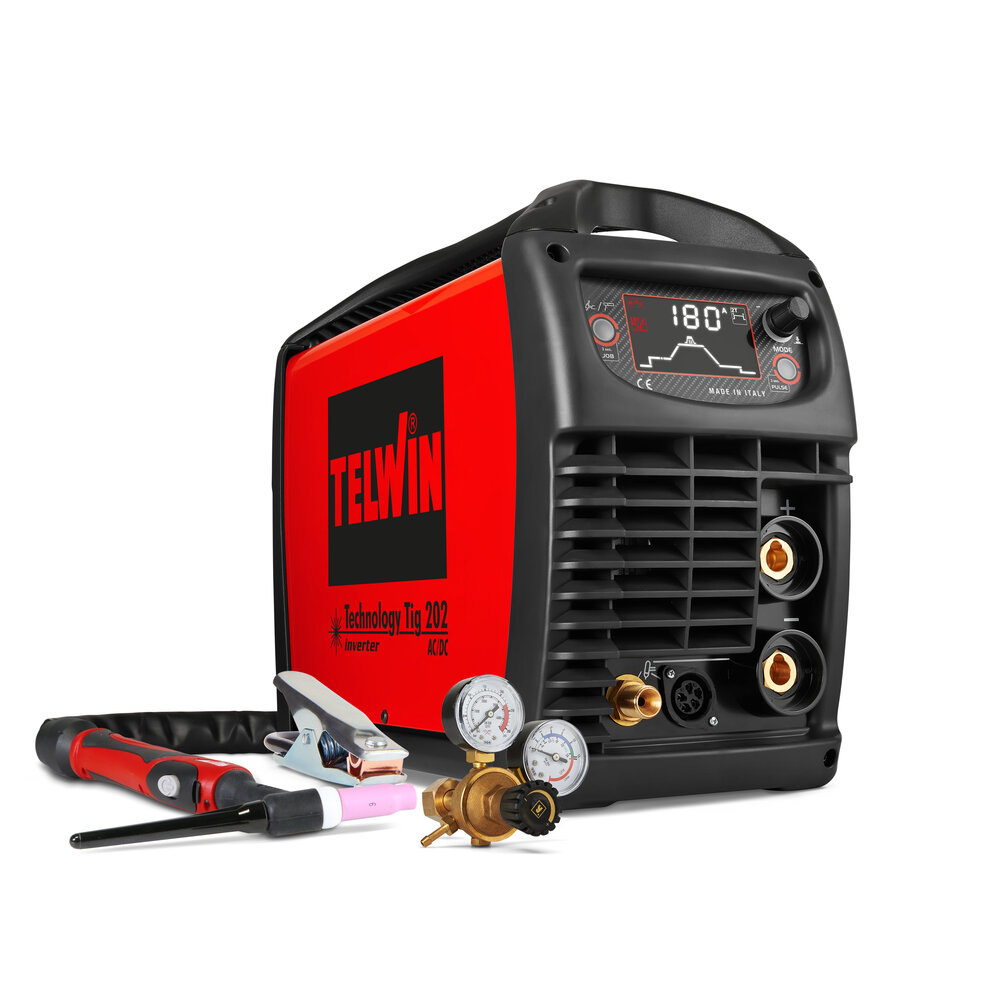

Supplied with TIG welding accessories

CODE

816244

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT CONTROL RANGE DC

5 - 180 A

MAX CURRENT DC EN60974-1

180 @ 20 % A

CURRENT 35% DC

140 A

DC CURRENT

115 A

MAX NO LOAD VOLTAGE

95 V

MAX ABSORBED CURRENT

33 A

ABSORBED CURRENT AT 60%

21 A

MAX ABSORBED POWER

5,5 kW

ABSORBED POWER AT 60%

3,3 kW

FUSE

16 A

EFFICIENCY

81 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

47 x 19 x 35 cm

WEIGHT

15,4 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

TIG AC/DC (HF or LIFT), TIG PULSE (PULSE and EASY PULSE) and MMA inverter welding machine.
Use with different types of materials such as steel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Designed to ensure excellent results on every thickness even the thinnest, the PULSE mode (also in the EASY PULSE version) reduces material deformation ensuring high arc stability.
Presence of advanced features: MIX AC-DC for preparation of AC welding of workpieces with considerable weights; THINSPOT for spot welding of very thin sheet metal.
The LCD screen facilitates interaction with the product and simplifies adjustment of multiple parameters of the TIG welding curve depending on processing needs.
You can save and retrieve customised programs.
Electrode welding both in continuous and pulsed mode (MMA Pulse) which ensures excellent results with basic electrodes and in position welding.
Designed for reliability over time, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Features:
TIG
  • operation in pulse and EASY pulse mode; in 2/ 4 times, Bi Level;
  • 10 customisable welding programs;
  • adjustment of multiple welding curve parameters: pre-heating electrode, initial/final current, spot time, pre/post gas, start/end current ramp, DC/AC balance, square wave frequency;
  • advanced functions: THINSPOT for spot welding of very thin sheet metal; MIX AC-DC to heat the workpiece to weld and prepare it for AC welding;
  • optimised minimum current start-up (HF/LIFT);
  • set up for remote control;
  • compatibility with PRO torches;
MMA
  • direct current and pulse (MMA PULSE) operation;
  • hot start, arc force settings;
  • anti-stick protection;
  • VRD device;
Other features:
  • LCD screen for simplified interaction and immediate display and parameter setting;
  • reliability over time thanks to cooling system with dedicated air tunnel that protects against dust and dirt;
  • ensures the best performance even in the presence of undervoltages (up to -15%) and overvoltages (+ 15%);
  • compact and robust design for easier transport and less space needed;
  • thermostatic protection, overvoltage, undervoltage, overcurrent.
Supplied with TIG welding accessories

CODE

816244

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

5 - 180 A

MAX CURRENT DC EN60974-1

180 @ 20 % A

CURRENT 35% DC

140 A

DC CURRENT AT 60%

115 A

MAX NO LOAD VOLTAGE IN DC

95 V

MAX ABSORBED CURRENT

33 A

ABSORBED CURRENT AT 60%

21 A

MAX ABSORBED POWER

5,5 kW

ABSORBED POWER AT 60%

3,3 kW

MAINS FUSE

16 A

EFFICIENCY

81 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

47 x 19 x 35 cm

WEIGHT

15,4 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

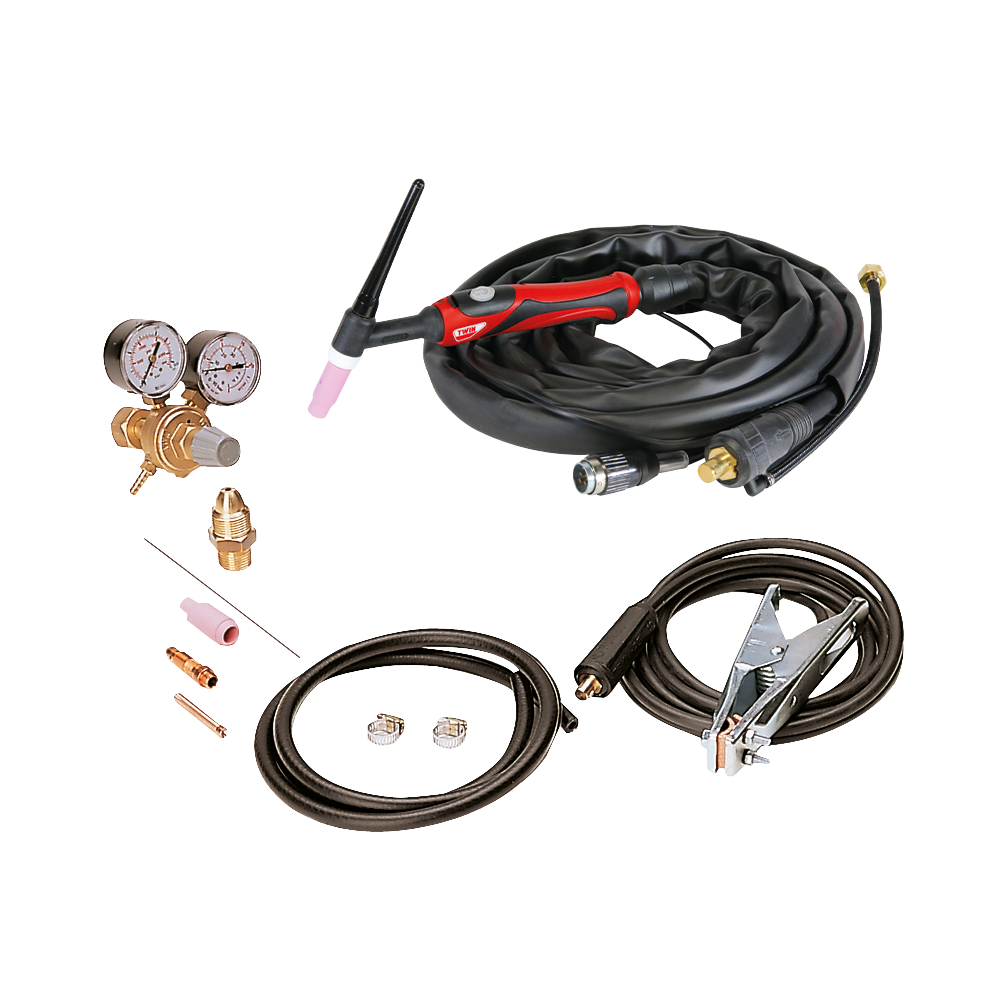

TIG WELDING KIT - ST17

804362

TECHNOLOGY TIG 202 AC/DC

816255

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123
REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336

FPC-200 10 M FOOT CONTROL

804456
GAS REGULATORS

QUICK GAS CONNECTOR

804208
TIG TORCHES

ST26 4M AX50 5P TIG TORCH

743121

ST26 8M AX50 5P TIG TORCH

743123
TIG TORCHES - PREMIUM

ST26 PRO-C 4M AX50 5P TIG TORCH

743029

ST26 PRO-C 8M AX50 5P TIG TORCH

743031

ST26 PRO-P 4M AX50 5P TIG TORCH

743025

ST26 PRO-P 8M AX50 5P TIG TORCH

743027
TROLLEYS AND ACCESSORIES

TROLLEY - ARCTIC

803059

TROLLEY - AMERICA

803084

TROLLEY - COSMOPOLITAN

803079

PULSE & EASY PULSE

Welding in all positions

This model operates in both pulsed (PULSE) and facilitated pulsed (EASY PULSE) modes, ideal for applications on thin thicknesses or easily deformable materials, using optimized minimum current arc strike (HF/LIFT).

Discover more

THINSPOT

ThinSpot is an advanced function that allows spot welding in TIG of thin sheets in an easy, precise and rapid way. Particularly designed for working on stainless steel, it can also be used on Steel and Titanium.

Discover more

MIX AC/DC

Function designed to heat the piece to be welded and prepare it for AC welding. It alternates current phases in AC to others in DC. It is particularly useful when working on thicknesses or pieces with large masses.

Discover more
