DTP900 BATTERY TESTER

DTP900 BATTERY TESTER

  • Digital tester with LCD backlit display and built-in printer.
  • For 8-240Ah batteries at 12/24V.
  • Tests carried out: battery status, cranking efficiency, of the cranking system and the alternator circuit.
  • Digital tester with LCD backlit display and built-in printer.
  • For 8-240Ah batteries at 12/24V.
  • Tests carried out: battery status, cranking efficiency, of the cranking system and the alternator circuit.

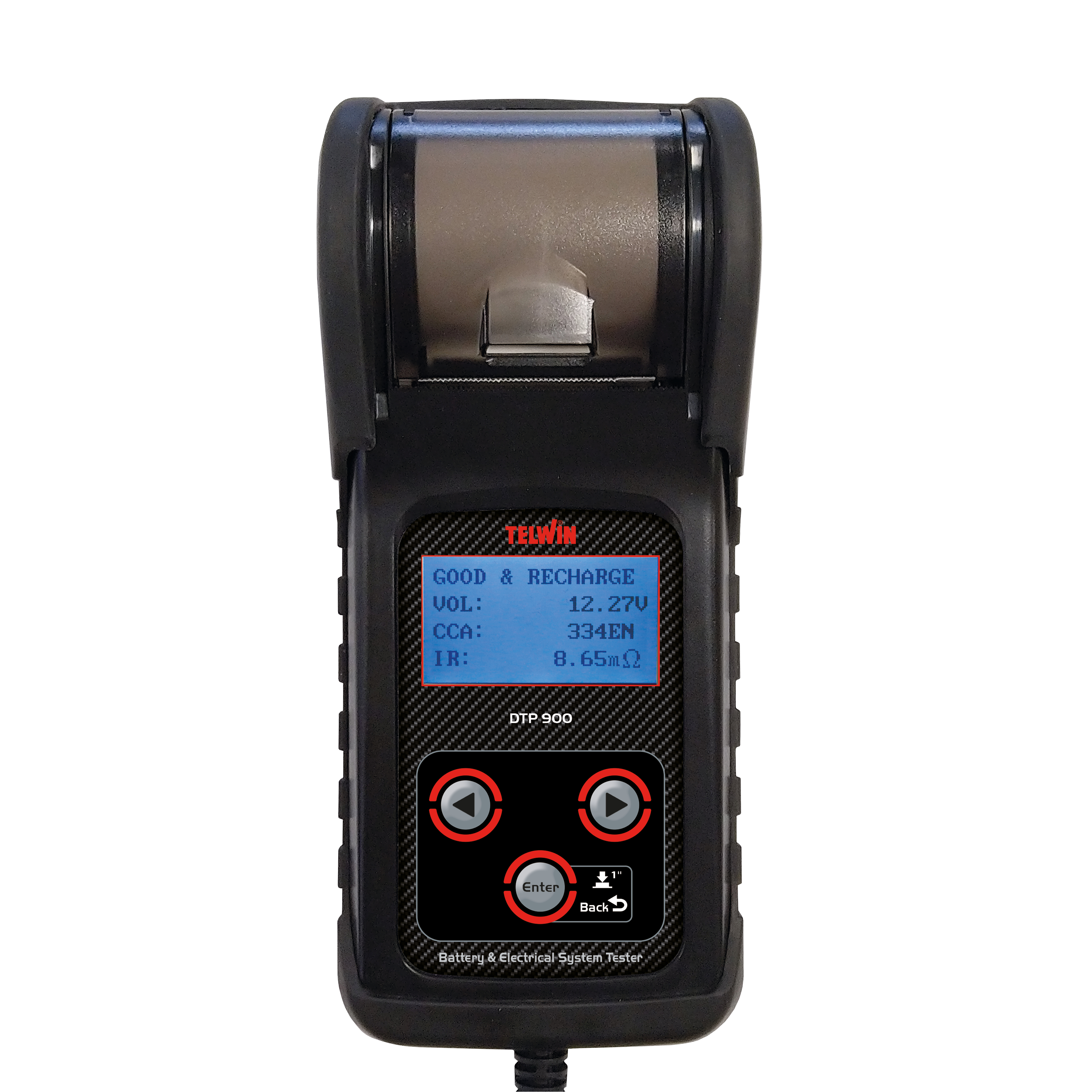

Digital tester to check the status of the battery, the starting efficiency (CCA), the starter system and the alternator circuit of the vehicle.
Selectable reference international standards for vehicles to which the various starting amp ranges used by the battery manufacturer correspond.
Practical and compact, it allows operation on 12V/24V batteries (WET, GEL, MF, AGM, PbCa, EFB) both disconnected and connected to the vehicle, facilitating testing operations which are rapid and easy to carry out.
It automatically compensates temperature for more precise detection.
The backlit LCD screen facilitates data reading, even in poorly lit environments. Equipped with a built-in printer to print reports.
Features:
- for WET, GEL, MF, AGM, PbCa, EFB batteries from 4-250 Ah at 12V/24V;
- tests carried out: battery status, starting efficiency (CCA), starting system, alternator circuit of the vehicle;
- selectable reference standard for the vehicle;
- tests can be carried out with battery disconnected or connected to the vehicle;
- backlit LCD display;
- multilingual: EN, IT, FR, DE, ES, PT;
- direct printing of reports using built-in printer.

CODE

804244

CHARGING VOLTAGE

12-24 V

BATTERY CAPACITY

4-250 Ah

CURRENT RANGE

40/1885-EN A

CURRENT RANGE

30/1320-IEC A

CURRENT RANGE

25/1120-DIN A

CURRENT RANGE

40/2000-SAE-CCA A

CURRENT RANGE

50/2400-CA(MCA) A

CURRENT RANGE

26A17/245H2-JIS A

OPERATING TEMPERATURE (MIN-MAX)

0 - 40 °C

DIMENSIONS

9,8 x 7,8 x 27,5 cm

WEIGHT

1,950 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Digital tester to check the status of the battery, the starting efficiency (CCA), the starter system and the alternator circuit of the vehicle.
Selectable reference international standards for vehicles to which the various starting amp ranges used by the battery manufacturer correspond.
Practical and compact, it allows operation on 12V/24V batteries (WET, GEL, MF, AGM, PbCa, EFB) both disconnected and connected to the vehicle, facilitating testing operations which are rapid and easy to carry out.
It automatically compensates temperature for more precise detection.
The backlit LCD screen facilitates data reading, even in poorly lit environments. Equipped with a built-in printer to print reports.
Features:
- for WET, GEL, MF, AGM, PbCa, EFB batteries from 4-250 Ah at 12V/24V;
- tests carried out: battery status, starting efficiency (CCA), starting system, alternator circuit of the vehicle;
- selectable reference standard for the vehicle;
- tests can be carried out with battery disconnected or connected to the vehicle;
- backlit LCD display;
- multilingual: EN, IT, FR, DE, ES, PT;
- direct printing of reports using built-in printer.

CODE

804244

Battery voltage

12-24 V

Battery range

4-250 Ah

Starting current range EN

40/1885-EN A

Starting current range IEC

30/1320-IEC A

Starting current range DIN

25/1120-DIN A

Starting current range SAE

40/2000-SAE-CCA A

Starting cur.range CA(MCA)

50/2400-CA(MCA) A

Starting current range JIS

26A17/245H2-JIS A

Operating temper.(min-max)

0 - 40 °C

DIMENSIONS

9,8 x 7,8 x 27,5 cm

WEIGHT

1,950 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF
