EXCEL 422 + ACC.

EXCEL 422 + ACC.

Download PDF Request Info

MMA and TIG inverter electrode welding machine, in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- compact and light
- high welding current stability in spite of mains voltage fluctuations - regulation of arc force and hot start according to the type of electrode in use
- anti-stick device
- thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and rutile electrodes.

CODE

816144

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 200 A

MAX CURRENT

200 @ 35 % A

DC CURRENT

140 A

MAX NO LOAD VOLTAGE

60 V

MAX ABSORBED CURRENT

36 A

ABSORBED CURRENT AT 60%

24 A

MAX ABSORBED POWER

6 kW

ABSORBED POWER AT 60%

4 kW

MOTORGENERATOR MINIMUM POWER

10 kW

EFFICIENCY

92 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

38,5 x 15 x 26,5 cm

WEIGHT

7 kg

Instruction Manual

Spare Parts List

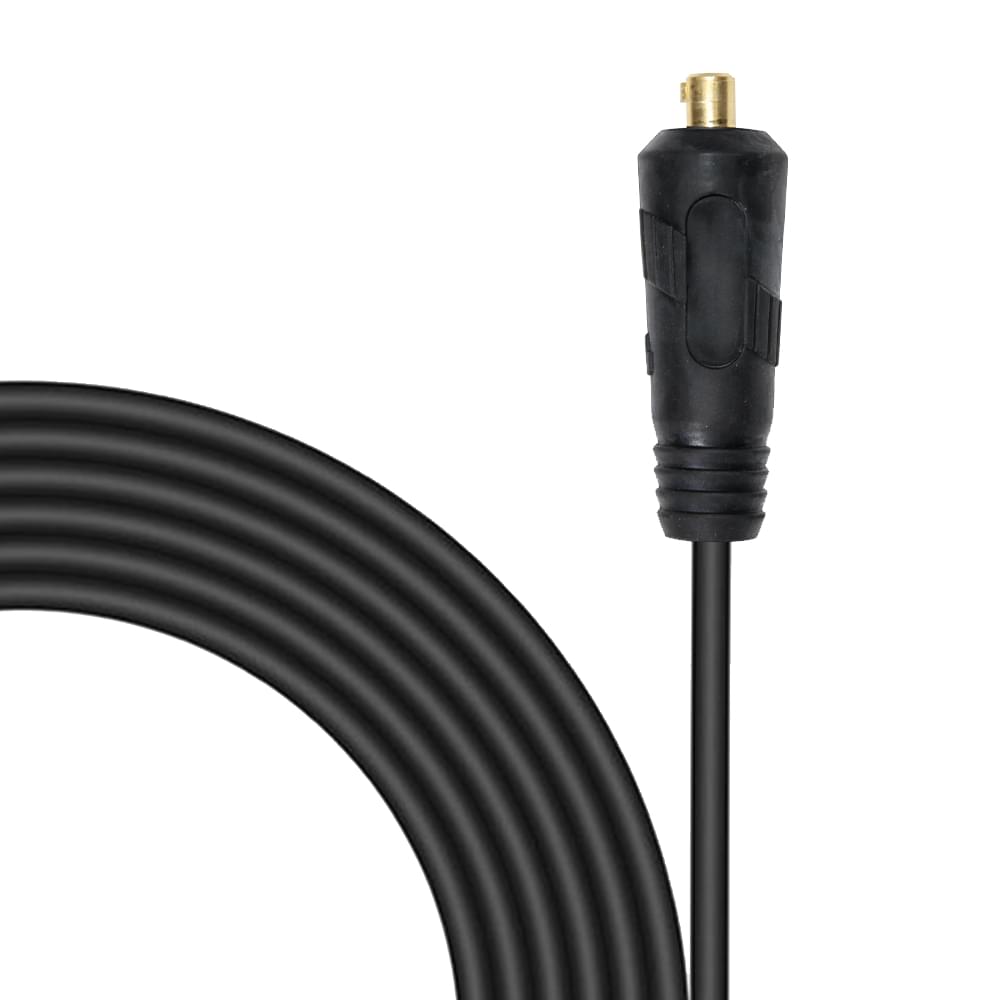

CABLE 25 MMQ 2 M PLUG ATLAS 25

CABLE 25 MMQ 3 M PLUG ATLAS 25

TOLEDO 250 WORK CLAMP 250A

DALLAS 300 ELECTRODE HOLDER 300A

RUTILE ELECTRODES D. 2,5 MM 15 PCS

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 12 L\min

GAS BOTTLE ADAPTERS

ARGON GAS BOTTLE IT ADAPTOR

TIG WELDING KITS

TIG WELDING KIT - ST9V

TIG TORCHES

ST9V TIG TORCH AX25 4M

TIG CONSUMABLES

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM ST9V

KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM ST9V

KIT 10 CERAMIC NOZZLES NR.5

KIT 10 CERAMIC NOZZLES NR.6

BLISTER ELECTRODES

RUTILE ELECTRODES D. 2,5 MM 15 PCS

RUTILE ELECTRODES D. 4 MM 8 PCS

BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

RUTILE ELECTRODES D. 3,2 MM 4 KG

TIG RODS

TIG RODS 308L 1.6X500 0.5kg

TIG RODS 308L 2.0X500 0.5kg

ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 200A 16 MMQ 3+2M AX25

MMA and TIG inverter electrode welding machine, in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- compact and light
- high welding current stability in spite of mains voltage fluctuations - regulation of arc force and hot start according to the type of electrode in use
- anti-stick device
- thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and rutile electrodes.

CODE

816144

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 200 A

MAX CURRENT DC EN60974-1

200 @ 35 % A

DC CURRENT AT 60%

140 A

MAX NO LOAD VOLTAGE IN DC

60 V

MAX ABSORBED CURRENT

36 A

ABSORBED CURRENT AT 60%

24 A

MAX ABSORBED POWER

6 kW

ABSORBED POWER AT 60%

4 kW

MOTORGENER. MINIMUM POWER

10 kW

EFFICIENCY

92 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

38,5 x 15 x 26,5 cm

WEIGHT

7 kg

Instruction Manual

Spare Parts List

CABLE 25 MMQ 2 M PLUG ATLAS 25

124465

CABLE 25 MMQ 3 M PLUG ATLAS 25

124466

TOLEDO 250 WORK CLAMP 250A

DALLAS 300 ELECTRODE HOLDER 300A

RUTILE ELECTRODES D. 2,5 MM 15 PCS

802618

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 12 L\min

722119

GAS BOTTLE ADAPTERS

ARGON GAS BOTTLE IT ADAPTOR

432036

TIG WELDING KITS

TIG WELDING KIT - ST9V

801097

TIG TORCHES

ST9V TIG TORCH AX25 4M

722563

TIG CONSUMABLES

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM ST9V

802228

KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM

802223

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM ST9V

802225

KIT 10 CERAMIC NOZZLES NR.5

802230

KIT 10 CERAMIC NOZZLES NR.6

802231

BLISTER ELECTRODES

RUTILE ELECTRODES D. 2,5 MM 15 PCS

802618

RUTILE ELECTRODES D. 4 MM 8 PCS

802620

BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

802737

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

802739

RUTILE ELECTRODES D. 3,2 MM 4 KG

802749

TIG RODS

TIG RODS 308L 1.6X500 0.5kg

804364

TIG RODS 308L 2.0X500 0.5kg

804365

ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 200A 16 MMQ 3+2M AX25

801096
