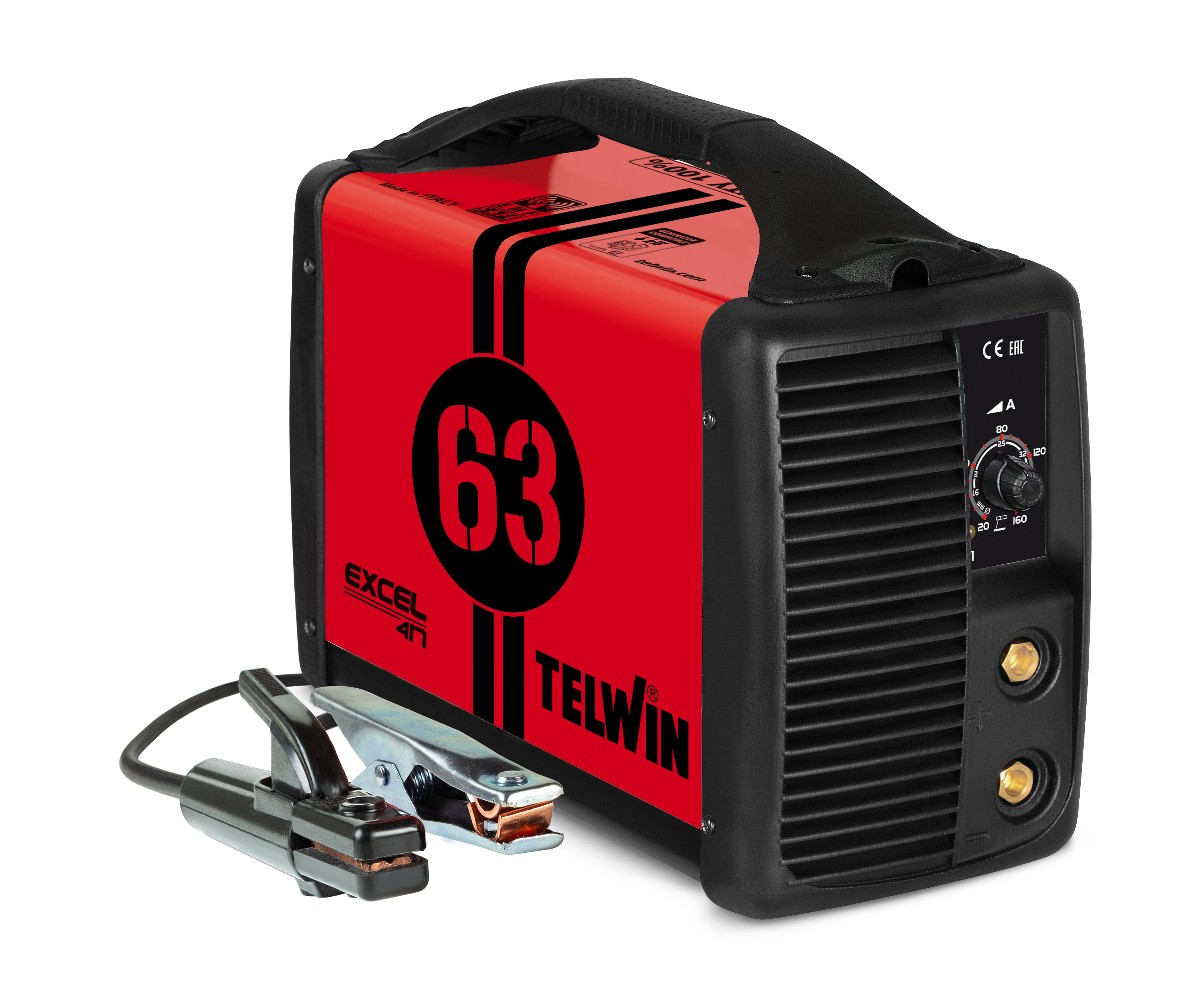

EXCEL 417 230V ACX

EXCEL 417 230V ACX

Download PDF Request Info

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- compact and light
- high welding current stability in spite of mains voltage fluctuations
- arc force, hot start and anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and rutile electrodes.

CODE

816142

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 150 A

MAX CURRENT

140 @ 25 % A

DC CURRENT

80 A

MAX NO LOAD VOLTAGE

75 V

MAX ABSORBED CURRENT

28 A

ABSORBED CURRENT AT 60%

14 A

MAX ABSORBED POWER

4,5 kW

ABSORBED POWER AT 60%

2 kW

MOTORGENERATOR MINIMUM POWER

6 kW

EFFICIENCY

87 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

34,5 x 15 x 26,5 cm

WEIGHT

4,94 kg

Catalog Image

Instruction Manual

Spare Parts List

CABLE 16 MMQ 1,8 M - PLUG ATLAS 25

TOLEDO 250 WORK CLAMP 250A

DALLAS 300 ELECTRODE HOLDER 300A

RUTILE ELECTRODES D. 2,5 MM 15 PCS

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 12 L\min

GAS BOTTLE ADAPTERS

ARGON GAS BOTTLE IT ADAPTOR

TIG WELDING KITS

TIG WELDING KIT - ST9V

TIG TORCHES

ST9V 4M AX25 TIG TORCH

TIG CONSUMABLES

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM ST9V

KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM ST9V

CERAMIC NOZZLES NR.5 - ST9 TIG 10 PCS

KIT 10 CERAMIC NOZZLES NR.6

BLISTER ELECTRODES

RUTILE ELECTRODES D. 2,5 MM 15 PCS

RUTILE ELECTRODES D. 4 MM 8 PCS

BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

RUTILE ELECTRODES D. 3,2 MM 4 KG

TIG RODS

TIG RODS 308L 1.6X500 0.5kg

TIG RODS 308L 2.0X500 0.5kg

ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 200A 16 MMQ 3+2M AX25

MMA and TIG inverter, electrode welding machine in direct current (DC) with scratch striking.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron, etc.
Features:
- compact and light
- high welding current stability in spite of mains voltage fluctuations
- arc force, hot start and anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with MMA welding accessories and rutile electrodes.

CODE

816142

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 150 A

MAX CURRENT DC EN60974-1

140 @ 25 % A

DC CURRENT AT 60%

80 A

MAX NO LOAD VOLTAGE IN DC

75 V

MAX ABSORBED CURRENT

28 A

ABSORBED CURRENT AT 60%

14 A

MAX ABSORBED POWER

4,5 kW

ABSORBED POWER AT 60%

2 kW

MOTORGENER. MINIMUM POWER

6 kW

EFFICIENCY

87 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

34,5 x 15 x 26,5 cm

WEIGHT

4,94 kg

Catalog Image

Instruction Manual

Spare Parts List

CABLE 16 MMQ 1,8 M - PLUG ATLAS 25

124508

TOLEDO 250 WORK CLAMP 250A

DALLAS 300 ELECTRODE HOLDER 300A

RUTILE ELECTRODES D. 2,5 MM 15 PCS

802618

GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 12 L\min

722119

GAS BOTTLE ADAPTERS

ARGON GAS BOTTLE IT ADAPTOR

432036

TIG WELDING KITS

TIG WELDING KIT - ST9V

801097

TIG TORCHES

ST9V 4M AX25 TIG TORCH

722563

TIG CONSUMABLES

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM ST9V

802228

KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM

802223

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM ST9V

802225

CERAMIC NOZZLES NR.5 - ST9 TIG 10 PCS

802230

KIT 10 CERAMIC NOZZLES NR.6

802231

BLISTER ELECTRODES

RUTILE ELECTRODES D. 2,5 MM 15 PCS

802618

RUTILE ELECTRODES D. 4 MM 8 PCS

802620

BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

802737

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

802739

RUTILE ELECTRODES D. 3,2 MM 4 KG

802749

TIG RODS

TIG RODS 308L 1.6X500 0.5kg

804364

TIG RODS 308L 2.0X500 0.5kg

804365

ACCESSORIES/VARIOUS/SPARE PART

MMA WELDING KIT 200A 16 MMQ 3+2M AX25

801096
