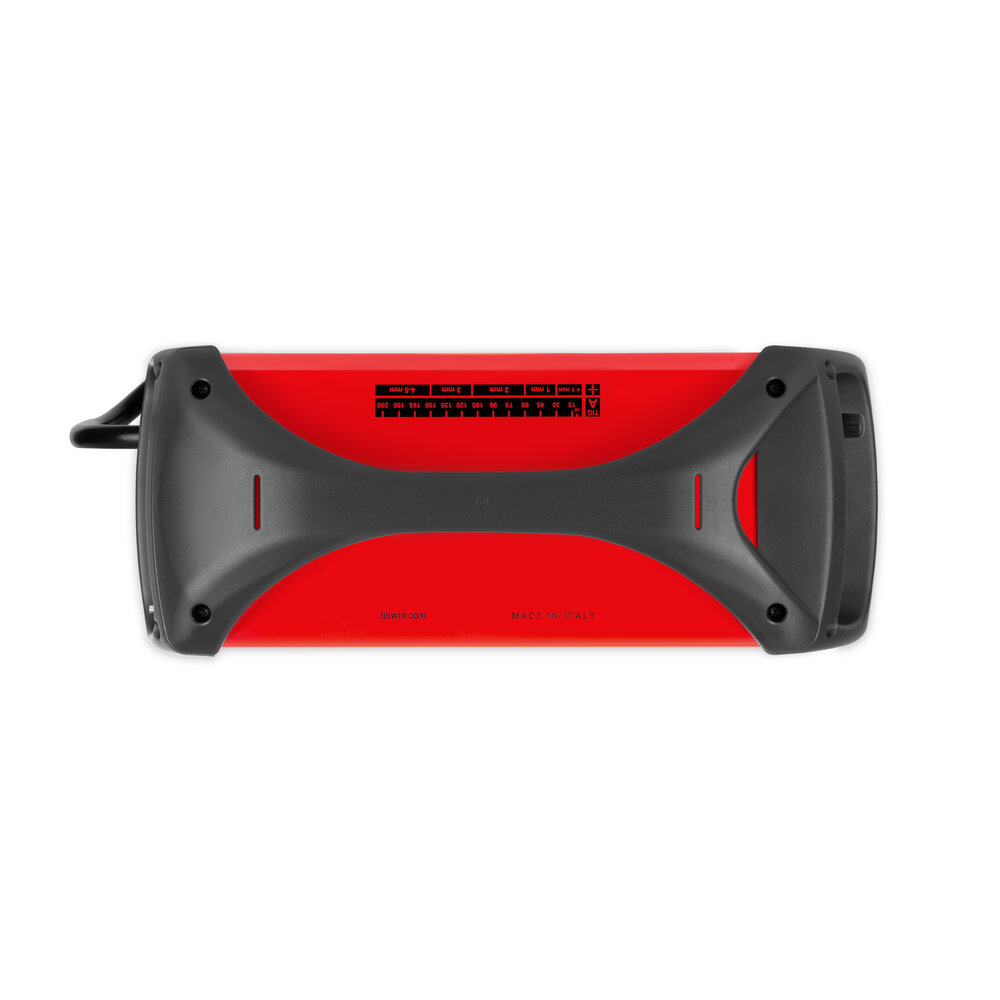

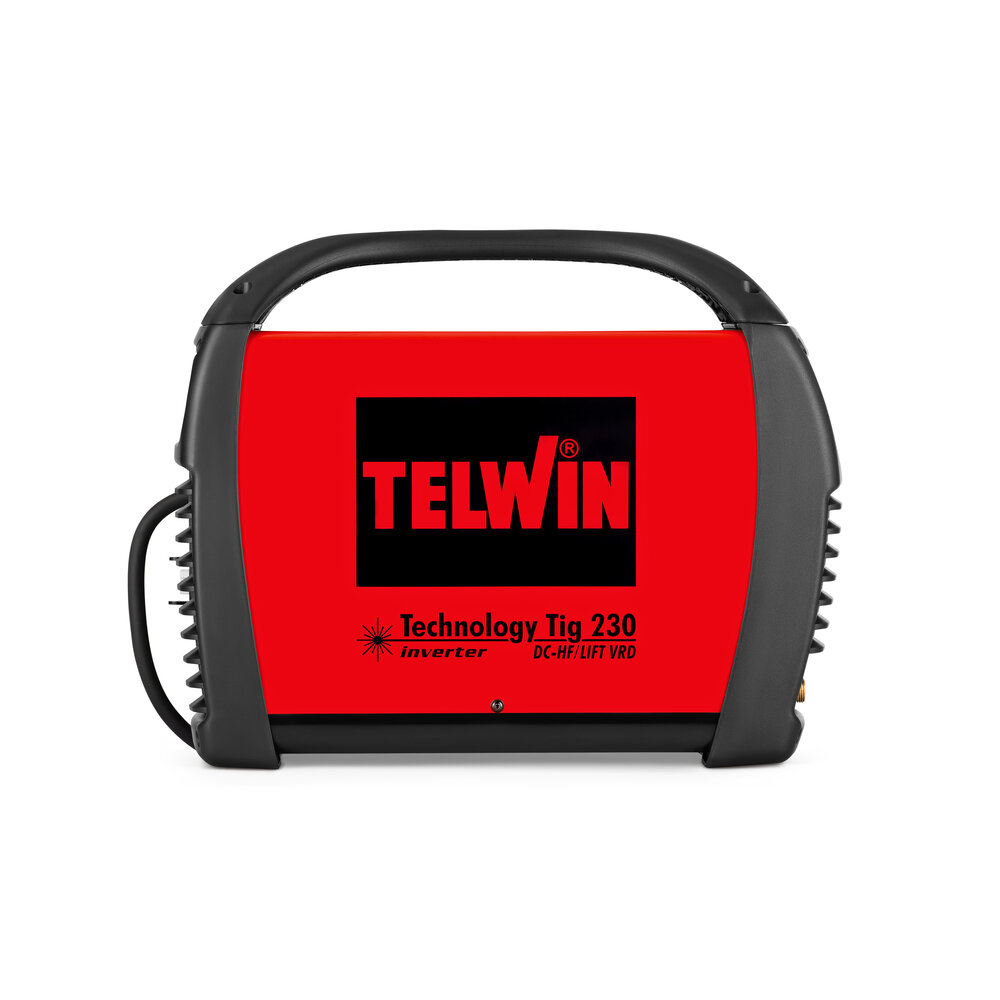

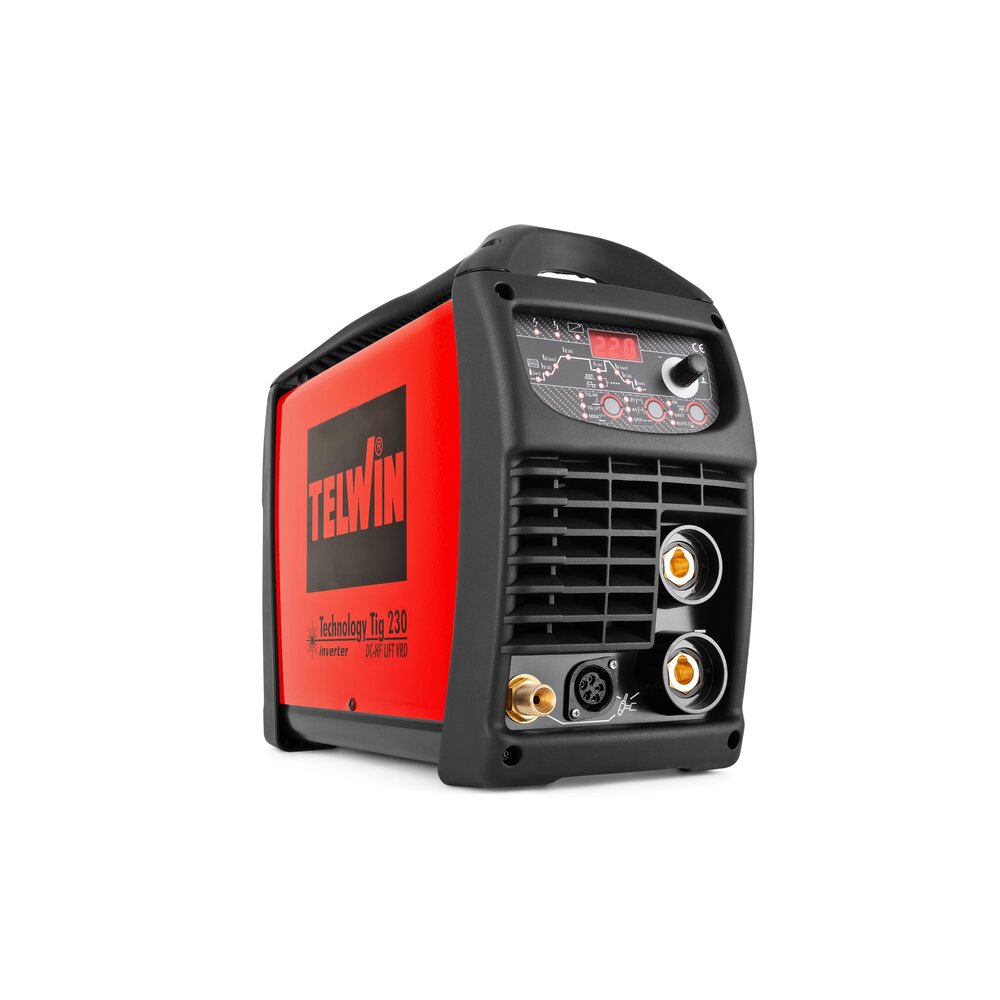

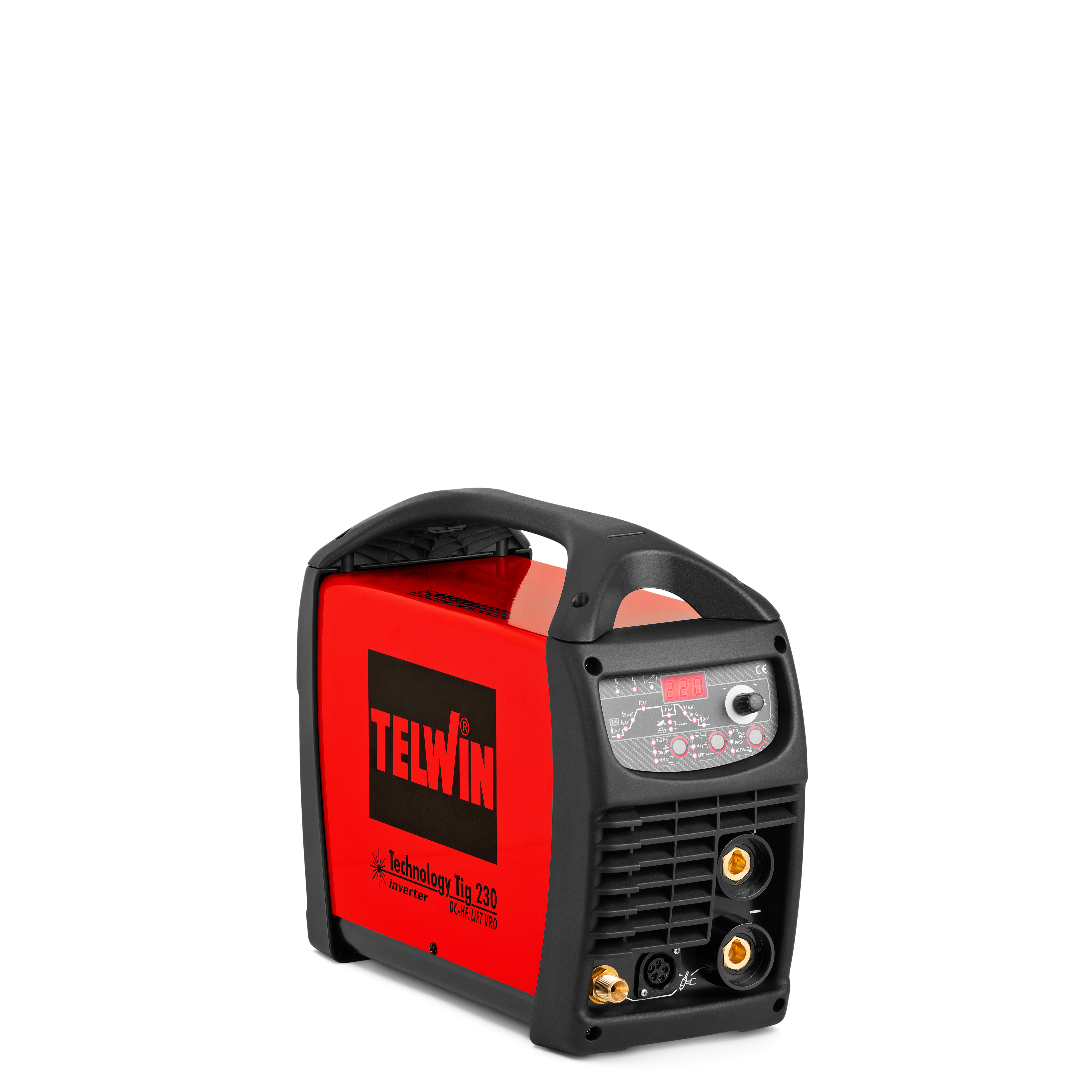

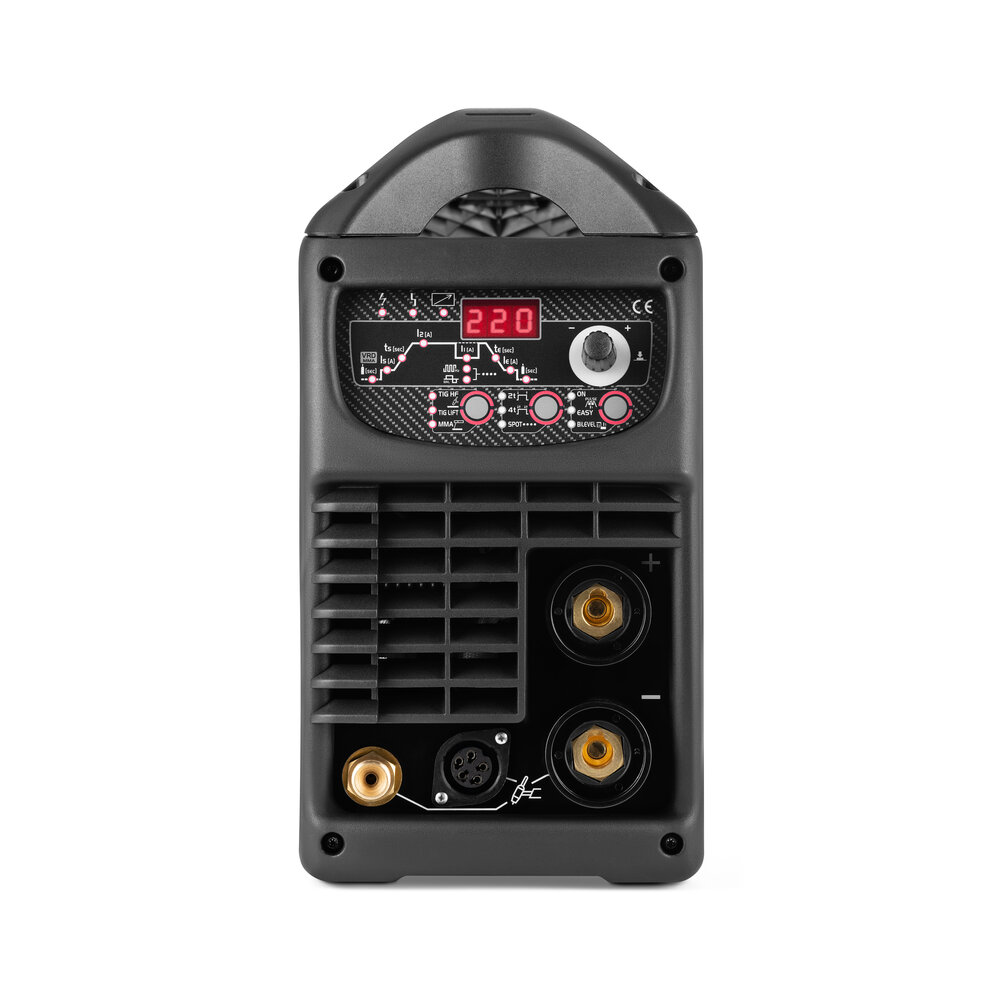

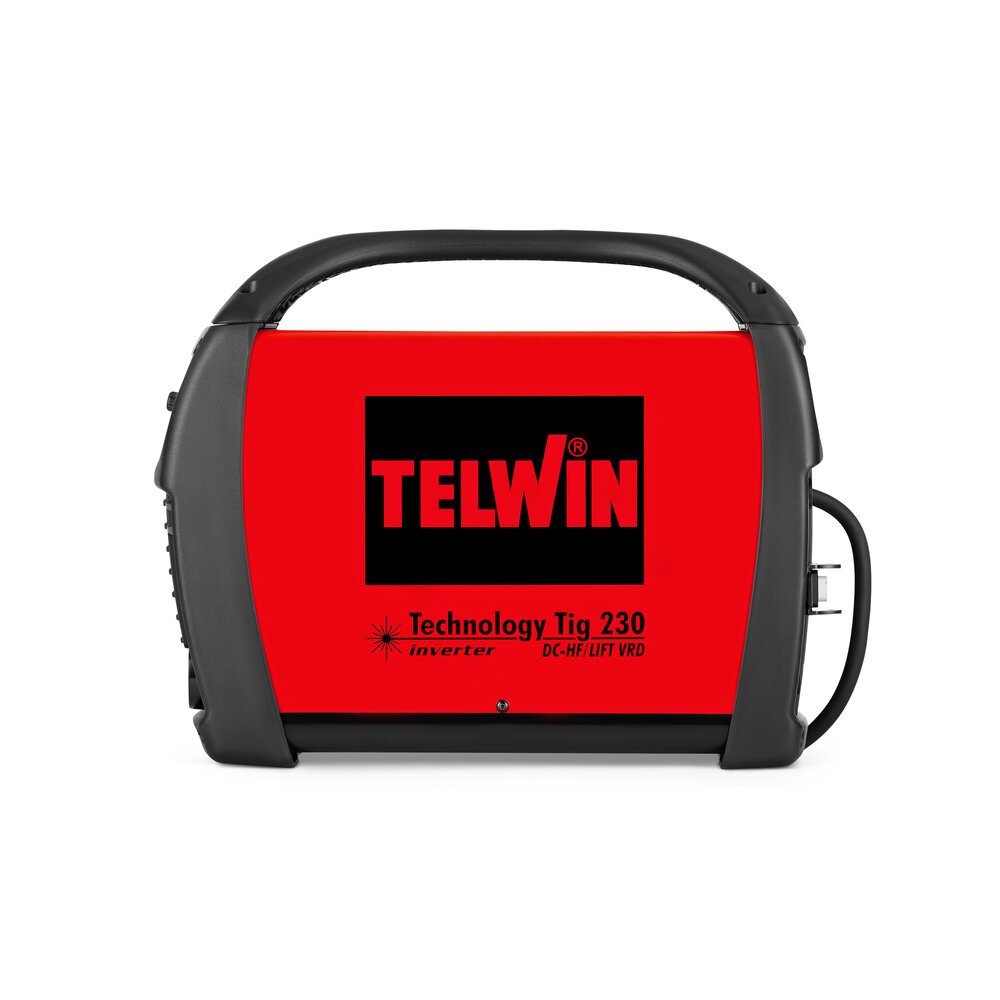

TECHNOLOGY TIG 230 DC

TECHNOLOGY TIG 230 DC

  • TIG (HF or LIFT strike), TIG PULSE and MMA in direct current (DC) inverter welding machine, 220A.
  • PULSE and EASY PULSE operation.
  • THINSPOT advanced utility for easy, rapid and accurate TIG spot welding of thin sheet metal.
  • VDR device for greater safety in welding operations in damp environments.
  • Setup for remote controls.
  • 20A programmable to 16A mains fuse.
  • TIG (HF or LIFT strike), TIG PULSE and MMA in direct current (DC) inverter welding machine, 220A.
  • PULSE and EASY PULSE operation.
  • THINSPOT advanced utility for easy, rapid and accurate TIG spot welding of thin sheet metal.
  • VDR device for greater safety in welding operations in damp environments.
  • Setup for remote controls.
  • 20A programmable to 16A mains fuse.
Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
  • pulse and EASY pulse operation;

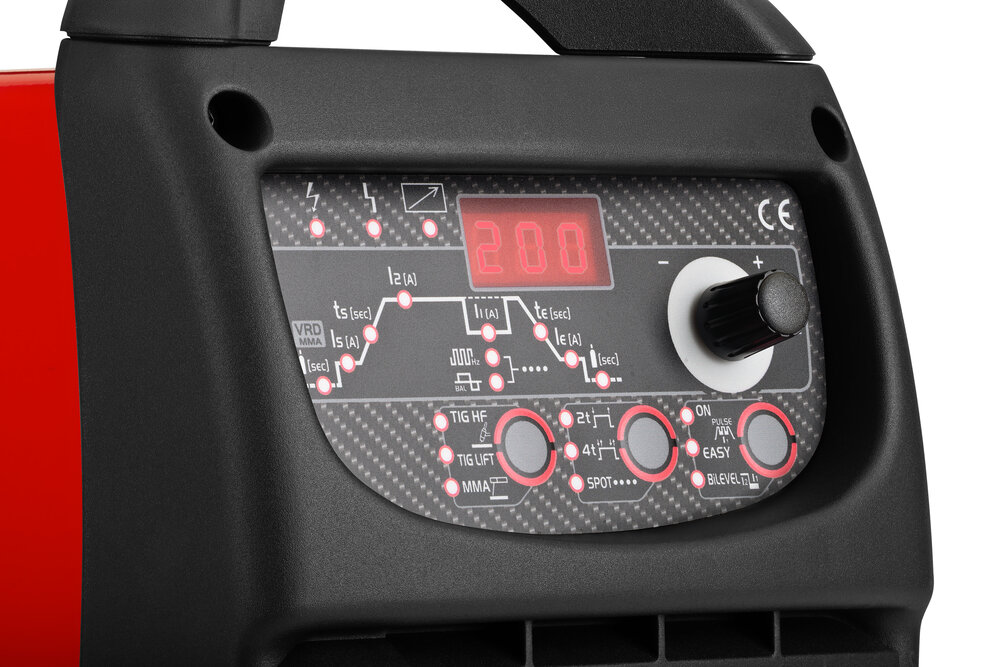

  • TIG regulations: "bi-level", start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency;
  • THINSPOT function for quick and precise tack welding;
  • MMA regulations: arc force and hot start;
  • anti-stick device;
  • VRD device;
  • remote control connector;
  • thermostatic, overvoltage, undervoltage, overcurrent protections.

CODE

816040

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 220 A

MAX CURRENT

220 @ 30 % A

DC CURRENT

125 A

MAX NO LOAD VOLTAGE

95 V

MAX ABSORBED CURRENT

36 A

ABSORBED CURRENT AT 60%

26 A

MAX ABSORBED POWER

6 kW

ABSORBED POWER AT 60%

4,1 kW

EFFICIENCY

86 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

43 x 17 x 34 cm

WEIGHT

9,7 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:
  • pulse and EASY pulse operation;
  • TIG regulations: "bi-level", start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency;
  • THINSPOT function for quick and precise tack welding;
  • MMA regulations: arc force and hot start;
  • anti-stick device;
  • VRD device;
  • remote control connector;
  • thermostatic, overvoltage, undervoltage, overcurrent protections.

CODE

816040

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

10 - 220 A

MAX CURRENT DC EN60974-1

220 @ 30 % A

DC CURRENT AT 60%

125 A

MAX NO LOAD VOLTAGE IN DC

95 V

MAX ABSORBED CURRENT

36 A

ABSORBED CURRENT AT 60%

26 A

MAX ABSORBED POWER

6 kW

ABSORBED POWER AT 60%

4,1 kW

EFFICIENCY

86 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

43 x 17 x 34 cm

WEIGHT

9,7 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336
GAS REGULATORS

QUICK GAS CONNECTOR

804208
TIG WELDING KITS

TIG WELDING KIT - ST26

802788
TIG TORCHES - PREMIUM

REMOTE DEVICE

802810
TROLLEYS AND ACCESSORIES

TROLLEY - ARCTIC

803059

TROLLEY - AMERICA

803084

Discover other products

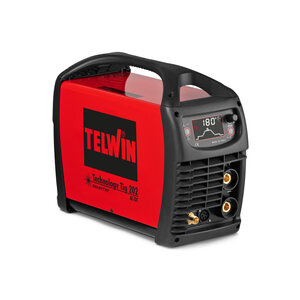

TECHNOLOGY TIG 202 AC/DC

Discover more

TECHNOLOGY TIG 222 AC/DC-HF/LIFT AQUA

Discover more

TECHNOLOGY TIG 222 AC/DC

Discover more

TECHNOLOGY TIG 222 AC/DC + ACC.

Discover more

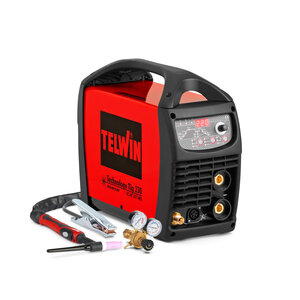

TECHNOLOGY TIG 230 DC + ACC.
