Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), 300A. 3ph 400V power supply.
Wave OS operating system. EASY and EXPERT mode (customisable work environment).
Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
User-friendly interface with TFT colour screen for simplified interaction with the product.
Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)

Inverter welding machine with continuous and pulse operation, multiprocess, (MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift), 300A. 3ph 400V power supply.
Wave OS operating system. EASY and EXPERT mode (customisable work environment).
Possibility of working on various welded or brazed materials in pulse and double pulse (PULSE and POP)
Advanced welding arcs for specific applications (ROOT-MIG, ATC, DEEP MIG). Possibility of creating, saving and retrieving customised welding programs.
User-friendly interface with TFT colour screen for simplified interaction with the product.
Welding operations are traceable and analysable, by saving data via USB or on a cloud platform (optional)

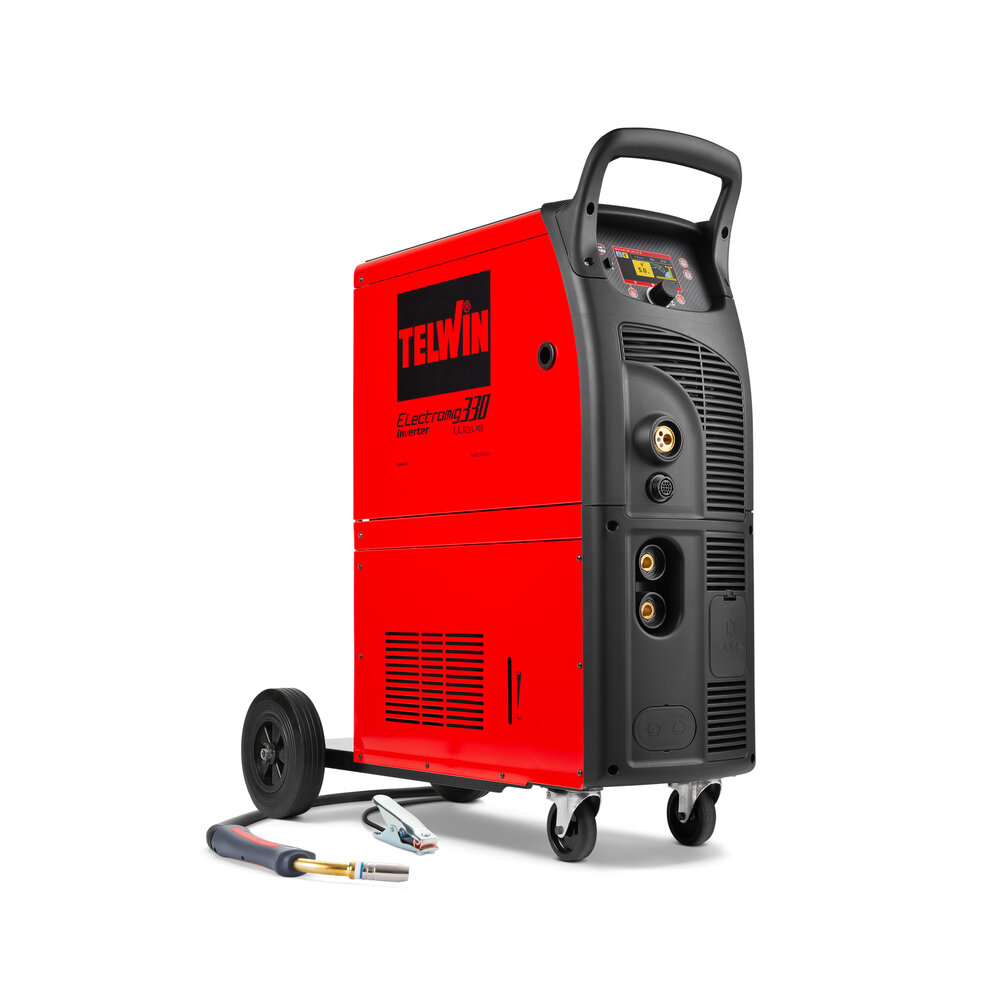

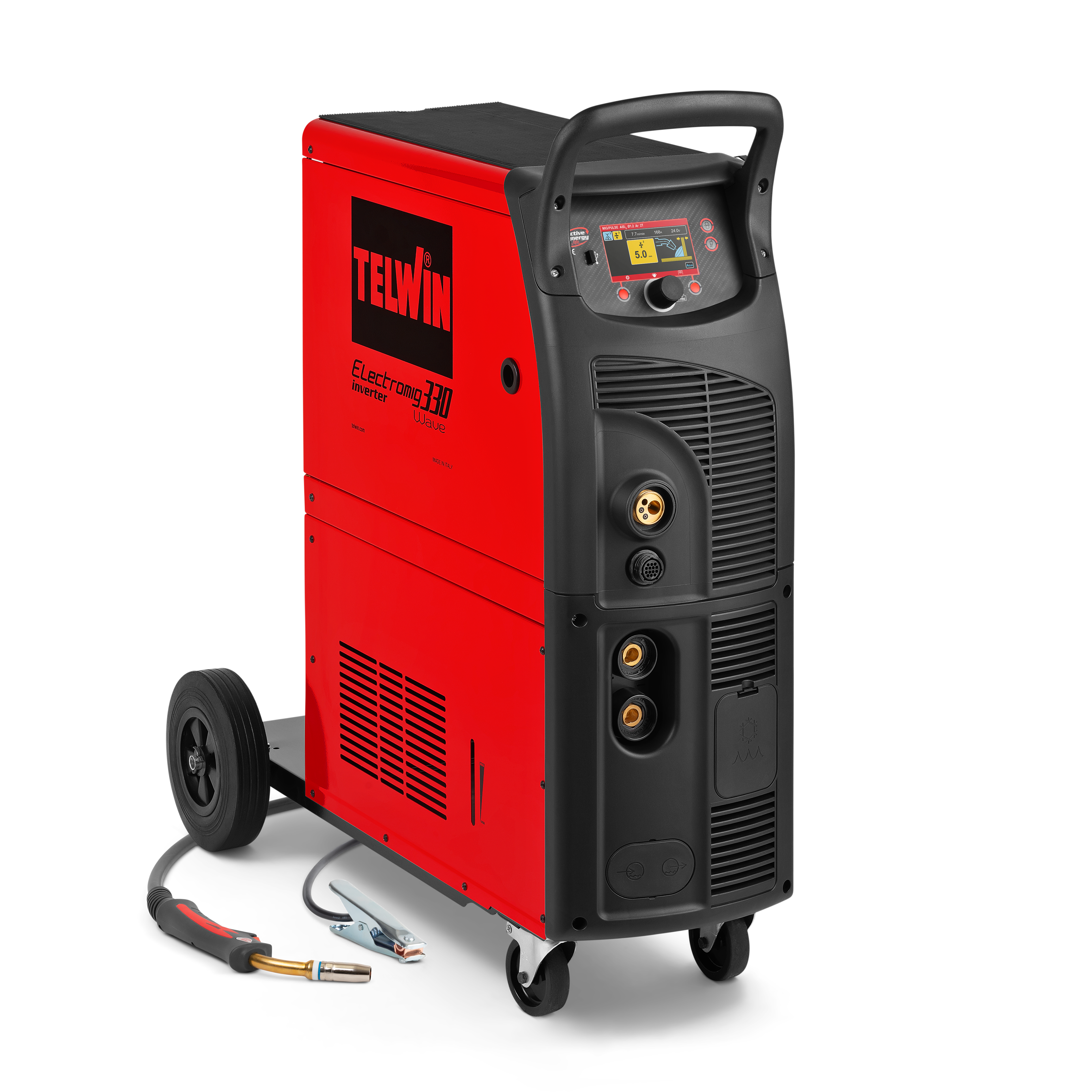

Microprocessor controlled, multiprocess MIG-MAG (continuous and pulse), FLUX/BRAZING/MMA/TIG DC-Lift inverter welding machine.
The WAVE OS system makes welding operations: customisable to suit customer-specific requirements; traceable and analysable, by saving data via USB; simplified, thanksto SYNERGIC adjustment of parameters.
Maximum operational flexibility for use in a wide variety of application sectors, from maintenance to installation and interventions at body shops.
It is possible to operate on different welded materials (steel, stainless steel, aluminium), brazed materials (galvanised and zinc-plated sheet metal) with specific welding processes having low thermal transfer, ROOT-MIG and ATC, and specific processes for aluminium and brazed materials AB PULSE and AB PoP.
The intelligent and automatic control of the arc, instant by instant, will maintain high levels of welding in all working conditions, with different materials and/or gases.
Complete with VRD device.
Supplied with various stored welding programmes, it offers the possibilityalso to store, trace and export more customised programmes.
Complete with MIG-MAG torch, cable and earth clamp.

CODE

816061

THREE PHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 300 A

MAX CURRENT

270 @ 30% A

DC CURRENT

205 A

MAX NO LOAD VOLTAGE

63 V

MAX ABSORBED CURRENT

15 A

ABSORBED CURRENT AT 60%

10 A

MAX ABSORBED POWER

9 kW

ABSORBED POWER AT 60%

6,5 kW

EFFICIENCY

90 %

POWER FACTOR

0,9

D. USABLE ELECTRODES IN DC

1,6 - 6 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1,2 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,2 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,2 mm

FLUX CORED WELDING WIRE DIAM.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS

86,5 x 39 x 91,5 cm

WEIGHT

39 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Software/App

Download File

MT25 MIG TORCH 3 M

802952

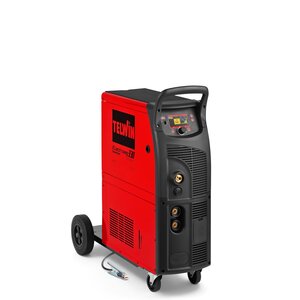

ELECTROMIG 330 WAVE BASE 400V

816064

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123

GAS REGULATORS

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802273

MIG TORCHES

MT25 MIG TORCH 4M

742184

MT25 MIG TORCH 5M

742185

MT25 CONTROL MIG TORCH 3M

742777

WIRE FEEDERS AND ACCESSORIES

COIL ADAPTOR B-300

802486

OTHER MIG ACCESSORIES

PUSH PULL BOARD KIT

982219

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

WATER COOLING UNITS

GRA 3300 WATER COOLING UNIT

802942

CODE

816061

THREEPHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 300 A

MAX CURRENT DC EN60974-1

270 @ 30% A

DC CURRENT AT 60%

205 A

MAX NO LOAD VOLTAGE IN DC

63 V

MAX ABSORBED CURRENT

15 A

ABSORBED CURRENT AT 60%

10 A

MAX ABSORBED POWER

9 kW

ABSORBED POWER AT 60%

6,5 kW

EFFICIENCY

90 %

POWER FACTOR(cosphi) (cosphi)

0,9

D.USABLE ELECTRODES IN DC

1,6 - 6 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1,2 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1,2 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,2 mm

FLUX CORED WELDI.WIRE DIA.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

86,5 x 39 x 91,5 cm

WEIGHT

39 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Software/App

Download File

MT25 MIG TORCH 3 M

802952

ELECTROMIG 330 WAVE BASE 400V

816064

ELECTRODE HOLDERS WITH CABLE

ELECTRODE HOLDER + CABLE 25MMQ 4M AX50

804123

GAS REGULATORS

QUICK GAS CONNECTOR

804208

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,6 MM

802273

MIG TORCHES

MT25 MIG TORCH 4M

742184

MT25 MIG TORCH 5M

742185

MT25 CONTROL MIG TORCH 3M

742777

WIRE FEEDERS AND ACCESSORIES

COIL ADAPTOR B-300

802486

OTHER MIG ACCESSORIES

PUSH PULL BOARD KIT

982219

TIG TORCHES

ST26V TIG TORCH AX50 4M

742058

WATER COOLING UNITS

GRA 3300 WATER COOLING UNIT

802942
