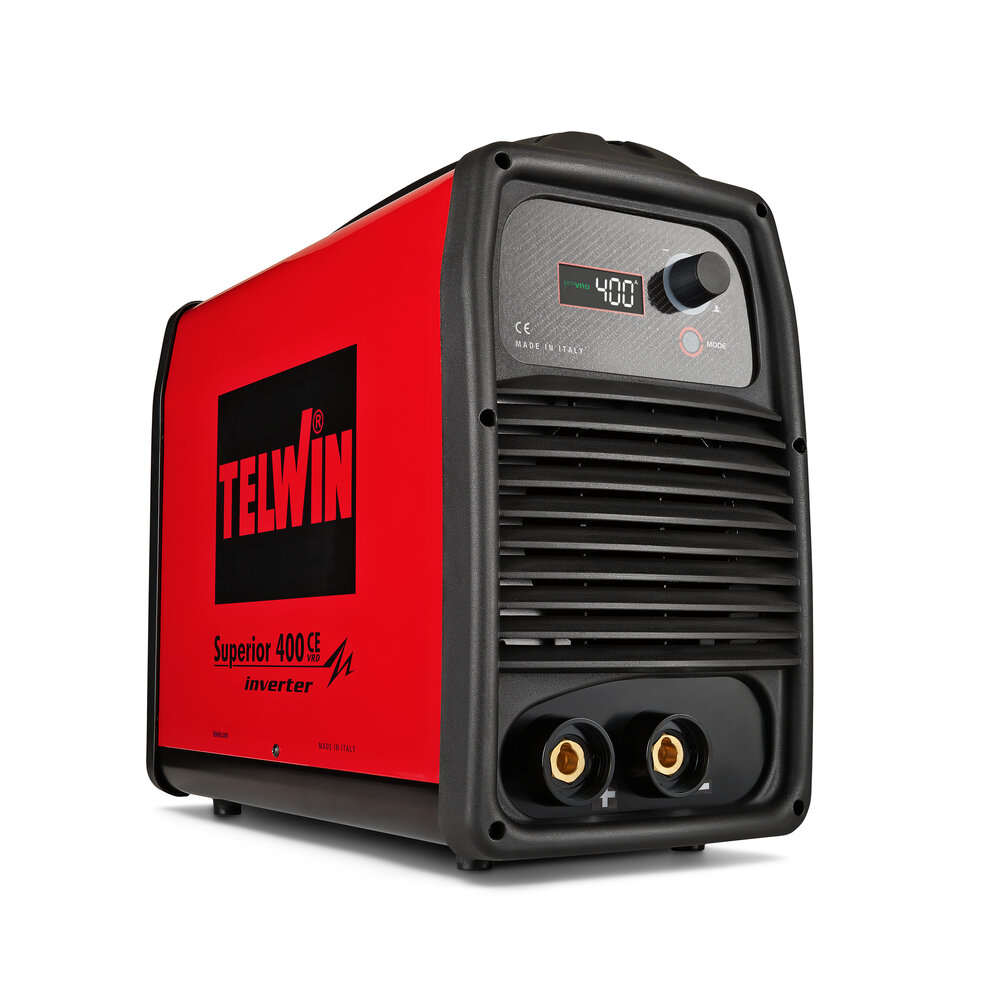

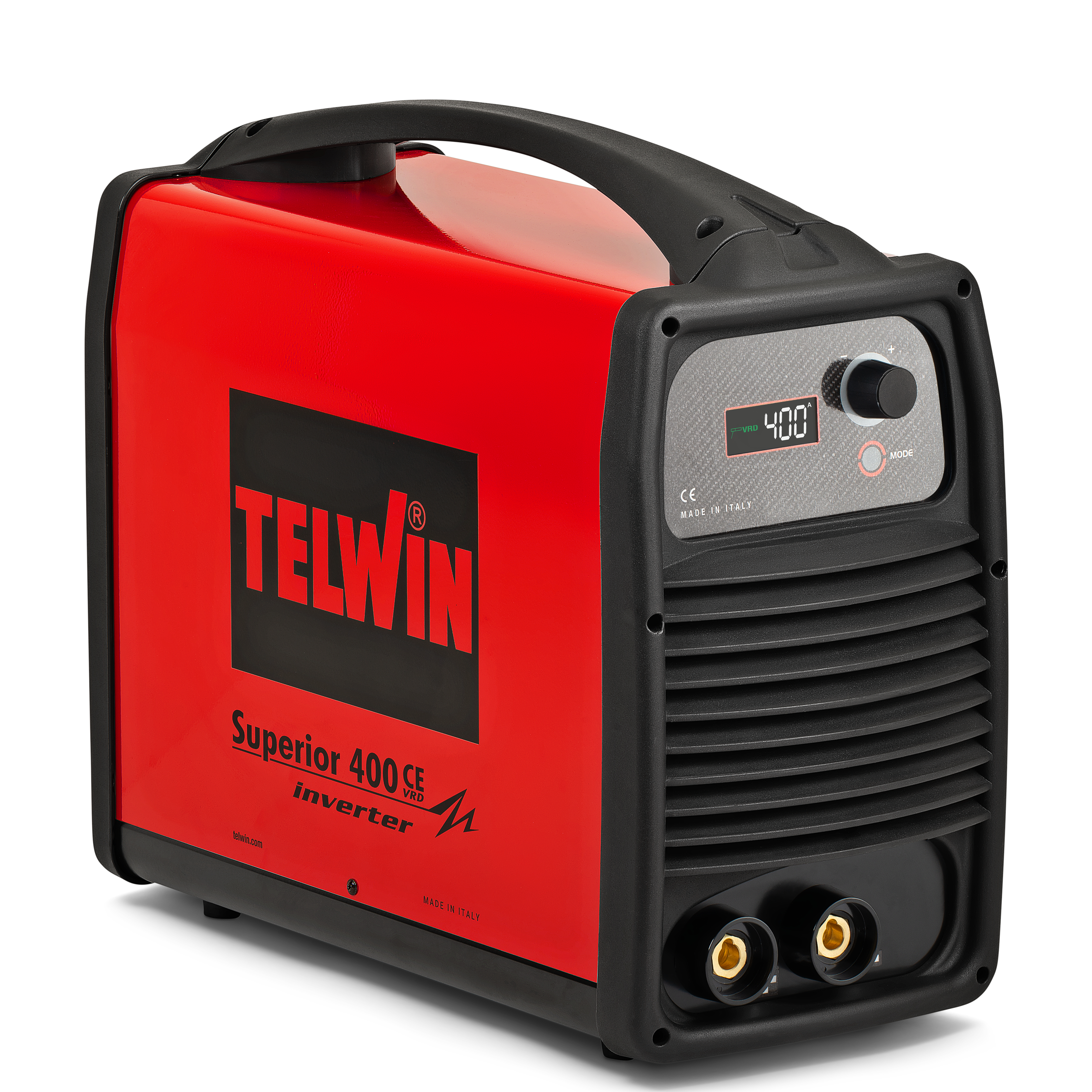

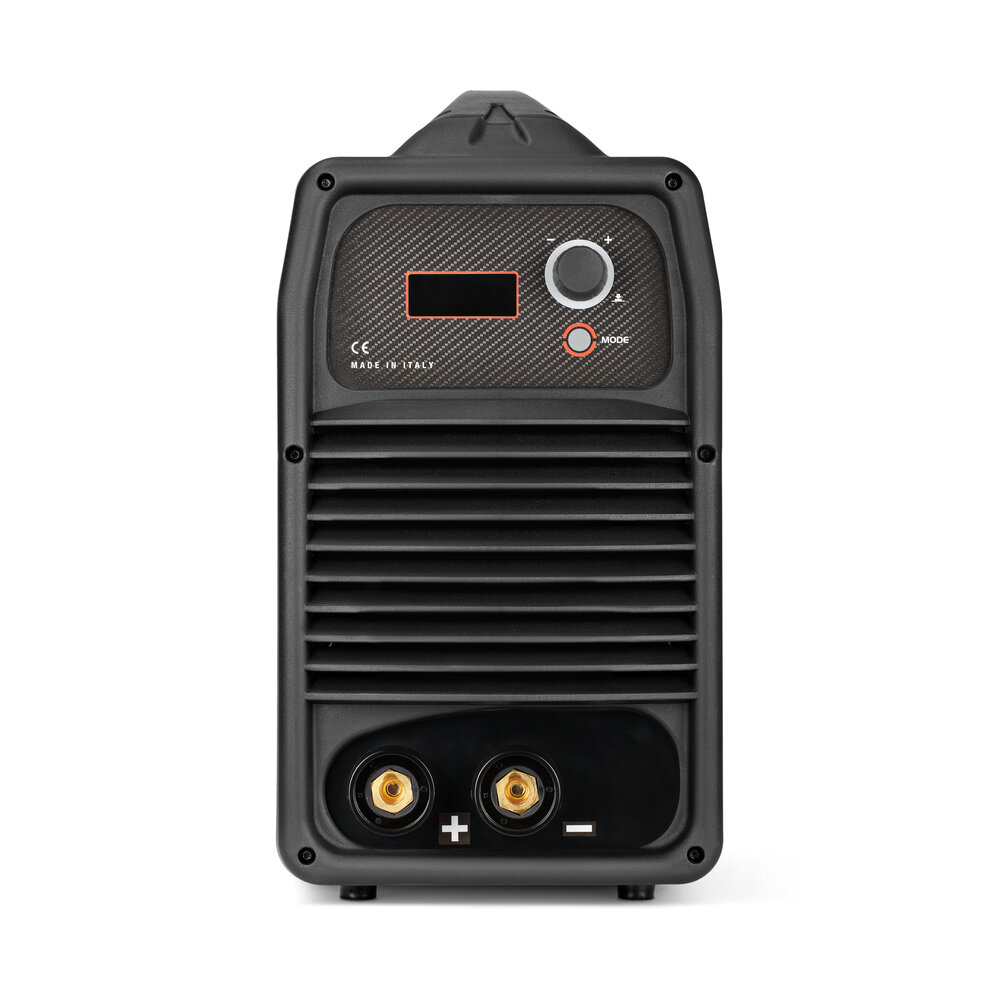

SUPERIOR 400 CE VRD

Download PDF Request Info
  • Direct current (DC) MMA and TIG-LIFT electrode multiprocess inverter welding machine with gouging function, 400A. Dual voltage.
  • LCD display of the main welding parameters and product settings.
  • Designed for welding cellulose electrodes. Arc-force adjustment and hot start according to the type of electrode used. Anti-stick protection .
  • Usable electrodes: cellulose and coated aluminium, rutile, basic, stainless steel and cast iron electrodes up to a Ø of 8 mm. Gouging function is available using carbon electrodes.
  • MMA: direct and pulse current (MMA PULSE) operation. VRD device.
  • High stability of the welding current in power supply voltage variations.  Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (+/-15%).
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust. Compact and robust.
  • Direct current (DC) MMA and TIG-LIFT electrode multiprocess inverter welding machine with gouging function, 400A. Dual voltage.
  • LCD display of the main welding parameters and product settings.
  • Designed for welding cellulose electrodes. Arc-force adjustment and hot start according to the type of electrode used. Anti-stick protection .
  • Usable electrodes: cellulose and coated aluminium, rutile, basic, stainless steel and cast iron electrodes up to a Ø of 8 mm. Gouging function is available using carbon electrodes.
  • MMA: direct and pulse current (MMA PULSE) operation. VRD device.
  • High stability of the welding current in power supply voltage variations.  Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (+/-15%).
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust. Compact and robust.
MMA, TIG-LIFT direct current (DC) electrode multiprocess inverter welding machine with gouging function.
Designed for welding cellulose electrodes and coated electrodes in aluminium, rutile, basic, stainless steel and cast iron.
Electrode welding is both direct current and pulse current. Pulse mode (MMA Pulse) is recommended with cellulose and basic electrodes and in position welding. You can set the two pulsation currents and their times for reduced heat transfer and improved arc control. Less spray and reworking, higher quality welding seam.
Gouging function is available using carbon electrodes.
Designed to ensure reliability over time, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Features:
MMA
  • optimised arc control dynamics that guarantee arc stability and control of the welding bath with cellulose, basic and rutile electrodes;
  • direct and pulse current (MMA PULSE) operation;
  • adjustments in MMA: hot start, arc force;
  • anti-stick protection;
  • VRD device.
TIG
  • LIFT DC strike and welding voltage and current shown on LCD screen.
GOUGING
  • Gouging function with gouging voltage and current shown on LCD screen.

Features:
  • LCD screen for simplified interaction and immediate display and setting of the parameters;
  • reliability over time thanks to dedicated air tunnel cooling system that protects against dust and dirt;
  • guarantees the best performance even with undervoltages (up to -25%) and overvoltages (+ 15%);
  • automatic voltage detection of the power supply network (multivoltage);
  • compact and robust structure for better transport;
  • thermostatic protection, protection against overvoltage, undervoltage, overcurrent, engine driven generator (+/-15%).

CODE

816156

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

30 - 320 / 30 - 400 A

MAX CURRENT

300 @ 40% / 400 @ 40% A

DC CURRENT

280 / 300 A

MAX NO LOAD VOLTAGE

100 / 100 V

MAX ABSORBED CURRENT

36 / 30 A

ABSORBED CURRENT AT 60%

31 / 20 A

MAX ABSORBED POWER

11,4 / 16,6 kW

ABSORBED POWER AT 60%

9,9 / 11 kW

EFFICIENCY

87 %

POWER FACTOR

0,8

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

PROTECTION DEGREE

IP23

DIMENSIONS

53 x 24 x 45 cm

WEIGHT

19,500 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

MMA, TIG-LIFT direct current (DC) electrode multiprocess inverter welding machine with gouging function.
Designed for welding cellulose electrodes and coated electrodes in aluminium, rutile, basic, stainless steel and cast iron.
Electrode welding is both direct current and pulse current. Pulse mode (MMA Pulse) is recommended with cellulose and basic electrodes and in position welding. You can set the two pulsation currents and their times for reduced heat transfer and improved arc control. Less spray and reworking, higher quality welding seam.
Gouging function is available using carbon electrodes.
Designed to ensure reliability over time, it features a dedicated air tunnel cooling system that protects against dust and dirt.
Features:
MMA
  • optimised arc control dynamics that guarantee arc stability and control of the welding bath with cellulose, basic and rutile electrodes;
  • direct and pulse current (MMA PULSE) operation;
  • adjustments in MMA: hot start, arc force;
  • anti-stick protection;
  • VRD device.
TIG
  • LIFT DC strike and welding voltage and current shown on LCD screen.
GOUGING
  • Gouging function with gouging voltage and current shown on LCD screen.

Features:
  • LCD screen for simplified interaction and immediate display and setting of the parameters;
  • reliability over time thanks to dedicated air tunnel cooling system that protects against dust and dirt;
  • guarantees the best performance even with undervoltages (up to -25%) and overvoltages (+ 15%);
  • automatic voltage detection of the power supply network (multivoltage);
  • compact and robust structure for better transport;
  • thermostatic protection, protection against overvoltage, undervoltage, overcurrent, engine driven generator (+/-15%).

CODE

816156

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

30 - 320 / 30 - 400 A

MAX CURRENT DC EN60974-1

300 @ 40% / 400 @ 40% A

DC CURRENT AT 60%

280 / 300 A

MAX NO LOAD VOLTAGE IN DC

100 / 100 V

MAX ABSORBED CURRENT

36 / 30 A

ABSORBED CURRENT AT 60%

31 / 20 A

MAX ABSORBED POWER

11,4 / 16,6 kW

ABSORBED POWER AT 60%

9,9 / 11 kW

EFFICIENCY

87 %

POWER FACTOR(cosphi) (cosphi)

0,8

D.USABLE ELECTRODES IN DC

1,6 - 8 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

53 x 24 x 45 cm

WEIGHT

19,500 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

GOUGING ACCESSORIES

GOUGING KIT

802666

CARBON ELECTRODES D. 8 300 MM 5 PCS

802803

CARBON ELECTRODES D. 10 300 MM 5 PCS

802305
GAS REGULATORS

GAS REGULATOR 2 MANOMETERS 32 L\min

722346
TIG TORCHES

ST26V TIG TORCH AX50 4M

742058
TROLLEYS AND ACCESSORIES

TROLLEY - MONDIAL

803072

TROLLEY - EUROPA

803073

TROLLEY - COSMOPOLITAN

803079
ACCESSORIES/VARIOUS/SPARE PARTS

MMA WELDING KIT 400A 50 MMQ 4+3M AX50

801093

Pulsed MMA

Pulsed mode ensures excellent results with basic, cellulosic electrodes and in positional welding. It is possible to set the two pulsing currents and their times for a reduced heat input and better arc control. Less spatter and rework, higher welding seam quality.
