FORCE 165 + ACC. + WELDING HELMET

Add to comparison

FORCE 165 + ACC. + WELDING HELMET

Download PDF Request Info

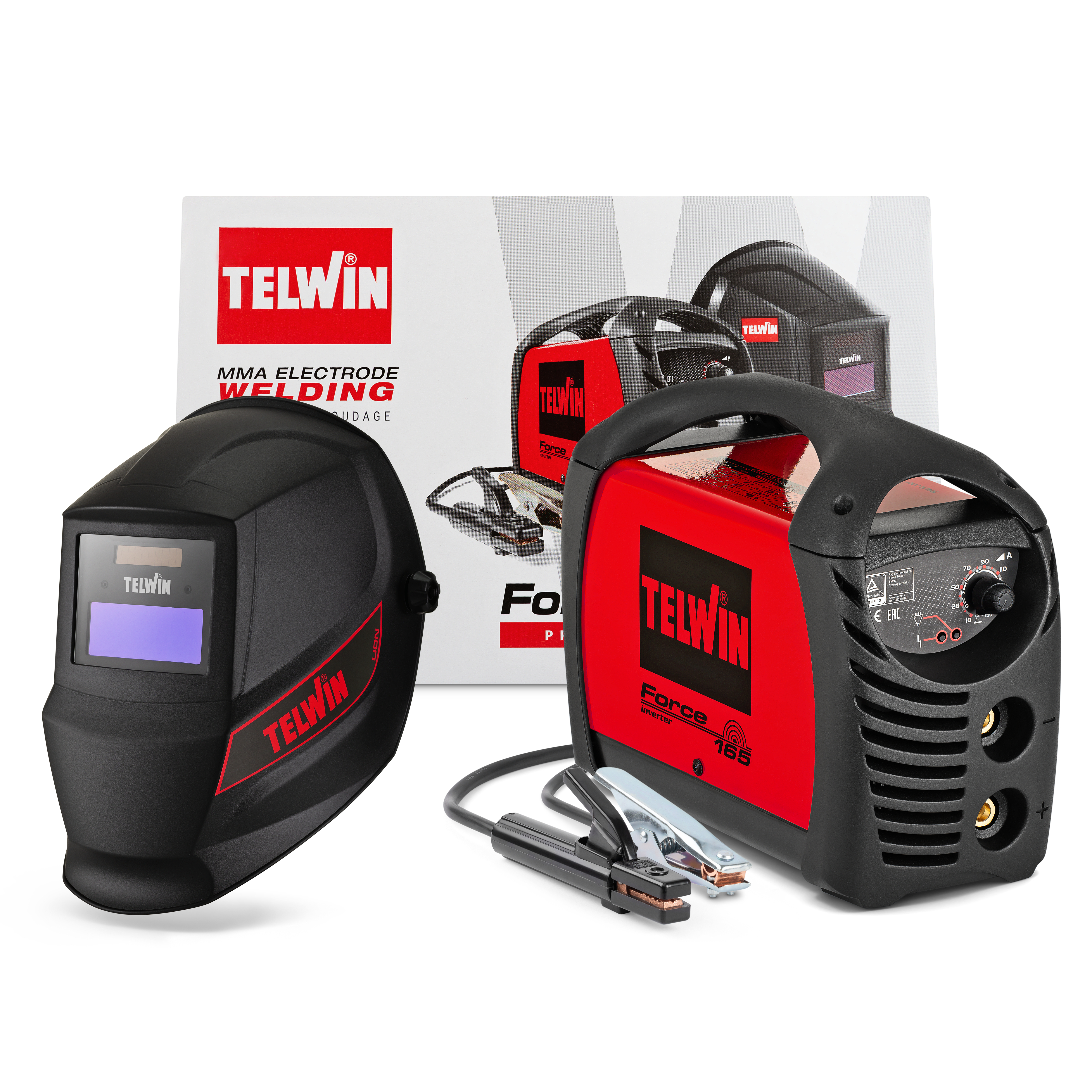

  • Direct current (DC) MMA electrode inverter welding machine, 150A. Supplied with welding accessories and automatic darkening helmet.
  • Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
  • Advanced arc control devices: arc force, hot start, anti-stick.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
  • High stability of the welding current in power supply voltage variations.
  • Light and compact. Easy to transport. Contained consumption thanks to inverter technology.
  • Automatic darkening welding helmet with rapid response times (0.4ms), 2 sensors to identify the arc and DIN11 darkening. Optical class 1/1/1/2 certified.
  • Direct current (DC) MMA electrode inverter welding machine, 150A. Supplied with welding accessories and automatic darkening helmet.
  • Usable electrodes: rutile, basic, stainless steel, cast iron, etc. up to 4 mm.
  • Advanced arc control devices: arc force, hot start, anti-stick.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
  • High stability of the welding current in power supply voltage variations.
  • Light and compact. Easy to transport. Contained consumption thanks to inverter technology.
  • Automatic darkening welding helmet with rapid response times (0.4ms), 2 sensors to identify the arc and DIN11 darkening. Optical class 1/1/1/2 certified.
MMA inverter, electrode welding machine in direct current (DC). Use with a wide range of electrodes:rutile, basic, stainless steel, cast iron, etc.
Features:
- compact and light
- high welding current stability in spite of mains voltage fluctuations
- arc force, hot start and anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with AUTOMATIC helmet and MMA welding accessories.

CODE

815863

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 150 A

%USE (20°C USE)

60% @ 150A

MAX CURRENT

140 @ 7% A

MAX NO LOAD VOLTAGE

72 V

MAX ABSORBED CURRENT

31 A

MAX ABSORBED POWER

4,1 kW

MOTORGENERATOR MINIMUM POWER

6 kW

EFFICIENCY

82 %

POWER FACTOR

0,6

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP21

DIMENSIONS

30 x 12,5 x 22,5 cm

WEIGHT

4,23 kg

(*) % USE

Dato ideato da TELWIN,

(*) % USE

non presente nella EN 60974-1

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

MMA inverter, electrode welding machine in direct current (DC). Use with a wide range of electrodes:rutile, basic, stainless steel, cast iron, etc.
Features:
- compact and light
- high welding current stability in spite of mains voltage fluctuations
- arc force, hot start and anti-stick devices
- thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.
Complete with AUTOMATIC helmet and MMA welding accessories.

CODE

815863

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

10 - 150 A

%USE (20°C USE) (*)

60% @ 150A

MAX CURRENT DC EN60974-1

140 @ 7% A

MAX NO LOAD VOLTAGE IN DC

72 V

MAX ABSORBED CURRENT

31 A

MAX ABSORBED POWER

4,1 kW

MOTORGENER. MINIMUM POWER

6 kW

EFFICIENCY

82 %

POWER FACTOR(cosphi) (cosphi)

0,6

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP21

DIMENSIONS (LxWxH)

30 x 12,5 x 22,5 cm

WEIGHT

4,23 kg

(*)%USE:

Dato ideato da TELWIN,

(*)%USE:

non presente nella EN 60974-1

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

brochure

Download PDF

CABLE 16 MMQ 1,8 M - PLUG ATLAS 25

124508

SLAG REMOVER

712139

DALLAS 300 ELECTRODE HOLDER 300A

712260

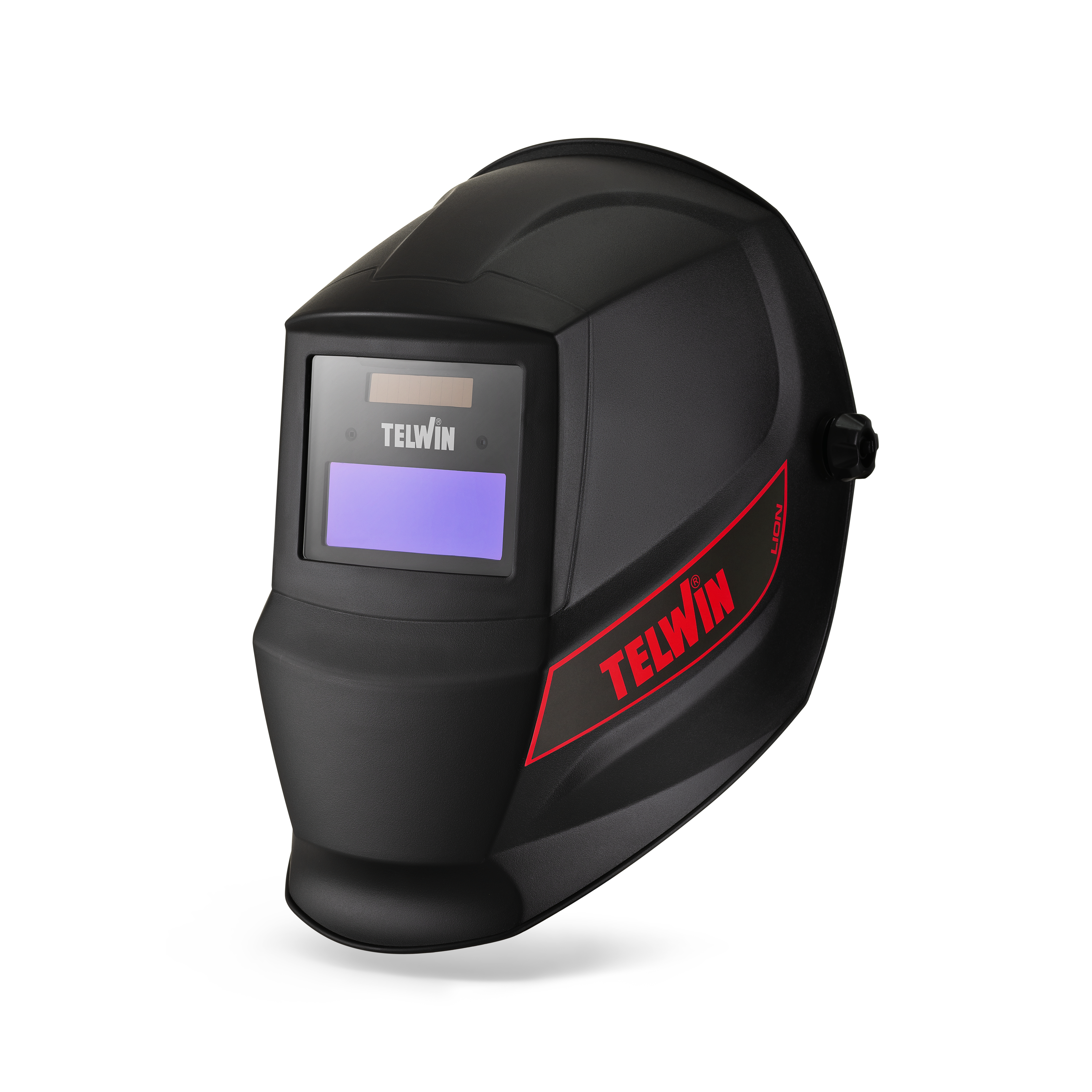

LION MMA/MIG-MAG/TIG WELDING HELMET

804151

BLISTER ELECTRODES

RUTILE ELECTRODES D. 2 MM 15 PCS

802617

RUTILE ELECTRODES D. 2,5 MM 15 PCS

802618

RUTILE ELECTRODES D. 4 MM 8 PCS

802620
BOXED ELECTRODES

RUTILE ELECTRODES D. 2 MM 2,5 KG

802737

RUTILE ELECTRODES D. 2,5 MM 2,5 KG

802739

RUTILE ELECTRODES D. 3,2 MM 4 KG

802749
