ALPINE 30 BOOST | Telwin

Home Products Charging & Starting Battery Chargers ALPINE 30 BOOST

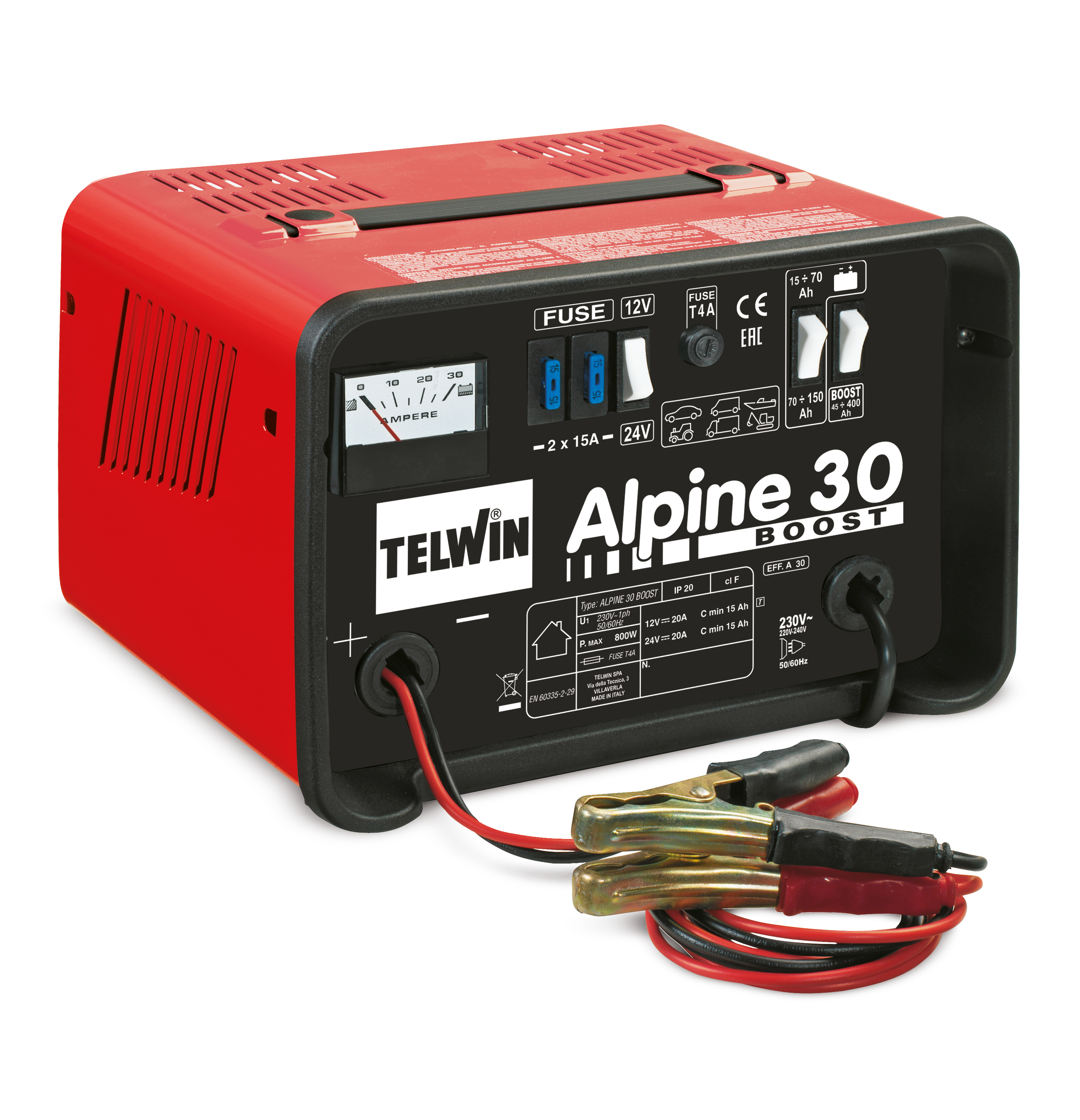

ALPINE 30 BOOST

ALPINE 30 BOOST

Download PDF Request Info

Battery charger for WET 12/24V batteries. With ammeter and normal or fast (BOOST) charge selector. 800W.
Protection against overcharging and pole inversion.

Battery charger for WET 12/24V batteries. With ammeter and normal or fast (BOOST) charge selector. 800W.
Protection against overcharging and pole inversion.

Battery charger for charging free electrolyte batteries (WET) with 12V/24V voltage.
Protected againstoverloads and polarity reversal.
Equipped with selector for normal or quick (BOOST) charge. Equipped with ammeter.

CODE

807547

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CHARGING ABSORBED POWER

800 W

CHARGING VOLTAGE

12 / 24 V

EFFECTIVE CHARGING CURRENT

30 A

RATED CHARGE CURR. EN60335-2-29

20 A

MIN. RATED REFERENCE CAPACITY

15 Ah

MAX RATED REFERENCE CAPACITY

400 Ah

ADJUSTMENT POSITIONS

3

DIMENSIONS

22,5 x 29 x 20,5 cm

WEIGHT

8,6 kg

Catalog Image

Instruction Manual

Spare Parts List

CABLE 4 MMQ 1,5 M AND WORK CLAMP

CABLE 4MMQ 1,5M + POSITIVE CLAMP

BATTERY CHARGERS FUSES

FUSES 15A 10 PCS

Battery charger for charging free electrolyte batteries (WET) with 12V/24V voltage.
Protected againstoverloads and polarity reversal.
Equipped with selector for normal or quick (BOOST) charge. Equipped with ammeter.

CODE

807547

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CHARGING ABSORBED POWER

800 W

CHARGING VOLTAGE

12 / 24 V

EFFECTIVE CHARGING CURRENT

30 A

RATED CHAR.CUR.EN60335-2-29

20 A

MIN.RATED REFERENCE CAPAC.

15 Ah

MAX.RATED REFERENCE CAPAC.

400 Ah

ADJUSTMENT POSITIONS

3

DIMENSIONS (LxWxH)

22,5 x 29 x 20,5 cm

WEIGHT

8,6 kg

Catalog Image

Instruction Manual

Spare Parts List

CABLE 4 MMQ 1,5 M AND WORK CLAMP

123987

CABLE 4MMQ 1,5M + POSITIVE CLAMP

123988

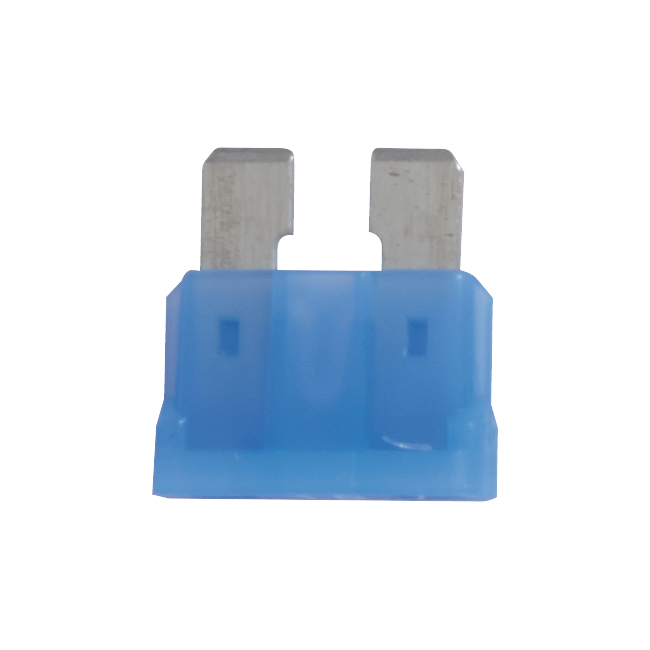

BATTERY CHARGERS FUSES

FUSES 15A 10 PCS

802256

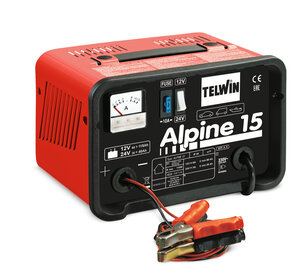

ALPINE 15

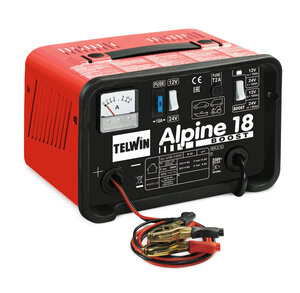

ALPINE 18 BOOST

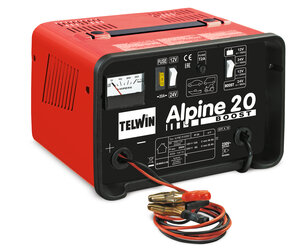

ALPINE 20 BOOST

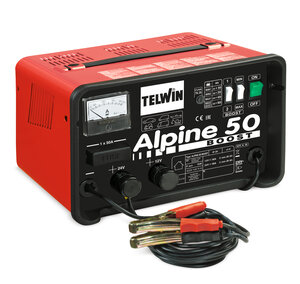

ALPINE 50 BOOST
