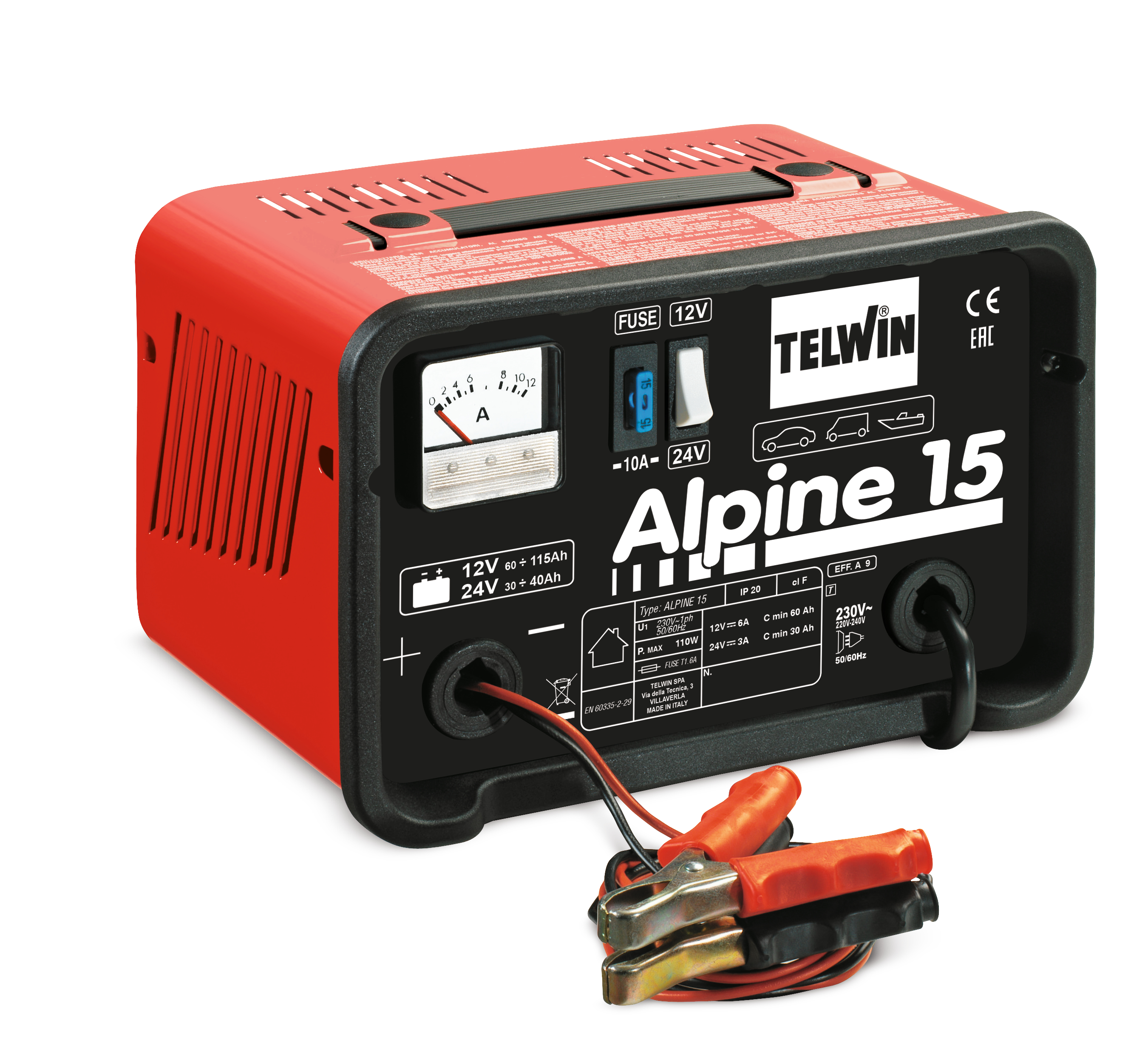

ALPINE 15

ALPINE 15

Download PDF Request Info

Battery charger for 12/24V WET batteries. With ammeter. 110W.
Protection against overcharging and pole inversion.

Battery charger for 12/24V WET batteries. With ammeter. 110W.
Protection against overcharging and pole inversion.

Battery charger for charging free electrolyte batteries (WET) with 12/24V voltage.
Protected against overloads and polarity reversal.
Equipped with ammeter.

CODE

807544

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CHARGING ABSORBED POWER

110 W

CHARGING VOLTAGE

12 / 24 V

EFFECTIVE CHARGING CURRENT

9 / 4,5 A

RATED CHARGE CURR. EN60335-2-29

6 / 3 A

MIN. RATED REFERENCE CAPACITY

60 / 30 Ah

MAX RATED REFERENCE CAPACITY

115 / 40 Ah

DIMENSIONS

17 x 25 x 16,5 cm

WEIGHT

3,4 kg

Catalog Image

Instruction Manual

Spare Parts List

POSITIVE CABLE 1,5 MMQ 1 M

WORK CABLE 1,5 MMQ 1 M

COLORADO 40R POSITIVE CLAMP 40A

COLORADO 40B WORK CLAMP 40A

BATTERY CHARGERS FUSES

FUSES 10A 10 PCS

Battery charger for charging free electrolyte batteries (WET) with 12/24V voltage.
Protected against overloads and polarity reversal.
Equipped with ammeter.

CODE

807544

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CHARGING ABSORBED POWER

110 W

CHARGING VOLTAGE

12 / 24 V

EFFECTIVE CHARGING CURRENT

9 / 4,5 A

RATED CHAR.CUR.EN60335-2-29

6 / 3 A

MIN.RATED REFERENCE CAPAC.

60 / 30 Ah

MAX.RATED REFERENCE CAPAC.

115 / 40 Ah

DIMENSIONS (LxWxH)

17 x 25 x 16,5 cm

WEIGHT

3,4 kg

Catalog Image

Instruction Manual

Spare Parts List

POSITIVE CABLE 1,5 MMQ 1 M

123555

WORK CABLE 1,5 MMQ 1 M

123556

COLORADO 40R POSITIVE CLAMP 40A

712623

COLORADO 40B WORK CLAMP 40A

712624

BATTERY CHARGERS FUSES

FUSES 10A 10 PCS

802255
