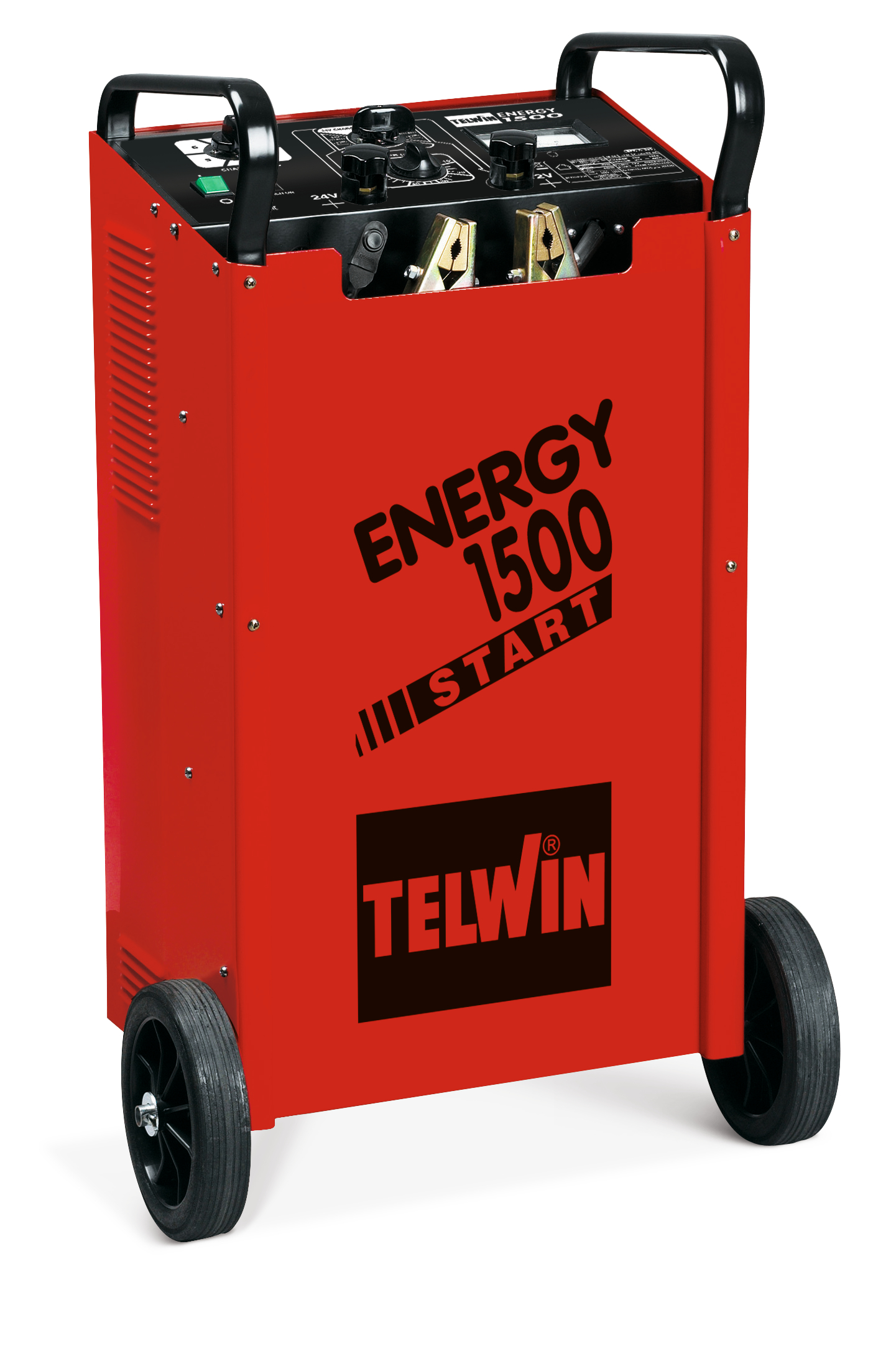

ENERGY 1500 START

ENERGY 1500 START

  • Battery charger and starter for 12/24V WET batteries and rapid cranking of all types of cars, vans, light goods vehicles, excavators, tractors and lorries.
  • Fast (BOOST) charge and rapid cranking.
  • Remote control. Timer to program timed BOOST charge and avoid overloading the battery.
  • Display of charging and cranking current.
  • Protection against overcharging and pole inversion.
  • Battery charger and starter for 12/24V WET batteries and rapid cranking of all types of cars, vans, light goods vehicles, excavators, tractors and lorries.
  • Fast (BOOST) charge and rapid cranking.
  • Remote control. Timer to program timed BOOST charge and avoid overloading the battery.
  • Display of charging and cranking current.
  • Protection against overcharging and pole inversion.
Battery charger and starter for charging free electrolyte batteries (WET) with 12V/24V voltage and starting all kinds of cars, vans, light trucks, earth moving equipment, tractors and trucks.
Features:
- choice of normal charge, quick charge (BOOST), quick start
- timer for quick charge
- remote control
- display of charging and starting current
- protection against overloads and polarity reversal.

CODE

829009

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CHARGE POWER

7 kW

START POWER

44 kW

CHARGING VOLTAGE

12 / 24 V

EFFECTIVE CHARGING CURRENT

150 / 250 A

RATED CHARGE CURR. EN60335-2-29

130 / 220 A

START CURRENT 1V/C EN60335-2-29

1000 / 1300 A

MAX STARTING CURRENT

1700 / 2000 A

MIN. RATED REFERENCE CAPACITY

70 Ah

MAX RATED REFERENCE CAPACITY

2200 / 4000 Ah

ADJUSTMENT POSITIONS

6

DIMENSIONS

38 x 56 x 88,5 cm

WEIGHT

69 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF
BATTERY CHARGERS FUSES

FUSES 300A 10 PCS

802129

Battery charger and starter for charging free electrolyte batteries (WET) with 12V/24V voltage and starting all kinds of cars, vans, light trucks, earth moving equipment, tractors and trucks.
Features:
- choice of normal charge, quick charge (BOOST), quick start
- timer for quick charge
- remote control
- display of charging and starting current
- protection against overloads and polarity reversal.

CODE

829009

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CHARGING ABSORBED POWER

7 kW

STARTING ABSORBED POWER

44 kW

CHARGE AND STARTING VOLTAG.

12 / 24 V

EFFECTIVE CHARGING CURRENT

150 / 250 A

RATED CHAR.CUR.EN60335-2-29

130 / 220 A

START CUR.1V/C EN60335-2-29

1000 / 1300 A

MAX STARTING CURRENT

1700 / 2000 A

MIN.RATED REFERENCE CAPAC.

70 Ah

MAX.RATED REFERENCE CAPAC.

2200 / 4000 Ah

ADJUSTMENT POSITIONS

6

DIMENSIONS (LxWxH)

38 x 56 x 88,5 cm

WEIGHT

69 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

REMOTE CONTROL 6 M

123993

CABLE 50MMQ 3M-WORK CLAMP

713260

CABLE 50MMQ 3M-POSITIVE CLAMP-EYELET Ø10

713162

BATTERY CHARGERS FUSES

FUSES 300A 10 PCS

802129
