ENERGY 1000 START | Telwin

Home Products Charging & Starting Battery Chargers & Starters ENERGY 1000 START

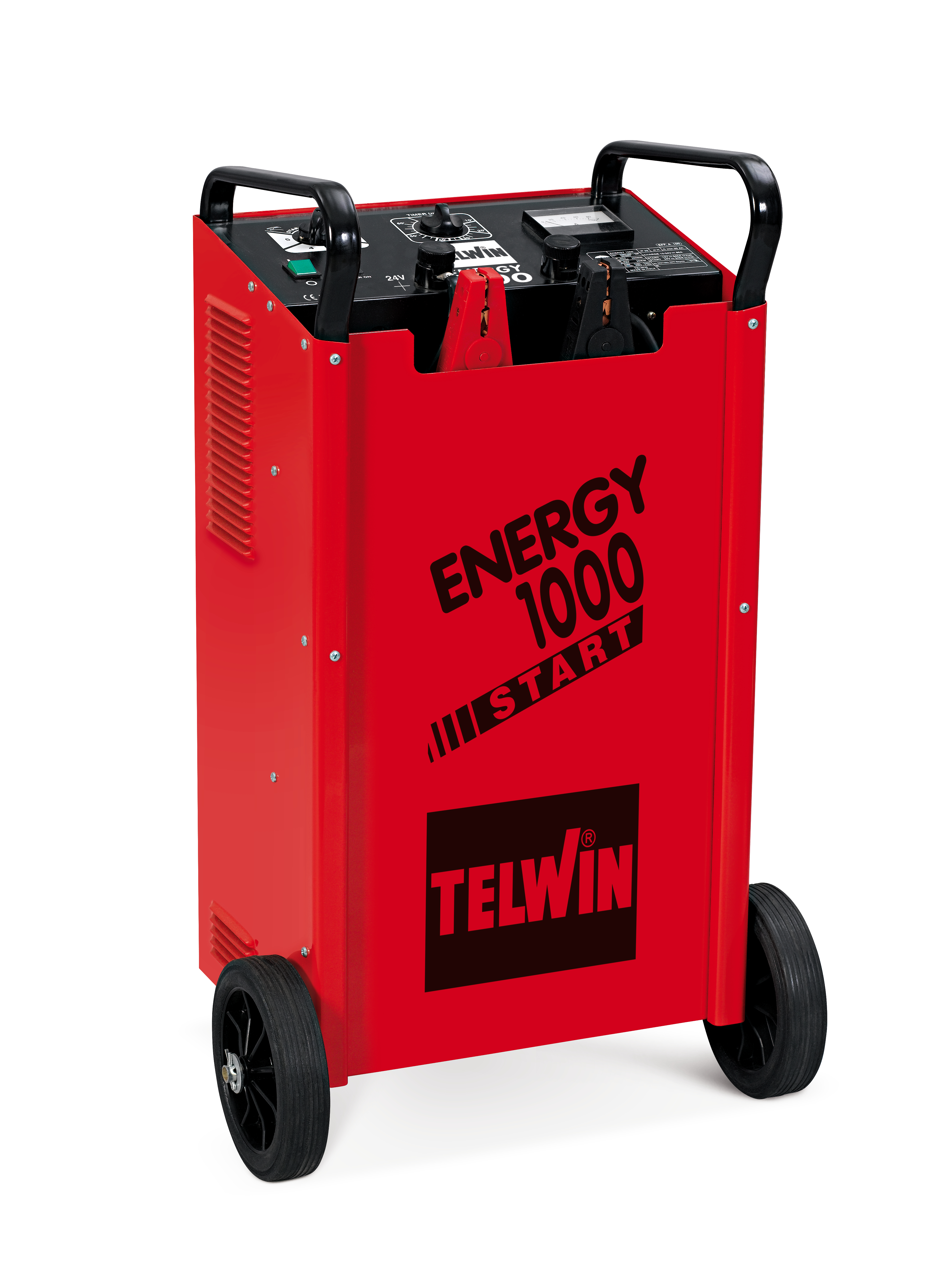

ENERGY 1000 START

ENERGY 1000 START

Download PDF Request Info

Battery charger and starter for 12/24V WET batteries and rapid cranking of all types of cars, vans, light goods vehicles, excavators, tractors and lorries.
Fast (BOOST) charge and rapid cranking.
Remote control. Timer to program timed BOOST charge and avoid overloading the battery.
Display of charging and cranking current.
Protection against overcharging and pole inversion.

Battery charger and starter for 12/24V WET batteries and rapid cranking of all types of cars, vans, light goods vehicles, excavators, tractors and lorries.
Fast (BOOST) charge and rapid cranking.
Remote control. Timer to program timed BOOST charge and avoid overloading the battery.
Display of charging and cranking current.
Protection against overcharging and pole inversion.

Battery charger and starter for charging free electrolyte batteries (WET) with 12V/24V voltage and starting all kinds of cars, vans, light trucks, earth moving equipment, tractors and trucks.
Features:

choice of normal charge, quick charge (BOOST), quick start;
timer for quick charge;
remote control;
display of charging and starting current;
protection against overloads and polarity reversal.

CODE

829008

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CHARGE POWER

2,5 kW

START POWER

20 kW

CHARGING VOLTAGE

12 / 24 V

EFFECTIVE CHARGING CURRENT

100 A

RATED CHARGE CURR. EN60335-2-29

80 A

START CURRENT 1V/C EN60335-2-29

640 A

MAX STARTING CURRENT

1000 A

MIN. RATED REFERENCE CAPACITY

20 Ah

MAX RATED REFERENCE CAPACITY

1600/ 800 Ah

ADJUSTMENT POSITIONS

5

DIMENSIONS

38 x 56 x 88,5 cm

WEIGHT

45 kg

Catalog Image

Instruction Manual

Spare Parts List

CABLE 25 MMQ 3 M

REMOTE CONTROL 6 M

CABLE 25 MMQ 2,5 M

POSITIVE CLAMP (+)

WORK CLAMP

BATTERY CHARGERS FUSES

FUSES 300A 10 PCS

Battery charger and starter for charging free electrolyte batteries (WET) with 12V/24V voltage and starting all kinds of cars, vans, light trucks, earth moving equipment, tractors and trucks.
Features:

choice of normal charge, quick charge (BOOST), quick start;
timer for quick charge;
remote control;
display of charging and starting current;
protection against overloads and polarity reversal.

CODE

829008

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CHARGING ABSORBED POWER

2,5 kW

STARTING ABSORBED POWER

20 kW

CHARGE AND STARTING VOLTAG.

12 / 24 V

EFFECTIVE CHARGING CURRENT

100 A

RATED CHAR.CUR.EN60335-2-29

80 A

START CUR.1V/C EN60335-2-29

640 A

MAX STARTING CURRENT

1000 A

MIN.RATED REFERENCE CAPAC.

20 Ah

MAX.RATED REFERENCE CAPAC.

1600/ 800 Ah

ADJUSTMENT POSITIONS

5

DIMENSIONS (LxWxH)

38 x 56 x 88,5 cm

WEIGHT

45 kg

Catalog Image

Instruction Manual

Spare Parts List

CABLE 25 MMQ 3 M

123467

REMOTE CONTROL 6 M

123993

CABLE 25 MMQ 2,5 M

123456

POSITIVE CLAMP (+)

712025

WORK CLAMP

712026

BATTERY CHARGERS FUSES

FUSES 300A 10 PCS

802129

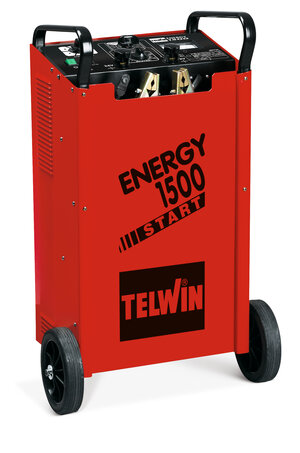

ENERGY 1500 START

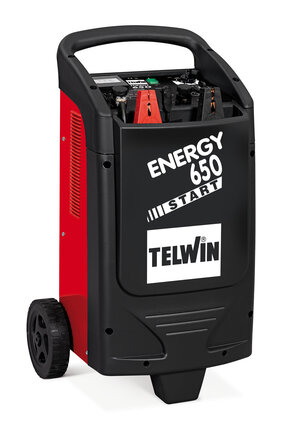

ENERGY 650 START
