TIG (HF or LIFT strike), TIG PULSE and MMA in direct current (DC) inverter welding machine, 220A. With TIG welding accessories.
PULSE and EASY PULSE operation.
THINSPOT advanced utility for easy, rapid and accurate TIG spot welding of thin sheet metal.
VDR device for greater safety in welding operations in damp environments.
Setup for remote controls.
20A programmable to 16A mains fuse.

TIG (HF or LIFT strike), TIG PULSE and MMA in direct current (DC) inverter welding machine, 220A. With TIG welding accessories.
PULSE and EASY PULSE operation.
THINSPOT advanced utility for easy, rapid and accurate TIG spot welding of thin sheet metal.
VDR device for greater safety in welding operations in damp environments.
Setup for remote controls.
20A programmable to 16A mains fuse.

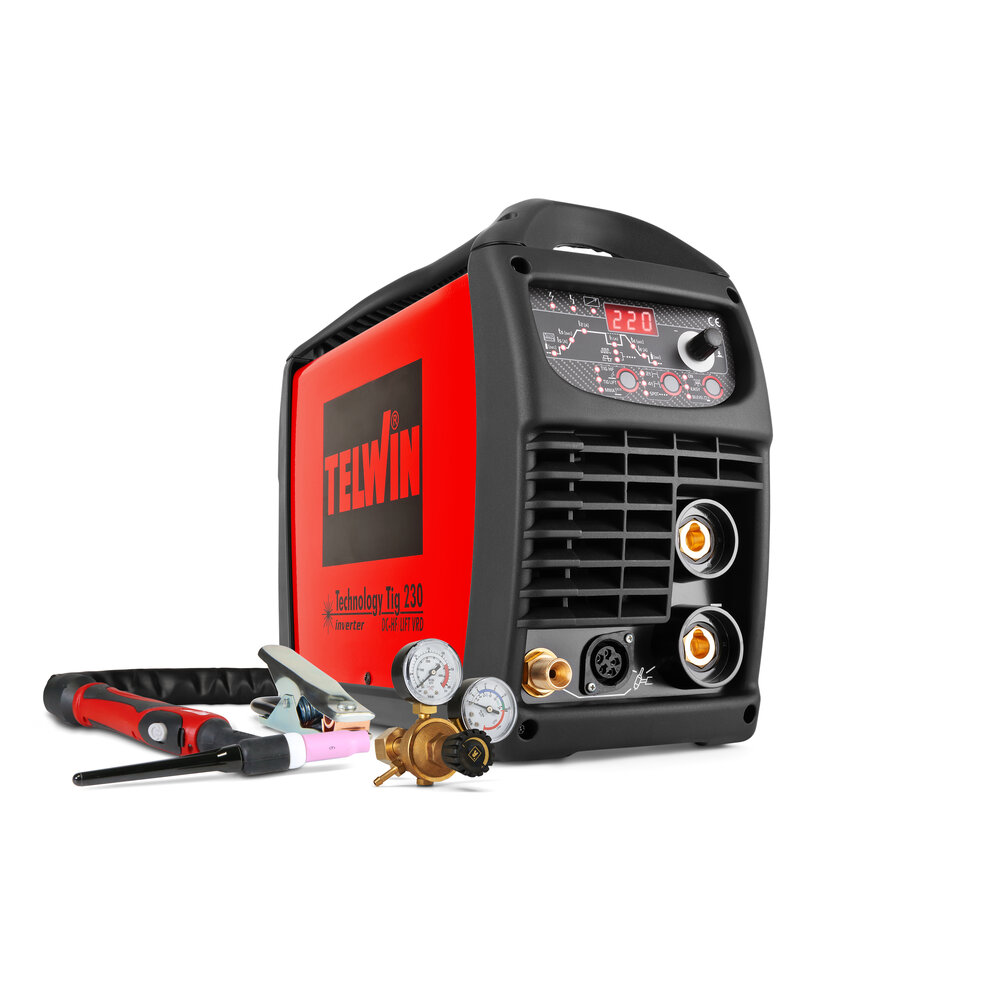

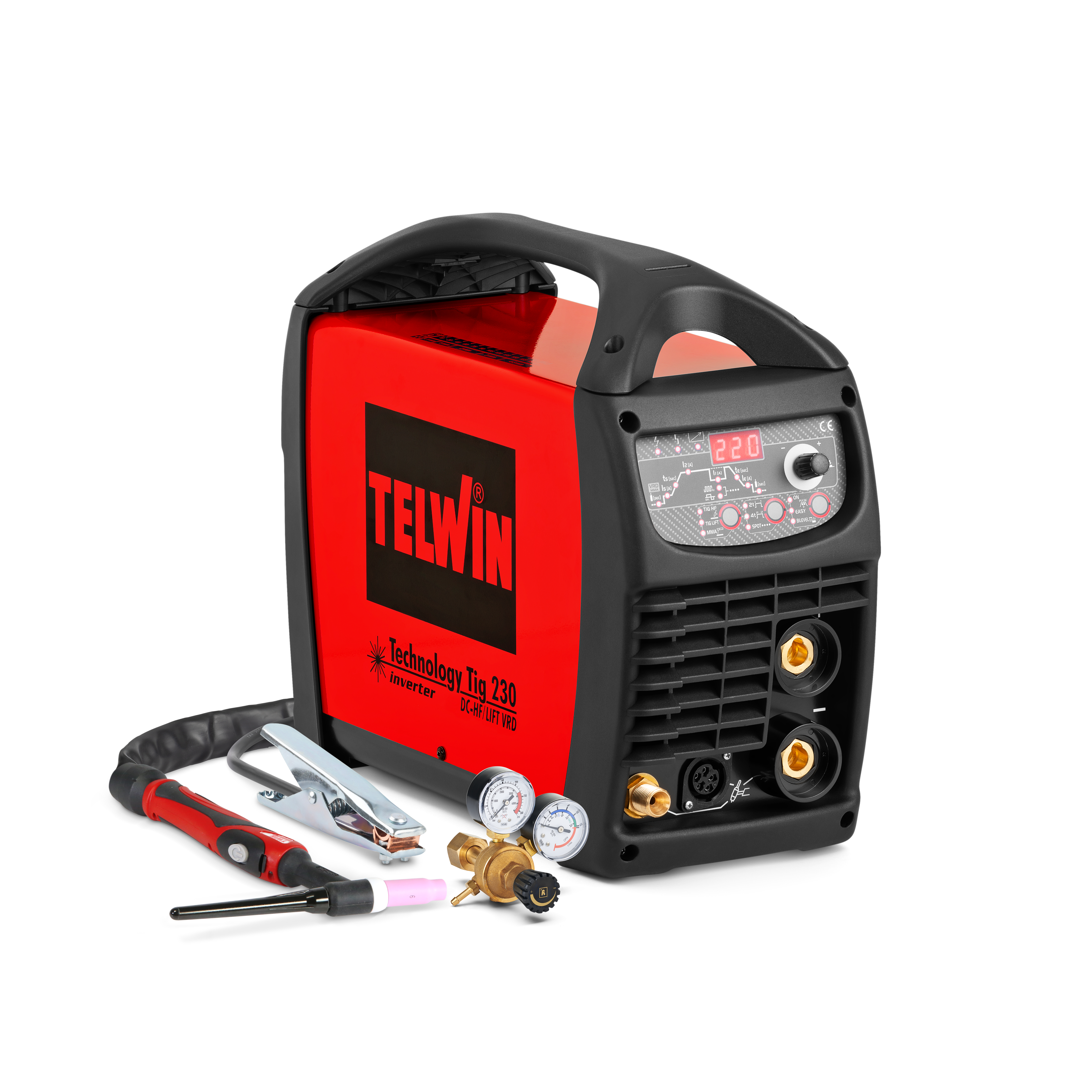

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current (DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys.
Features:

pulse and EASY pulse operation;
TIG regulations: "bi-level", start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency;
THINSPOT function for quick and precise tack welding;
MMA regulations: arc force and hot start;
anti-stick device;
VRD device;
remote control connector;
thermostatic, overvoltage, undervoltage, overcurrent protections.

Complete with TIG welding accessories.

CODE

852055

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 220 A

MAX CURRENT

220 @ 30 % A

DC CURRENT

125 A

MAX NO LOAD VOLTAGE

95 V

MAX ABSORBED CURRENT

36 A

ABSORBED CURRENT AT 60%

26 A

MAX ABSORBED POWER

6 kW

ABSORBED POWER AT 60%

4,1 kW

EFFICIENCY

86 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

43 x 17,6 x 34 cm

WEIGHT

14,75 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

TIG WELDING KIT - ST26

802788

TECHNOLOGY TIG 230 DC

816040

REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336

FOOT REMOTE CONTROL 14 POLES

802017

TIG TORCHES - PREMIUM

REMOTE DEVICE

802810

TROLLEYS AND ACCESSORIES

TROLLEY - ARCTIC

803059

TROLLEY - AMERICA

803084

pulse and EASY pulse operation;
TIG regulations: "bi-level", start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency;
THINSPOT function for quick and precise tack welding;
MMA regulations: arc force and hot start;
anti-stick device;
VRD device;
remote control connector;
thermostatic, overvoltage, undervoltage, overcurrent protections.

Complete with TIG welding accessories.

CODE

852055

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

10 - 220 A

MAX CURRENT DC EN60974-1

220 @ 30 % A

DC CURRENT AT 60%

125 A

MAX NO LOAD VOLTAGE IN DC

95 V

MAX ABSORBED CURRENT

36 A

ABSORBED CURRENT AT 60%

26 A

MAX ABSORBED POWER

6 kW

ABSORBED POWER AT 60%

4,1 kW

EFFICIENCY

86 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

43 x 17,6 x 34 cm

WEIGHT

14,75 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

TIG WELDING KIT - ST26

802788

TECHNOLOGY TIG 230 DC

816040

REMOTE CONTROLS

RC-20 10 M CONTROL 2POT

802336

FOOT REMOTE CONTROL 14 POLES

802017

TIG TORCHES - PREMIUM

REMOTE DEVICE

802810

TROLLEYS AND ACCESSORIES

TROLLEY - ARCTIC

803059

TROLLEY - AMERICA

803084

PULSE & EASY PULSE

Welding in all positions

This model operates in both pulsed (PULSE) and facilitated pulsed (EASY PULSE) modes, ideal for applications on thin thicknesses or easily deformable materials, using optimized minimum current arc strike (HF/LIFT).

Discover more

THINSPOT

ThinSpot is an advanced function that allows spot welding in TIG of thin sheets in an easy, precise and rapid way. Particularly designed for working on stainless steel, it can also be used on Steel and Titanium.
