STARTZILLA 9012 XT

STARTZILLA 9012 XT

Download PDF Request Info

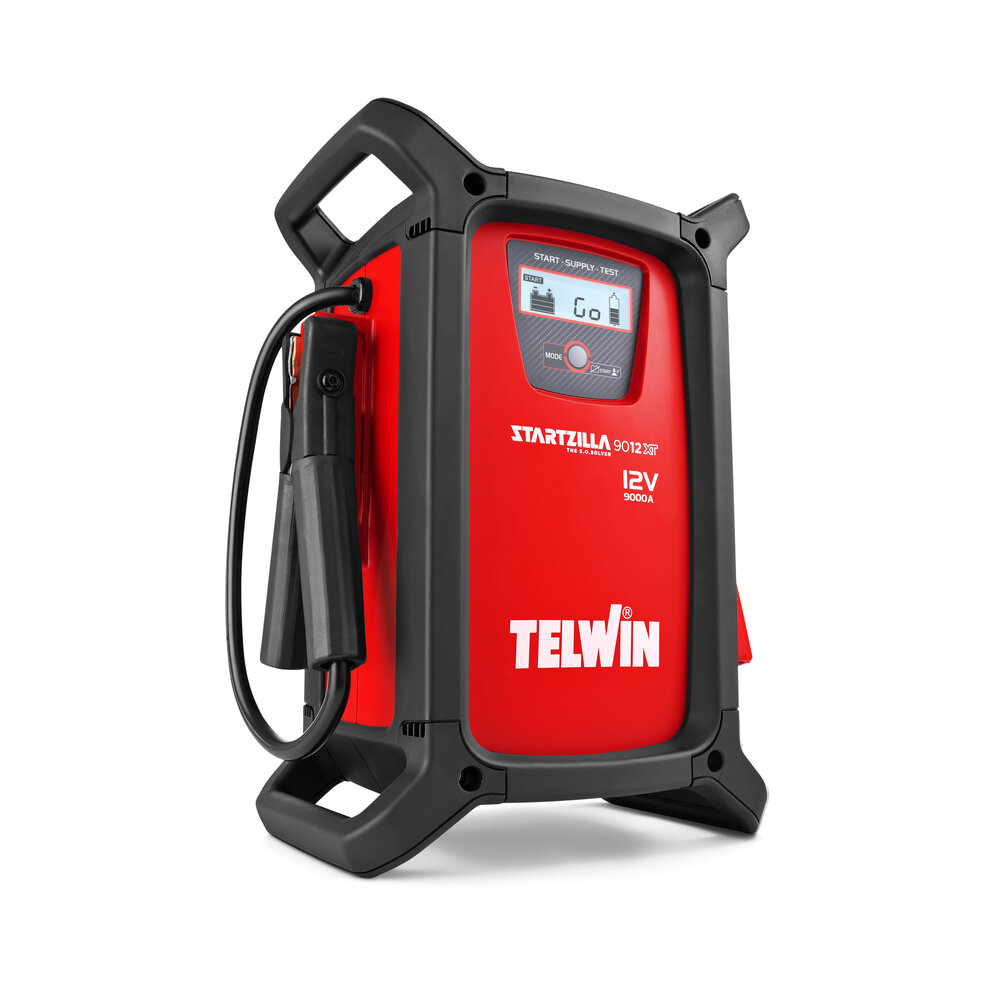

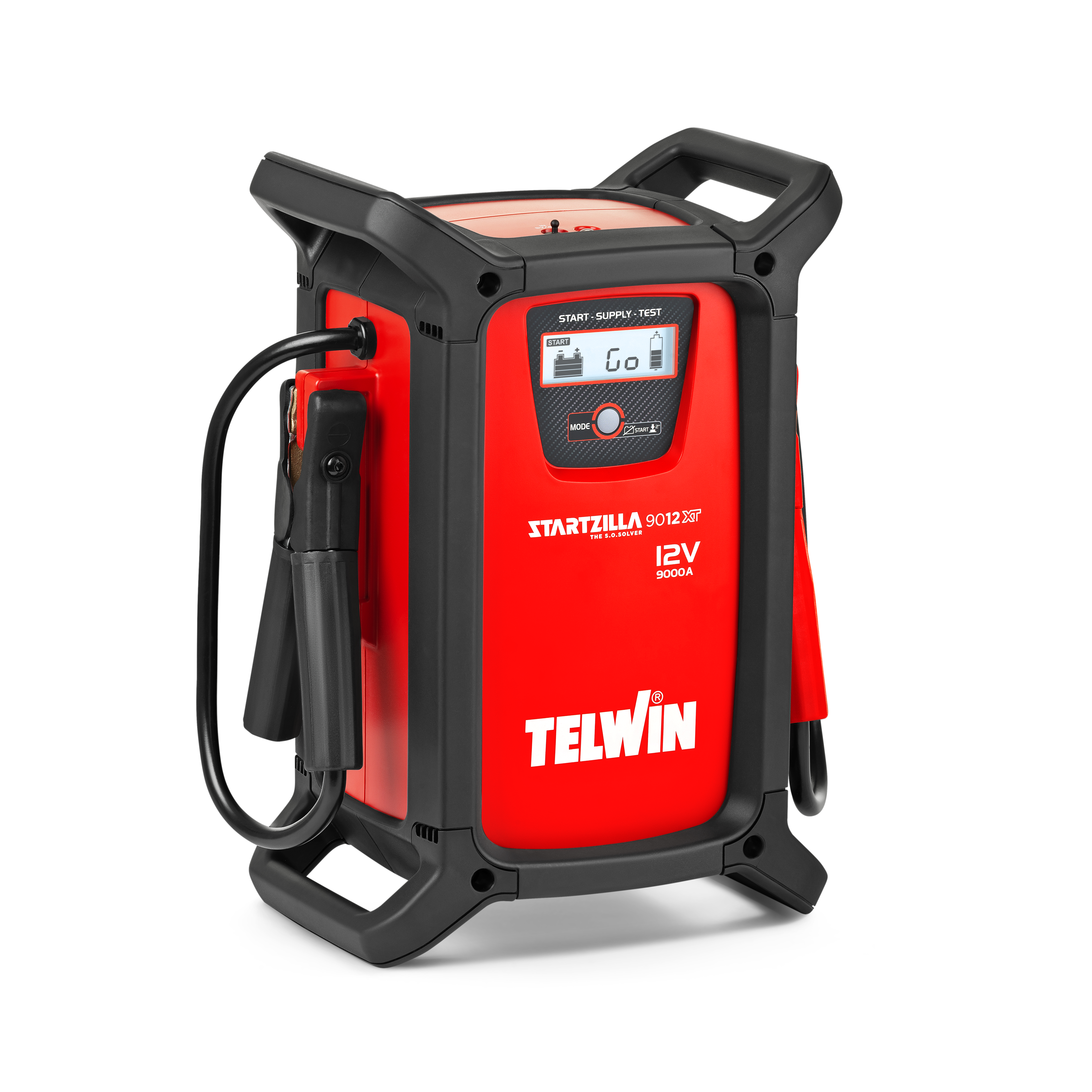

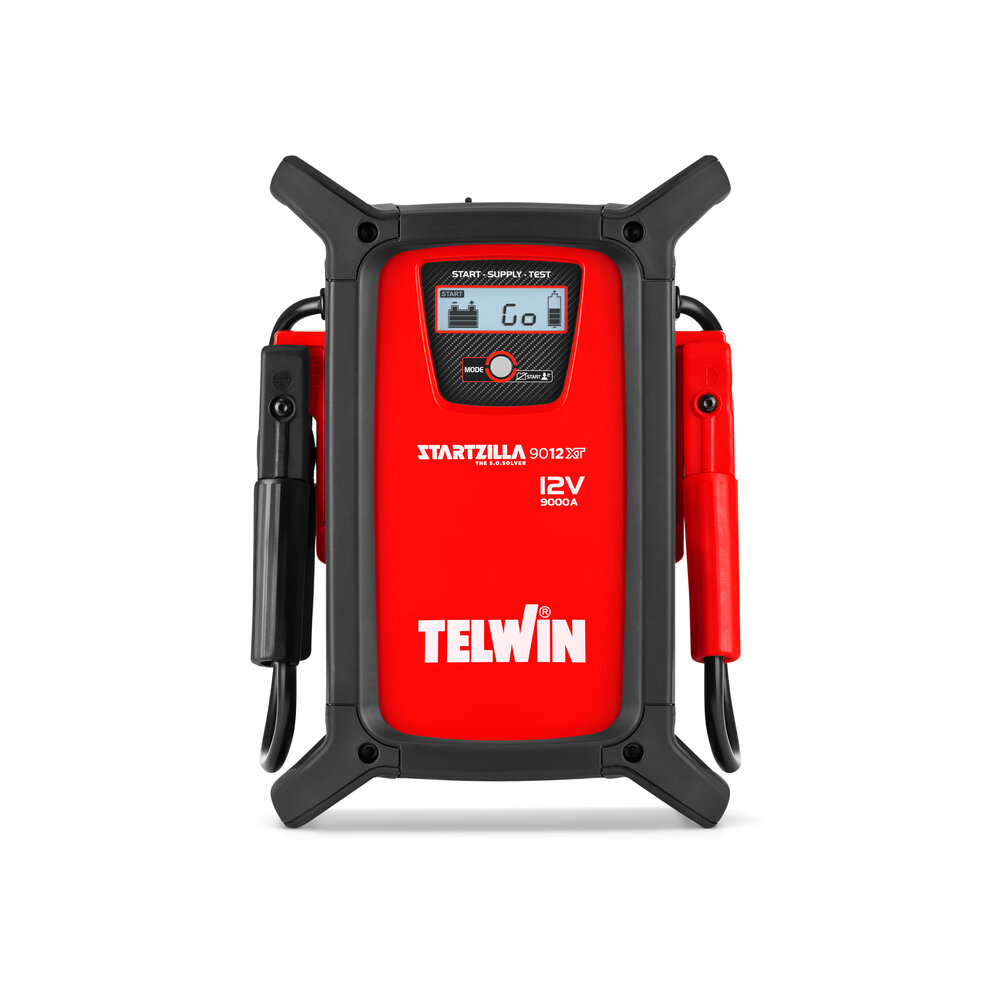

Multifunction electronic starter, power supply and tester, with LiFePO4 lithium battery for 12V starting of cars, vans, small boats, lorries etc.
It performs control tests on the battery: voltage at terminals, starting capacity (CCA) and operational check of the vehicle alternator.
The OVER RIDE function allows starting in emergency conditions when battery is missing (or completely down).
It is a stable and reliable power supply source for battery changes (SUPPLY function).
Robust and compact, it is equipped with high intensity LED light.
Protection against: polarity reversal, short-circuit, overvoltage (incompatible battery voltage), undervoltage (cut-off voltage), overcurrent, overheating, under-temperature, accidental contacts, alternator return currents.

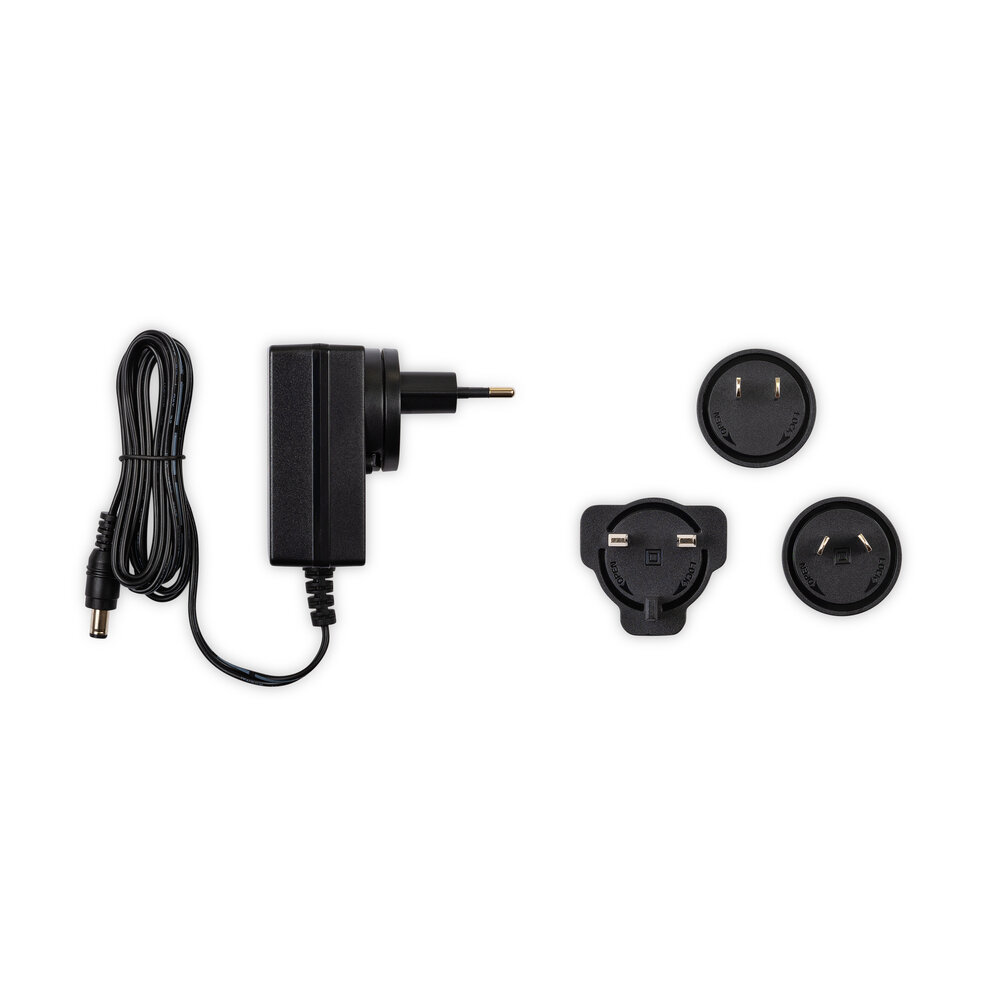

Complete with starting cables and wall charge.

CODE

829526

MAINS VOLTAGE

100 - 240 V

BATTERY CAPACITY

31200 mAh

STARTING VOLTAGE

12 V

MAX STARTING CURRENT

9000 A

.

140 Consigliato Ah

PROTECTION DEGREE

IP43

DIMENSIONS

15,5 x 23,4 x 31,8 cm

WEIGHT

3,96 kg

Catalog Image

Instruction Manual

Spare Parts List

brochure

Multifunction electronic starter, power supply and tester, with LiFePO4 lithium battery for 12V starting of cars, vans, small boats, lorries etc.
It performs control tests on the battery: voltage at terminals, starting capacity (CCA) and operational check of the vehicle alternator.
The OVER RIDE function allows starting in emergency conditions when battery is missing (or completely down).
It is a stable and reliable power supply source for battery changes (SUPPLY function).
Robust and compact, it is equipped with high intensity LED light.
Protection against: polarity reversal, short-circuit, overvoltage (incompatible battery voltage), undervoltage (cut-off voltage), overcurrent, overheating, under-temperature, accidental contacts, alternator return currents.
Complete with starting cables and wall charge.

CODE

829526

CHARGE MAINS VOLTAGE 1ph

100 - 240 V

BATTERY CAPACITY

31200 mAh

STARTING VOLTAGE

12 V

MAX STARTING CURRENT

9000 A

.

140 Consigliato Ah

PROTECTION DEGREE

IP43

DIMENSIONS (LxWxH)

15,5 x 23,4 x 31,8 cm

WEIGHT

3,96 kg

Catalog Image

Instruction Manual

Spare Parts List

brochure
