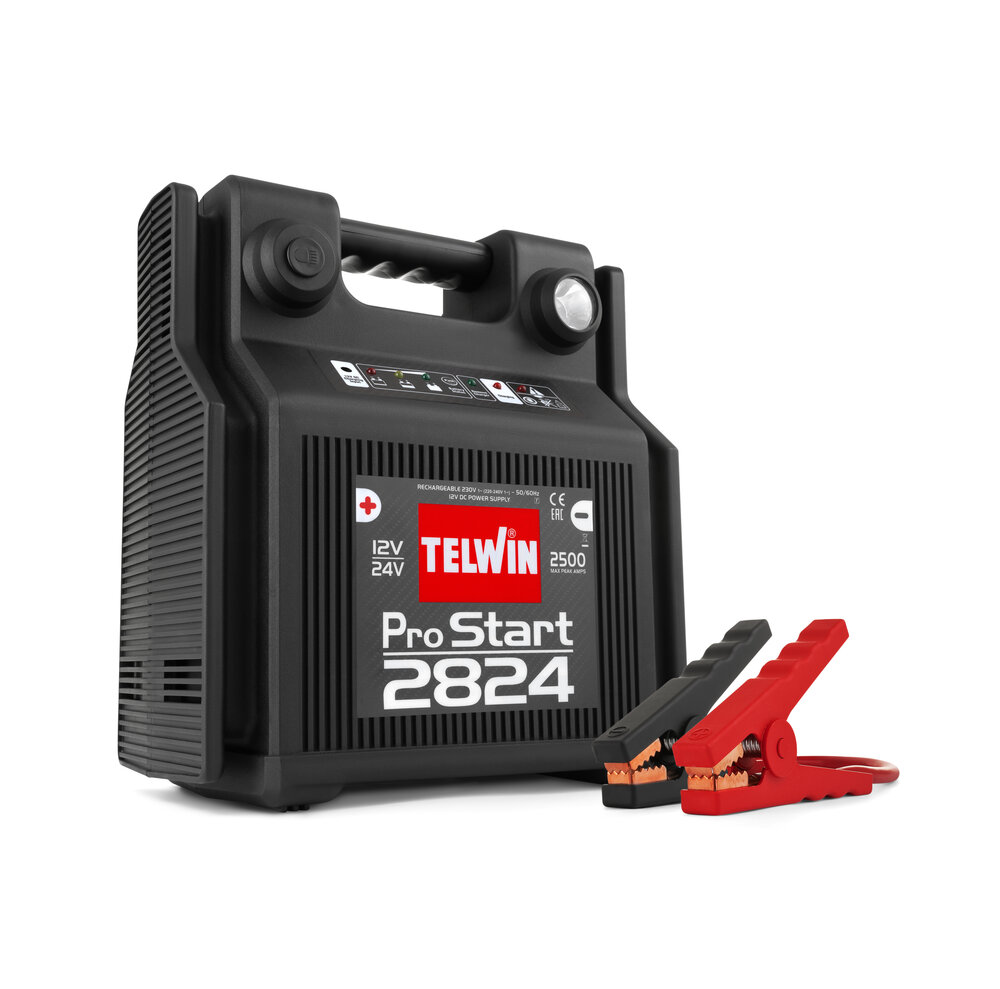

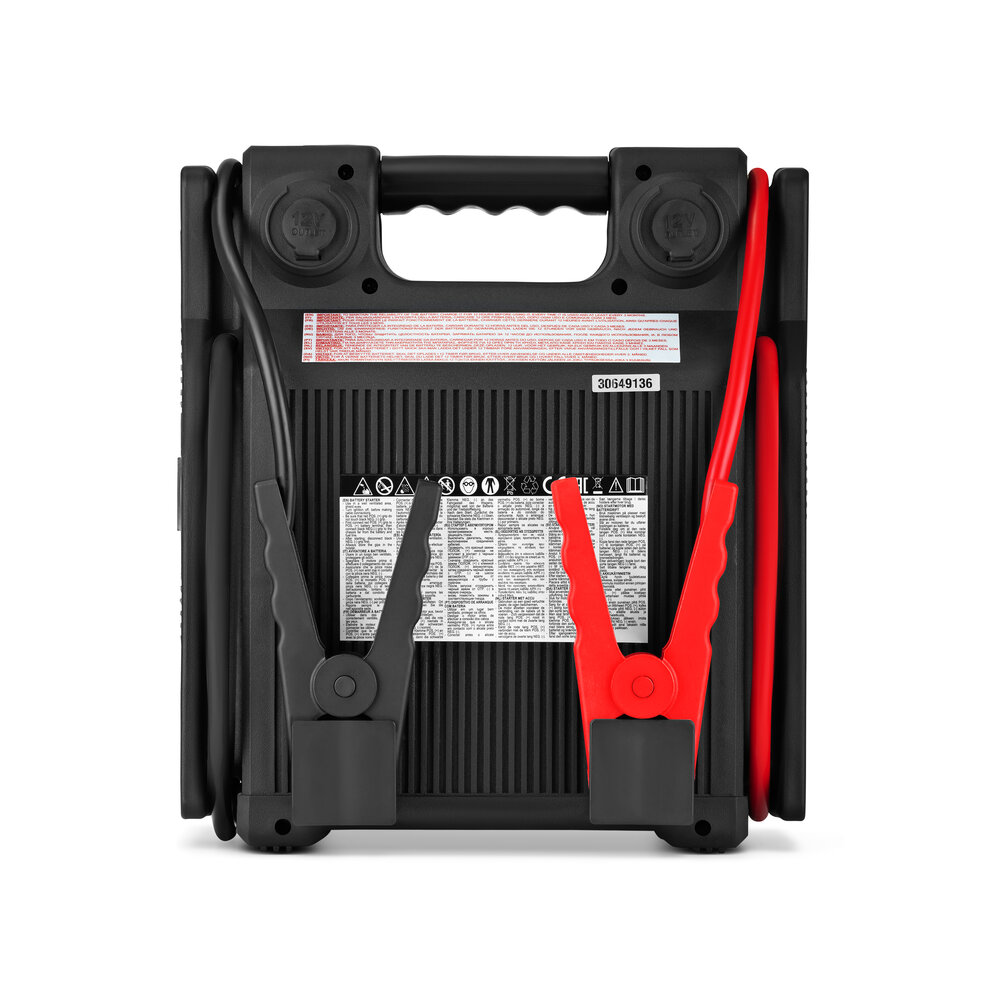

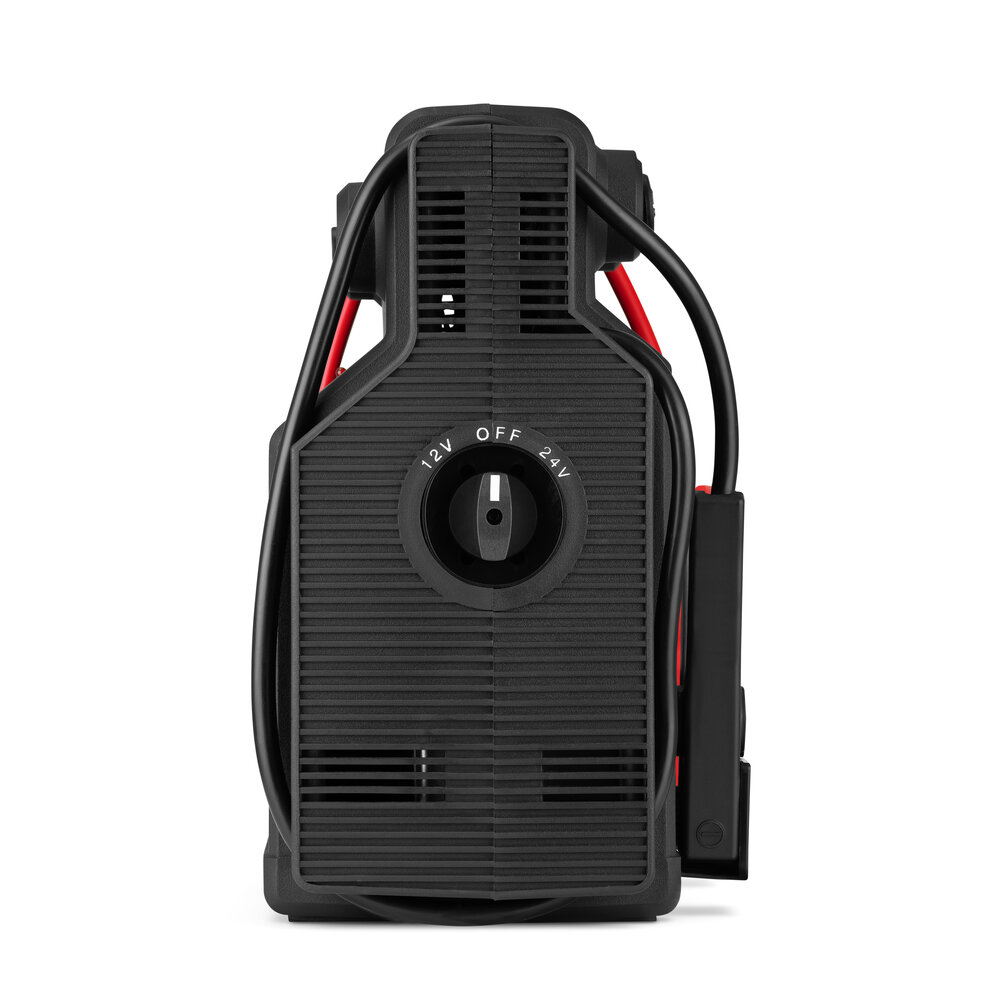

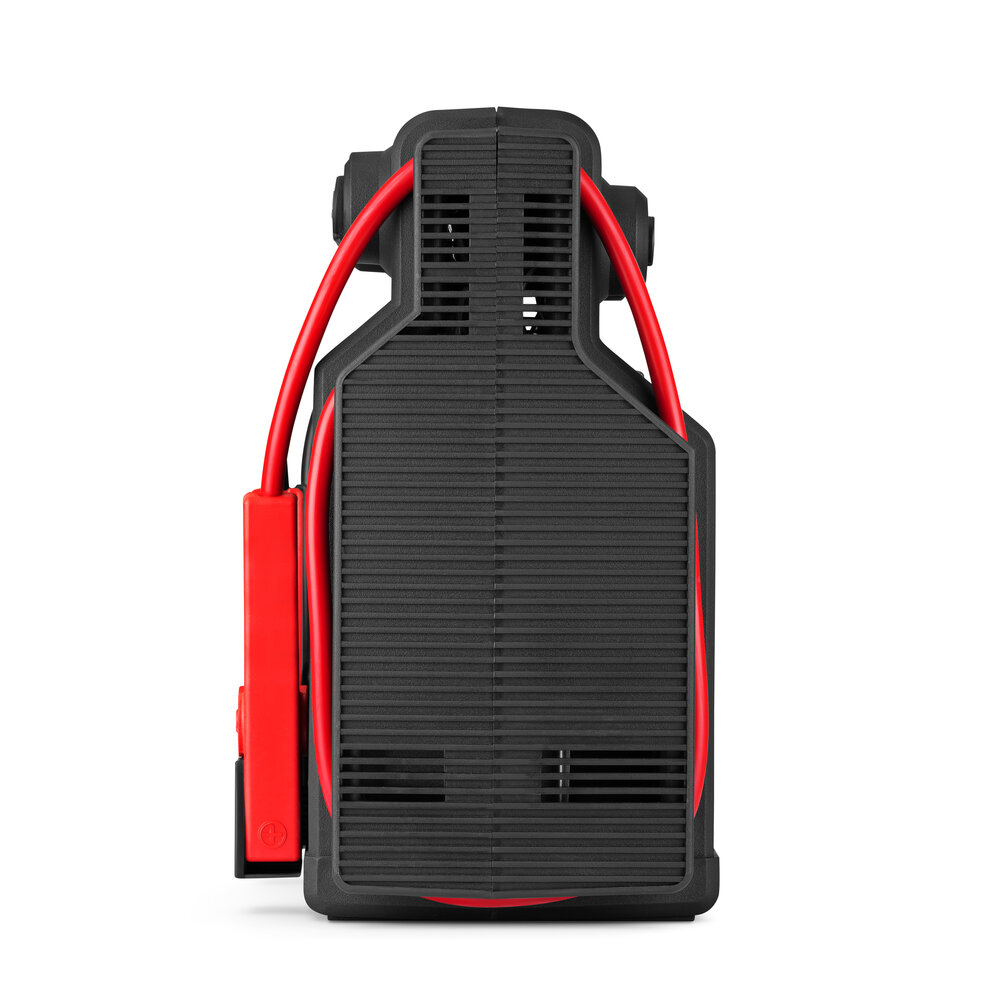

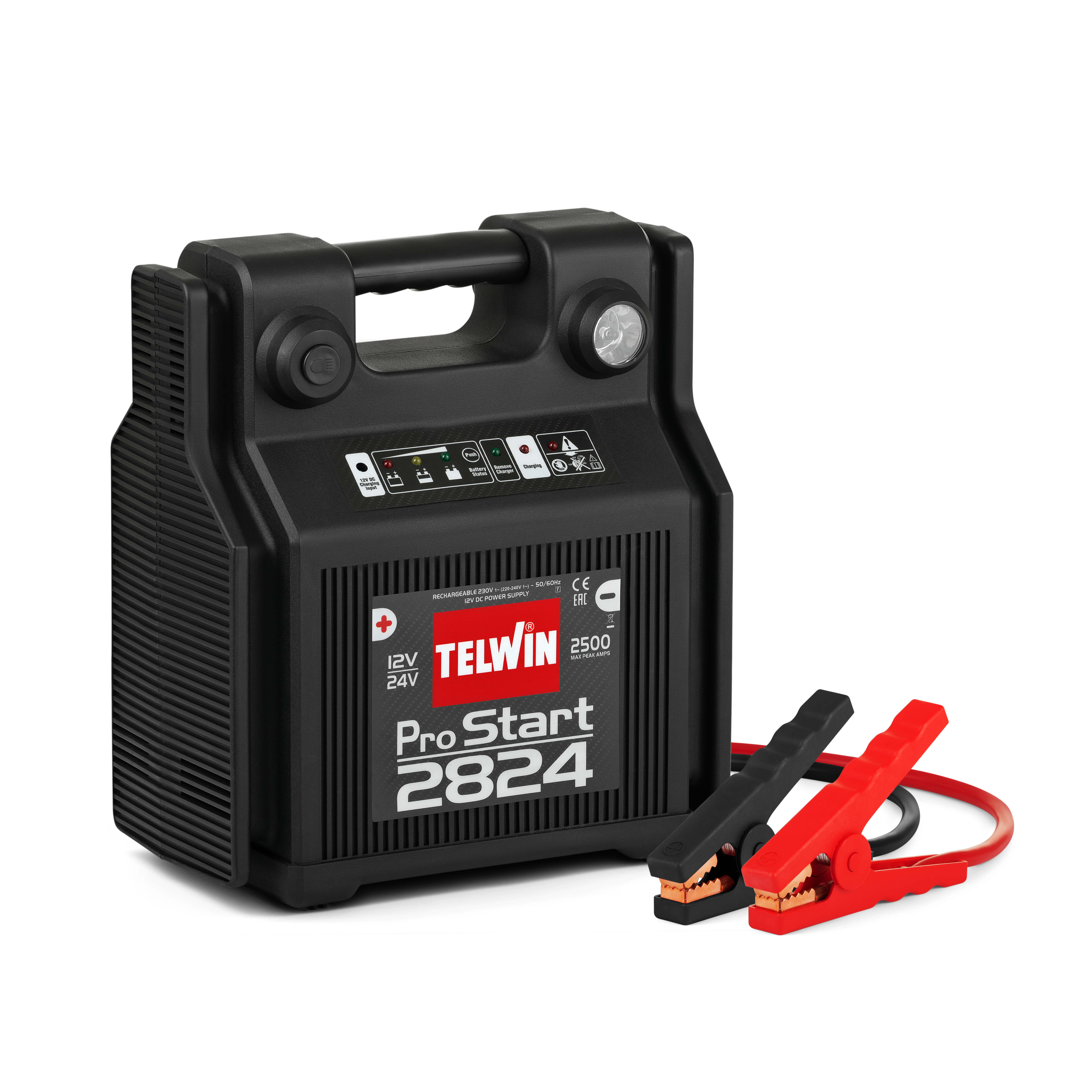

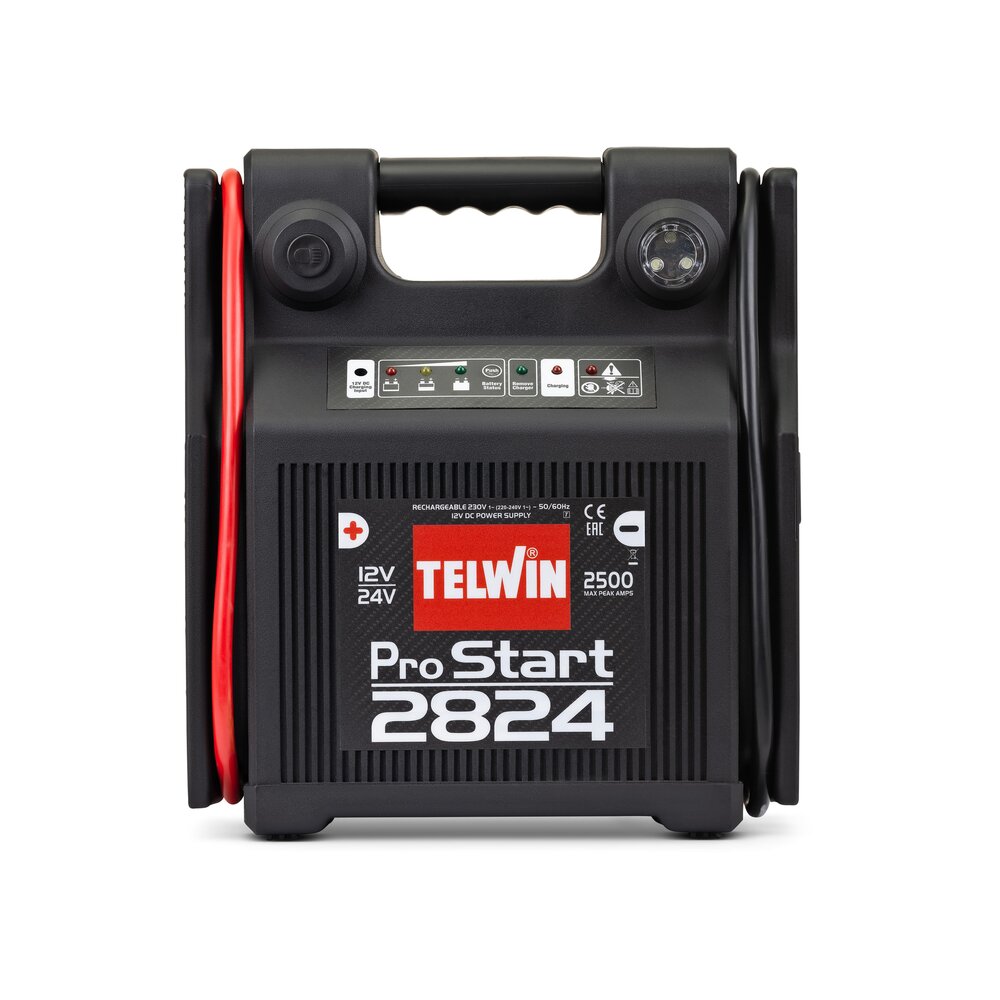

PRO START 2824

PRO START 2824

  • Portable starter for 12/24V batteries. 2500A max current.
  • Connected to the cigarette lighter of the vehicle, it powers all the circuits in battery changes. 12V source of energy in the event of an emergency.
  • Safety switch for cranking, acoustic/light alarm to protect against pole inversion, led for charge status and control of the battery being charged.
  • It is charged using the specific power supply unit, connected to the mains voltage, or using the vehicle cigarette light socket.
  • High efficiency led for use as emergency light.
  • Portable starter for 12/24V batteries. 2500A max current.
  • Connected to the cigarette lighter of the vehicle, it powers all the circuits in battery changes. 12V source of energy in the event of an emergency.
  • Safety switch for cranking, acoustic/light alarm to protect against pole inversion, led for charge status and control of the battery being charged.
  • It is charged using the specific power supply unit, connected to the mains voltage, or using the vehicle cigarette light socket.
  • High efficiency led for use as emergency light.
Battery-powered starter suitable for 12V/24V starting of cars, vans, boats, agricultural vehicles, power sources etc. When connected to the cigar-lighter outlet it maintains the voltage on all circuits during battery changes and is also a 12V power source for use in emergencies.
Fit with a safety switch for starting, it does not damage the electronics of the vehicle and allows for a large number of starting operations before being recharged.
PRO START 2824 can be recharged using the special power supply, connected to the mains network, or using the cigar-lighter outlet of the vehicle (for the safeguard of the battery, charge for 12 hours before use, charge again after each use and every 3 months in any case).
Features:
- safety switch
- overload protection/polarity reversal protection acoustic/luminous alarm
- high efficiency led lamp
- battery charge status led
- battery charging status led
- 2 x 12V jack sockets
- cable-holder pocket.

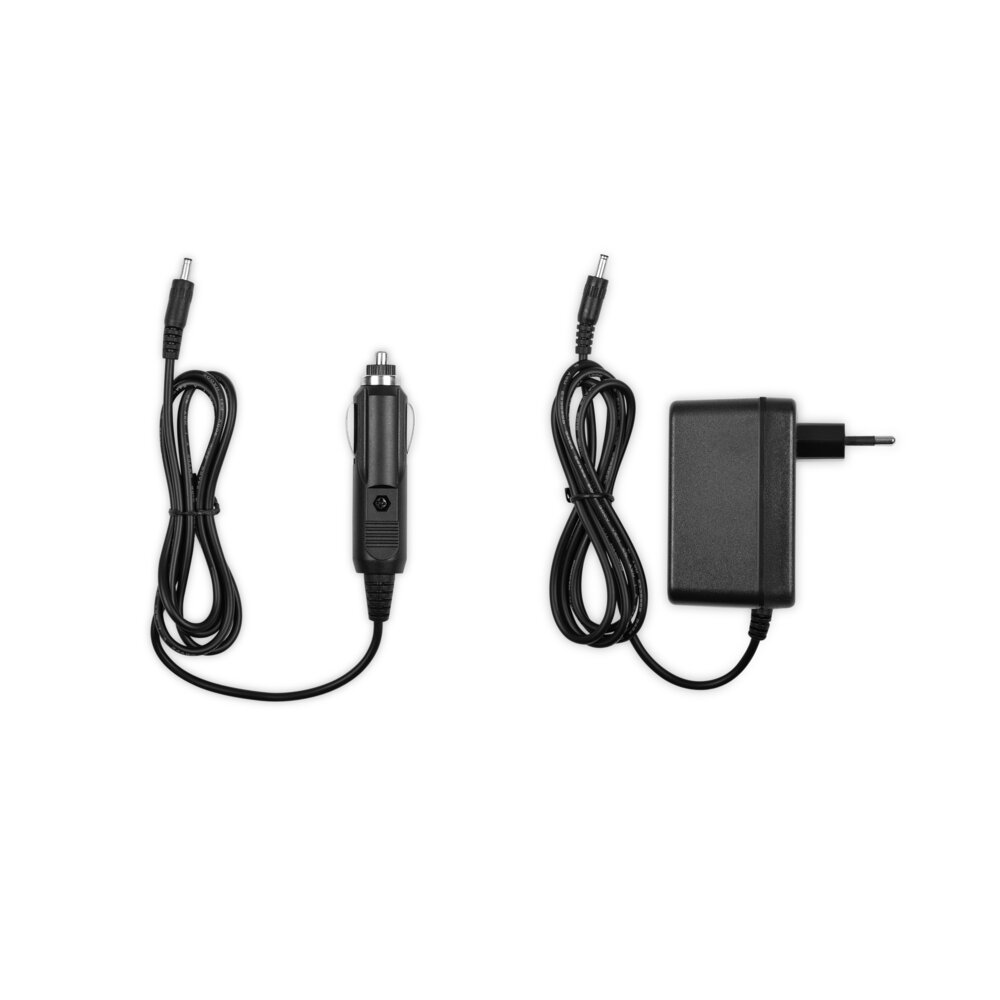

Complete with: 230V AC 12V DC power adaptor, positive-negative cables with clamps, high efficiency lamp, double jack cable.

CODE

829517

MAINS VOLTAGE

230 V

CONVERTER -AC OUTPUT FREQUENCY

50 / 60 Hz

STARTING VOLTAGE

12 / 24 V

BATTERY CAPACITY

44 / 22 Ah

STARTING CURRENT

800 A

MAX STARTING CURRENT

2500 A

DIMENSIONS

20,5 x 33,5 x 36 cm

WEIGHT

15,2 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Battery-powered starter suitable for 12V/24V starting of cars, vans, boats, agricultural vehicles, power sources etc. When connected to the cigar-lighter outlet it maintains the voltage on all circuits during battery changes and is also a 12V power source for use in emergencies.
Fit with a safety switch for starting, it does not damage the electronics of the vehicle and allows for a large number of starting operations before being recharged.
PRO START 2824 can be recharged using the special power supply, connected to the mains network, or using the cigar-lighter outlet of the vehicle (for the safeguard of the battery, charge for 12 hours before use, charge again after each use and every 3 months in any case).
Features:
- safety switch
- overload protection/polarity reversal protection acoustic/luminous alarm
- high efficiency led lamp
- battery charge status led
- battery charging status led
- 2 x 12V jack sockets
- cable-holder pocket.
Complete with: 230V AC 12V DC power adaptor, positive-negative cables with clamps, high efficiency lamp, double jack cable.

CODE

829517

CHARGE MAINS VOLTAGE 1ph

230 V

CHARGE MAINS FREQUENCY

50 / 60 Hz

STARTING VOLTAGE

12 / 24 V

BATTERY CAPACITY

44 / 22 Ah

STARTING CURRENT

800 A

MAX STARTING CURRENT

2500 A

DIMENSIONS (LxWxH)

20,5 x 33,5 x 36 cm

WEIGHT

15,2 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

POWER SUPPLY

169692
