MASTERMIG 405i BASE

New
Add to comparison

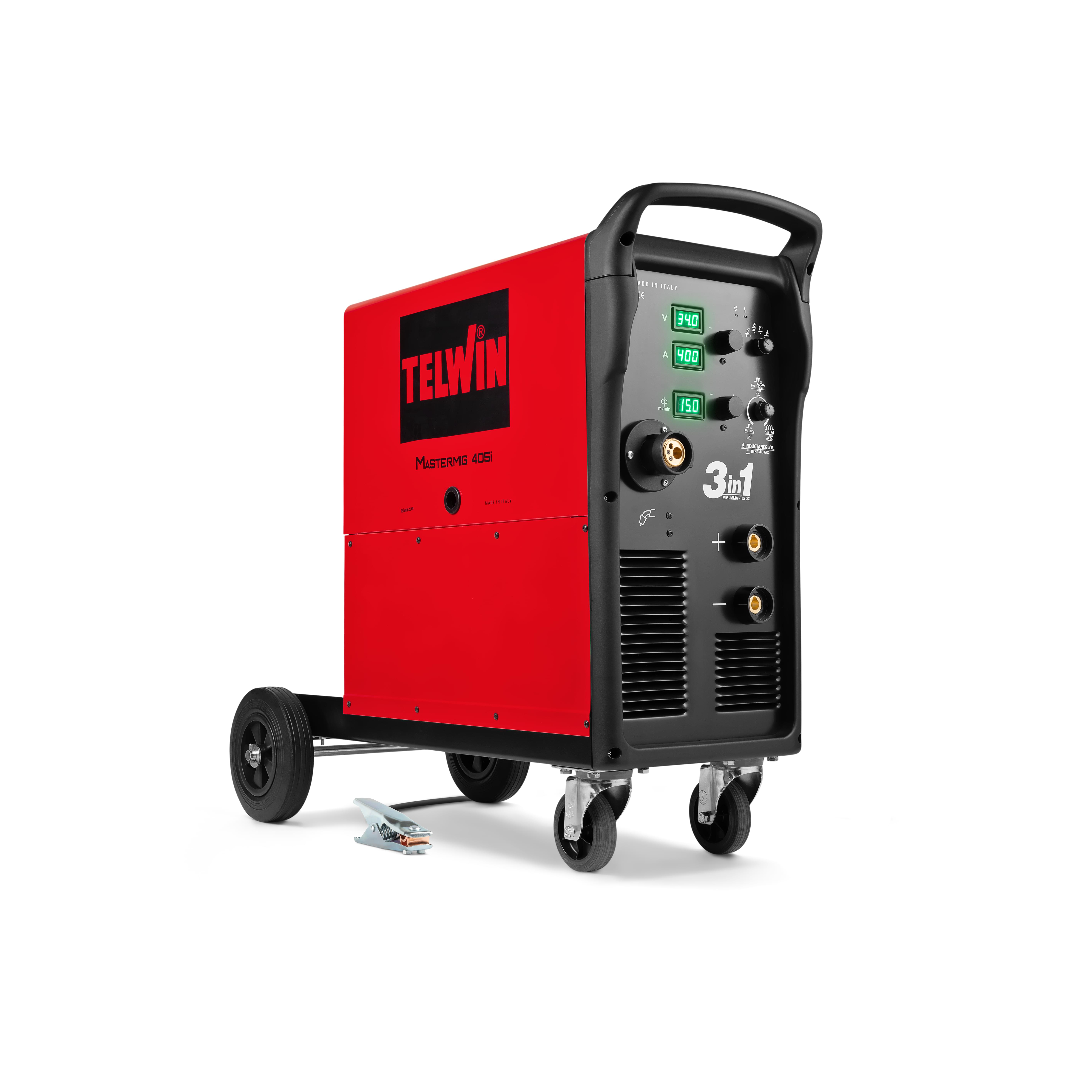

MASTERMIG 405i BASE

Download PDF Request Info
  • Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA and TIG DC-Lift) with 4-roller wire feeder, 400A. 3ph 230/400V power supply.
  • Dynamic display of set values.
  • MIG-MAG welding in 2/4 times. Reactance adjustment.
  • Arc Force and Hot Start synergic adjustment according to the type of electrode used. Anti-stick device.
  • Thermostatic, overvoltage (+15%), undervoltage (-25%), overcurrent, motor generator protection.
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
  • Strong, resistant to impact and dust; reduced weight and size. High energy savings.
  • Multiprocess inverter welding machine (MIG-MAG/FLUX gas shielded/BRAZING/MMA and TIG DC-Lift) with 4-roller wire feeder, 400A. 3ph 230/400V power supply.
  • Dynamic display of set values.
  • MIG-MAG welding in 2/4 times. Reactance adjustment.
  • Arc Force and Hot Start synergic adjustment according to the type of electrode used. Anti-stick device.
  • Thermostatic, overvoltage (+15%), undervoltage (-25%), overcurrent, motor generator protection.
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
  • Strong, resistant to impact and dust; reduced weight and size. High energy savings.

MIG-MAG/FLUX gas shielded/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine with 4 rolls wire feeder.
Flexible use with various materials (steel, stainless steel, high strength steel, aluminium, galvanised sheet metal) and wide variety of application fields (sheet metal, maintenance, installation, bodyworks, etc..).

Values setting and displaying of welding progress of the parameters on display.

Set for MIG-MAG welding in 2/4 strokes with reactance adjustment; TIG DC-Lift; MMA.

Features:

  • Robust construction;
  • Reduced weight and dimensions;
  • High energy saving;
  • Display for dynamic display of set values;

MIG-MAG

  • 2/4 strokes operation selection;
  • Electronic reactance adjustment;

MMA

  • Synergic adjustment of Arc Force and Hot Start according to the type of electrode in use;
  • Anti-stick device;

TIG

  • DC LIFT striking and display of welding voltage and current.

Protections: thermostatic, overvoltage (+15%), undervoltage(-25%), overcurrent, engine driven generator (+/-15%).

CODE

816886

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE

82 / 77 V

CURRENT CONTROL RANGE DC

20 - 320 / 20 - 400 A

MAX CURRENT DC EN60974-1

300 @ 40% / 400 @ 40% A

DC CURRENT

240 / 300 A

MAX ABSORBED CURRENT

38 / 31 A

ABSORBED CURRENT AT 60%

27 / 21 A

MAX ABSORBED POWER

11 / 16 kW

ABSORBED POWER AT 60%

7,9 / 10,8 kW

EFFICIENCY

89 %

POWER FACTOR

0,74

D. USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1,6 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,6 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDING WIRE DIAM.

1 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP22

DIMENSIONS

92 x 46 x 80 cm

WEIGHT

41,82 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

MIG-MAG/FLUX gas shielded/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine with 4 rolls wire feeder.
Flexible use with various materials (steel, stainless steel, high strength steel, aluminium, galvanised sheet metal) and wide variety of application fields (sheet metal, maintenance, installation, bodyworks, etc..).

Values setting and displaying of welding progress of the parameters on display.

Set for MIG-MAG welding in 2/4 strokes with reactance adjustment; TIG DC-Lift; MMA.

Features:

  • Robust construction;
  • Reduced weight and dimensions;
  • High energy saving;
  • Display for dynamic display of set values;

MIG-MAG

  • 2/4 strokes operation selection;
  • Electronic reactance adjustment;

MMA

  • Synergic adjustment of Arc Force and Hot Start according to the type of electrode in use;
  • Anti-stick device;

TIG

  • DC LIFT striking and display of welding voltage and current.

Protections: thermostatic, overvoltage (+15%), undervoltage(-25%), overcurrent, engine driven generator (+/-15%).

CODE

816886

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE IN DC

82 / 77 V

CURRENT RANGE IN DC

20 - 320 / 20 - 400 A

MAX CURRENT DC EN60974-1

300 @ 40% / 400 @ 40% A

DC CURRENT AT 60%

240 / 300 A

MAX ABSORBED CURRENT

38 / 31 A

ABSORBED CURRENT AT 60%

27 / 21 A

MAX ABSORBED POWER

11 / 16 kW

ABSORBED POWER AT 60%

7,9 / 10,8 kW

EFFICIENCY

89 %

POWER FACTOR(cosphi) (cosphi)

0,74

D.USABLE ELECTRODES IN DC

1,6 - 8 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1,6 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1,6 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,6 mm

FLUX CORED WELDI.WIRE DIA.

1 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP22

DIMENSIONS (LxWxH)

92 x 46 x 80 cm

WEIGHT

41,82 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K"

742576

FEED ROLL 4R 1,0FE-1,2FE "P-K"

742366

TORCH HOOK

644444

WORK CLAMP + CABLE 35MMQ 3M AX50

804217
