POWER UP 1300

Home Products Charging & Starting Power station POWER UP 1300

New

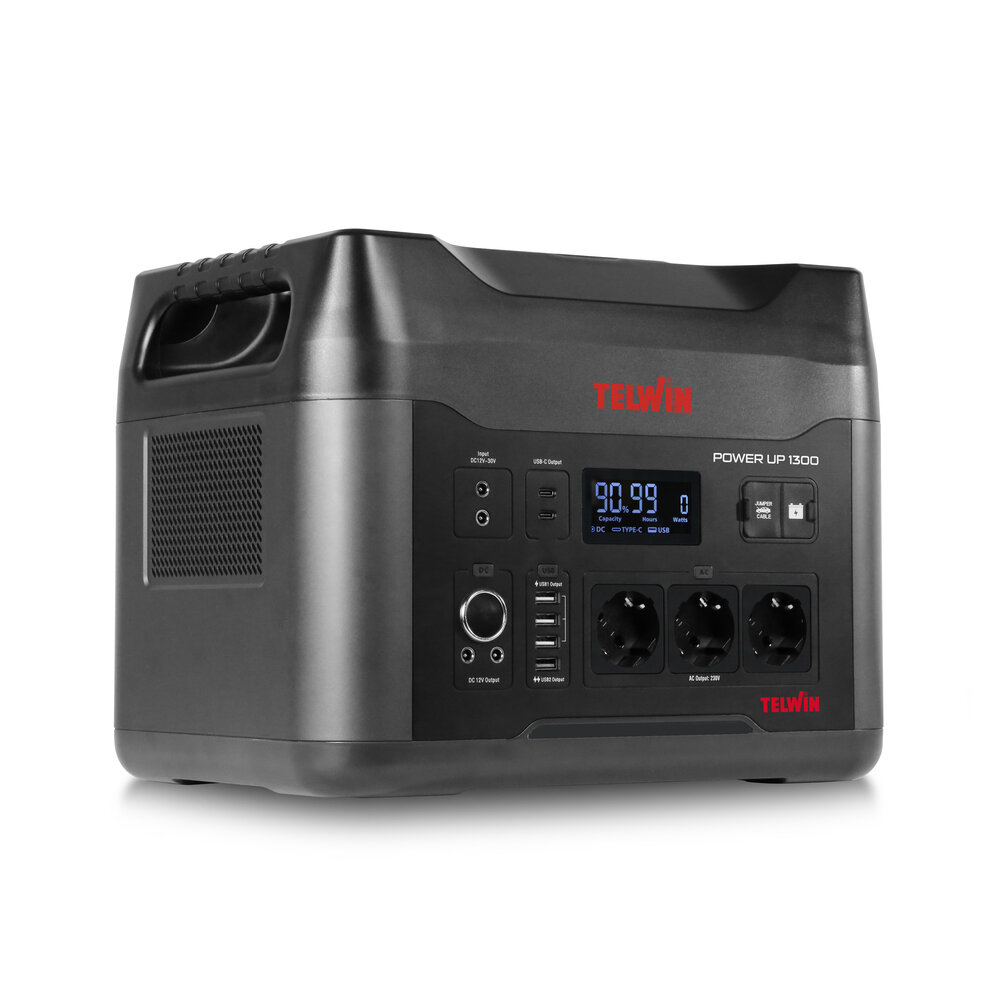

POWER UP 1300

Download PDF Request Info

Pure sine wave power station equipped with a powerful 1280 Wh LiFe PO4 lithium battery.

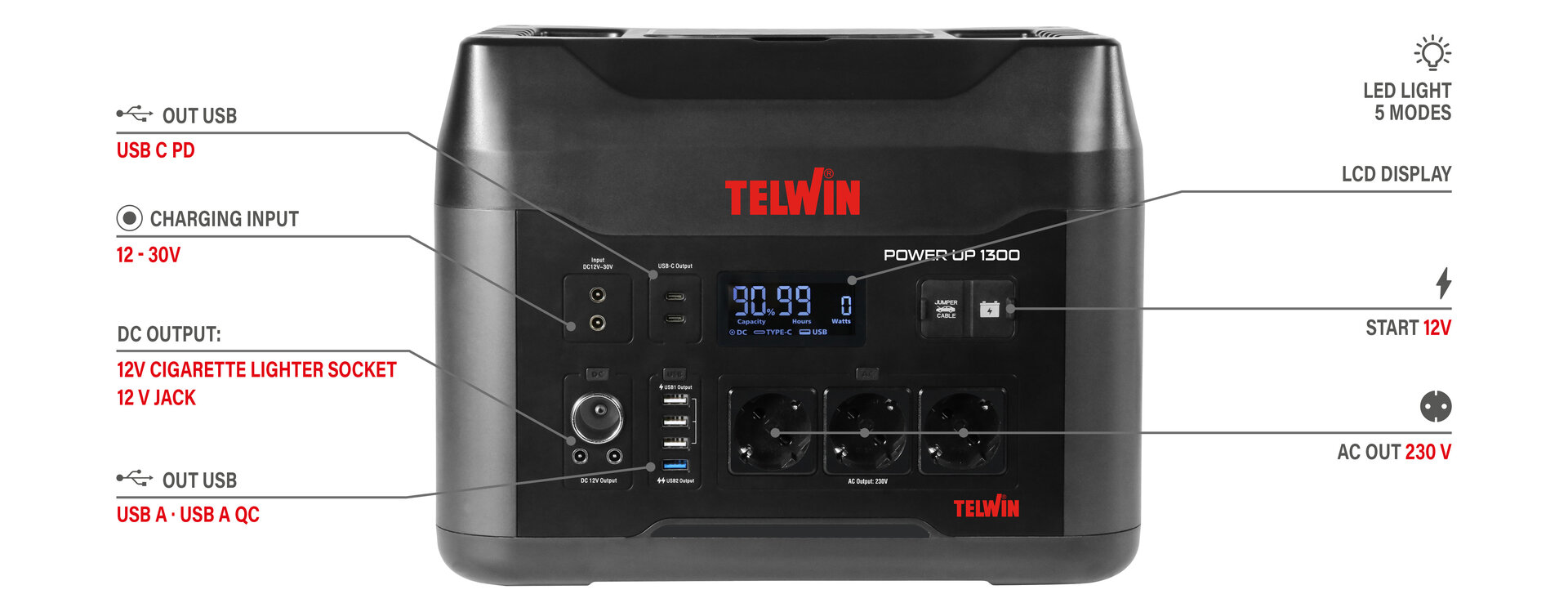

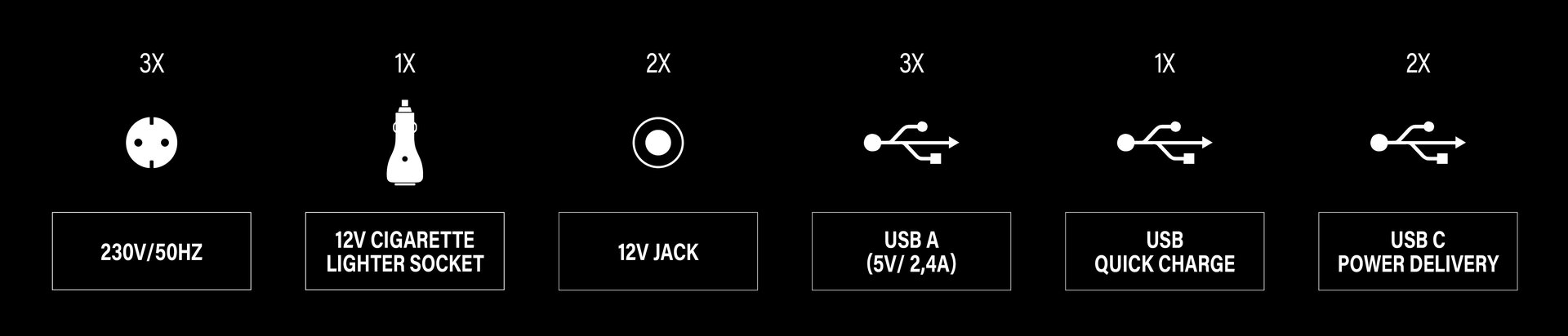

It powers and charge electrical and electronic devices via outputs: 3 USB A (5V/ 2.4A) and 1 USB Quick Charge (18W/ 5V,9V,12V); 2 USB C Power Delivery (100W); 1 12V output (cigarette lighter socket); 2 12V jack outputs; 3 220V/ 50HZ sockets.
LCD display showing battery charge percentage, operating hours and power consumption of each active output.
LED light (230 lumens) with 5 operating modes: fixed (low, medium, high intensity); intermittent; SOS.
DC socket for charging via power supply unit or solar panel.
12V starter (1000 A start A max).
Capacity can be expanded by connection to an external battery.
Compact and transportable. Equipped with cable with cigarette lighter plug and power supply unit.

Pure sine wave power station equipped with a powerful 1280 Wh LiFe PO4 lithium battery.
It powers and charge electrical and electronic devices via outputs: 3 USB A (5V/ 2.4A) and 1 USB Quick Charge (18W/ 5V,9V,12V); 2 USB C Power Delivery (100W); 1 12V output (cigarette lighter socket); 2 12V jack outputs; 3 220V/ 50HZ sockets.
LCD display showing battery charge percentage, operating hours and power consumption of each active output.
LED light (230 lumens) with 5 operating modes: fixed (low, medium, high intensity); intermittent; SOS.
DC socket for charging via power supply unit or solar panel.
12V starter (1000 A start A max).
Capacity can be expanded by connection to an external battery.
Compact and transportable. Equipped with cable with cigarette lighter plug and power supply unit.

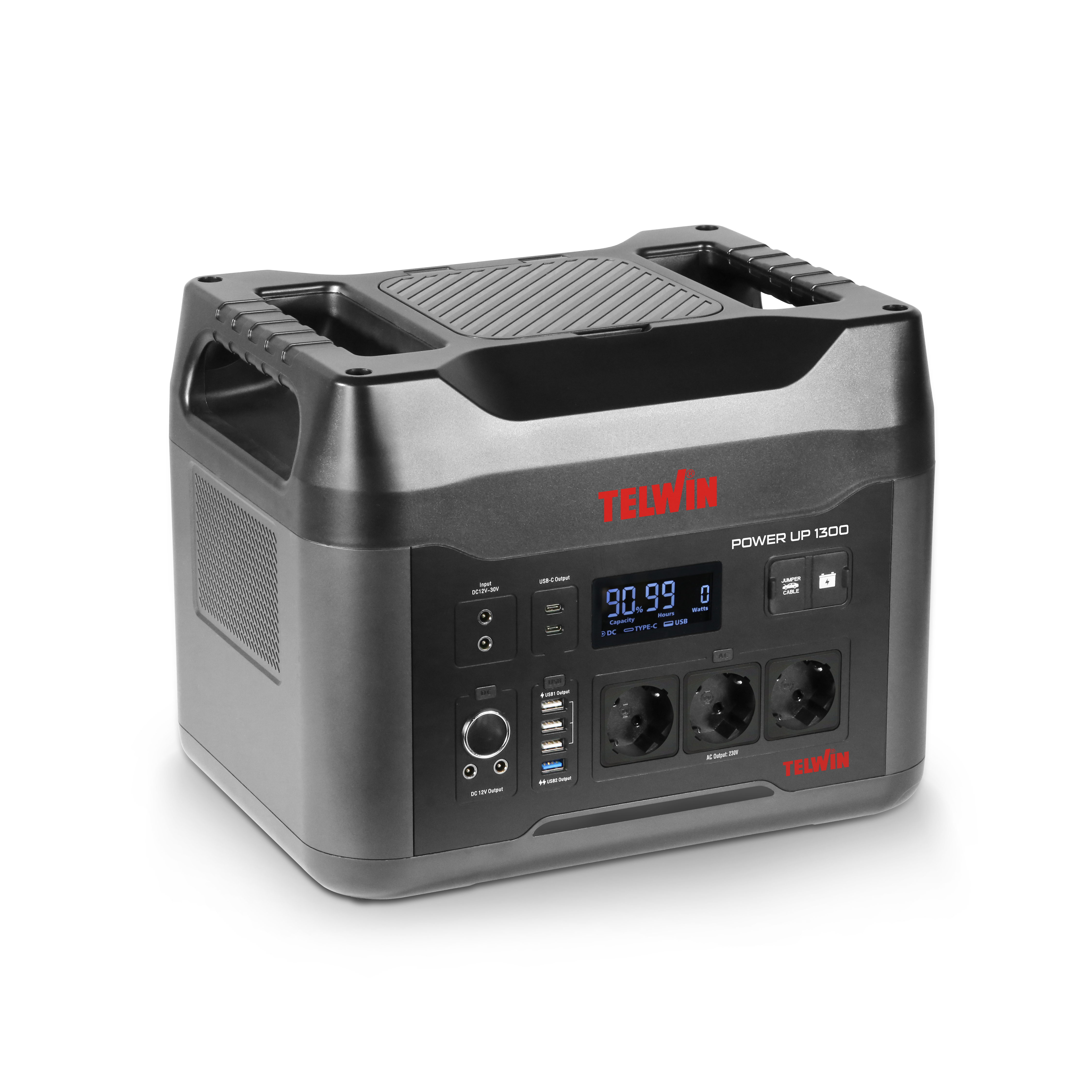

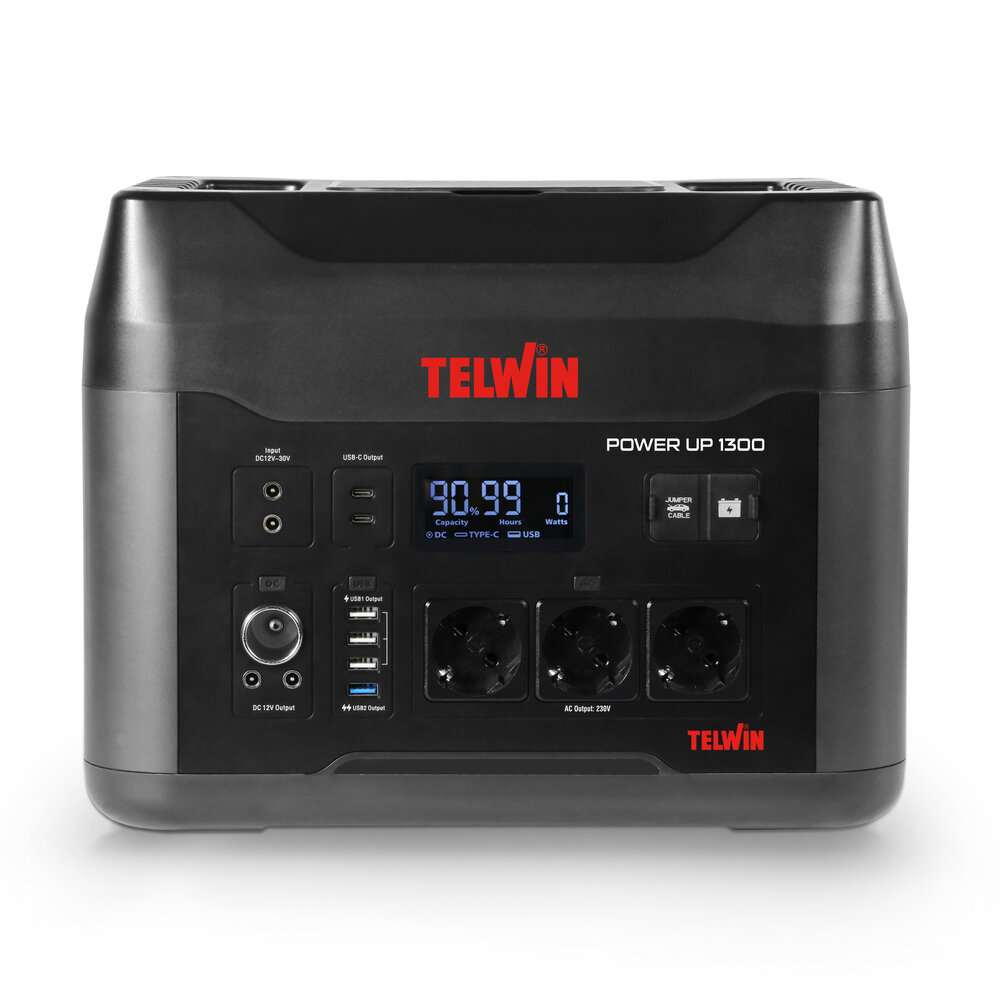

Portable pure sine wave power station with lithium battery for charging or powering various types of devices. It is an independent source of energy in outdoor activities or in the absence of power supply and is equipped with several outputs (USB, 12V-DC, 230V-AC) for charging or powering electrical and electronic devices even simultaneously. It can be used as a starter for 12V vehicles.
The LCD display allows visualization of various information, even in dark or dimly lit environments, such as the battery charge percentage and estimated hours of operation depending on the active output; the watts absorbed by each output. The LED light (230 lumens) with 5 operating modes makes it a source of illumination when needed.
Compact and transportable wherever its use is needed. Safe, it implements numerous protections (overcurrent, short circuit, overvoltage, overload, overdischarge, overtemperature).
Equipped with cable with cigarette lighter plug and power supply unit.

CODE

829449

SINGLE PHASE MAINS VOLTAGE

100-240 V

DC VOLTAGE IN CHARGE(JACK)

(N° 2) 12-30 V

CHARGE MAINS FREQUENCY

50/60 Hz

CHARGING ABSORBED POWER

200 W

IN: CHARGING CURRENT

7,5 A

BATTERY CAPACITY

1280 Wh

MAX STARTING CURRENT

1000 A

OUT: USB PORTS VOLTAGE A

(N°3 Type A) 5 V

OUT: USB A

12 W

OUT: OUTPUT CURRENT USB A

2,4 A

OUT: USB PORTS VOLTAGE A QC

(N°1 Type A QC) 5 / 9 / 12 V

OUT: USB A QC

18 W

OUT: OUTPUT CURRENT USB A QC

3 / 2 / 1,5 A

OUT: USB PORTS VOLTAGE C PD

(N° 2 type C) 5 /9 /12 /15 /20 V

OUT: USB C PD

100 W

OUT: USB PORT CURRENT

3 A

OUT: OUTPUT VOLTAGE JACK 1

12 V

OUTPUT CURRENT JACK 1

10 A

OUT: OUTPUT VOLTAGE JACK 2

12 V

OUTPUT CURRENT JACK 2

10 A

CONTINUOS DC INPUT VOLTAGE

12 V

AC OUTPUT VOLTAGE

(N° 3 ) 230 V

OUT: CIGARETTE LIGHTER OUTPUT VOLTAGE

(cigar socket) 12V V

CONVERTER -AC OUTPUT FREQUENCY

50 Hz

CONTINUOUS OUTPUT POWER

Pure Sine Wave 1000 W

CONVERTER - MAX OUTPUT POWER

2000 W

PROTECTION DEGREE

IP20

DIMENSIONS

27 x 36 x 28 cm

WEIGHT

17 kg

NOTE

230 lumen

Catalog Image

Download IMG

Instruction Manual

Download PDF

CAR CHARGER CABLE

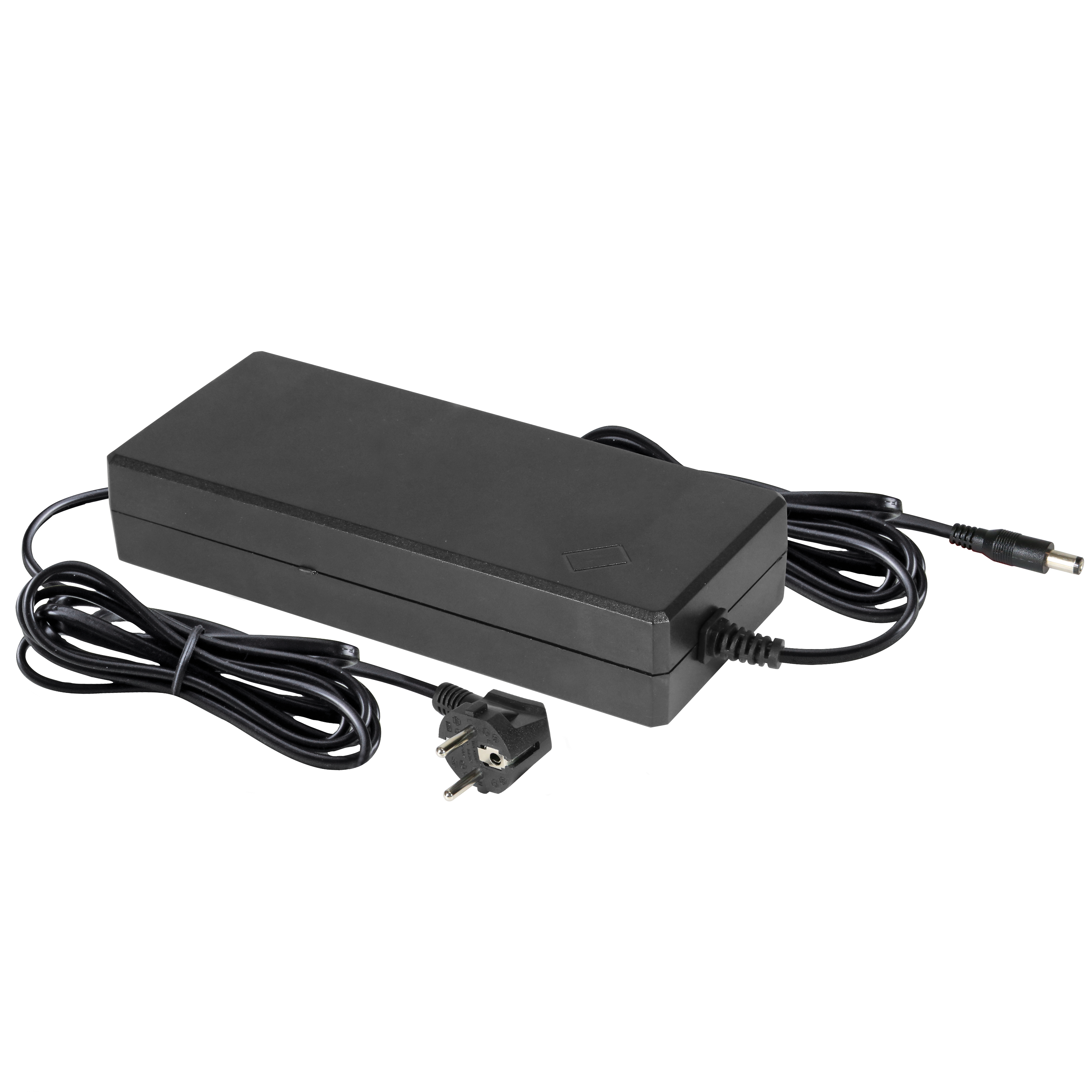

POWER SUPPLY P.U. 1300

OTHER CHARGING/STARTING ACCESS

JUMP START SMART CABLE

804652

SOLAR PANEL 18V 110W

807688

CODE

829449

SINGLEPHASE MAINS VOLTAGE

100-240 V

DC VOLTAGE IN CHARGE(JACK)

(N° 2) 12-30 V

CHARGE MAINS FREQUENCY

50/60 Hz

CHARGING ABSORBED POWER

200 W

CHARGING CURRENT

7,5 A

T04302

1280 Wh

MAX STARTING CURRENT

1000 A

OUTPUT VOLTAGE #1(USB)

(N°3 Type A) 5 V

T03393

12 W

OUTPUT CURRENT #1(USB)

2,4 A

OUTPUT VOLTAGE #2(USB)

(N°1 Type A QC) 5 / 9 / 12 V

T03394

18 W

OUTPUT CURRENT #2(USB)

3 / 2 / 1,5 A

T04150

(N° 2 type C) 5 /9 /12 /15 /20 V

T04151

100 W

T04152

3 A

OUTPUT VOLTAGE #1(JACK)

12 V

OUTPUT CURRENT #1(JACK)

10 A

OUTPUT VOLTAGE #2(JACK)

12 V

OUTPUT CURRENT #2(JACK)

10 A

CONTINUOS DC INPUT VOLTAGEG

12 V

AC OUTPUT VOLTAGE 1ph

(N° 3 ) 230 V

DC OUTPUT VOLTAGE

(cigar socket) 12V V

CONVERTER AC OUTPUT FREQ.

50 Hz

CONTINUOUS OUTPUT POWER

Pure Sine Wave 1000 W

CONVERTER-MAX OUTPUT POWER

2000 W

PROTECTION DEGREE

IP20

DIMENSIONS (LxWxH)

27 x 36 x 28 cm

WEIGHT

17 kg

NOTES :

230 lumen

Catalog Image

Download IMG

Instruction Manual

Download PDF

CAR CHARGER CABLE

POWER SUPPLY P.U. 1300

OTHER CHARGING/STARTING ACCESS

JUMP START SMART CABLE

804652

SOLAR PANEL 18V 110W

807688

DISCOVER THE POWER OF POWER UP:

POWER YOUR DEVICES WHEREVER YOU ARE!

The versatility of Power Up offers you the freedom to power a wide range of electrical and electronic devices without depending on the power mains. Perfect for outdoor adventures, camping or as a reliable backup during blackouts in the home, it is also a valuable mate for home improvement projects and construction work.
