INFINITY PLASMA 40

INFINITY PLASMA 40

Download PDF Request Info

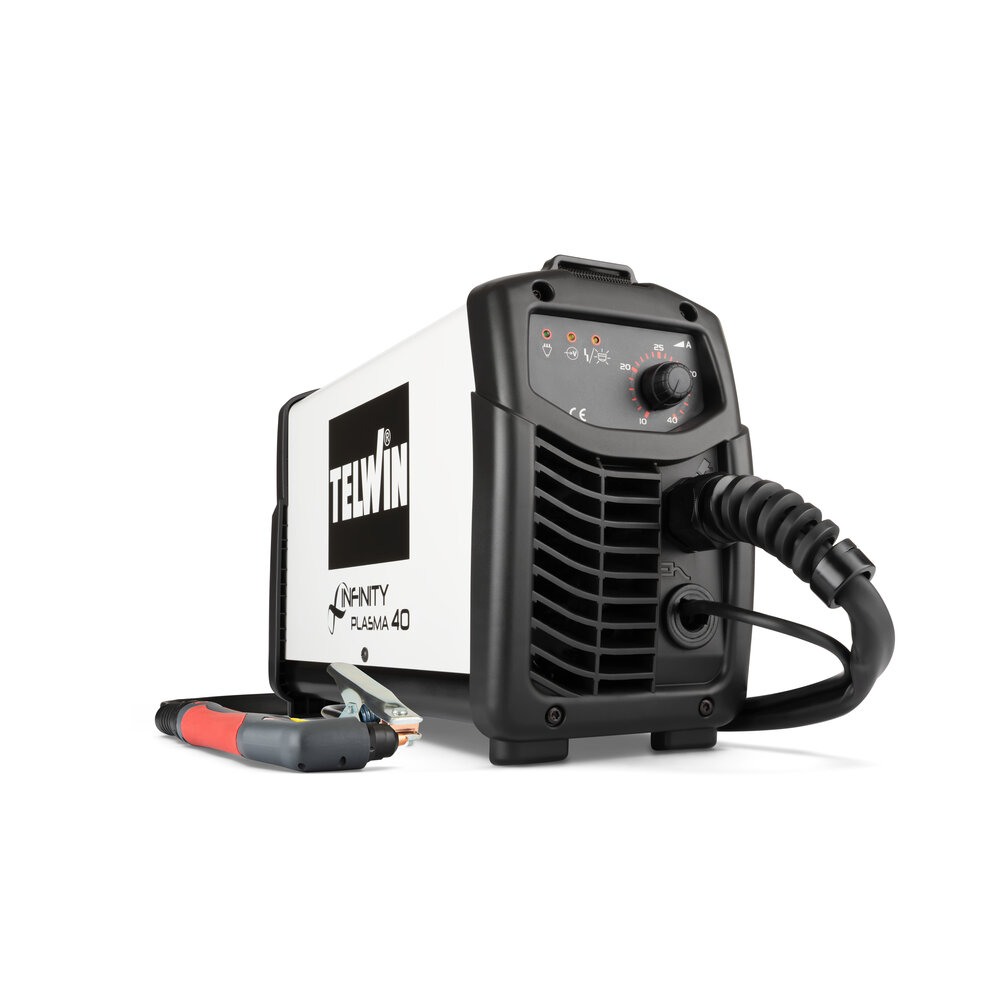

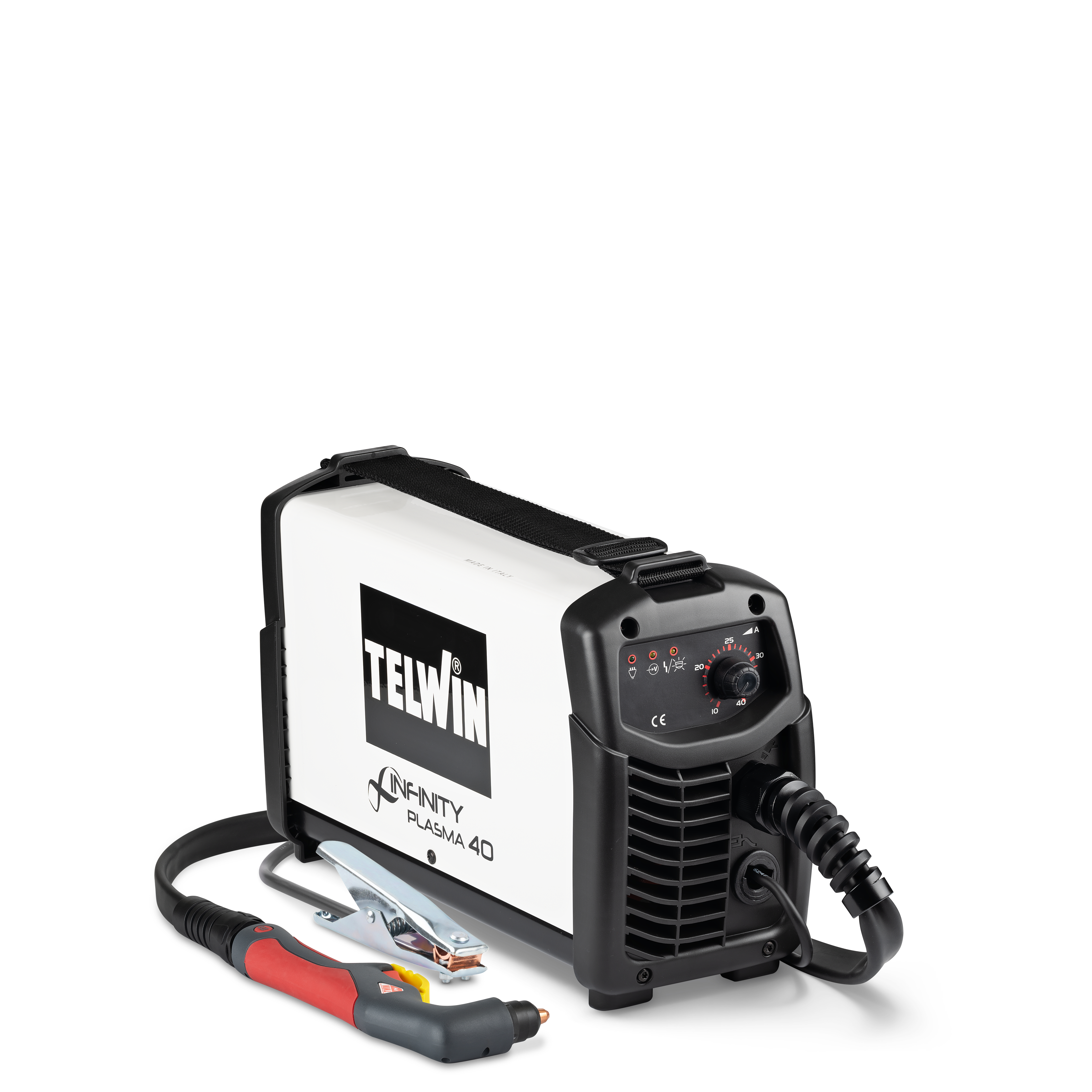

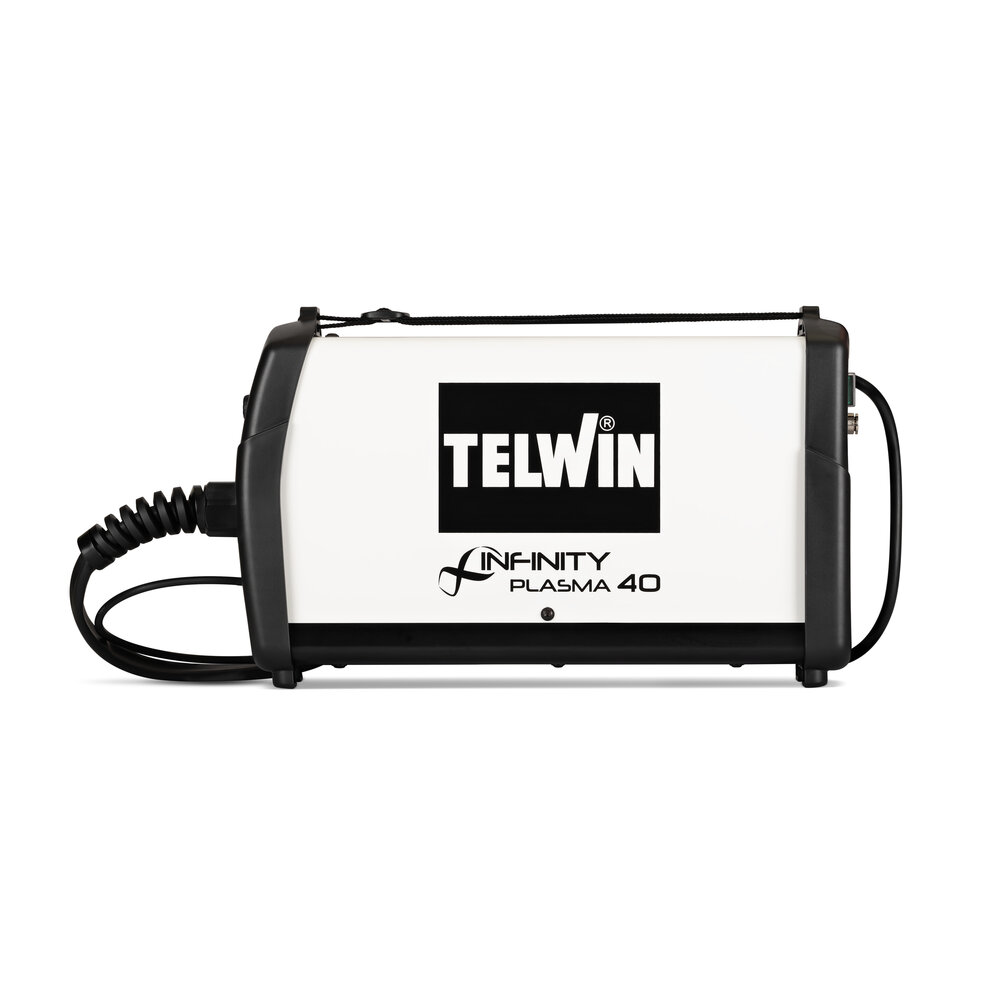

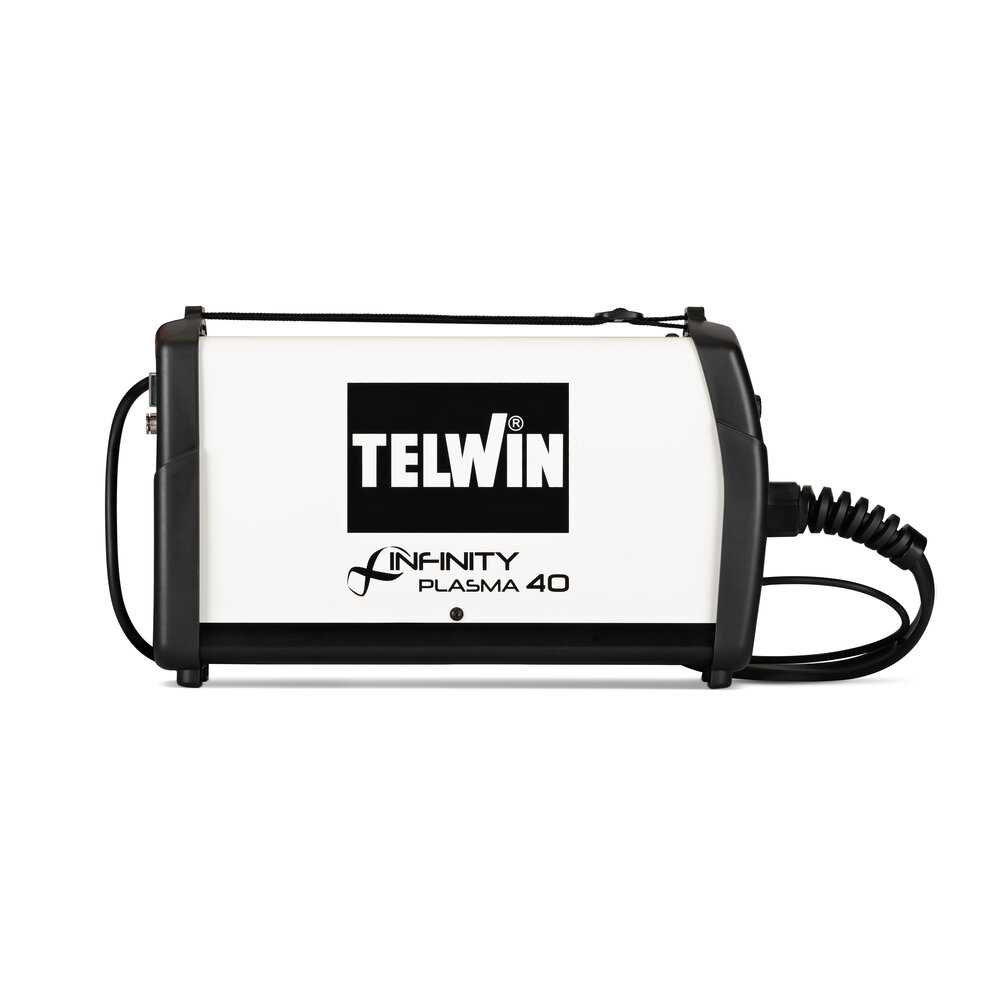

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
Features:
- reduced weight and dimensions;

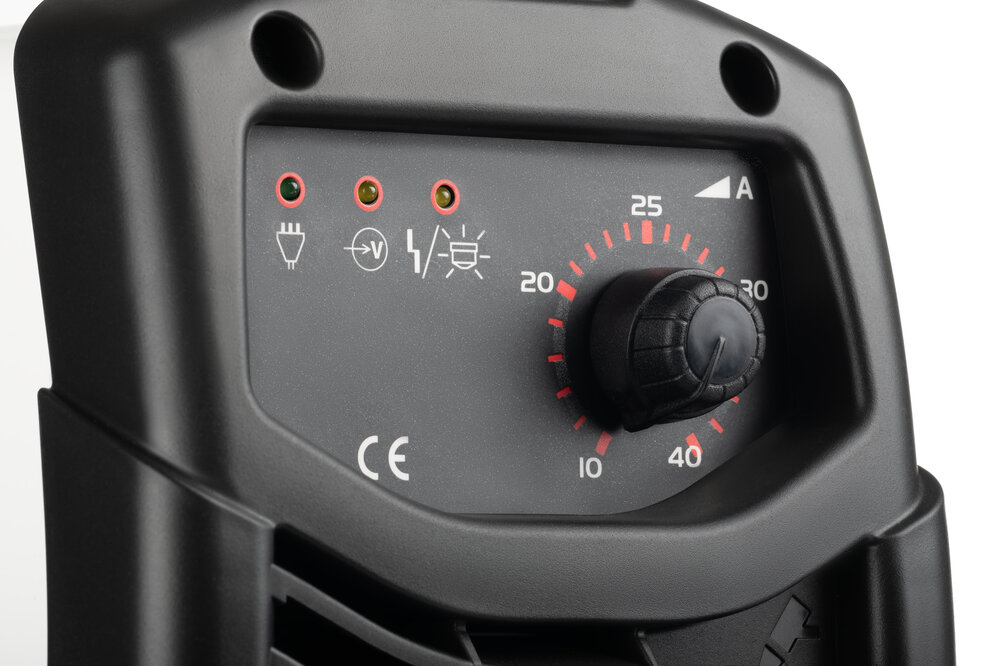

- warning led for torch under voltage, protections;
- torch automatic cooling;
- warning led for consumables change;

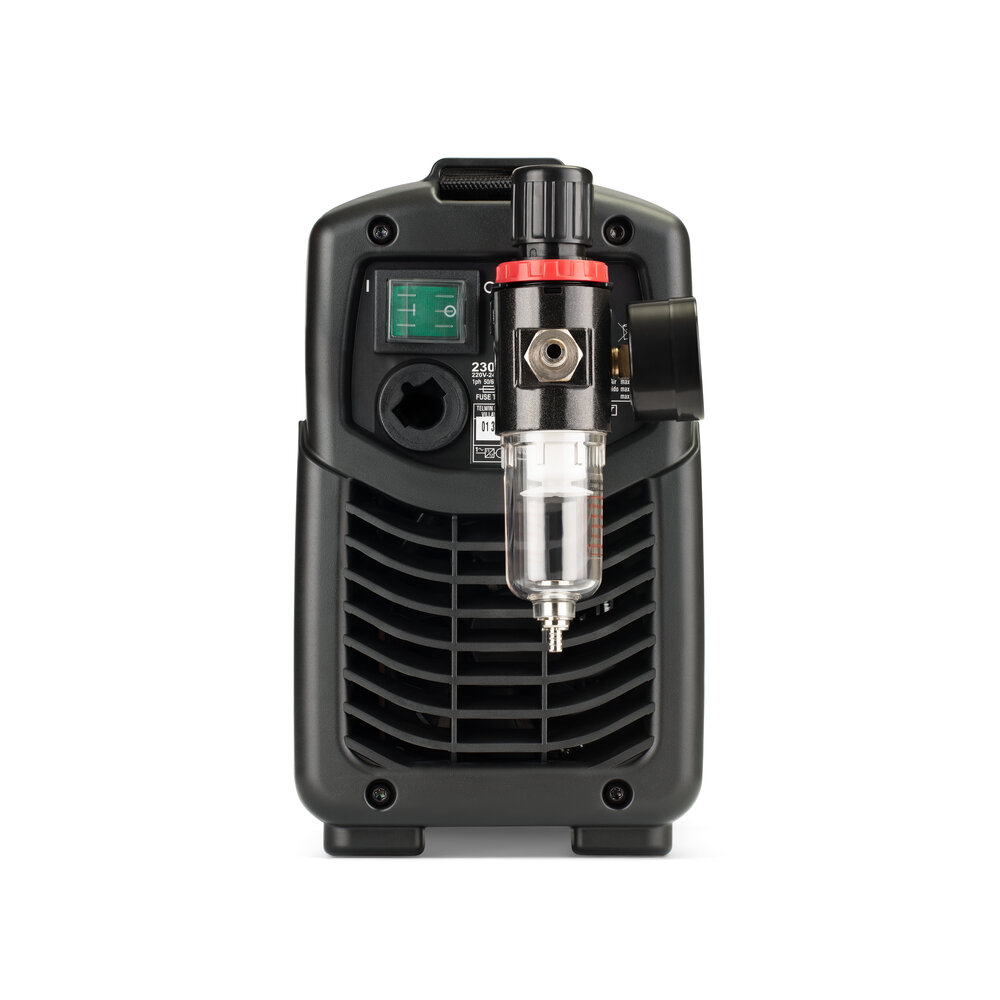

- visualization of air pressure;
- thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with torch.

CODE

816145

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 40 A

MAX CURRENT

40 @ 20 % A

MAX NO LOAD VOLTAGE

313 V

MAX ABSORBED CURRENT

29 A

MAX ABSORBED POWER

4 kW

MAINS FUSE

16 A

EFFICIENCY

85 %

POWER FACTOR

0,7

MAX CUTTING THICKNESS

15 mm

COMPRESSED AIR CAPACITY

100 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS

55 x 14,5 x 24 cm

WEIGHT

6,48 kg

Catalog Image

Instruction Manual

Spare Parts List

PH PLASMA TORCH 4 M 25 A

MAGNETIC STRIP 1 M

CIRCULAR CUTTING UNIT

ELECTRODES PH-PK 5 PCS

DIFFUSERS KIT PH-PK 5 PCS

NOZZLES PH-PK 5 PCS

SAFETY CAPS PH 2 PCS

LONG ELECTRODES PH 5 PCS

LONG NOZZLES PH 5 PCS

NOZZLES PH-PK 20A 5 PCS

CONSUMABLES BOX FOR PH TORCH

Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
Features:
- reduced weight and dimensions;
- warning led for torch under voltage, protections;
- torch automatic cooling;
- warning led for consumables change;
- visualization of air pressure;
- thermostatic, overvoltage, undervoltage, overcurrent protections.
Complete with torch.

CODE

816145

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 40 A

MAX CURRENT EN60974-1

40 @ 20 % A

MAX NO LOAD VOLTAGE

313 V

MAX ABSORBED CURRENT

29 A

MAX ABSORBED POWER

4 kW

MAINS FUSE

16 A

EFFICIENCY

85 %

POWER FACTOR(cosphi) (cosphi)

0,7

MAX CUTTING THICKNESS

15 mm

COMPRESSED AIR CAPAC.

100 l/min

COMPRESSED AIR PRESSURE

4 - 5 bar

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

55 x 14,5 x 24 cm

WEIGHT

6,48 kg

Catalog Image

Instruction Manual

Spare Parts List

PH PLASMA TORCH 4 M 25 A

742685

MAGNETIC STRIP 1 M

802143

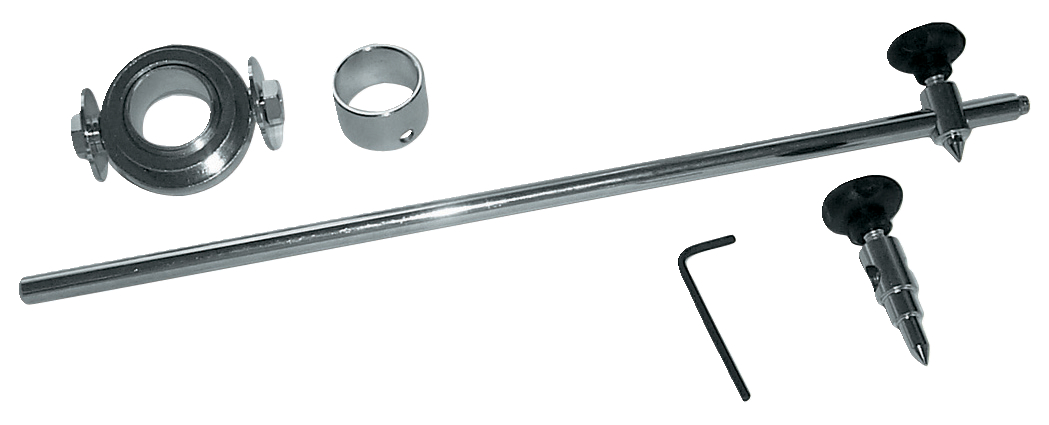

CIRCULAR CUTTING UNIT

802214

ELECTRODES PH-PK 5 PCS

802420

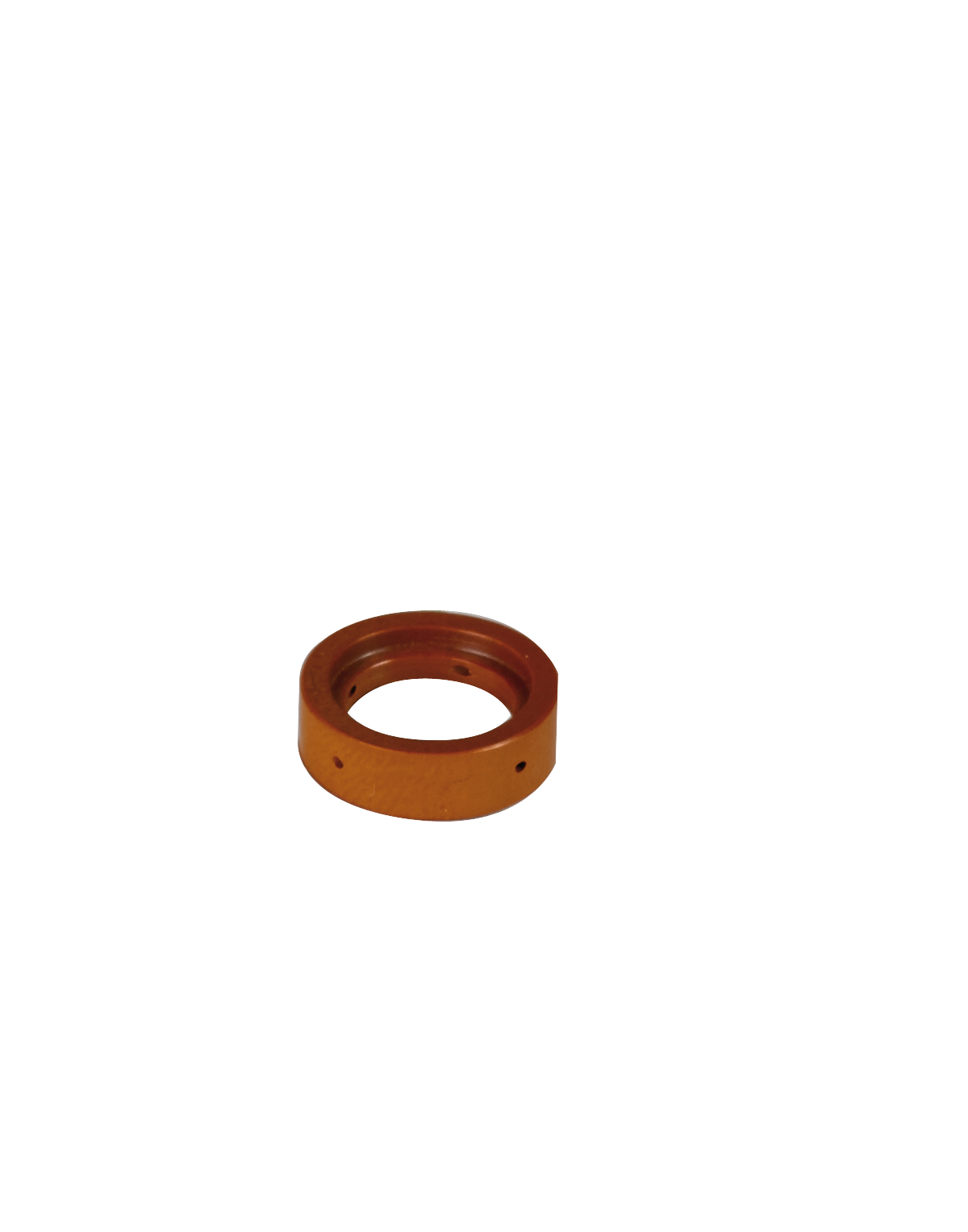

DIFFUSERS KIT PH-PK 5 PCS

802422

NOZZLES PH-PK 5 PCS

802423

SAFETY CAPS PH 2 PCS

802425

LONG ELECTRODES PH 5 PCS

802428

LONG NOZZLES PH 5 PCS

802429

NOZZLES PH-PK 20A 5 PCS

804418

CONSUMABLES BOX FOR PH TORCH

804415
