BIMAX 150i SYNERGIC

Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison
Add to comparison

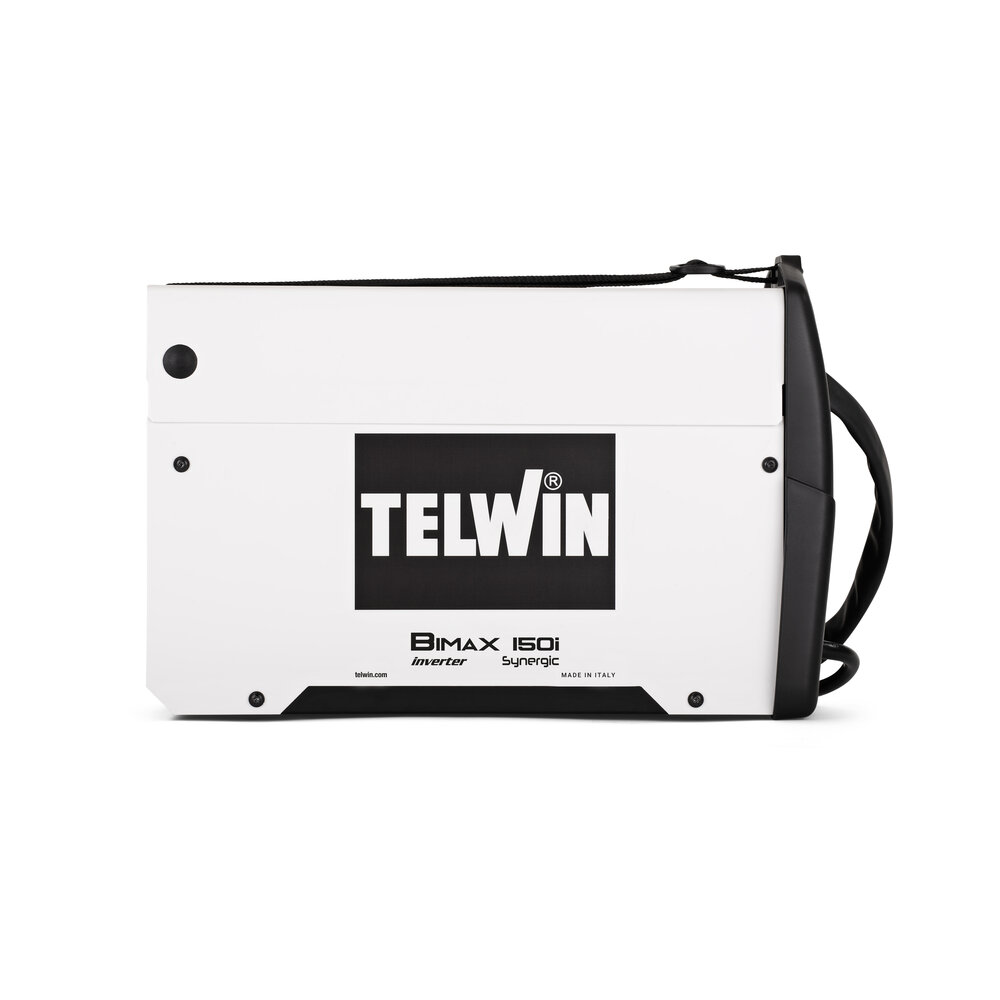

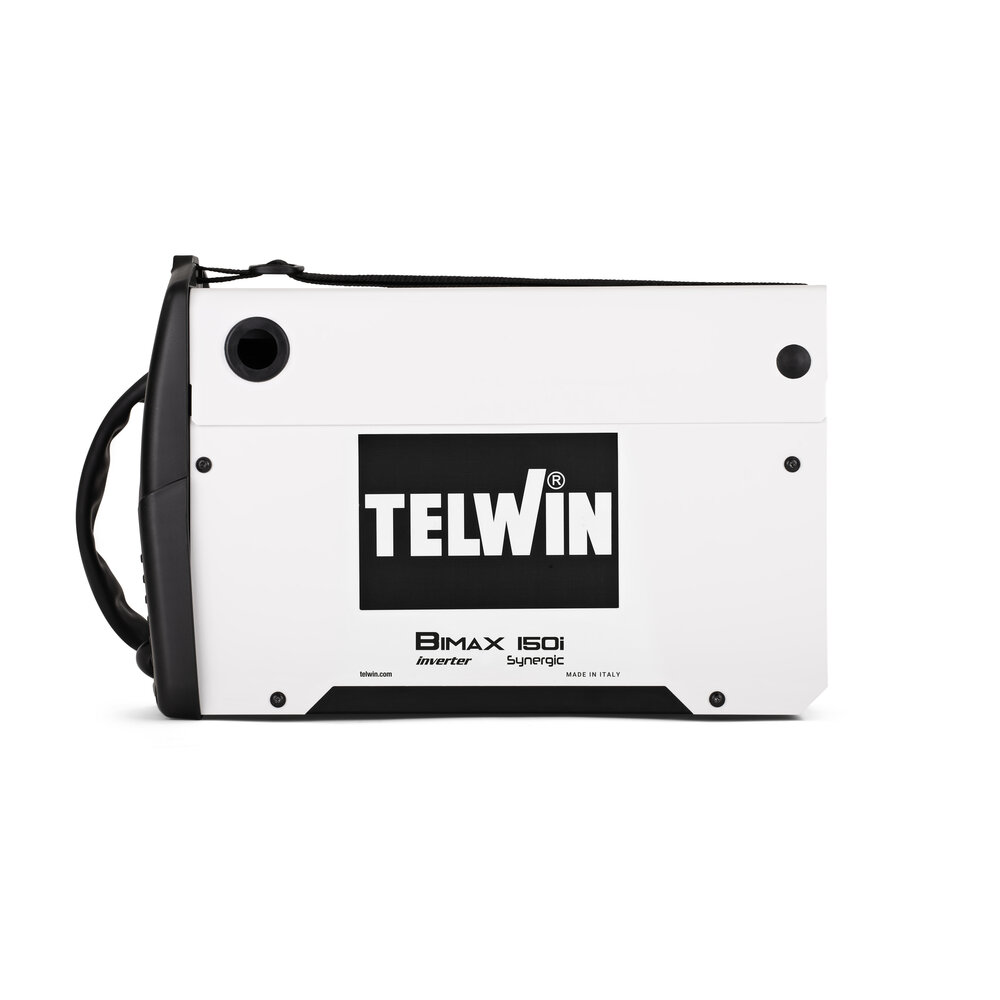

BIMAX 150i SYNERGIC

Download PDF Request Info

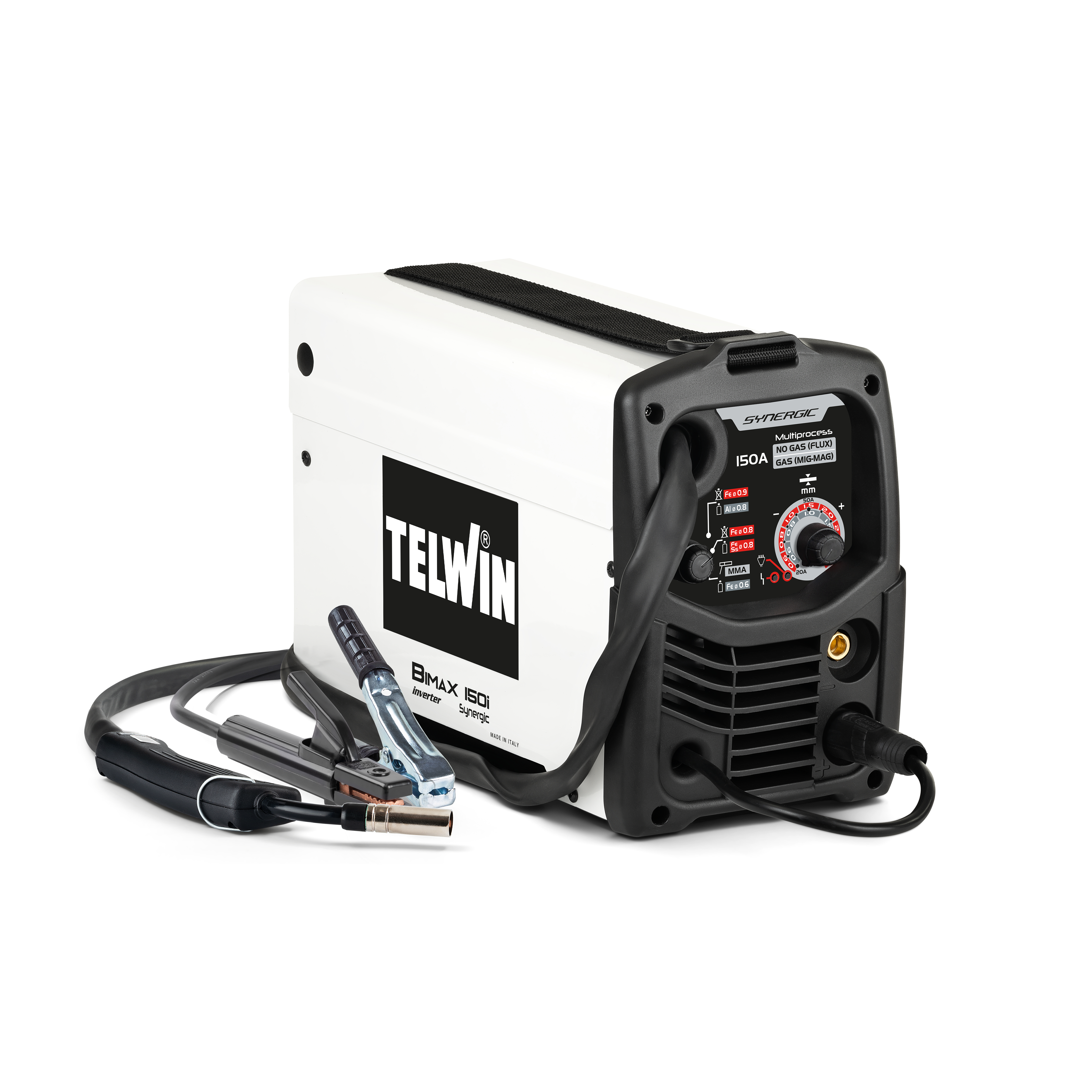

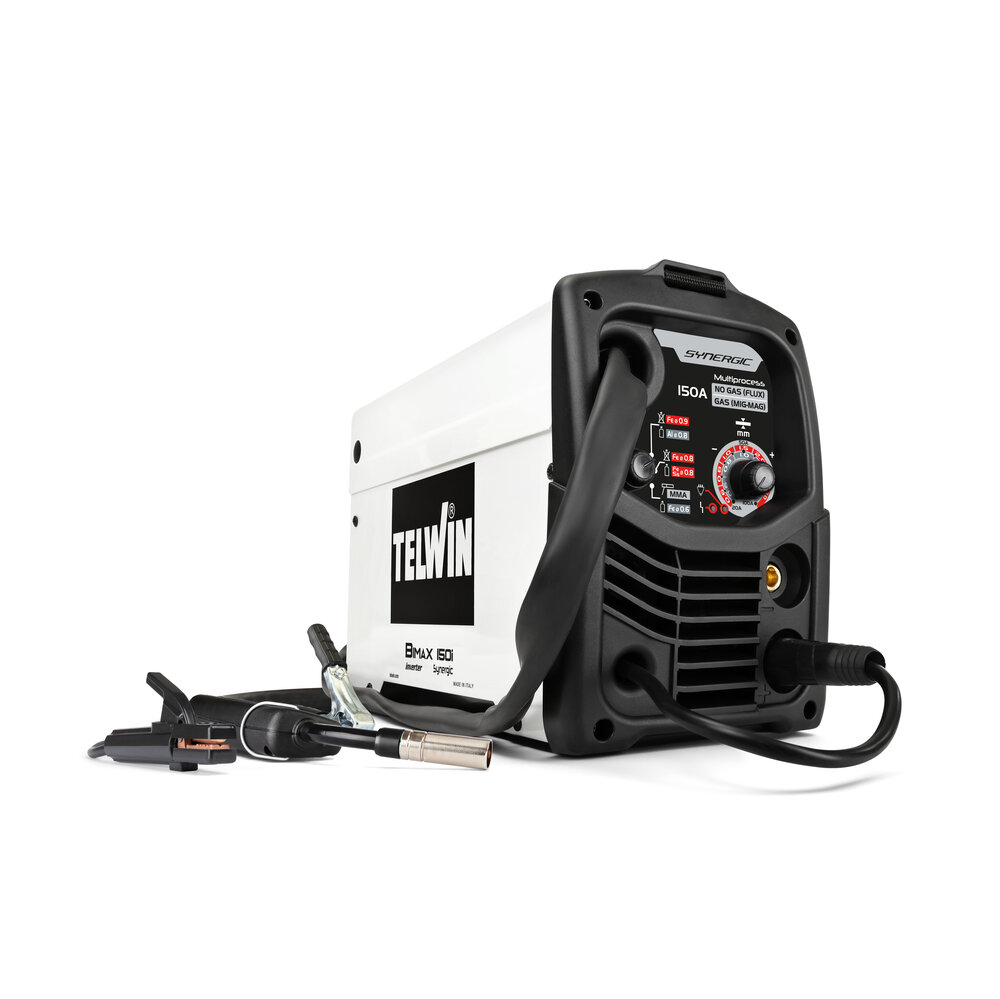

  • MIG-MAG/FLUX/MMA multiprocess wire inverter welding machine, 150A. Supplied with MIG-MAG torch, electrode holder clamp, earth cable and earth clamp.

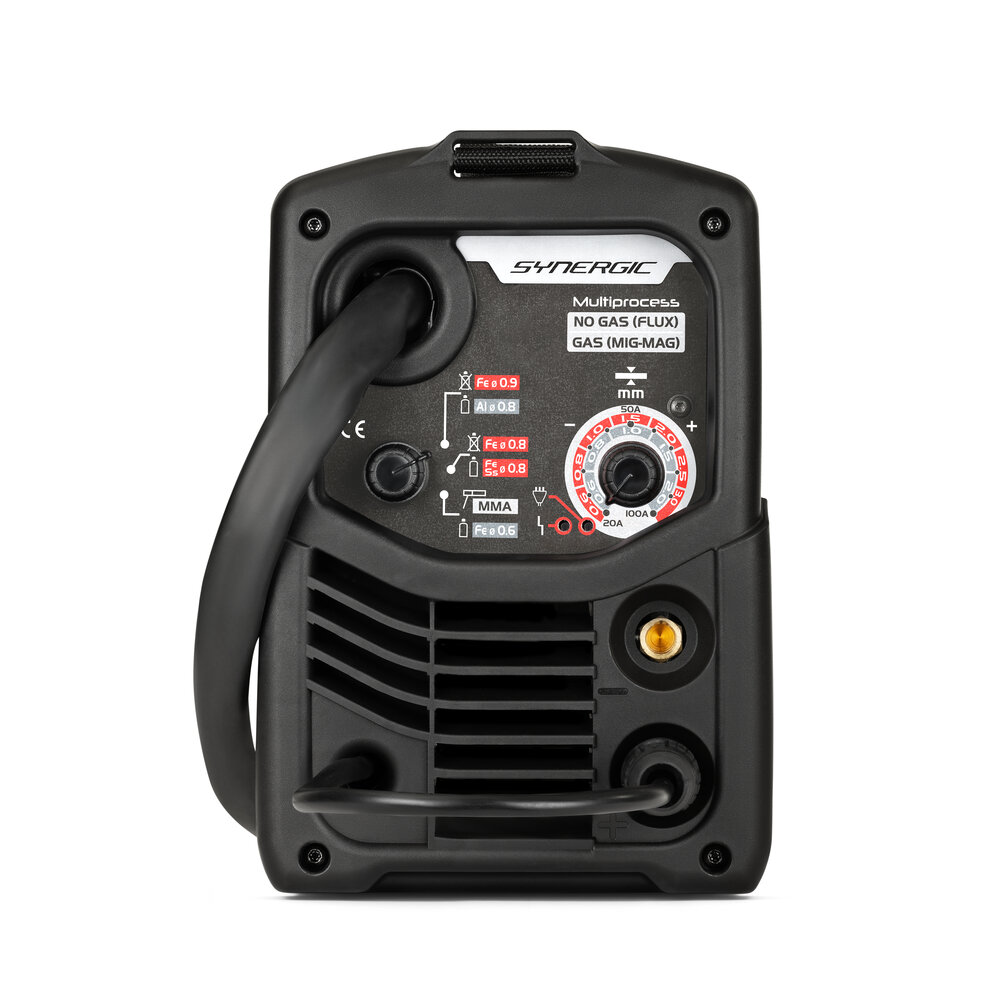

  • SYNERGIC adjustment of the parameters: intuitive panel with 2 settings (program for different wire parameters and materials, process and thickness).

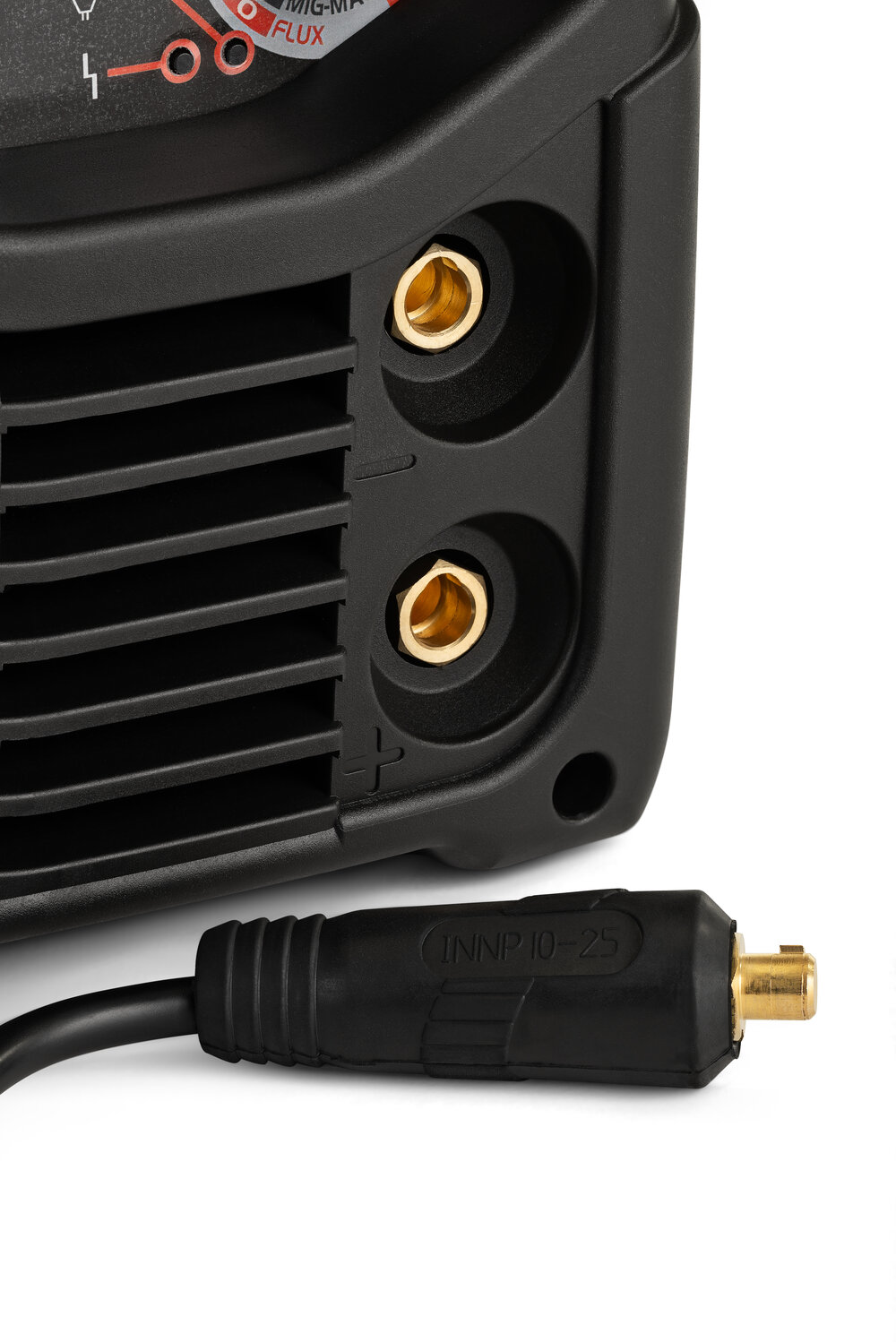

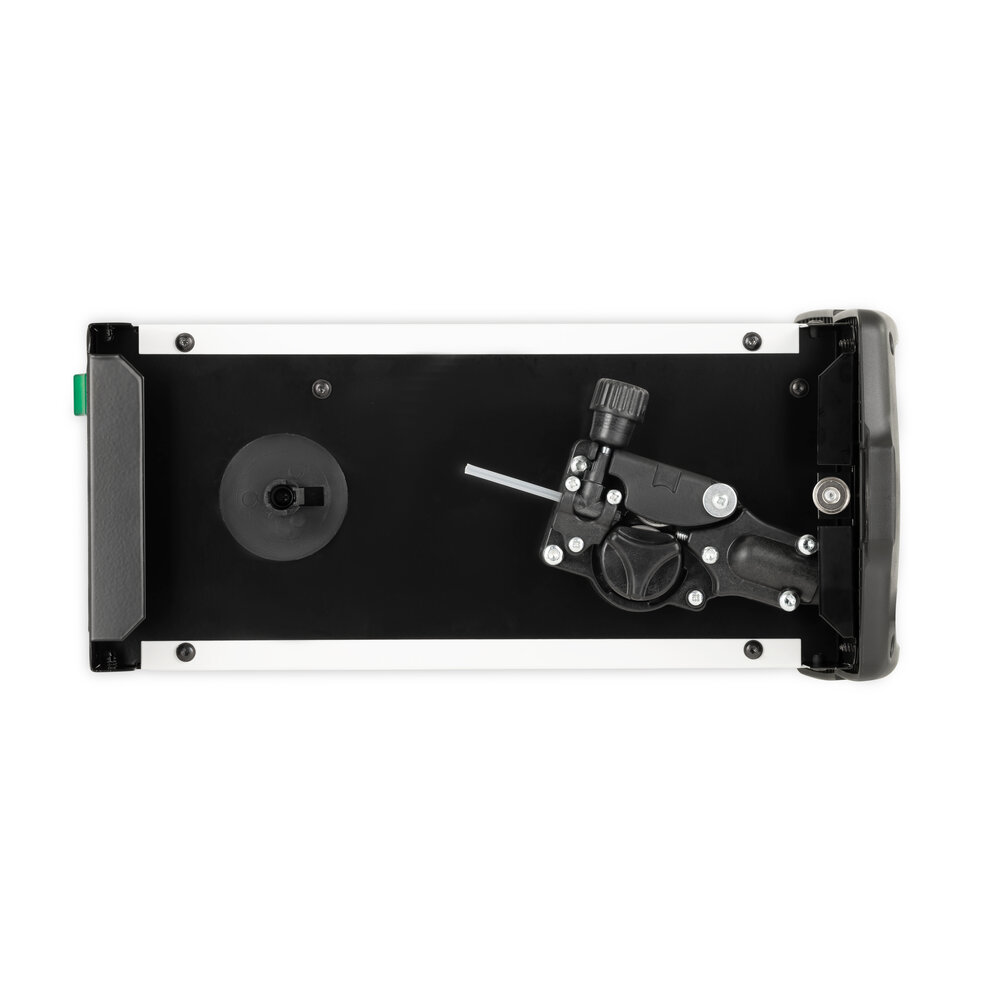

  • External polarity change (MIG-MAG/FLUX). Use with Ø 100 reels.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
  • MMA welding: rutile electrodes up to 2.5mm.
  • Light and compact. Easy to transport.
  • Contained consumption thanks to inverter technology
  • MIG-MAG/FLUX/MMA multiprocess wire inverter welding machine, 150A. Supplied with MIG-MAG torch, electrode holder clamp, earth cable and earth clamp.
  • SYNERGIC adjustment of the parameters: intuitive panel with 2 settings (program for different wire parameters and materials, process and thickness).
  • External polarity change (MIG-MAG/FLUX). Use with Ø 100 reels.
  • Thermostatic, overvoltage, undervoltage, overcurrent protection. Compatible for use with the motor generator (230V, +/-15%).
  • MMA welding: rutile electrodes up to 2.5mm.
  • Light and compact. Easy to transport.
  • Contained consumption thanks to inverter technology
Multi-process inverter MIG-MAG/ FLUX/ MMA wire welding machine.
It ensures great versatility in the use of different welded materials (steel, stainless steel, aluminium) and in the possible applications, from maintenance to installation.
The SYNERGIC adjustment of the welding parameters makes the product easy to use and guarantees a consistently excellent result even for the less experienced operator: just set the material thickness and start welding.
Lightweight and compact, it can be easily transported to all indoor and outdoor locations. Adjustable strap for carrying it over the shoulder.

Features:

MIG-MAG/ FLUX
- External polarity reversal (MIG-MAG/ FLUX);
- Selection of synergic programs for different wire diameters and materials (steel, stainless steel, aluminium, flux-cored wire);
- Thickness adjustment.

MMA
- Use with rutile electrodes;
- Arc-force and hot-start devices; anti-stick protection.

Low consumption thanks to inverter technology.
Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.


Complete with MIG-MAG torch, electrode holder, work clamp and cable.


CODE

816169

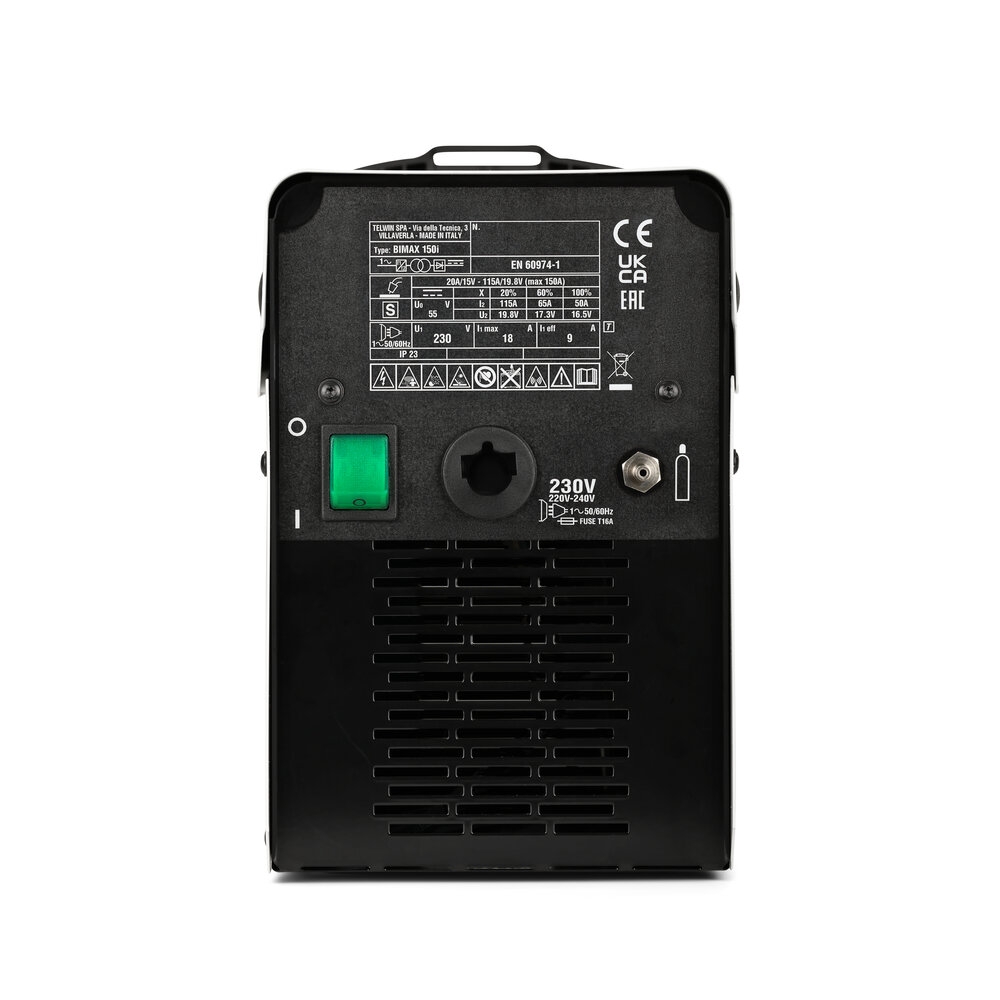

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

20 - 150 A

MAX CURRENT

115@20% A

DC CURRENT

65 A

MAX NO LOAD VOLTAGE

55 V

MAX ABSORBED CURRENT

18 A

ABSORBED CURRENT AT 60%

9 A

MAX ABSORBED POWER

2,65 kW

ABSORBED POWER AT 60%

1,3 kW

EFFICIENCY

85 %

POWER FACTOR

0,64

D. USABLE ELECTRODES IN DC

1,6 - 2,5 mm

STEEL WELDING WIRE DIAMETER

0,6 - 0,8 mm

INOX WELDING WIRE DIAMETER

0,8 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 mm

FLUX CORED WELDING WIRE DIAM.

0,8 - 0,9 mm

DIMENSIONS

37,9 x 17,2 x 25,2 cm

WEIGHT

7,1 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

Multi-process inverter MIG-MAG/ FLUX/ MMA wire welding machine.
It ensures great versatility in the use of different welded materials (steel, stainless steel, aluminium) and in the possible applications, from maintenance to installation.
The SYNERGIC adjustment of the welding parameters makes the product easy to use and guarantees a consistently excellent result even for the less experienced operator: just set the material thickness and start welding.
Lightweight and compact, it can be easily transported to all indoor and outdoor locations. Adjustable strap for carrying it over the shoulder.

Features:

MIG-MAG/ FLUX
- External polarity reversal (MIG-MAG/ FLUX);
- Selection of synergic programs for different wire diameters and materials (steel, stainless steel, aluminium, flux-cored wire);
- Thickness adjustment.

MMA
- Use with rutile electrodes;
- Arc-force and hot-start devices; anti-stick protection.

Low consumption thanks to inverter technology.
Thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator (+/- 15%) protections.


Complete with MIG-MAG torch, electrode holder, work clamp and cable.


CODE

816169

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

20 - 150 A

MAX CURRENT DC EN60974-1

115@20% A

DC CURRENT AT 60%

65 A

MAX NO LOAD VOLTAGE IN DC

55 V

MAX ABSORBED CURRENT

18 A

ABSORBED CURRENT AT 60%

9 A

MAX ABSORBED POWER

2,65 kW

ABSORBED POWER AT 60%

1,3 kW

EFFICIENCY

85 %

POWER FACTOR(cosphi) (cosphi)

0,64

D.USABLE ELECTRODES IN DC

1,6 - 2,5 mm

STEEL WELDING WIRE DIAMET.

0,6 - 0,8 mm

INOX WELDI.WIRE DIAMETER

0,8 mm

ALUM. WELDING WIRE DIAM.

0,8 mm

FLUX CORED WELDI.WIRE DIA.

0,8 - 0,9 mm

DIMENSIONS (LxWxH)

37,9 x 17,2 x 25,2 cm

WEIGHT

7,1 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

Certificate

Download PDF

CABLE 16 MMQ 1,8 M - PLUG ATLAS 25

124508

DALLAS 300 ELECTRODE HOLDER 300A

712260

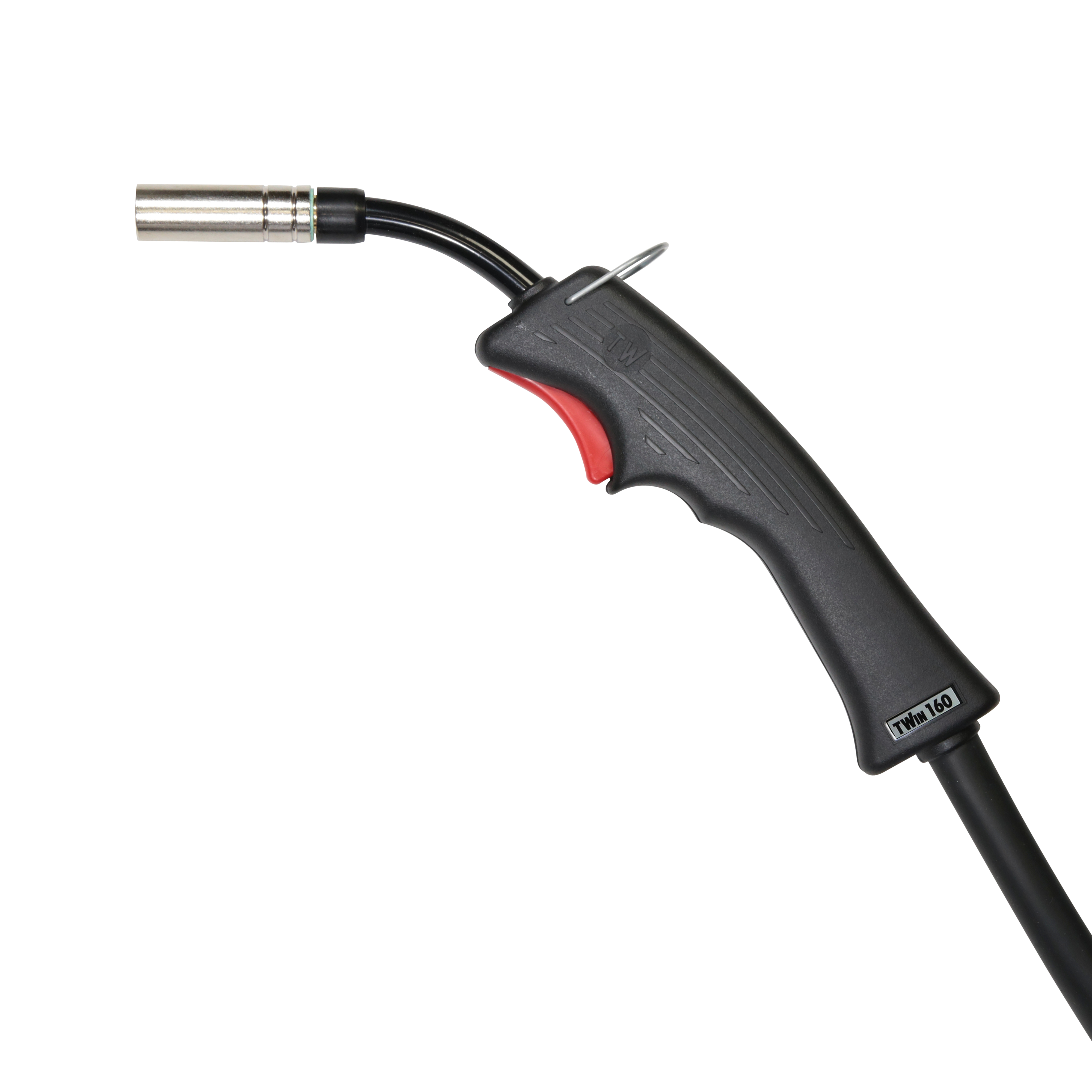

TW 160 MIG TORCH 2M

742989

COLORADO 150B WORK CLAMP 150A

712001

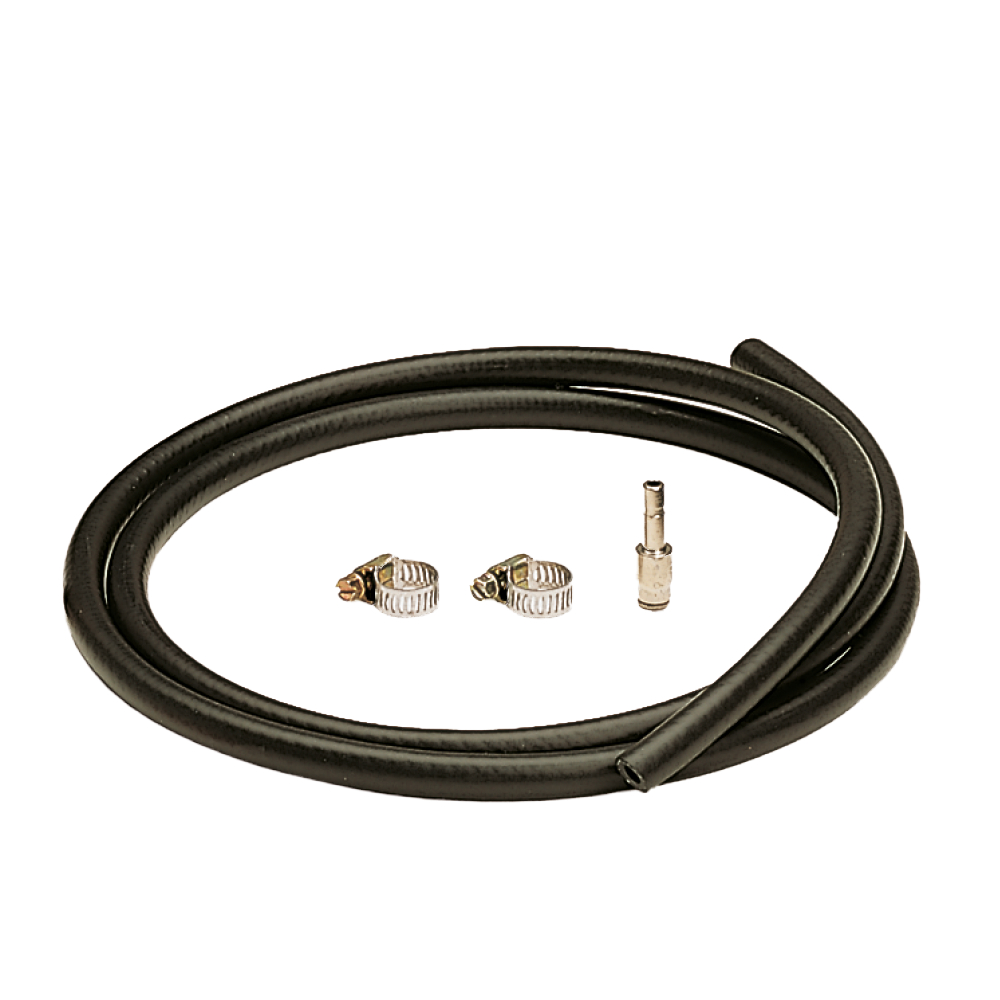

GASBOTTLE CONNECTION KIT

CONNECTION KIT FOR THROWAWAY BOTTLE

802032

CONNECTION KIT FOR REFILLABLE BOTTLE

802708

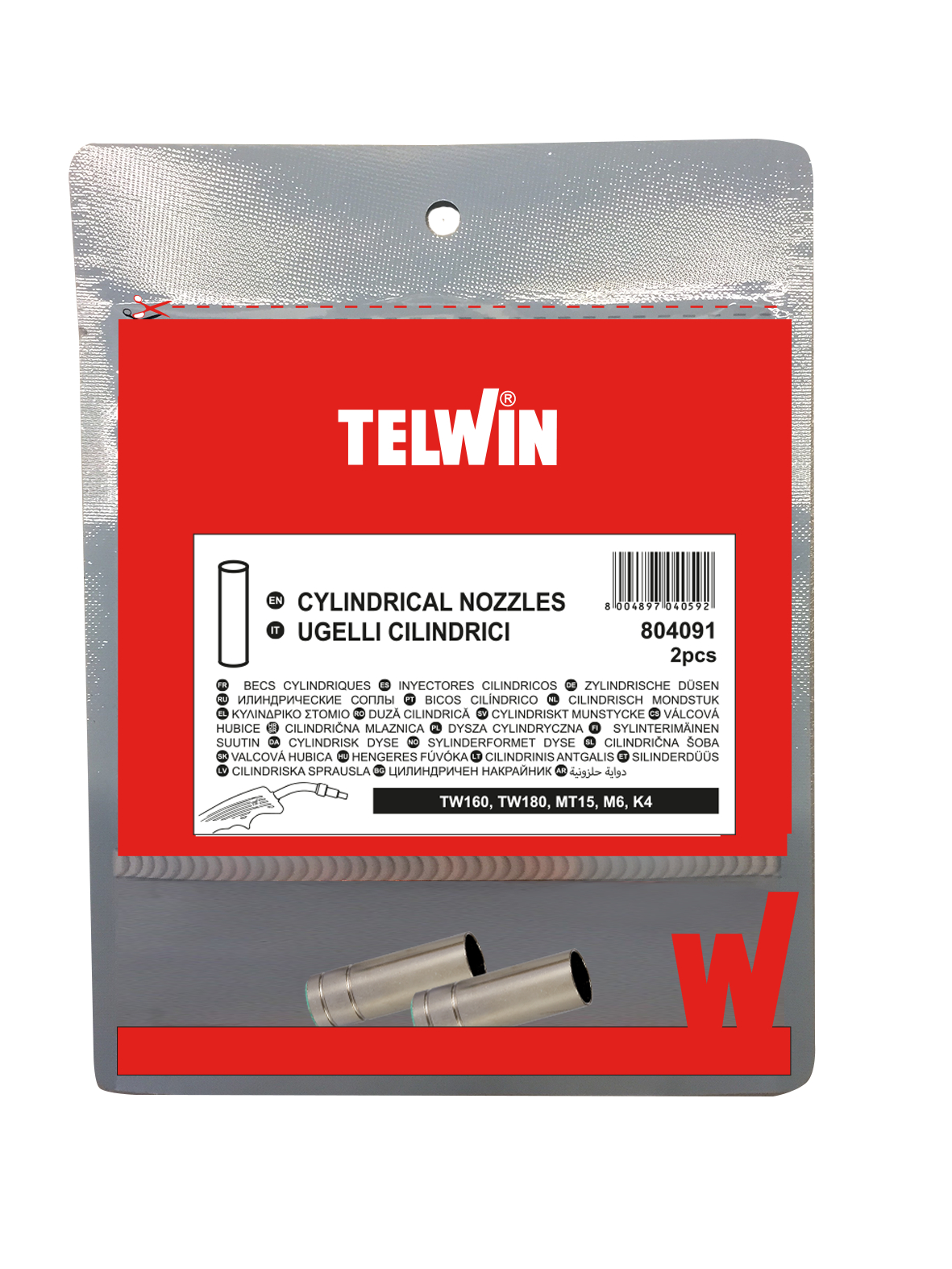

MIG-MAG CONSUMABLES BOXES

MIG READY BOX C TW 160/180 MT15 MAX./TEL

804149
MIG/MAG WELDING KITS

STEEL WELDING KIT FOR THROWAWAY BOTTLE

802147

STEEL WELDING KIT FOR REFILLABLE BOTTLE

802148

ALUMINIUM WELDING KIT D. 0,8 MM

802036
