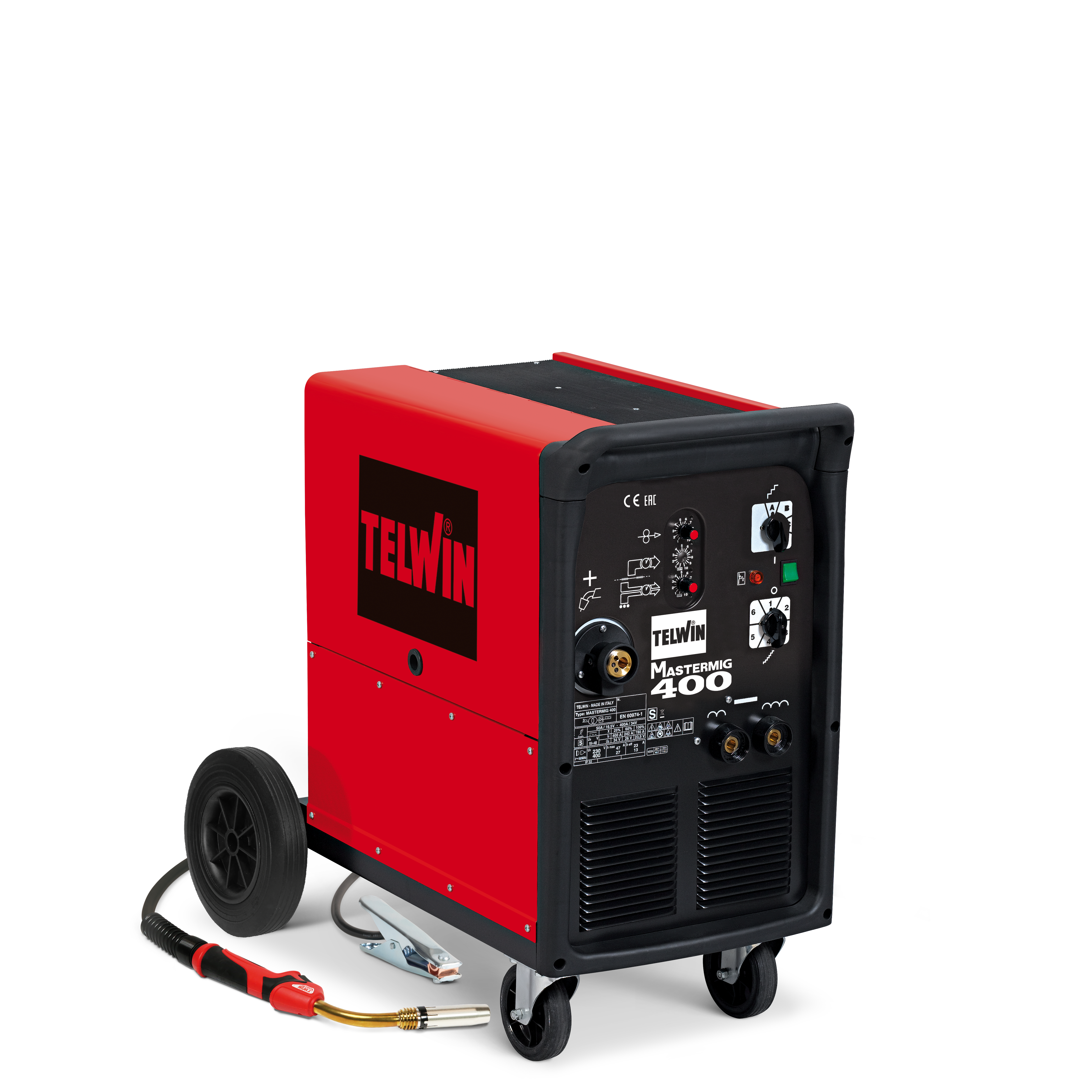

MASTERMIG 400

MASTERMIG 400

Download PDF Request Info

MIG-MAG/BRAZING, 400A wire welding machine. 3ph 230/400V power supply. With MIG-MAG welding accessories.
High number of adjustment steps of the arc voltage. Spot welding time adjustment. Two reactance positions.
Thermostatic protection.
Extremely strong.
Use of extensions (optional) possible to increase the distance between the wire feeder and generator up to 10m.

MIG-MAG/BRAZING, 400A wire welding machine. 3ph 230/400V power supply. With MIG-MAG welding accessories.
High number of adjustment steps of the arc voltage. Spot welding time adjustment. Two reactance positions.
Thermostatic protection.
Extremely strong.
Use of extensions (optional) possible to increase the distance between the wire feeder and generator up to 10m.

MIG-MAG/FLUX/BRAZING welding machine with removable wire feeder, fit for use in the industrial field.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Features:

Very strong;
Numerous steps for regulation of arc voltage;
Regulation of spot welding time;
Two positions for reactance:
Thermostatic protection.

Thanks to the extensions (optional) it is possible to increase the working range between wire feeder and power source up to 10 meters.
Complete with MIG-MAG welding accessories.

CODE

827004

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

50 - 400 A

MAX CURRENT

400 @ 25 % A

DC CURRENT

240 A

MAX NO LOAD VOLTAGE

45,5 V

MAX ABSORBED POWER

20 kW

ABSORBED POWER AT 60%

10 kW

POWER FACTOR

0,9

ADJUSTMENT POSITIONS

18

STEEL WELDING WIRE DIAMETER

0,6 - 1,6 mm

INOX WELDING WIRE DIAMETER

0,8 - 1,6 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1,2 mm

FLUX CORED WELDING WIRE DIAM.

1 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP22

DIMENSIONS

94,5 x 56,5 x 83 cm

WEIGHT

104 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

ARGON GAS BOTTLE IT ADAPTOR

TORCH HOOK

GAS REGULATOR 2 MANOMETERS 32 L\min

MT36 MIG TORCH 3M

WORK CLAMP + CABLE 35MMQ 3M AX50

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K"

FEED ROLL 4R 1,0FE-1,2FE "P-K"

ALUMINIUM WELDING KIT D. 1-1,6 MM

FLUX CORED WIRE WELDING KIT D. 1-1,6 MM

MT36 MIG TORCH 4M

MT36 MIG TORCH 5M

COIL COVER KIT

COIL ADAPTOR B-300

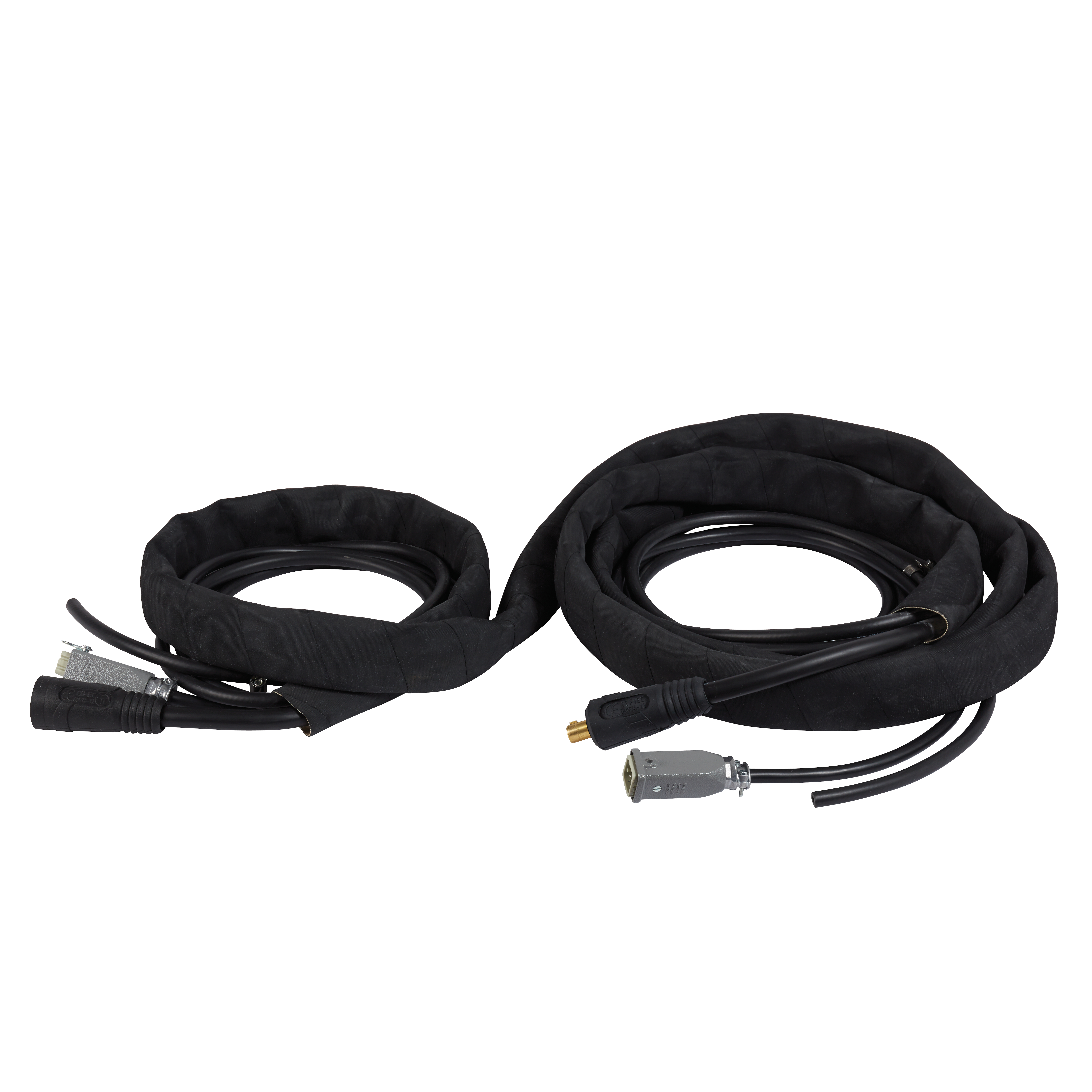

CONNECTING CABLE 50 MMQ 4M 8 POLES

CONNECTING CABLE 50MMQ 10M 8 POLES

MIG-MAG/FLUX/BRAZING welding machine with removable wire feeder, fit for use in the industrial field.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Features:

Very strong;
Numerous steps for regulation of arc voltage;
Regulation of spot welding time;
Two positions for reactance:
Thermostatic protection.

Thanks to the extensions (optional) it is possible to increase the working range between wire feeder and power source up to 10 meters.
Complete with MIG-MAG welding accessories.

CODE

827004

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

50 - 400 A

MAX CURRENT DC EN60974-1

400 @ 25 % A

DC CURRENT AT 60%

240 A

MAX NO LOAD VOLTAGE IN DC

45,5 V

MAX ABSORBED POWER

20 kW

ABSORBED POWER AT 60%

10 kW

POWER FACTOR(cosphi) (cosphi)

0,9

ADJUSTMENT POSITIONS

18

STEEL WELDING WIRE DIAMET.

0,6 - 1,6 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1,6 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1,2 mm

FLUX CORED WELDI.WIRE DIA.

1 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1,2 mm

PROTECTION DEGREE

IP22

DIMENSIONS (LxWxH)

94,5 x 56,5 x 83 cm

WEIGHT

104 kg

Catalog Image

Instruction Manual

Spare Parts List

Certificate

ARGON GAS BOTTLE IT ADAPTOR

432036

TORCH HOOK

644444

GAS REGULATOR 2 MANOMETERS 32 L\min

722346

MT36 MIG TORCH 3M

742186

WORK CLAMP + CABLE 35MMQ 3M AX50

804217

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K"

742576

FEED ROLL 4R 1,0FE-1,2FE "P-K"

742366

ALUMINIUM WELDING KIT D. 1-1,6 MM

802273

FLUX CORED WIRE WELDING KIT D. 1-1,6 MM

802466

MT36 MIG TORCH 4M

742187

MT36 MIG TORCH 5M

742188

COIL COVER KIT

802595

COIL ADAPTOR B-300

802486

CONNECTING CABLE 50 MMQ 4M 8 POLES

802266

CONNECTING CABLE 50MMQ 10M 8 POLES

802267
