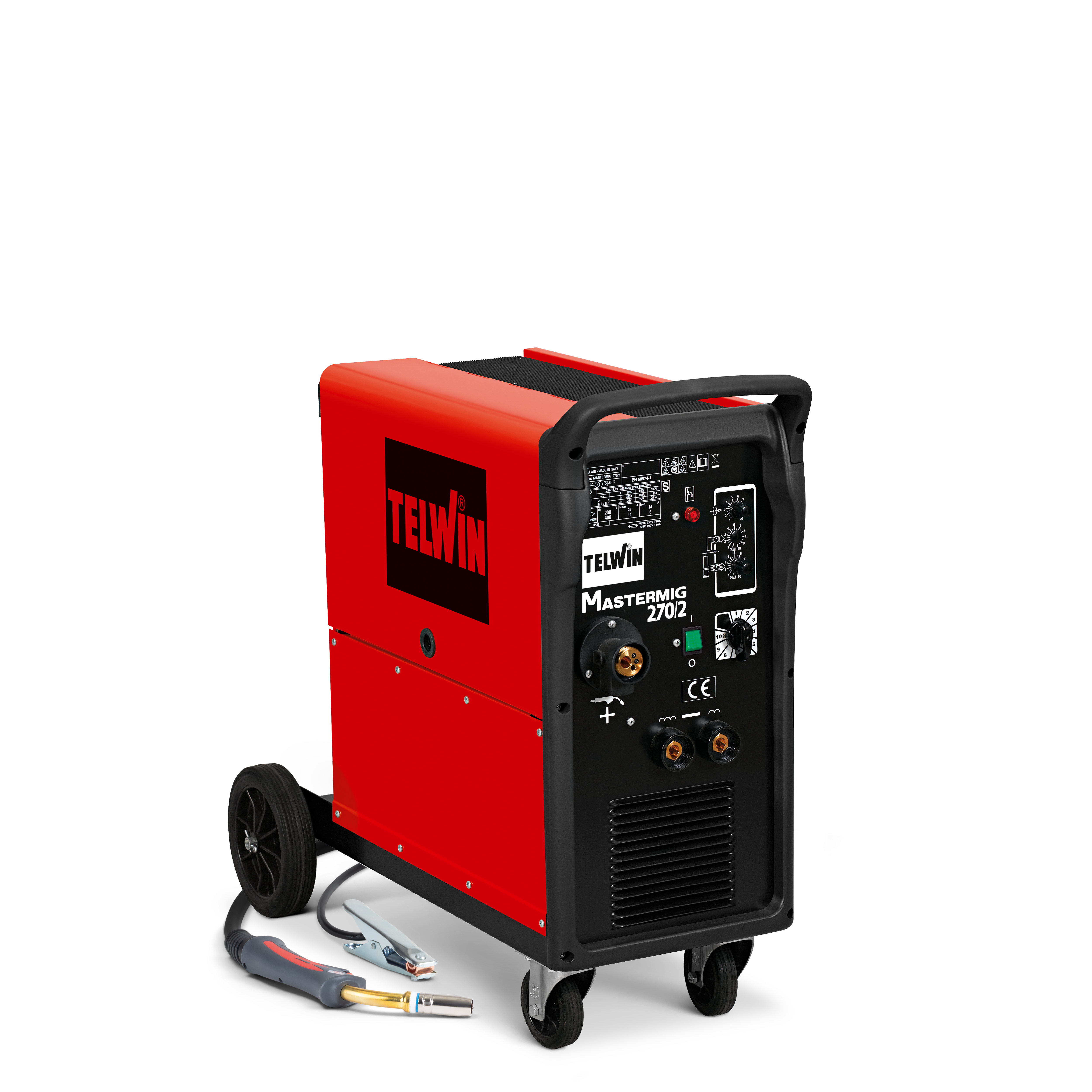

MASTERMIG 270/2

MASTERMIG 270/2

Download PDF Request Info

MIG-MAG/BRAZING, 270A wire welding machine. 3ph 230/400V power supply. With MIG-MAG welding accessories.
Designed for continuous and spot welding with electronic adjustment of spot welding time.
Optional kit available for tempering sheet metal and nailing.

MIG-MAG/BRAZING, 270A wire welding machine. 3ph 230/400V power supply. With MIG-MAG welding accessories.
Designed for continuous and spot welding with electronic adjustment of spot welding time.
Optional kit available for tempering sheet metal and nailing.

MIG-MAG/BRAZING welding machine.
Designed for continuous and spot welding with electronic regulationof spot welding time.
Thanks to optional kit this model allows also sheet tempering.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Complete with MIG-MAG welding accessories.

CODE

821065

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX CURRENT DC EN60974-1

240 @ 30 % A

CURRENT CONTROL RANGE DC

28 - 240 A

CURRENT 60% DC

160 A

CURRENT 100% DC

130 A

MAX DC NO LOAD VOLTAGE

37,3 V

RANGE V OUT MIG

9 - 26 V

ABSORBED POWER AT 60%

5,5 kW

MAX ABSORBED POWER

9 kW

FUSE

10 A

T04313

INTEGRATO

STEEL WELDING WIRE DIAMETER

0,6 - 1,2 mm

INOX WELDING WIRE DIAMETER

0,8 - 1 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

WIRE SPEED RANGE

1,5 - 20 m/min

SUPPLY CABLE LENGTH

3,50 m

NORM

EN 60974-1 /-5 /-10

PROTECTION DEGREE

IP22

DIMENSIONS

87 x 45,3 x 80 cm

WEIGHT

66 kg

Catalog Image

Instruction Manual

Certificate

Spare Parts List

SPACER

ARGON GAS BOTTLE IT ADAPTOR

TORCH HOOK

CABLE 25MMQ 3M-WORK CLAMP-ATLAS 50MMQ

GAS REGULATOR 2 MANOMETERS 12 L\min

MT25 MIG TORCH 3M

FEED ROLL 2R 0,6FE-0,8FE "F"

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,2 MM

PLATE TEMPERING KIT

MIG TORCHES

MT25 MIG TORCH 4M

MT25 MIG TORCH 5M

MIG-MAG/BRAZING welding machine.
Designed for continuous and spot welding with electronic regulationof spot welding time.
Thanks to optional kit this model allows also sheet tempering.
Flexibility of use with a wide range of materials such as steel, stainless steel, high strength steels and aluminium.
Complete with MIG-MAG welding accessories.

CODE

821065

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

MAX CURRENT DC EN60974-1

240 @ 30 % A

CURRENT CONTROL RANGE DC

28 - 240 A

CURRENT 60% DC

160 A

CURRENT 100% DC

130 A

MAX DC NO LOAD VOLTAGE

37,3 V

RANGE V OUT MIG

9 - 26 V

ABSORBED POWER AT 60%

5,5 kW

MAX ABSORBED POWER

9 kW

FUSE

10 A

T04313

INTEGRATO

STEEL WELDING WIRE DIAMET.

0,6 - 1,2 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

WIRE SPEED RANGE

1,5 - 20 m/min

SUPPLY CABLE LENGTH

3,50 m

NORM

EN 60974-1 /-5 /-10

PROTECTION DEGREE

IP22

DIMENSIONS (LxWxH)

87 x 45,3 x 80 cm

WEIGHT

66 kg

Catalog Image

Instruction Manual

Certificate

SPACER

ARGON GAS BOTTLE IT ADAPTOR

432036

TORCH HOOK

644444

CABLE 25MMQ 3M-WORK CLAMP-ATLAS 50MMQ

713192

GAS REGULATOR 2 MANOMETERS 12 L\min

722119

MT25 MIG TORCH 3M

742183

FEED ROLL 2R 0,6FE-0,8FE "F"

742575

MIG/MAG WELDING KITS

ALUMINIUM WELDING KIT D. 1-1,2 MM

802766

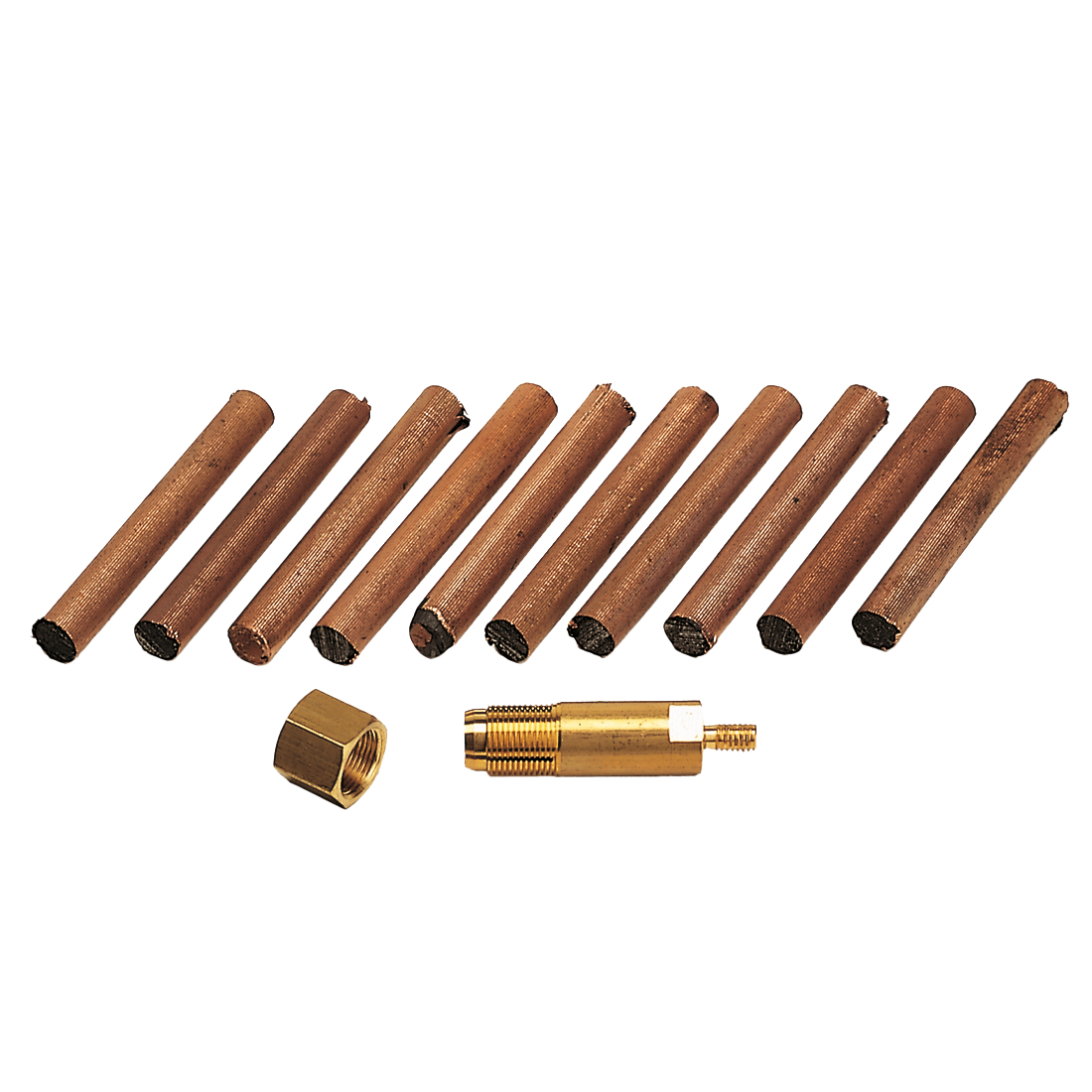

PLATE TEMPERING KIT

802035

MIG TORCHES

MT25 MIG TORCH 4M

742184

MT25 MIG TORCH 5M

742185

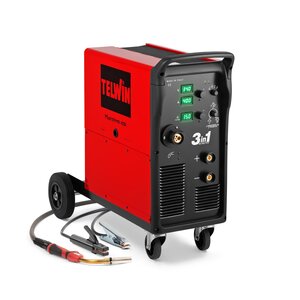

MASTERMIG 405i + ACC.
