Home PPE & Safety Helmets TRIBE 9-13 MMA/MIG-MAG/TIG HELMET

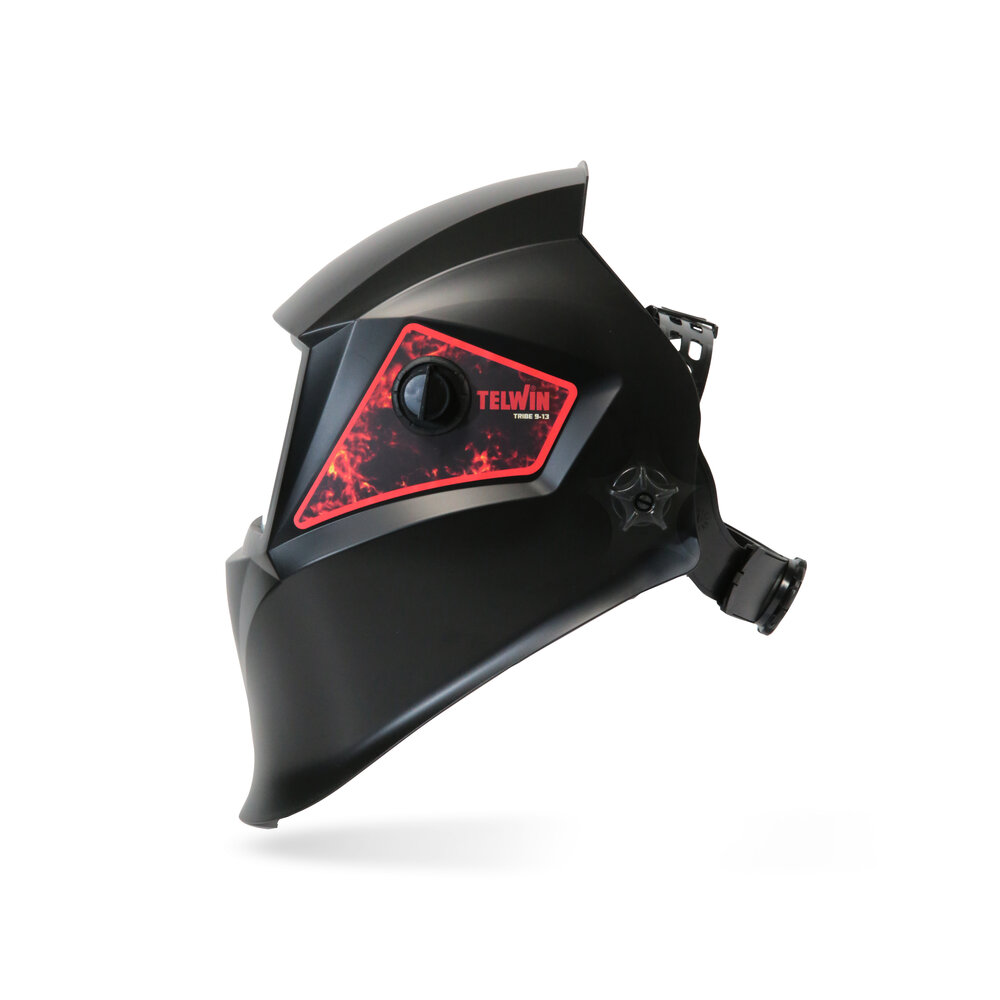

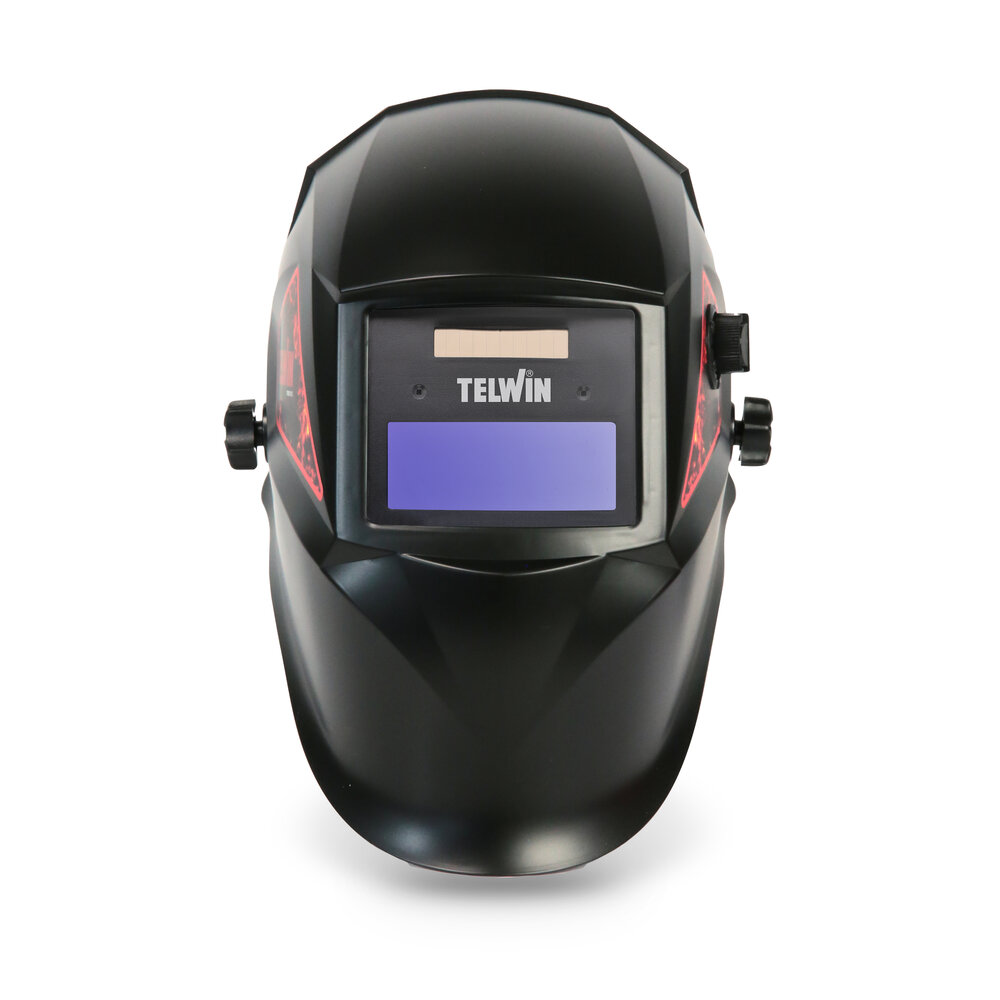

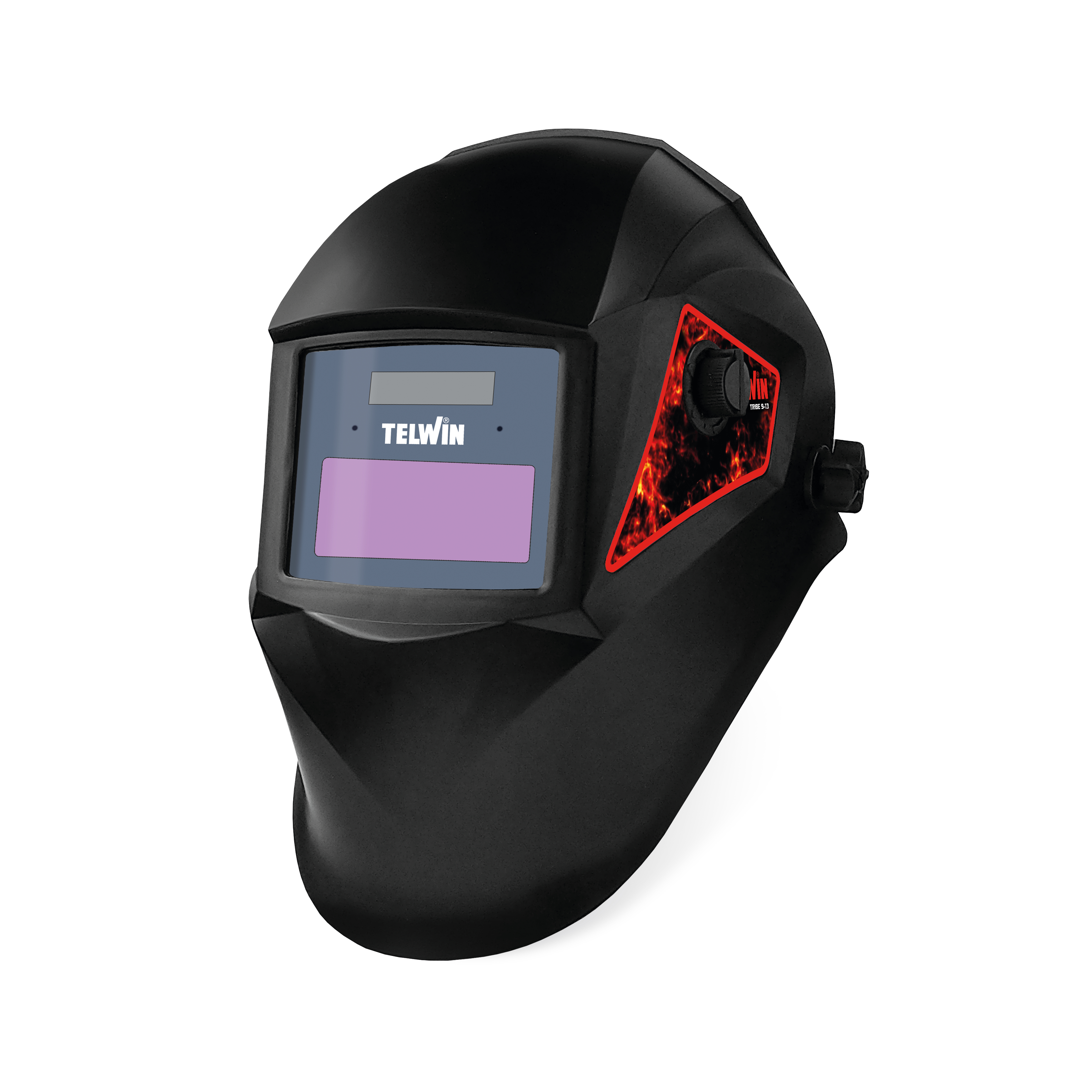

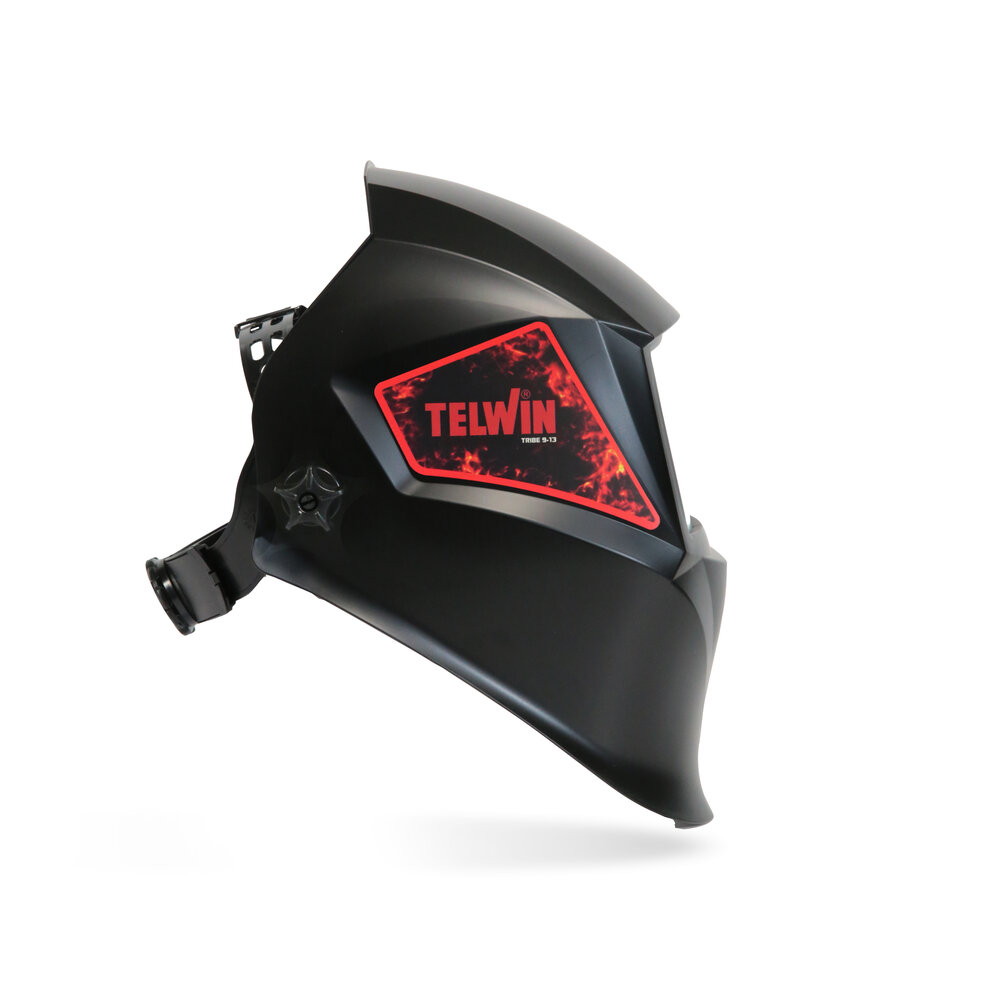

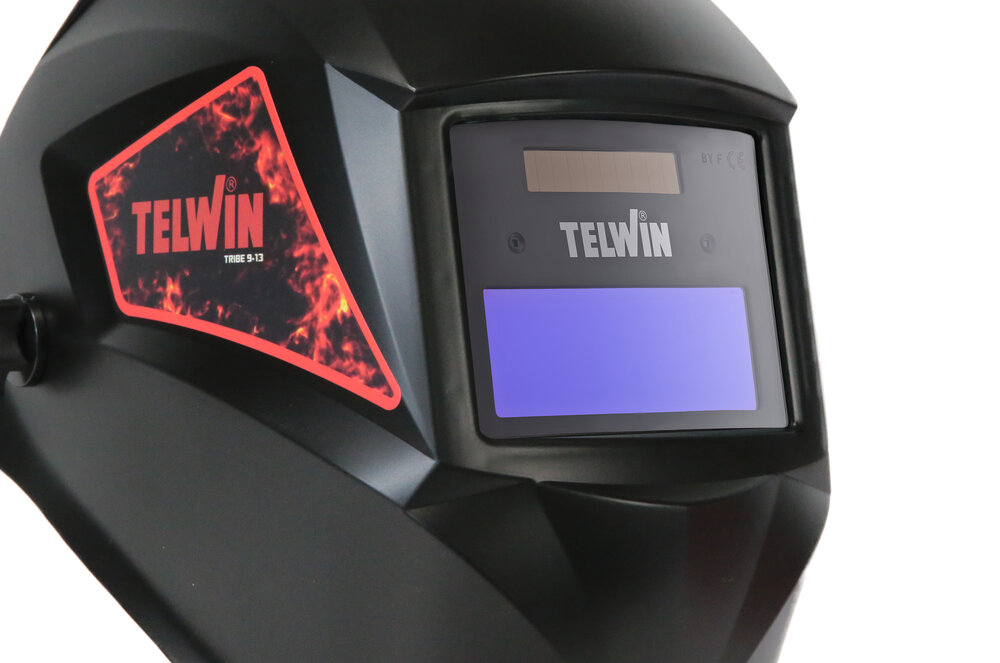

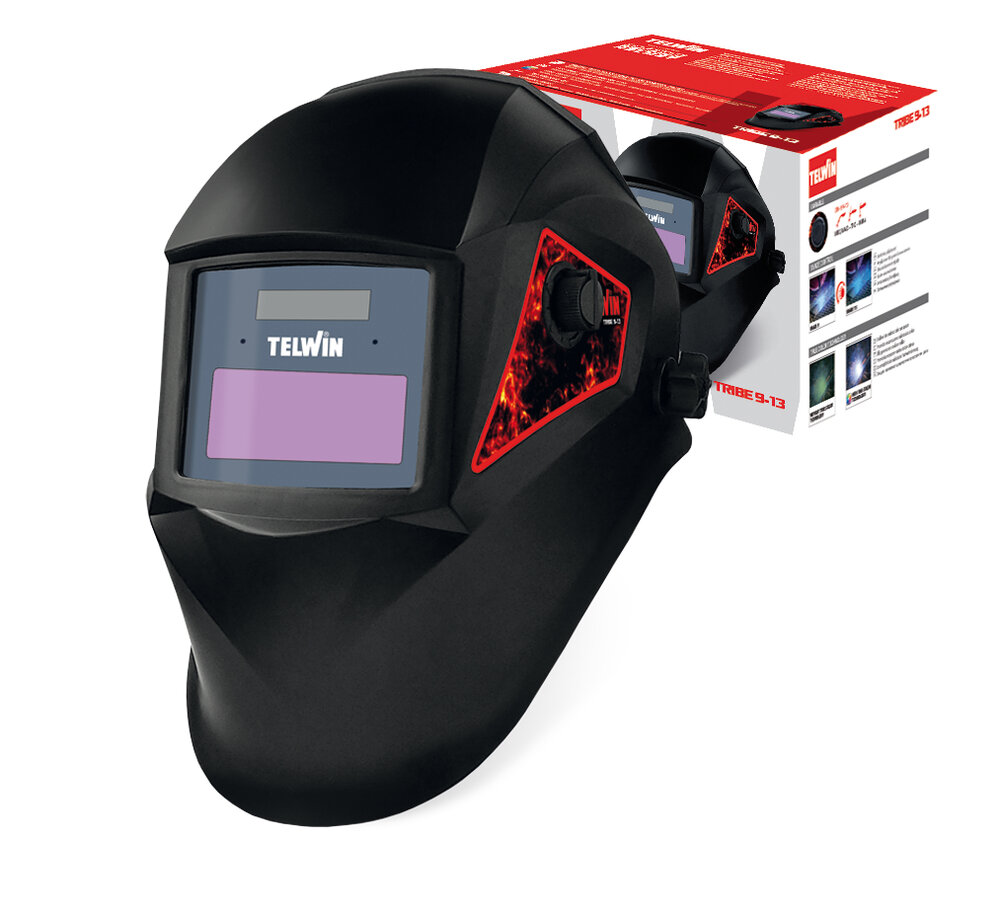

TRIBE 9-13 MMA/MIG-MAG/TIG HELMET

New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison
New
Add to comparison

TRIBE 9-13 MMA/MIG-MAG/TIG HELMET

Download PDF Request Info
  • Self-darkening helmet mask for DIY use. Suitable for all types of welding with external darkening adjustment (DIN 4/9-13), it guarantees high performance in TIG (it darkens with currents lower than 5A) / MIG-MAG / MMA. Viewing area 90*35mm, optical class 1/1/1/2.
  • Vivid colors: True Color technology allows to operate with a more realistic color vision, with sharper contrasts and greater image definition for more precise welding and less eye strain.

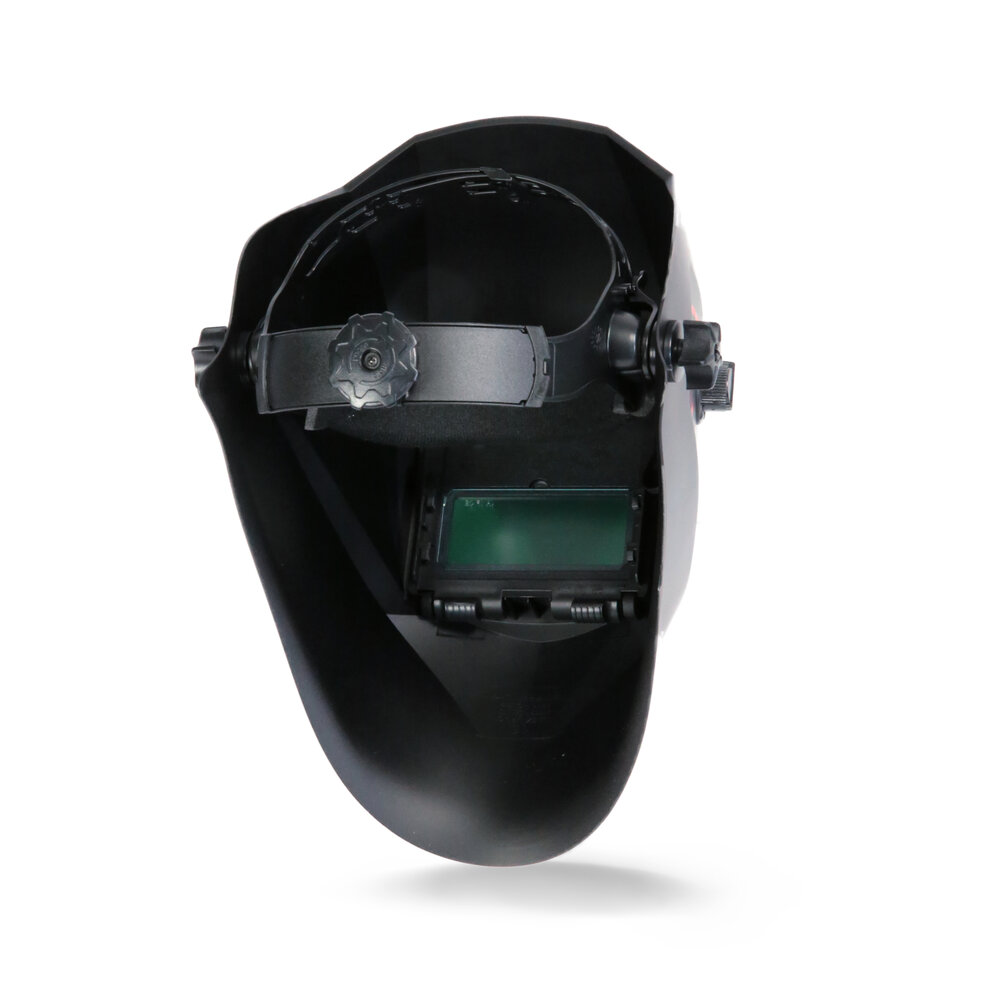

  • Light and comfortable, it is fitted with a headgear adjustment system for perfect fit and protection.
  • External adjustment of the degree of darkening to adapt to different welding applications.
  • “GRIND” mode: it blocks the darkening of the mask glass to be able to carry out grinding operations protected and in complete safety.
  • Self-darkening helmet mask for DIY use. Suitable for all types of welding with external darkening adjustment (DIN 4/9-13), it guarantees high performance in TIG (it darkens with currents lower than 5A) / MIG-MAG / MMA. Viewing area 90*35mm, optical class 1/1/1/2.
  • Vivid colors: True Color technology allows to operate with a more realistic color vision, with sharper contrasts and greater image definition for more precise welding and less eye strain.
  • Light and comfortable, it is fitted with a headgear adjustment system for perfect fit and protection.
  • External adjustment of the degree of darkening to adapt to different welding applications.
  • “GRIND” mode: it blocks the darkening of the mask glass to be able to carry out grinding operations protected and in complete safety.
Automatic helmet mask ideal for MMA, MIG-MAG and TIG welding with external darkening adjustment (DIN 4/9 ÷ 13).
The LCD liquid crystal filter automatically darkens on striking the welding arc and quickly returns to its transparent status when the arc is switched off; eliminating the need to lift and lower the helmet on each work break and thereby allowing the operator to work with hands free.
The True Color Technology allows the realistic color perception also during welding operations.
Features:
- optical class 1/1/1/2;
- adjustable automatic darkening filter;
- True Color Technology;
- transparent filter protection;
- TIG >5 A;
- grinding mode;
- solar cell operation;
- light and comfortable.
OPTIONAL:
External glass protection 95x115,5mm 2 pcs cod.804312
Internal glass protection 41,5x96mm 2 pcs cod.804411
Sweatband 2 pcs cod.804099.

CODE

804404

TIG HELMET

>= 5A

MIG-MAG HELMET

*

MMA HELMET

*

GRINDING

*

LUMINOUS STATE

4 DIN

VARIABLE STATUS

9-13 DIN

SWITCHING TIME LIGHT-DARK

0,4 ms

DELAY FROM DARK TO LIGHT STATE

0,3 s

OPTIC CLASS

1/1/1/2

OPERATING TEMPERATURE (MIN-MAX)

-5 /+55 °C

SENSORS

2

VIEWING AREA

90x35 mm

DIMENSIONS

300x240x240 mm

WEIGHT

1,090 kg

TIG HELMET

>=5A

MIG-MAG HELMET

*

MMA HELMET

*

LUMINOUS STATE

4 DIN

VARIABLE STATUS

9-13 DIN

SWITCHING TIME LIGHT-DARK

0,4 ms

DELAY FROM DARK TO LIGHT STATE

0,3 s

OPTIC CLASS

1/1/1/2

OPERATING TEMPERATURE (MIN-MAX)

-5 / +55 °C

SENSORS

2 NR

VIEWING AREA

90x35 mm

Catalog Image

Download IMG

Instruction Manual

Download PDF

Automatic helmet mask ideal for MMA, MIG-MAG and TIG welding with external darkening adjustment (DIN 4/9 ÷ 13).
The LCD liquid crystal filter automatically darkens on striking the welding arc and quickly returns to its transparent status when the arc is switched off; eliminating the need to lift and lower the helmet on each work break and thereby allowing the operator to work with hands free.
The True Color Technology allows the realistic color perception also during welding operations.
Features:
- optical class 1/1/1/2;
- adjustable automatic darkening filter;
- True Color Technology;
- transparent filter protection;
- TIG >5 A;
- grinding mode;
- solar cell operation;
- light and comfortable.
OPTIONAL:
External glass protection 95x115,5mm 2 pcs cod.804312
Internal glass protection 41,5x96mm 2 pcs cod.804411
Sweatband 2 pcs cod.804099.

CODE

804404

TIG

>= 5A

MIG - MAG

*

MMA

*

GRINDING

*

LUMINOUS STATE

4 DIN

VARIABLE STATUS

9-13 DIN

SWITCHING TIME LIGHT-DARK

0,4 ms

DELAY FROM DARK TO LIGHT STATE

0,3 s

OPTIC CLASS

1/1/1/2

OPERATING TEMPERATURE (MIN-MAX)

-5 /+55 °C

SENSORS

2

VIEWING AREA

90x35 mm

DIMENSIONS

300x240x240 mm

WEIGHT

1,090 kg

Helmet for TIG

>=5A

Helmet for MIG-MAG

*

Helmet for MMA

*

Luminous state

4 DIN

Stato variabile

9-13 DIN

Switching time light-dark

0,4 ms

Delay from dark ligt.state

0,3 s

Optic class

1/1/1/2

Operating temper.(min-max)

-5 / +55 °C

SENSORI

2 NR

Area visione

90x35 mm

Catalog Image

Download IMG

Instruction Manual

Download PDF

MASKS FILTERS AND ACCESSORIES

MAGNIFYING LENS 1.5X 107,4x50,5MM

804406

MAGNIFYING LENS 2.0X 107,4x50,5MM

804407

MAGNIFYING LENS 2.5X 107,4x50,5MM

804408

TRUE COLOR TECHNOLOGY

Makes colour perception realistic even during the welding phases. Realer colours, cleaner contrasts and better definition of the image for more precise welding.

FIND THE DIFFERENCE!

WITH TRUE COLOR

WITHOUT TRUE COLOR
