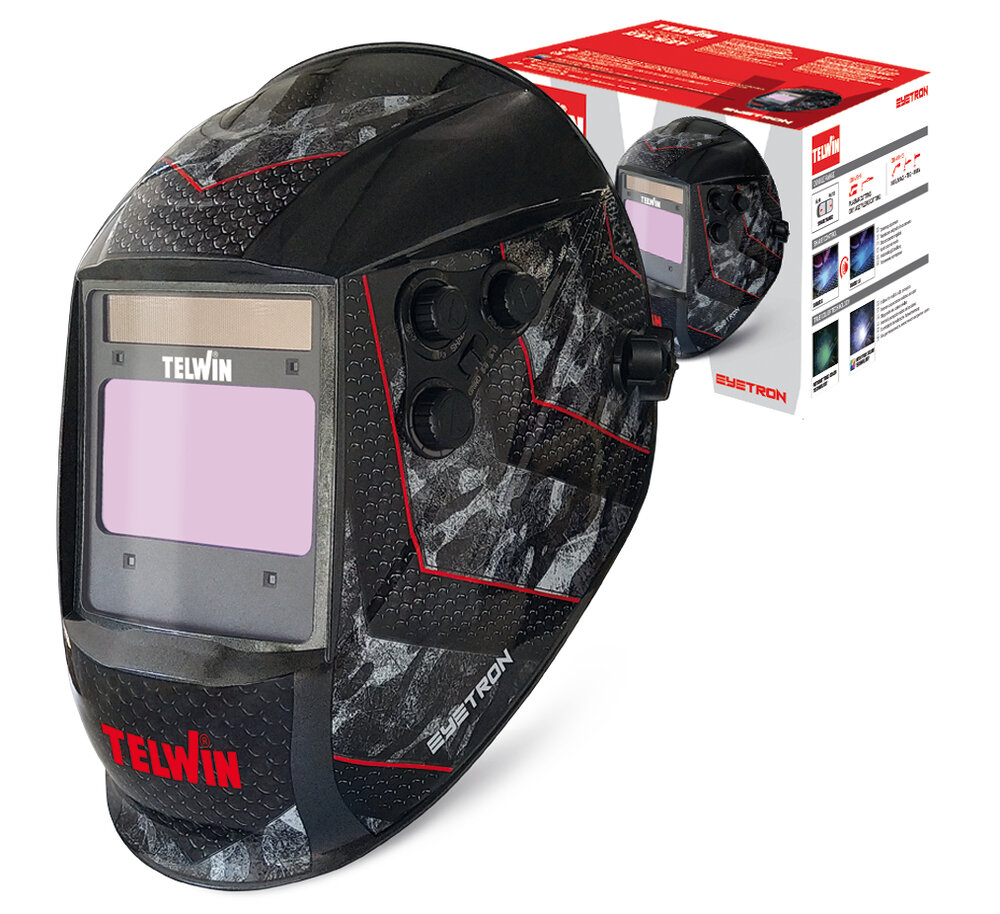

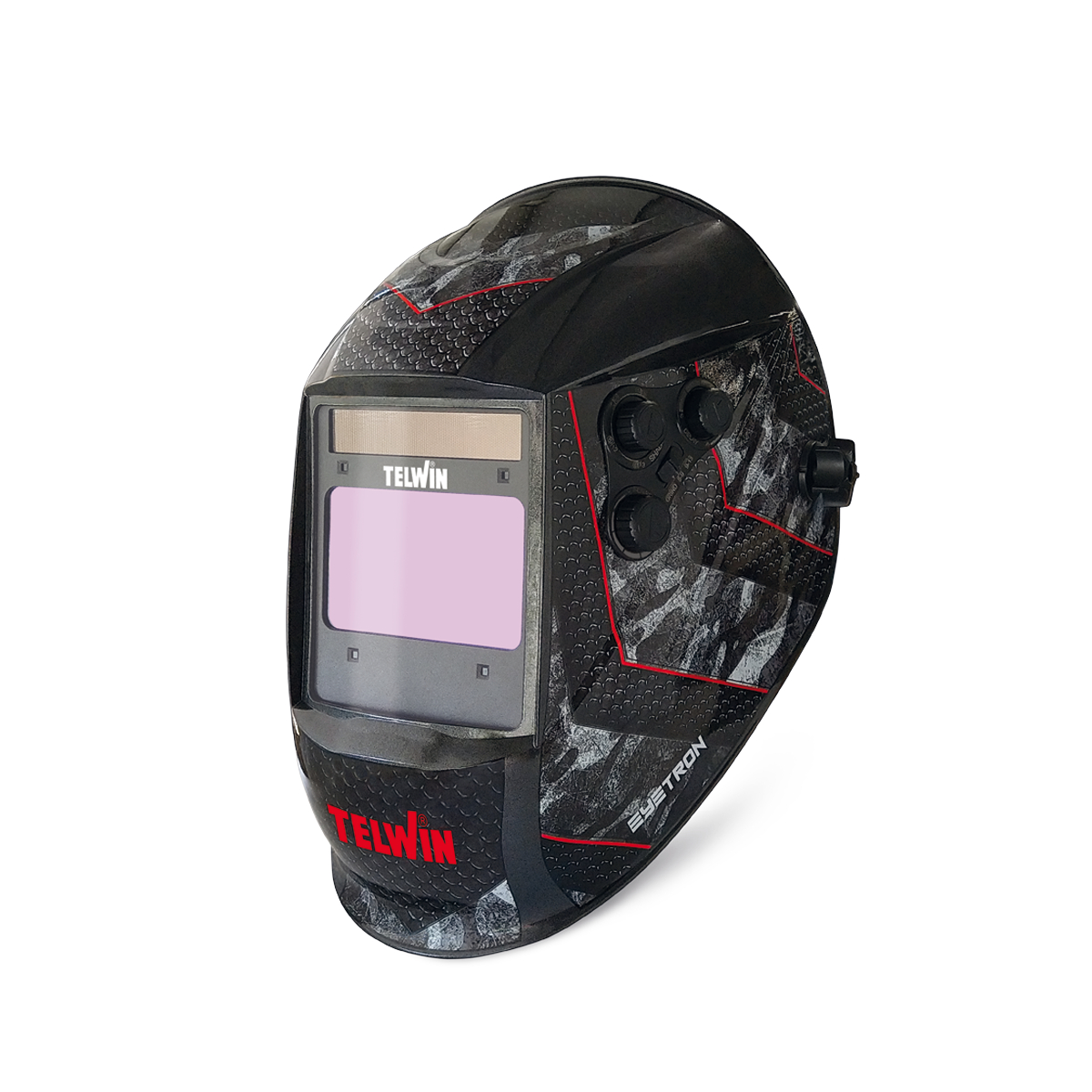

EYETRON MMA/MIG-MAG/TIG HELMET

Download PDF Request Info
  • Automatic helmet mask for professional use suitable for MMA, TIG (>2A) and MIG-MAG welding. Optical class 1/1/1/1. Solar cell operation.
  • Protection and extended vision: external adjustment (DIN 5 ÷ 9/9÷13). Viewing area 100*60mm. Double range adjustment scale. In addition to the regulation of the sensitivity of the filter according to the welding process, there is the regulation of the delay time for the transition from the dark state to the light state, after the interruption of the arc, according to the brightness of the piece.
  • Quality of vision for safe and uninterrupted work: the LCD liquid crystal filter automatically darkens when the welding arc strikes and quickly returns to the transparent state when it is turned off, eliminating the need to raise and lower the mask at each pause of work and therefore allowing you to operate with your hands free.
  • Vivid colors: True Color technology allows to operate with a more realistic color vision, with sharper contrasts and greater image definition for more precise welding and less eye strain.
  • “GRIND” mode: it blocks the darkening of the mask glass to be able to carry out grinding operations protected and in complete safety.
  • Comfort of use: light and comfortable, it is equipped with a cruise adjustment system for perfect fit and protection.
  • Automatic helmet mask for professional use suitable for MMA, TIG (>2A) and MIG-MAG welding. Optical class 1/1/1/1. Solar cell operation.
  • Protection and extended vision: external adjustment (DIN 5 ÷ 9/9÷13). Viewing area 100*60mm. Double range adjustment scale. In addition to the regulation of the sensitivity of the filter according to the welding process, there is the regulation of the delay time for the transition from the dark state to the light state, after the interruption of the arc, according to the brightness of the piece.
  • Quality of vision for safe and uninterrupted work: the LCD liquid crystal filter automatically darkens when the welding arc strikes and quickly returns to the transparent state when it is turned off, eliminating the need to raise and lower the mask at each pause of work and therefore allowing you to operate with your hands free.
  • Vivid colors: True Color technology allows to operate with a more realistic color vision, with sharper contrasts and greater image definition for more precise welding and less eye strain.
  • “GRIND” mode: it blocks the darkening of the mask glass to be able to carry out grinding operations protected and in complete safety.
  • Comfort of use: light and comfortable, it is equipped with a cruise adjustment system for perfect fit and protection.
Automatic helmet mask ideal for MMA, MIG-MAG and TIG welding with external darkening adjustment (DIN 4/5 ÷9/9÷13).
The LCD liquid crystal filter automatically darkens on striking the welding arc and quickly returns to its transparent status when the arc is switched off; eliminating the need to lift and lower the helmet on each work break and thereby allowing the operator to work with hands free.
The True Color Technology allows the realistic color perception also during welding operations.
In addition to adjusting the sensitivity of the filter according to the welding process, there is also an adjustment of the delay time for switching from the dark to the light status after the arc has been interrupted, depending on the brightness of the workpiece.
Features:
- adjustable automatic darkening filter;
- True Color Technology;
- dual scale of darkening adjustment;
- XL viewing area;
- optical class 1/1/1/1;
- 4 sensors;
- sensitivity adjustment and dark-light delay;
- TIG >2 A;
- grinding mode;
- solar cell operation;
- light and comfortable.
OPTIONAL:
external glass protection 122x139mm 2 pcs cod.804409
internal glass protection 71,7x105,7mm  2 pcs cod.804410
Sweatband 2 pcs cod.804099.

CODE

804262

TIG HELMET

> 2A

MIG-MAG HELMET

*

MMA HELMET

*

GRINDING

*

LUMINOUS STATE

4 DIN

VARIABLE STATUS

5-9 / 9-13 DIN

SWITCHING TIME LIGHT-DARK

< 0,1 ms

DELAY FROM DARK TO LIGHT STATE

0,1 - 0,8 s

OPTIC CLASS

1/1/1/1

OPERATING TEMPERATURE (MIN-MAX)

-5 /+55 °C

SENSORS

4

VIEWING AREA

100x60 mm

DIMENSIONS

300x240x240 mm

WEIGHT

0,530 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Automatic helmet mask ideal for MMA, MIG-MAG and TIG welding with external darkening adjustment (DIN 4/5 ÷9/9÷13).
The LCD liquid crystal filter automatically darkens on striking the welding arc and quickly returns to its transparent status when the arc is switched off; eliminating the need to lift and lower the helmet on each work break and thereby allowing the operator to work with hands free.
The True Color Technology allows the realistic color perception also during welding operations.
In addition to adjusting the sensitivity of the filter according to the welding process, there is also an adjustment of the delay time for switching from the dark to the light status after the arc has been interrupted, depending on the brightness of the workpiece.
Features:
- adjustable automatic darkening filter;
- True Color Technology;
- dual scale of darkening adjustment;
- XL viewing area;
- optical class 1/1/1/1;
- 4 sensors;
- sensitivity adjustment and dark-light delay;
- TIG >2 A;
- grinding mode;
- solar cell operation;
- light and comfortable.
OPTIONAL:
external glass protection 122x139mm 2 pcs cod.804409
internal glass protection 71,7x105,7mm  2 pcs cod.804410
Sweatband 2 pcs cod.804099.

CODE

804262

TIG

> 2A

MIG - MAG

*

MMA

*

GRINDING

*

LUMINOUS STATE

4 DIN

VARIABLE STATUS

5-9 / 9-13 DIN

SWITCHING TIME LIGHT-DARK

< 0,1 ms

DELAY FROM DARK TO LIGHT STATE

0,1 - 0,8 s

OPTIC CLASS

1/1/1/1

OPERATING TEMPERATURE (MIN-MAX)

-5 /+55 °C

SENSORS

4

VIEWING AREA

100x60 mm

DIMENSIONS

300x240x240 mm

WEIGHT

0,530 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

MASKS FILTERS AND ACCESSORIES

MAGNIFYING LENS 1.5X 107,4x50,5MM

804406

MAGNIFYING LENS 2.0X 107,4x50,5MM

804407

MAGNIFYING LENS 2.5X 107,4x50,5MM

804408

TRUE COLOR TECHNOLOGY

Makes colour perception realistic even during the welding phases. Realer colours, cleaner contrasts and better definition of the image for more precise welding.
