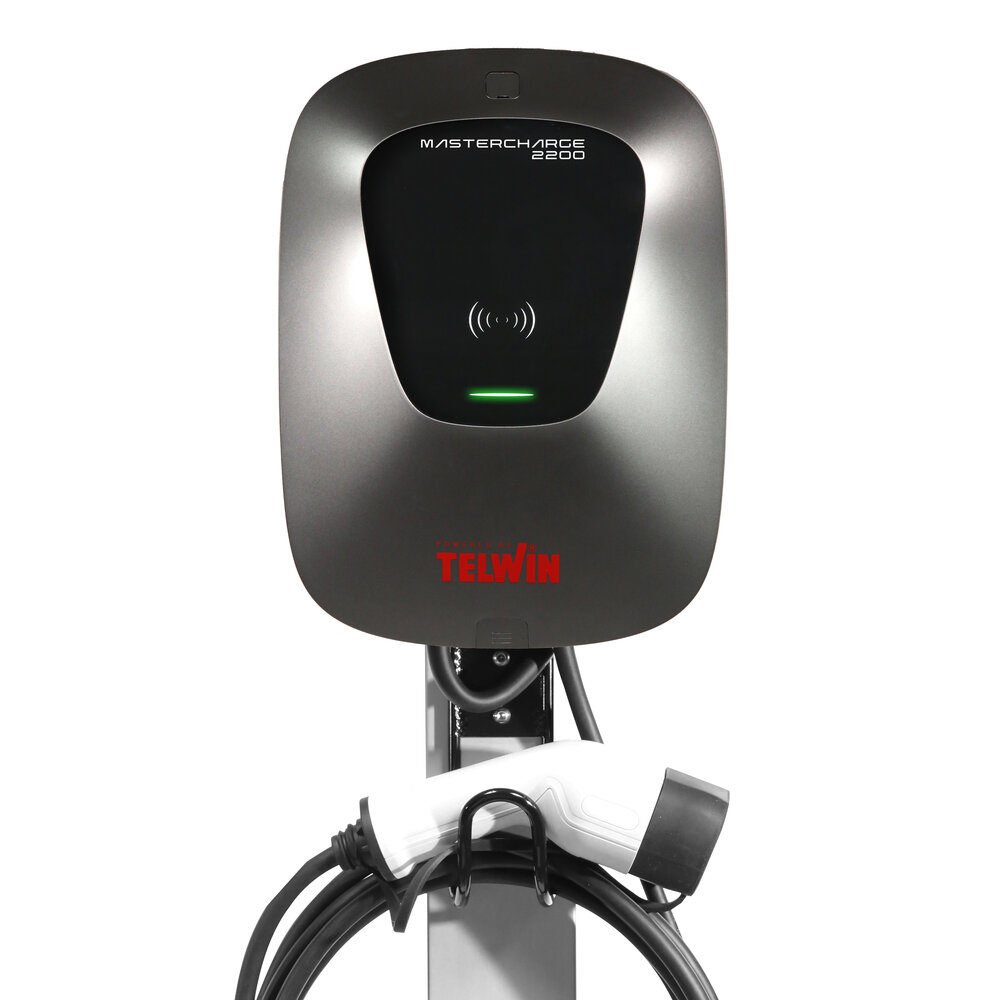

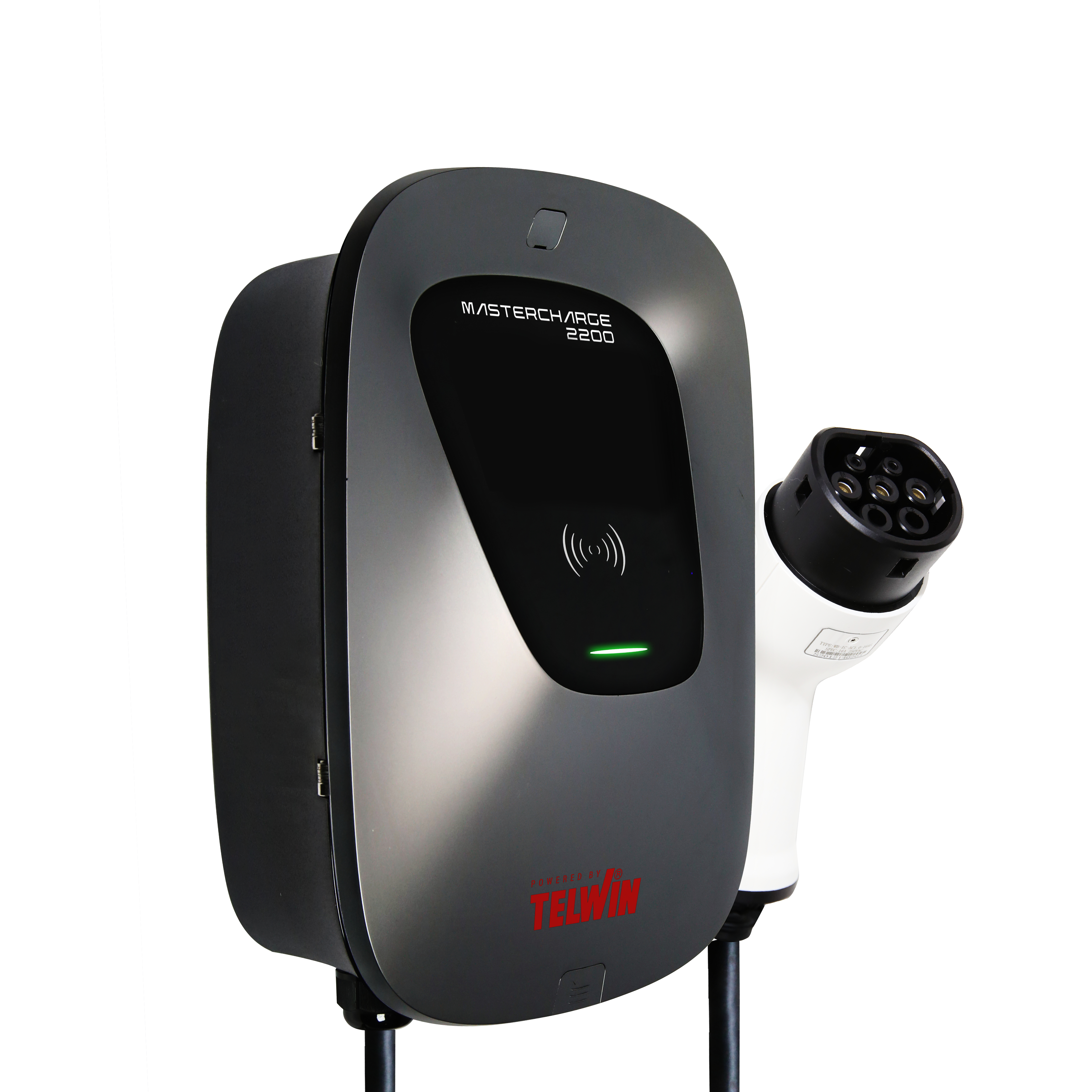

MASTERCHARGE 2200 CONNECT

MASTERCHARGE 2200 CONNECT


  • 22 kW (32A 400V 3-ph) charging station for AC electric vehicles (mode 3).
  • Use through authentication with RFID badge for authorised users only.
  • Suitable for both indoor and outdoor installation in sheltered areas (IP54, operating temperature -25°C; +50°C).
  • Equipped with direct charging cable (5m) with type 2 connector, wall bracket and 2 activation badges.
  • OCPP 1.6 ready.
  • Wi-Fi and Bluetooth connectivity; dedicated App for remote display of charging parameters, vehicle charge history and for setting maximum current to vehicle and energy cost.

  • 22 kW (32A 400V 3-ph) charging station for AC electric vehicles (mode 3).
  • Use through authentication with RFID badge for authorised users only.
  • Suitable for both indoor and outdoor installation in sheltered areas (IP54, operating temperature -25°C; +50°C).
  • Equipped with direct charging cable (5m) with type 2 connector, wall bracket and 2 activation badges.
  • OCPP 1.6 ready.
  • Wi-Fi and Bluetooth connectivity; dedicated App for remote display of charging parameters, vehicle charge history and for setting maximum current to vehicle and energy cost.
Charging station for electric vehicles in AC alternating current (Mode 3).
Mastercharge is equipped with a built-in, 5-metre long charging cable with Type 2 connection and is suitable both for indoor and outdoor installations in protected zones (IP54, working temperature -20° C; +50° C).
Mastercharge can only be used via authentication with a RFID badge by authorised users only.
Mastercharge implements the OCPP 1.6 (Open Charge Point Protocol) communication protocol for energy management between the mains and charging sites, and is equipped with wi-fi and Bluetooth connectivity.
Thanks to the dedicated App it is possible to monitor the charge and set some parameters (maximum current and energy cost) remotely.
Easy to install, Mastercharge is a plug-and-charge, safe and intuitive solution.
Complies with LVD (EN 61851-1) and EMC (EN 61000-6-2, EN 61000-6-3) norms.

CODE

893006

THREE PHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 Hz

MAX ABSORBED POWER

22 kW

MAX. CURRENT

32 A

MAX POWER

4

EV CONNECTOR TYPE

Type 2

RECHARGE MODE

Mode 3

CABLE TYPE

Case C

PROTECTION DEGREE

IP54

OVERVOLTAGE CATEGORY

III

DIMENSIONS

13,2 x 27,0 x 36,2 cm

WEIGHT

5,80 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Certificate

Download PDF

Charging station for electric vehicles in AC alternating current (Mode 3).
Mastercharge is equipped with a built-in, 5-metre long charging cable with Type 2 connection and is suitable both for indoor and outdoor installations in protected zones (IP54, working temperature -20° C; +50° C).
Mastercharge can only be used via authentication with a RFID badge by authorised users only.
Mastercharge implements the OCPP 1.6 (Open Charge Point Protocol) communication protocol for energy management between the mains and charging sites, and is equipped with wi-fi and Bluetooth connectivity.
Thanks to the dedicated App it is possible to monitor the charge and set some parameters (maximum current and energy cost) remotely.
Easy to install, Mastercharge is a plug-and-charge, safe and intuitive solution.
Complies with LVD (EN 61851-1) and EMC (EN 61000-6-2, EN 61000-6-3) norms.

CODE

893006

THREEPHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 Hz

MAX POWER

22 kW

CURRENT MAX

32 A

POTENZA STAND BY

4

EV CONNECTOR TYPE

Type 2

CHARGING MODES

Mode 3

TYPE CABLE

Case C

PROTECTION DEGREE

IP54

OVERVOLTAGE CATEGORY

III

DIMENSIONS (LxWxH)

13,2 x 27,0 x 36,2 cm

WEIGHT

5,80 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Certificate

Download PDF

WALL-FIXING BRACKET

START-STOP CARD

TYPE 2 CHARGER CABLE

The charging solution for your electric vehicle

Mastercharge can be activated or blocked by the supplied RFID badges.

DOWNLOAD MASTERCHARGE APP

It is equipped with Wi-Fi and Bluetooth connectivity.

  • OCCP READY

    CPP 1.6 (Open Charge Point Protocol) communication protocol for managing energy between the network and charging points.
