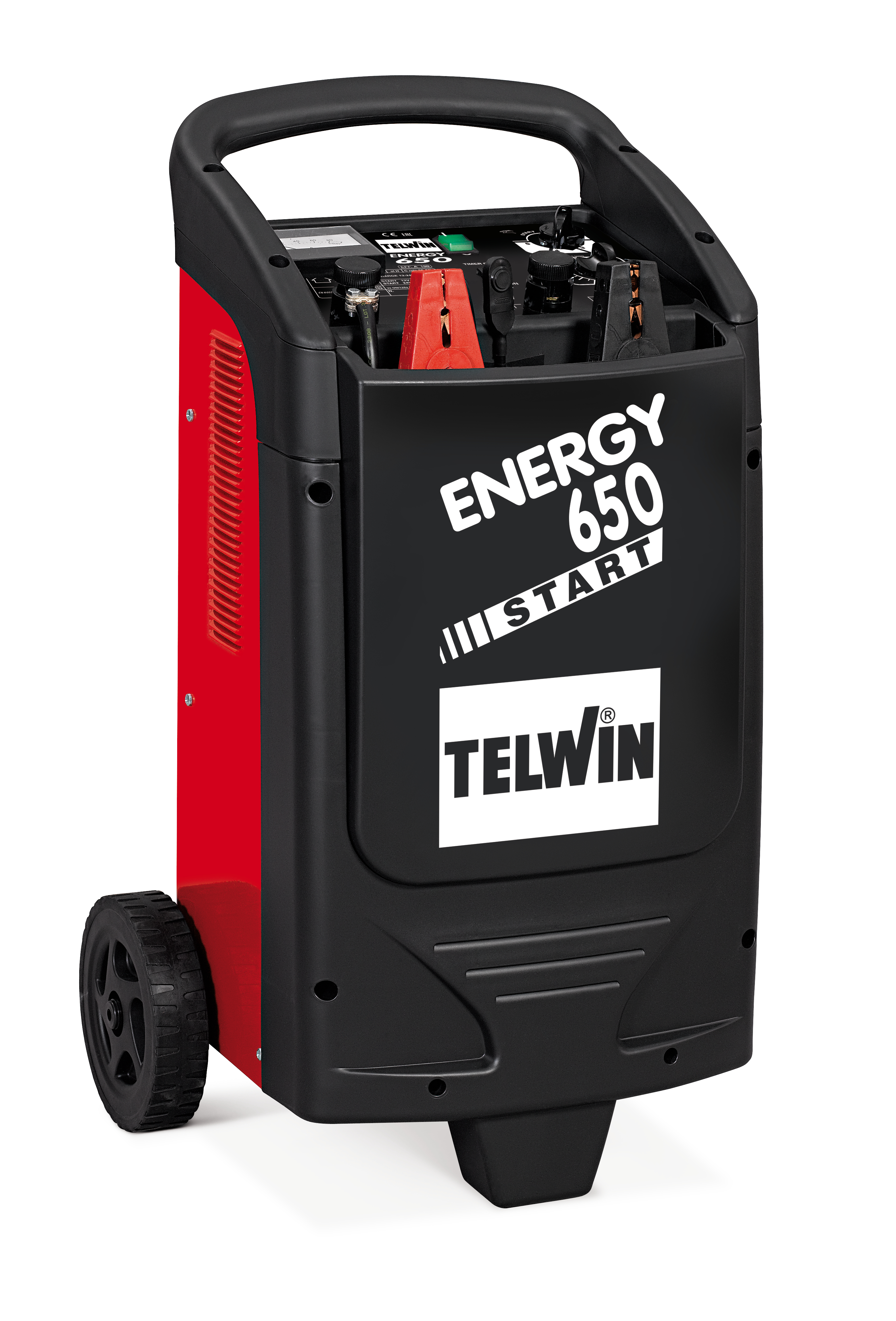

ENERGY 650 START

ENERGY 650 START

  • Battery charger and starter for 12/24V WET batteries and rapid cranking of all types of cars, vans, light goods vehicles, excavators, tractors and lorries.
  • Fast (BOOST) charge and rapid cranking.
  • Remote control. Timer to program timed BOOST charge and avoid overloading the battery.
  • Display of charging and cranking current.
  • Protection against overcharging and pole inversion.
  • Battery charger and starter for 12/24V WET batteries and rapid cranking of all types of cars, vans, light goods vehicles, excavators, tractors and lorries.
  • Fast (BOOST) charge and rapid cranking.
  • Remote control. Timer to program timed BOOST charge and avoid overloading the battery.
  • Display of charging and cranking current.
  • Protection against overcharging and pole inversion.
Battery charger and starter for charging free electrolyte batteries (WET) with 12V/24V voltage and starting all kinds of cars, vans, light trucks, earth moving equipment, tractors and trucks.
Features:
- choice of normal charge, quick charge (BOOST), quick start
- timer for quick charge
- remote control
- display of charging and starting current
- protection against overloads and polarity reversal.

CODE

829385

THREE PHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CHARGE POWER

2,5 kW

START POWER

20 kW

CHARGING VOLTAGE

12 / 24 V

EFFECTIVE CHARGING CURRENT

100 A

RATED CHARGE CURR. EN60335-2-29

80 A

START CURRENT 1V/C EN60335-2-29

640 A

MAX STARTING CURRENT

1000 A

MIN. RATED REFERENCE CAPACITY

20 Ah

MAX RATED REFERENCE CAPACITY

1600 / 800 Ah

ADJUSTMENT POSITIONS

5

DIMENSIONS

36,5 x 46 x 75,5 cm

WEIGHT

38 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF
BATTERY CHARGERS FUSES

FUSES 100A 10 PCS

802131

Battery charger and starter for charging free electrolyte batteries (WET) with 12V/24V voltage and starting all kinds of cars, vans, light trucks, earth moving equipment, tractors and trucks.
Features:
- choice of normal charge, quick charge (BOOST), quick start
- timer for quick charge
- remote control
- display of charging and starting current
- protection against overloads and polarity reversal.

CODE

829385

THREEPHASE MAINS VOLTAGE

230 / 400 V

MAINS FREQUENCY

50 / 60 Hz

CHARGING ABSORBED POWER

2,5 kW

STARTING ABSORBED POWER

20 kW

CHARGE AND STARTING VOLTAG.

12 / 24 V

EFFECTIVE CHARGING CURRENT

100 A

RATED CHAR.CUR.EN60335-2-29

80 A

START CUR.1V/C EN60335-2-29

640 A

MAX STARTING CURRENT

1000 A

MIN.RATED REFERENCE CAPAC.

20 Ah

MAX.RATED REFERENCE CAPAC.

1600 / 800 Ah

ADJUSTMENT POSITIONS

5

DIMENSIONS (LxWxH)

36,5 x 46 x 75,5 cm

WEIGHT

38 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

REMOTE CONTROL 6 M

123993

BATTERY CHARGERS FUSES

FUSES 100A 10 PCS

802131
