MASTERMIG 275i BASE

New
Add to comparison

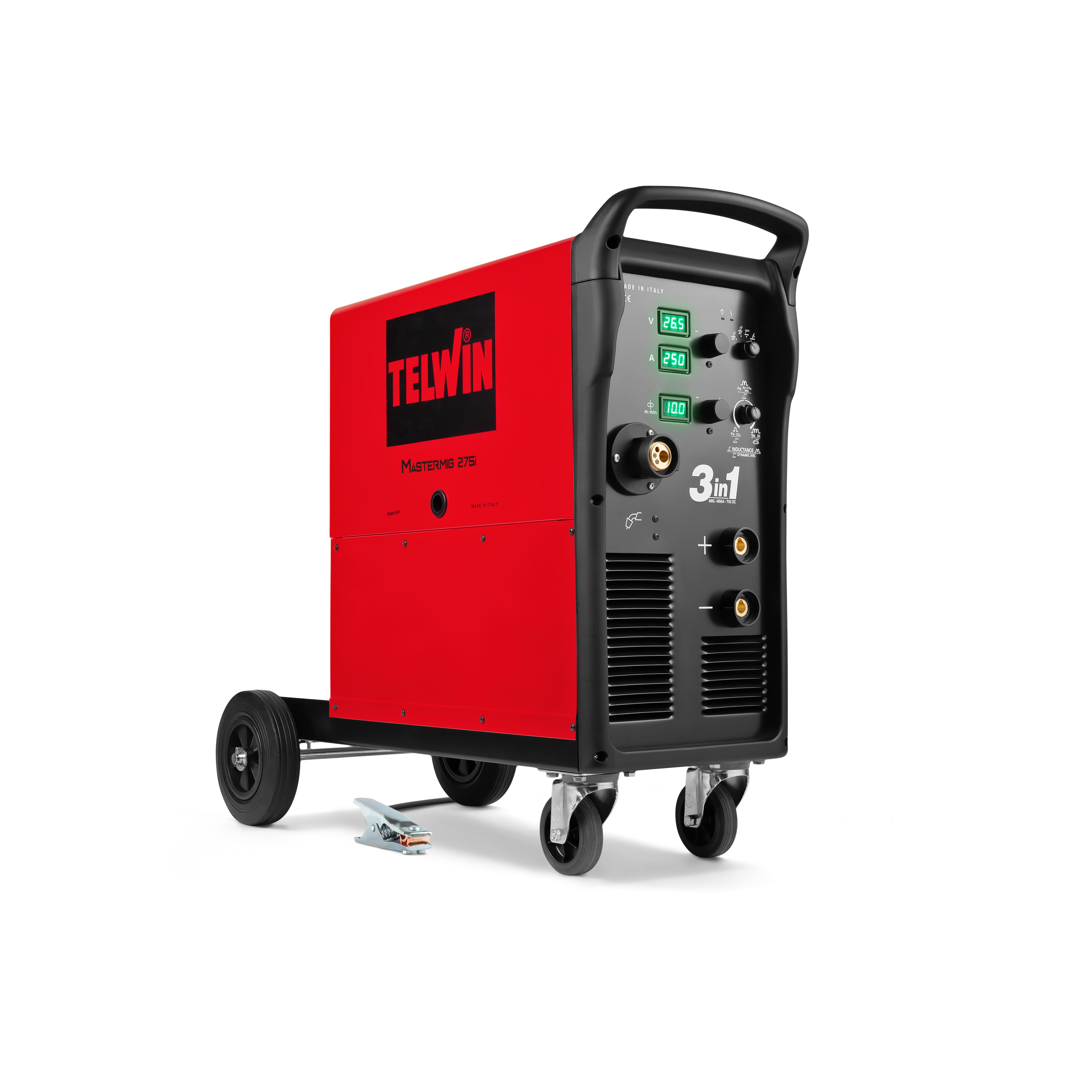

MASTERMIG 275i BASE

Download PDF Request Info
  • Multiprocess inverter welding machine (MIG-MAG/BRAZING/MMA and TIG DC-Lift), 250A. 3ph 400V power supply.
  • Dynamic display of set values.
  • MIG-MAG welding in 2/4 times. Reactance adjustment.
  • Arc Force and Hot Start synergic adjustment according to the type of electrode used. Anti-stick device.
  • Thermostatic, overvoltage (+15%), undervoltage (-25%), overcurrent, motor generator protection.
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
  • Strong, resistant to impact and dust; reduced weight and size. High energy savings.
  • Multiprocess inverter welding machine (MIG-MAG/BRAZING/MMA and TIG DC-Lift), 250A. 3ph 400V power supply.
  • Dynamic display of set values.
  • MIG-MAG welding in 2/4 times. Reactance adjustment.
  • Arc Force and Hot Start synergic adjustment according to the type of electrode used. Anti-stick device.
  • Thermostatic, overvoltage (+15%), undervoltage (-25%), overcurrent, motor generator protection.
  • Particular construction of the ventilation system which, following a dedicated tunnel, allows preservation of the electronic components from dirt and dust.
  • Strong, resistant to impact and dust; reduced weight and size. High energy savings.

MIG-MAG/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine.
Flexible use with various materials (steel, stainless steel, high strength steel, aluminium, galvanised sheet metal) and wide variety of application fields (sheet metal, maintenance, installation, bodyworks, etc..).

Values setting and visualisation of welding progress of the parameters on display.

Set for MIG-MAG welding in 2/4 strokes with reactance adjustment; TIG DC-Lift; MMA.


Features:

  • Robust construction;
  • Reduced weight and dimensions;
  • High energy saving;
  • Display for dynamic display of set values;

MIG-MAG

  • 2/4 strokes operation selection;
  • Electronic reactance adjustment;

MMA

Synergic adjustment of Arc Force and Hot Start according to the type of electrode in use;

Anti-stick device;

TIG

  • DC LIFT striking and display of welding voltage and current.

Protections: thermostatic, overvoltage (+15%), undervoltage(-25%), overcurrent, engine driven generator (+/-15%);

CODE

816882

THREE PHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE

63 V

CURRENT CONTROL RANGE DC

20 - 250 A

MAX CURRENT DC EN60974-1

250 @ 30% A

DC CURRENT

180 A

MAX ABSORBED CURRENT

17,4 A

ABSORBED CURRENT AT 60%

11,4 A

MAX ABSORBED POWER

8,8 kW

ABSORBED POWER AT 60%

5,7 kW

FUSE

10 A

EFFICIENCY

85 %

POWER FACTOR

0,72

D. USABLE ELECTRODES IN DC

1,6 - 5 mm

STEEL WELDING WIRE DIAMETER

0,6 - 1,2 mm

INOX WELDING WIRE DIAMETER

0,8 - 1 mm

ALUMINIUM WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDING WIRE DIAM.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP22

DIMENSIONS

92 x 46 x 80 cm

WEIGHT

40,80 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

MIG-MAG/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine.
Flexible use with various materials (steel, stainless steel, high strength steel, aluminium, galvanised sheet metal) and wide variety of application fields (sheet metal, maintenance, installation, bodyworks, etc..).

Values setting and visualisation of welding progress of the parameters on display.

Set for MIG-MAG welding in 2/4 strokes with reactance adjustment; TIG DC-Lift; MMA.


Features:

  • Robust construction;
  • Reduced weight and dimensions;
  • High energy saving;
  • Display for dynamic display of set values;

MIG-MAG

  • 2/4 strokes operation selection;
  • Electronic reactance adjustment;

MMA

Synergic adjustment of Arc Force and Hot Start according to the type of electrode in use;

Anti-stick device;

TIG

  • DC LIFT striking and display of welding voltage and current.

Protections: thermostatic, overvoltage (+15%), undervoltage(-25%), overcurrent, engine driven generator (+/-15%);

CODE

816882

THREEPHASE MAINS VOLTAGE

400 V

MAINS FREQUENCY

50 / 60 Hz

MAX NO LOAD VOLTAGE IN DC

63 V

CURRENT RANGE IN DC

20 - 250 A

MAX CURRENT DC EN60974-1

250 @ 30% A

DC CURRENT AT 60%

180 A

MAX ABSORBED CURRENT

17,4 A

ABSORBED CURRENT AT 60%

11,4 A

MAX ABSORBED POWER

8,8 kW

ABSORBED POWER AT 60%

5,7 kW

MAINS FUSE

10 A

EFFICIENCY

85 %

POWER FACTOR(cosphi) (cosphi)

0,72

D.USABLE ELECTRODES IN DC

1,6 - 5 mm

STEEL WELDING WIRE DIAMET.

0,6 - 1,2 mm

INOX WELDI.WIRE DIAMETER

0,8 - 1 mm

ALUM. WELDING WIRE DIAM.

0,8 - 1 mm

FLUX CORED WELDI.WIRE DIA.

0,8 - 1,2 mm

BRAZING WIRE DIAM.

0,8 - 1 mm

PROTECTION DEGREE

IP22

DIMENSIONS (LxWxH)

92 x 46 x 80 cm

WEIGHT

40,80 kg

Catalog Image

Download IMG

Instruction Manual

Download PDF

Spare Parts List

Download PDF

FEED ROLL 2R 0,6FE-0,8FE "F"

742575

TORCH HOOK

644444

CABLE 25MMQ 3M-WORK CLAMP-ATLAS 50MMQ

713192
