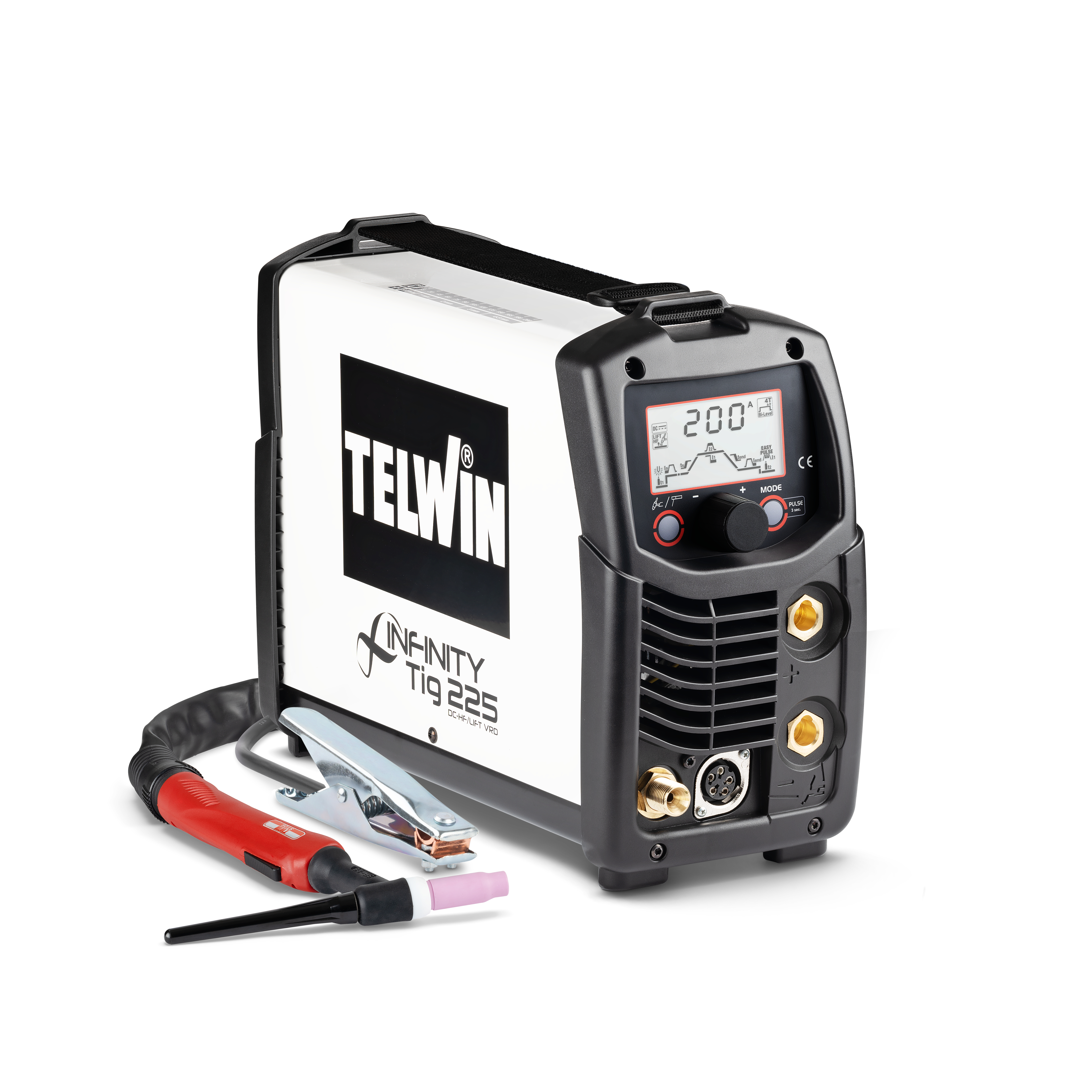

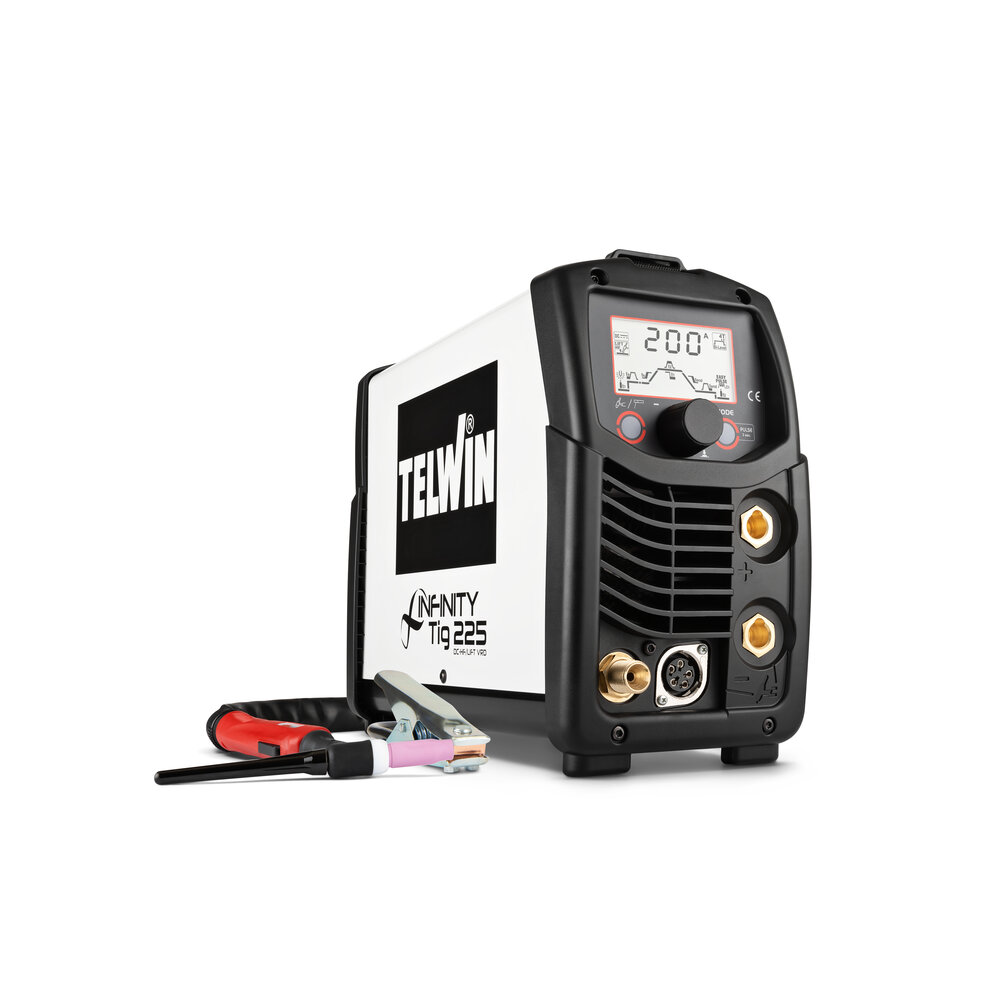

INFINITY TIG 225 DC

INFINITY TIG 225 DC

Download PDF Request Info

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG-EASY PULSE and MMA inverter welding machine in direct current (DC).
Features:

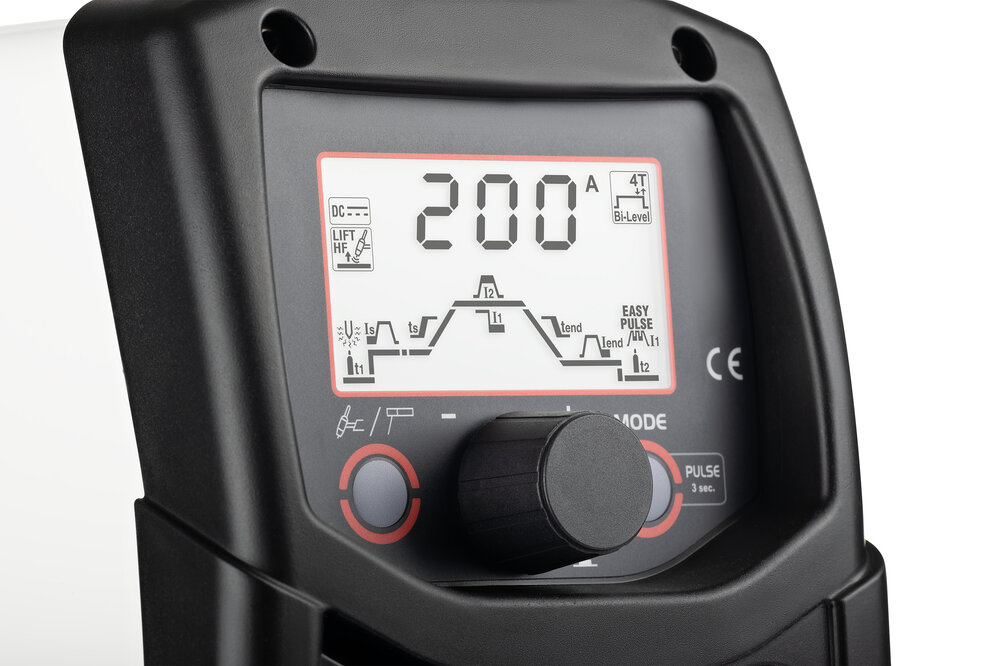

• adjustment of multiple parameters of the TIG welding curve
• 2/4 strokes operation
• remote control connector
• VRD device
• MMA: adjustable arc force and hot start, anti-stick
• protections.
Complete with TIG welding accessories.

CODE

816089

SINGLE PHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE

10 - 200 A

MAX CURRENT

200 @ 25 % A

DC CURRENT

120 A

MAX NO LOAD VOLTAGE

82 V

MAX ABSORBED CURRENT

30 A

ABSORBED CURRENT AT 60%

20 A

MAX ABSORBED POWER

4,7 kW

ABSORBED POWER AT 60%

3,2 kW

EFFICIENCY

89 %

POWER FACTOR

0,7

D. USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS

39 x 15,5 x 29 cm

WEIGHT

6 kg

Catalog Image

Instruction Manual

Spare Parts List

QUICK GAS CONNECTOR

KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM

KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM

KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM

KIT 10 CERIUM-TUNGSTEN ELECTR. D.3,2 MM

KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM

KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM

KIT 3 ELECTRODE HOLDER CLAMPS D.3,2 MM

KIT 10 CERAMIC NOZZLES NR.4

KIT 10 CERAMIC NOZZLES NR.6

KIT 10 CERAMIC NOZZLES NR.7

KIT 10 CERAMIC NOZZLES NR.8

KIT 10 CERAMIC NOZZLES NR.10

KIT 3 ELECTRODE DIFFUSERS D.1 MM

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM

KIT 3 ELECTRODE DIFFUSERS D.2,4 MM

KIT 3 ELECTRODE DIFFUSERS D.3,2 MM

TIG RODS 308L 1.6X500 0.5kg

TIG RODS 308L 2.0X500 0.5kg

ARGON GAS BOTTLE GB-AU ADAPTOR

ARGON GAS BOTTLE DK-N-NL-S-SF ADAPTOR

MMA WELDING KIT 300A 25 MMQ 4+3M AX50

FOOT REMOTE CONTROL 14 POLES

INDUSTRIAL TYPE BOTTLE CONNECTION KIT

RC-20 10 M CONTROL 2POT

VANTAGE DRAGON MMA-MIG/MAG-TIG HELMET

DAKOTA PROFESSIONAL TIG WELDING GLOVES

REMOTE DEVICE

TROLLEY - AMERICA

CLEANTECH 100

GAS REGULATOR 2 MANOMETERS 12 L\min

Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG-EASY PULSE and MMA inverter welding machine in direct current (DC).
Features:
• adjustment of multiple parameters of the TIG welding curve
• 2/4 strokes operation
• remote control connector
• VRD device
• MMA: adjustable arc force and hot start, anti-stick
• protections.
Complete with TIG welding accessories.

CODE

816089

SINGLEPHASE MAINS VOLTAGE

230 V

MAINS FREQUENCY

50 / 60 Hz

CURRENT RANGE IN DC

10 - 200 A

MAX CURRENT DC EN60974-1

200 @ 25 % A

DC CURRENT AT 60%

120 A

MAX NO LOAD VOLTAGE IN DC

82 V

MAX ABSORBED CURRENT

30 A

ABSORBED CURRENT AT 60%

20 A

MAX ABSORBED POWER

4,7 kW

ABSORBED POWER AT 60%

3,2 kW

EFFICIENCY

89 %

POWER FACTOR(cosphi) (cosphi)

0,7

D.USABLE ELECTRODES IN DC

1,6 - 4 mm

PROTECTION DEGREE

IP23

DIMENSIONS (LxWxH)

39 x 15,5 x 29 cm

WEIGHT

6 kg

Catalog Image

Instruction Manual

Spare Parts List

QUICK GAS CONNECTOR

804208

KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM

802220

KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM

802222

KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM

802232

KIT 10 CERIUM-TUNGSTEN ELECTR. D.3,2 MM

802233

KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM

802239

KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM

802240

KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM

802241

KIT 3 ELECTRODE HOLDER CLAMPS D.3,2 MM

802242

KIT 10 CERAMIC NOZZLES NR.4

802244

KIT 10 CERAMIC NOZZLES NR.6

802245

KIT 10 CERAMIC NOZZLES NR.7

802246

KIT 10 CERAMIC NOZZLES NR.8

802247

KIT 10 CERAMIC NOZZLES NR.10

802248

KIT 3 ELECTRODE DIFFUSERS D.1 MM

802249

KIT 3 ELECTRODE DIFFUSERS D.1,6 MM

802250

KIT 3 ELECTRODE DIFFUSERS D.2,4 MM

802251

KIT 3 ELECTRODE DIFFUSERS D.3,2 MM

802252

TIG RODS 308L 1.6X500 0.5kg

804364

TIG RODS 308L 2.0X500 0.5kg

804365

ARGON GAS BOTTLE GB-AU ADAPTOR

432102

ARGON GAS BOTTLE DK-N-NL-S-SF ADAPTOR

432160

MMA WELDING KIT 300A 25 MMQ 4+3M AX50

801081

FOOT REMOTE CONTROL 14 POLES

802017

INDUSTRIAL TYPE BOTTLE CONNECTION KIT

802067

RC-20 10 M CONTROL 2POT

802336

VANTAGE DRAGON MMA-MIG/MAG-TIG HELMET

802614

DAKOTA PROFESSIONAL TIG WELDING GLOVES

802632

REMOTE DEVICE

802810

TROLLEY - AMERICA

803084

CLEANTECH 100

850000

GAS REGULATOR 2 MANOMETERS 12 L\min

722119
